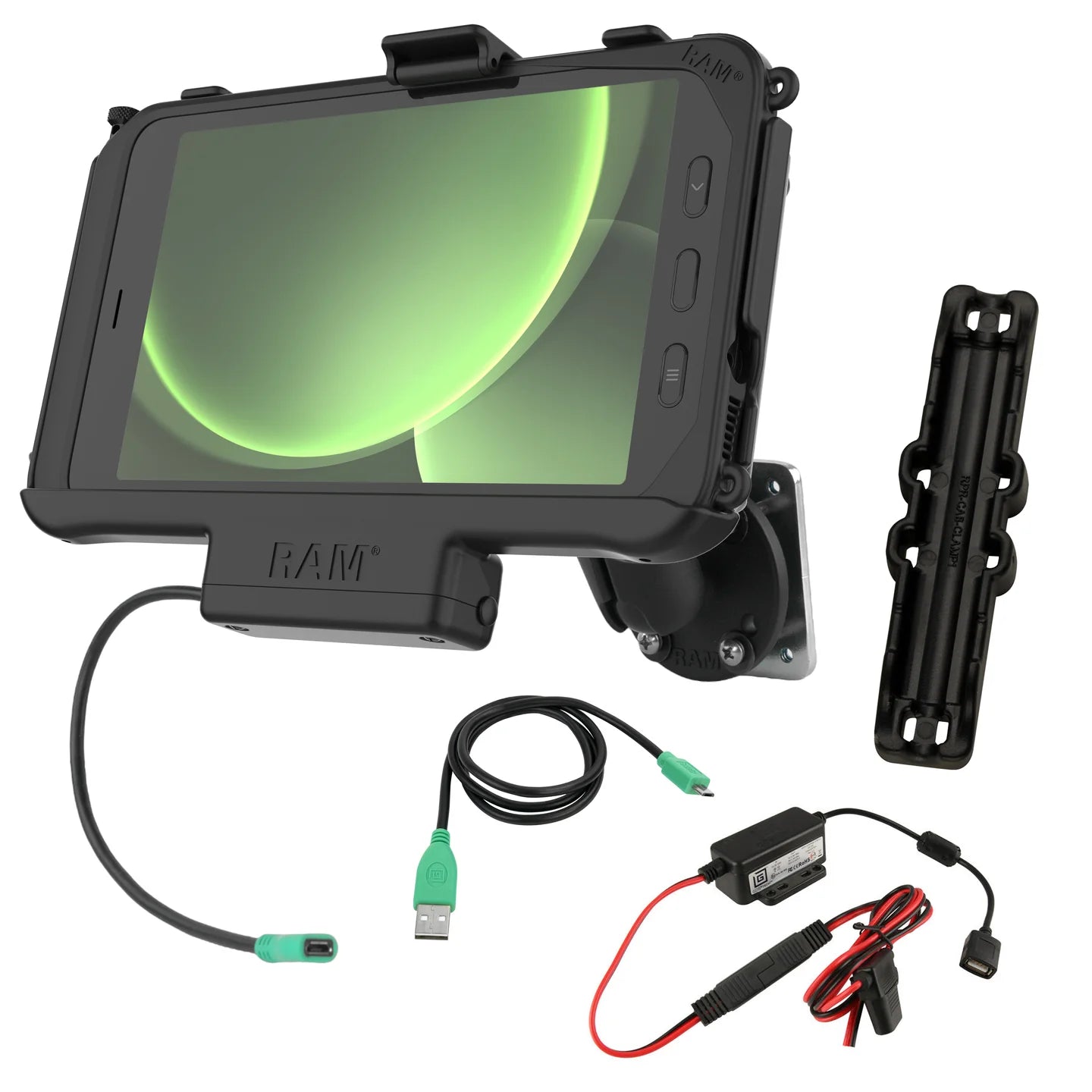

RAM® EZ-Roll'r™ Powered Mount for Samsung Tab Active5 & 3 - RAM-B-101-225B2-SAM60P-V7B1U

Discontinued Item. USBC connection is the direct replacement. RAM-101-225B2-SAM60CP-V7CU

RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung GalaxyTab Active5,Tab Active3 and 2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

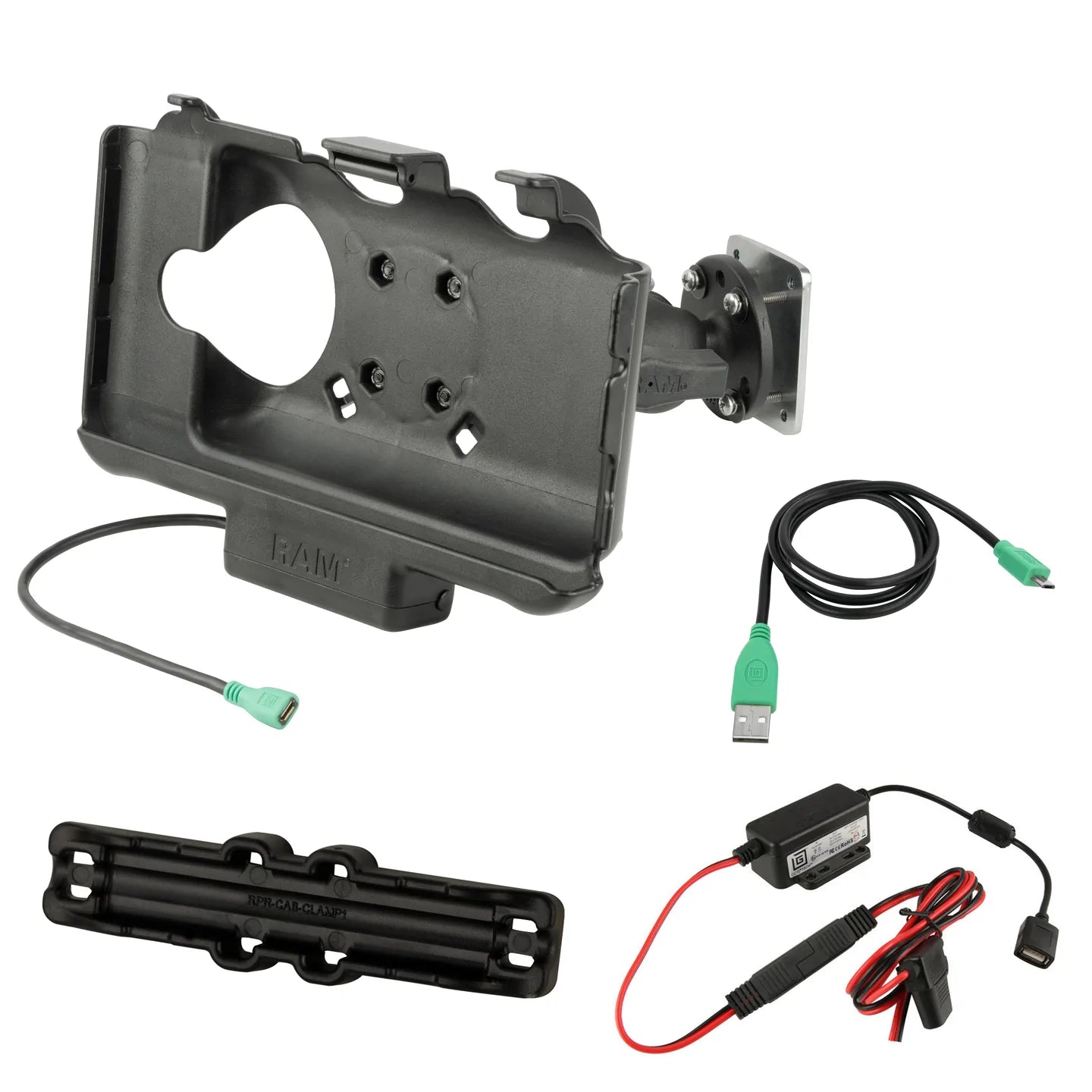

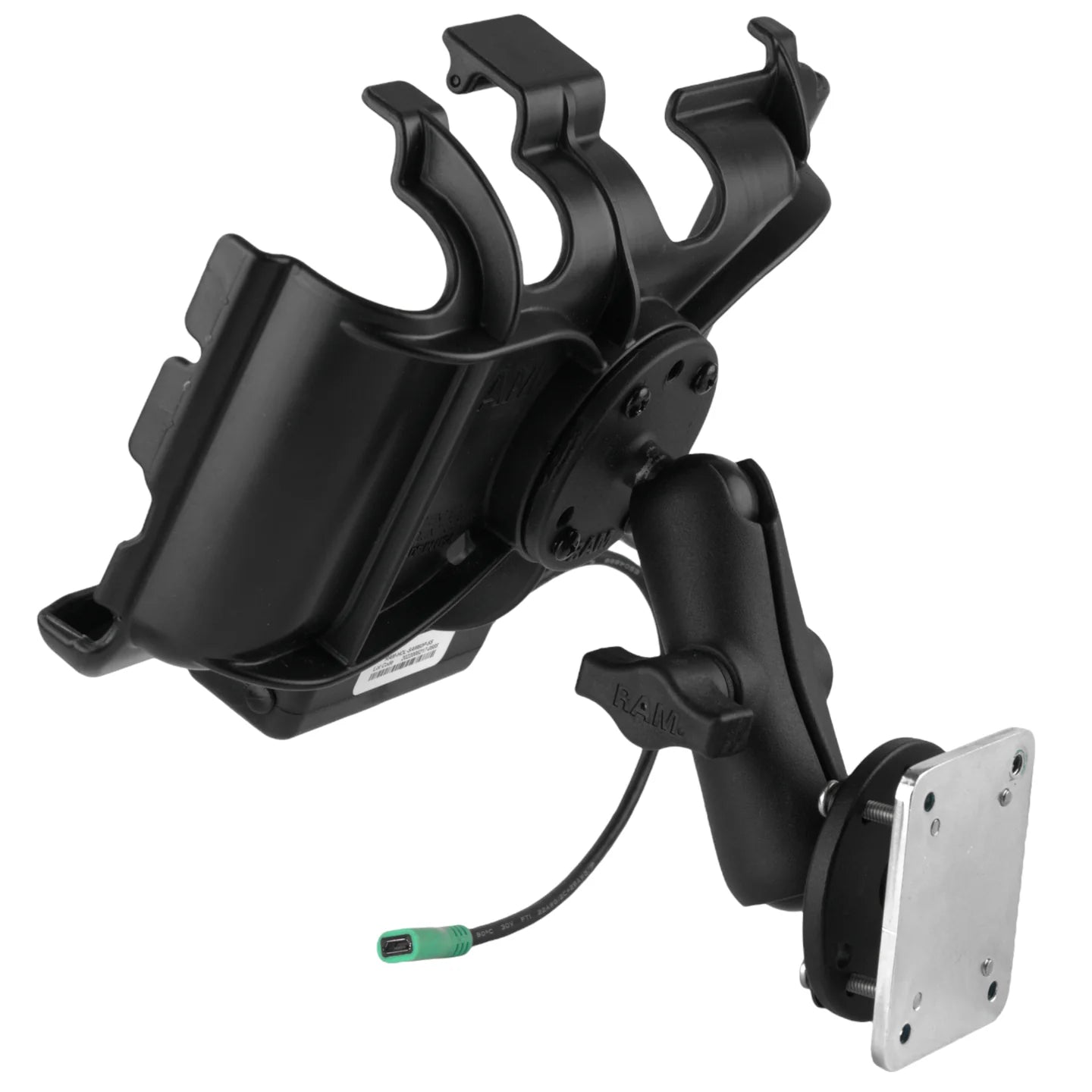

This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the GalaxyTab Active5, Tab Active3 and 2.

• RAM^® EZ-Roll'r^™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and mUSB cable
• Compatible with the Samsung OEM skin as well as the RAM^® Skin^™; built-in cavity in the back allows for GDS^® Hand-Stand^™ compatibility
• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS^® shoulder strap loops on RAM^® Skin^™
• Backed by a 3-year warranty

Discontinued Item. USBC connection is the direct replacement. RAM-101-225B2-SAM60CP-V7CU

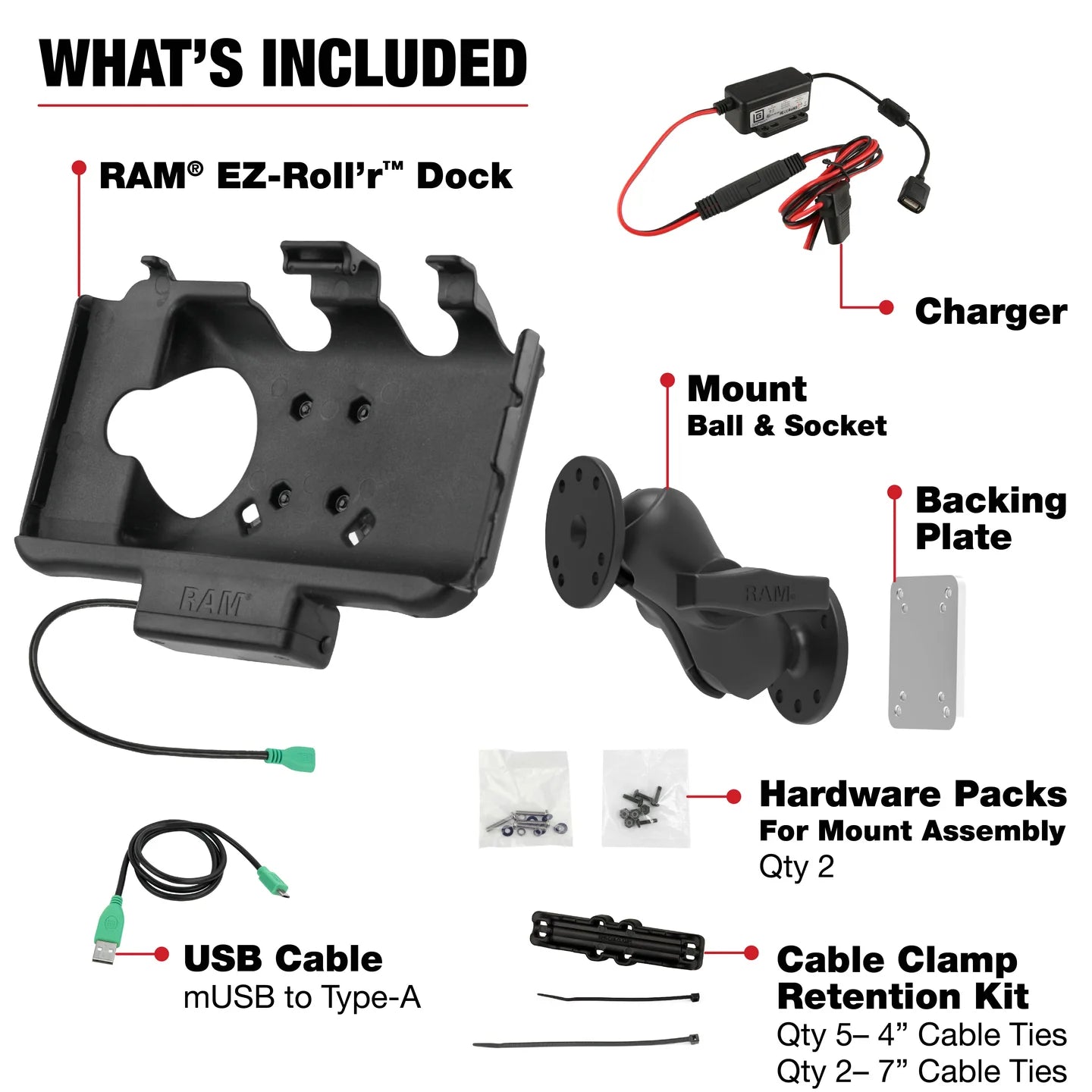

HARDWARE INCLUDED:
Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers (1) Cable Clamp (1) mUSB Cable (1) Hardwire Charger

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

MATERIALS:
Steel Marine-grade alluminum High strength composite

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
10V - 30V DC

OUTPUT VOLTAGE:
5-9VDC*

OUTPUT CURRENT:
2.5A max

INPUT CONNECTOR:
mUSB 2.0 Female

INPUT CABLE LENGTH:
.21 Meter

OPERATING TEMPERATURE:
-10°C to +70°C

STORAGE TEMPERATURE:
-40°C to +70°C

COMPLIANCE Overvoltage/Load Dump Compliance: Meets SAE J-1113:


CERTIFICATIONS Integrated Short Circuit Protection FCC, Industry Canada, CE, WEEE, e-Mark and RoHS Compliant:
USB 2.0 BC 1.2 DCP Support

WEIGHT:
1.95 lb

ADDITIONAL INFORMATION:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

COMPATIBLE DEVICES

Samsung:

• Galaxy Tab Active5

• Galaxy Tab Active3

• Galaxy Tab Active2

Discontinued Item. USBC connection is the direct replacement. RAM-101-225B2-SAM60CP-V7CU
