RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3 - RAM-101-225B2-SAM60CP-V7CU

RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

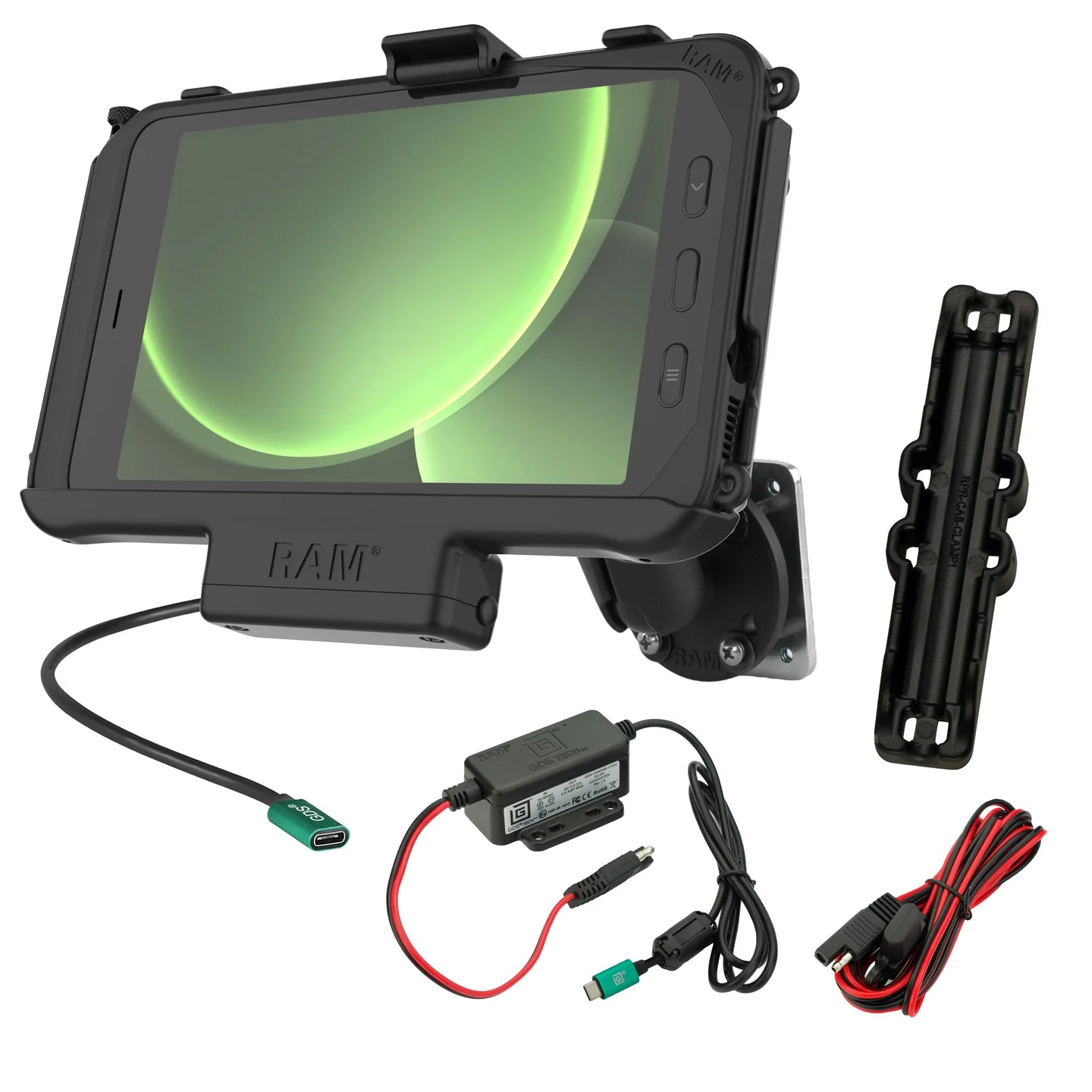

This ultra low-cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.

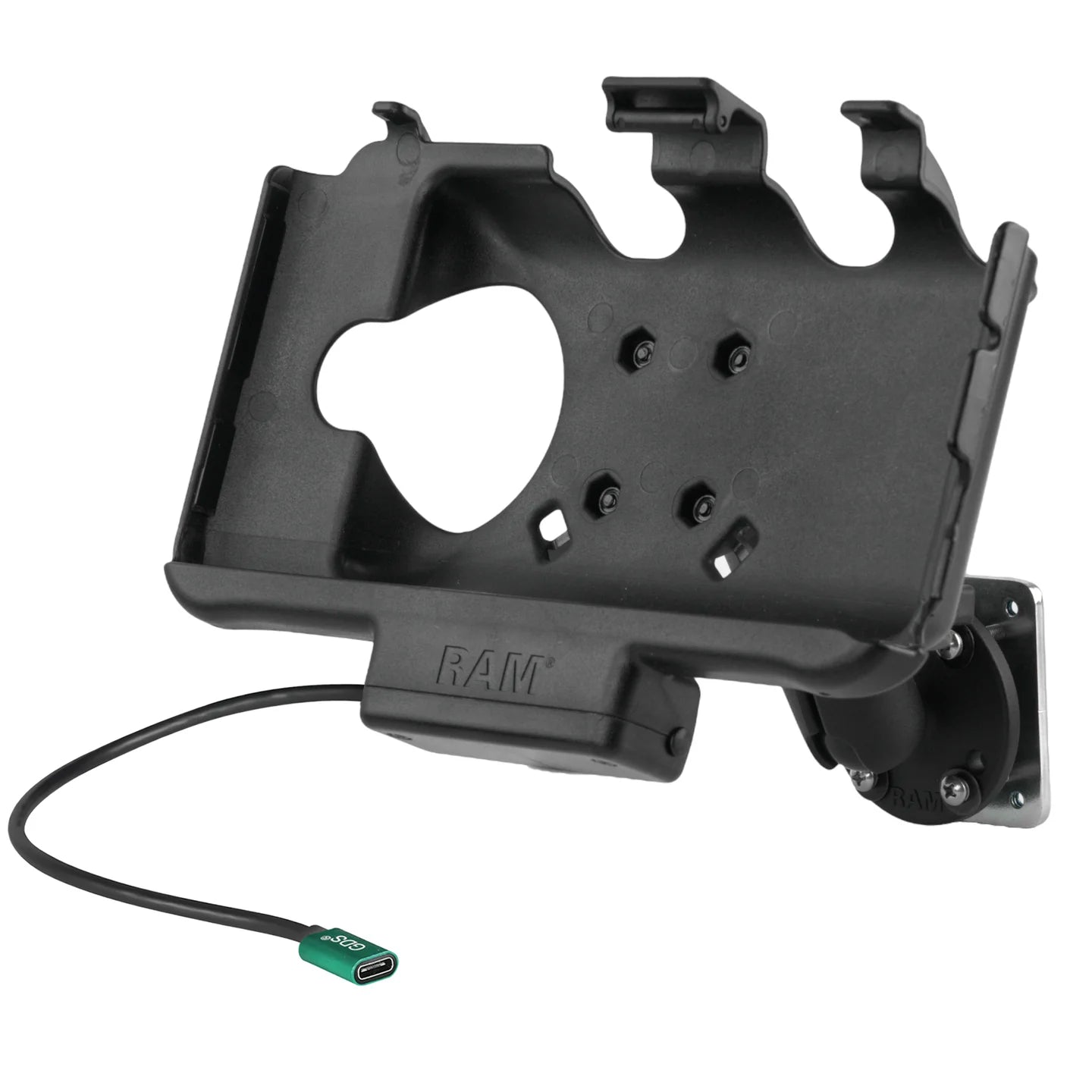

• RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable

• Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

• Backed by a 3-year warranty

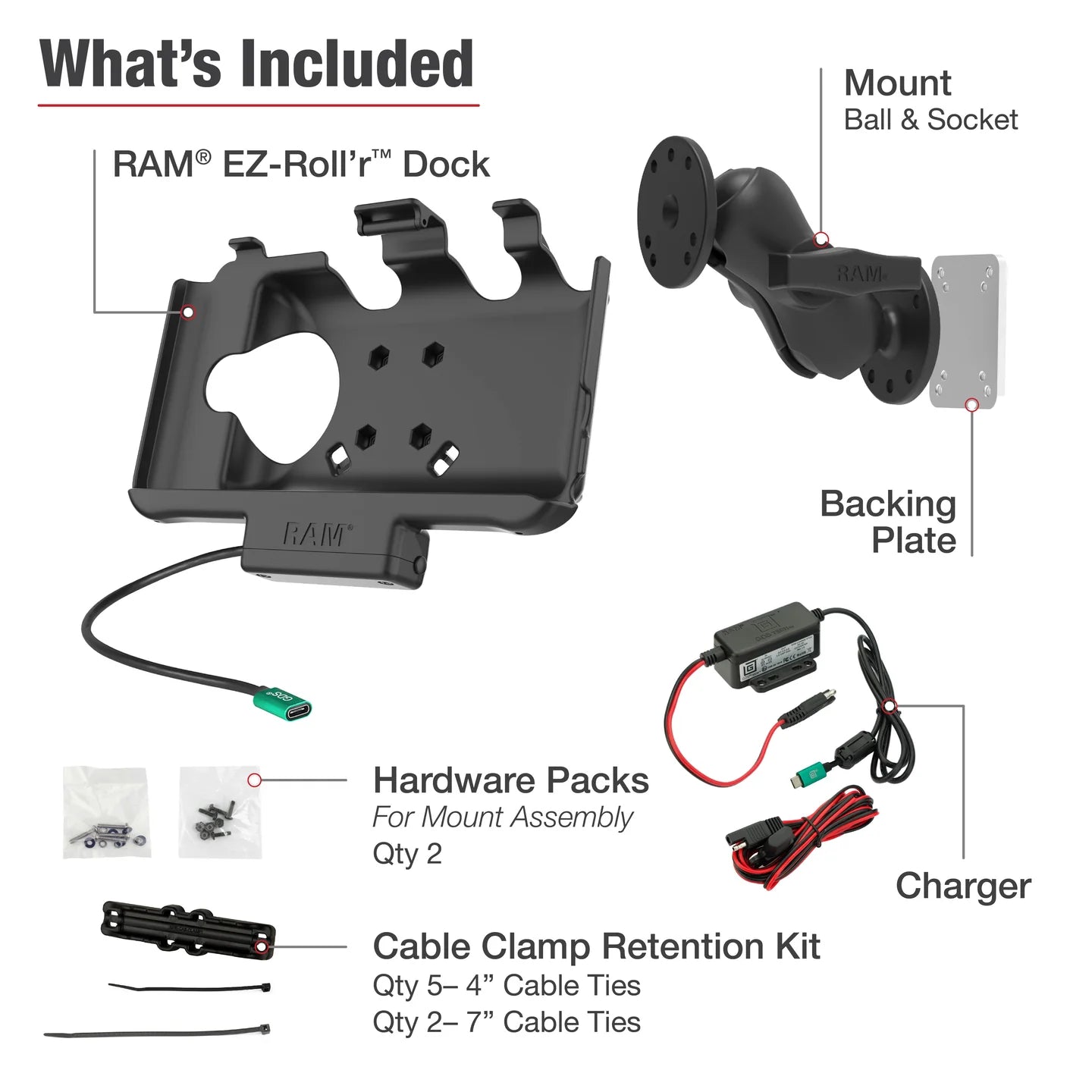

HARDWARE INCLUDED
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Hardwire Charger

SOCKET TO SOCKET LENGTH
3"

BALL SIZE
B Size (1")

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
Steel
Marine-grade alluminum
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

OPERATING TEMPERATURE
-10°C to +70°C

STORAGE TEMPERATURE
-40°C to +70°C

REGULATORY
Overvoltage/Load Dump Compliance: Meets SAE J-1113
FCC, CE, UKCA, IC

CERTIFICATIONS
E-Mark Certification
Integrated Short Circuit Protection
WEEE and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
IEC/UL 62368-1

WEIGHT
1.88 lb

IMPORTANT INFORMATION
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

This product will not support the "No Battery Mode" function of the Tab Active3.

COMPATIBLE DEVICES

Samsung:

• Galaxy Tab Active5

• Galaxy Tab Active3

• Galaxy Tab Active2
