RAM-B-101U-CR1
Out of Stock
( Chat Live to get an ETA )

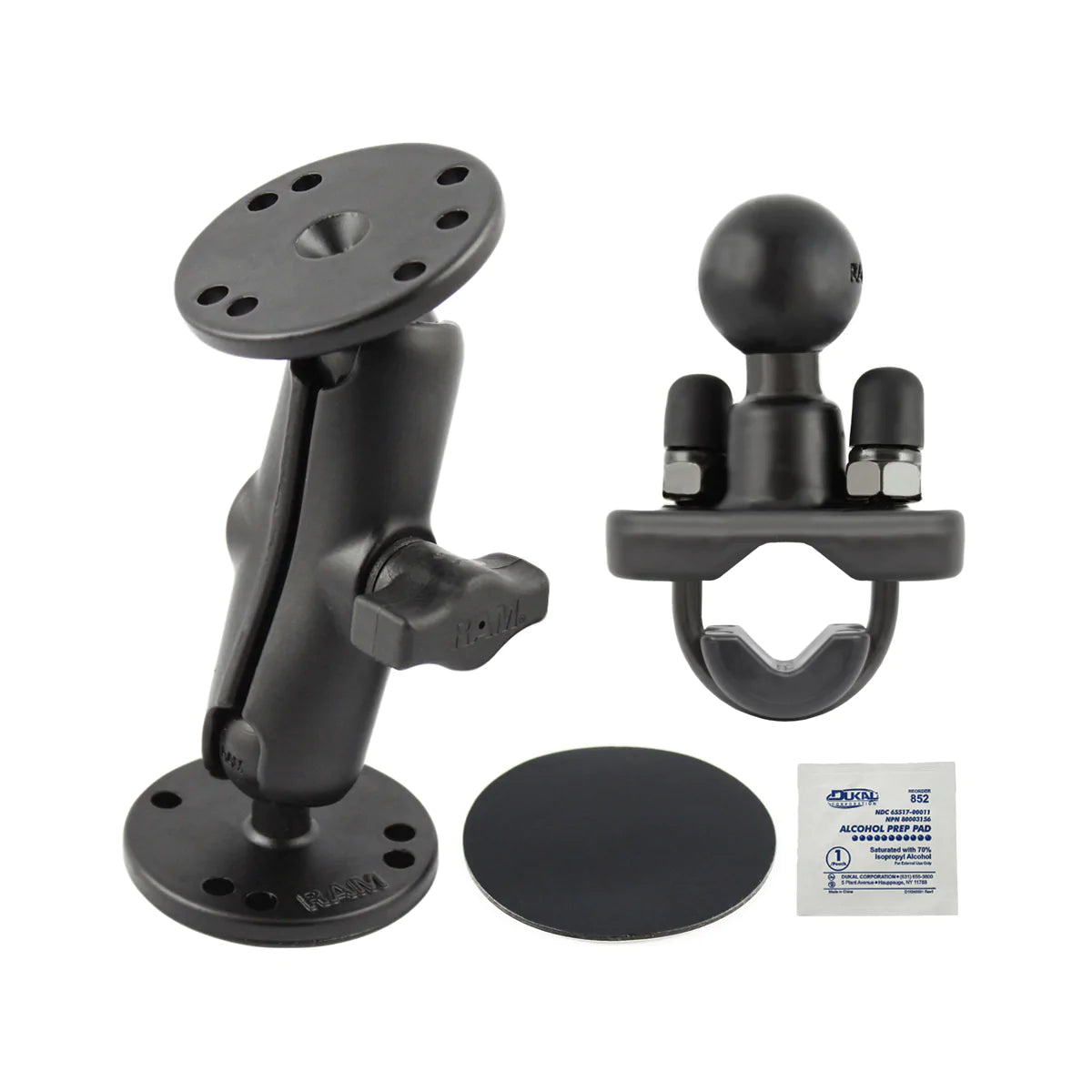

The RAM-B-101U-CR1 consists of a medium length B-size arm with two 2.5" diameter round plates with universal AMPS hole pattern. This mount also includes a 2.5" diameter double sided adhesive pad and a U-Bolt base with 1" diamter B-size ball. The U-Bolt base is compatible with round rails between .5" and 1.25" in diameter. HARDWARE INCLUDED:
Description Information
(1) 2 7/16" Double Adhesive Pad
(1) Alcohol Prep Pad
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE:
.5" - 1.25" diameter
SOCKET TO SOCKET LENGTH:
3"
HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL SIZE:
B Size (1")
WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS:
Marine-grade aluminum
PACKAGING TYPE:
Poly Bag
WEIGHT:
1.19 lb
Hardware Breakdown Additional Hardware
Locking Knobs for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size Socket Arms -
RAP-S-KNOB3U
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms -
RAM-KNOB3LSU
RAM® Pin-Lock™ Security Knob with 7-Pin Pattern for B Size Socket Arms -
RAP-S-KNOB3-7U
Accessories for AMPS Pattern Base Components
RAM® Roto-View™ Adapter Plate -
RAM-HOL-ROTO1U
RAM® Backing Plate Adapter -
RAM-202-225B-2U
RAM® Backing Plate Adapter -
RAM-202-225B-2U
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms -
RAM-B-273U
