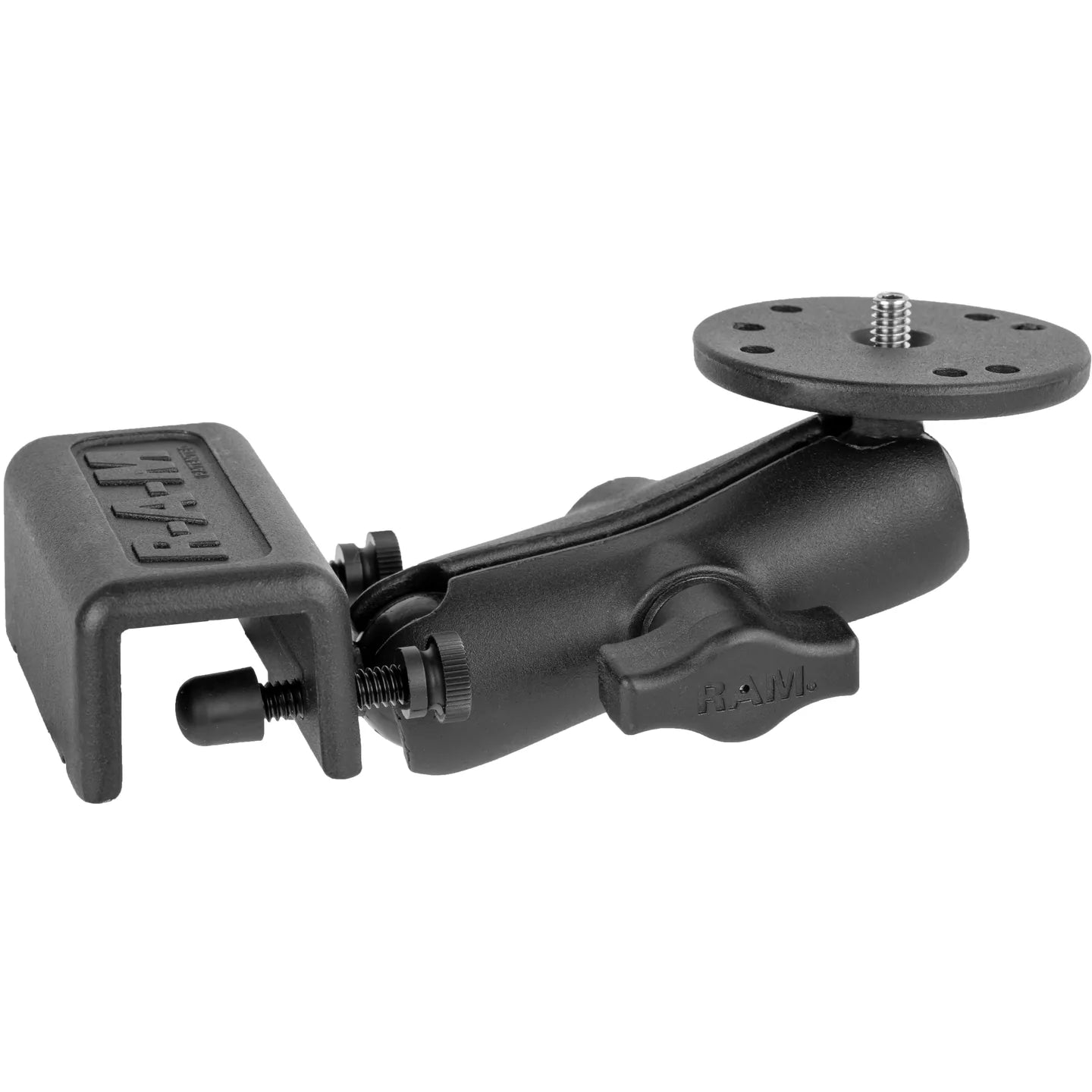

RAM® Glare Shield & Window Scope Camera Mount - RAM-B-127U

The RAM-B-127 consists of a medium length B-size double socket arm with a 2.5" diameter round plate with universal AMPS hole patternand a removable 1/4"-20 threaded post on one side and a glare sheild clamp base on the other side. The glare sheild clamp base is suitable for the edges of glare shields or other sturdy surfaces up to .625" thick.

HARDWARE INCLUDED:
Assembly Hardware

CLAMP RANGE:
.625" max

SOCKET TO SOCKET LENGTH:
3"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.8 lb
