RAM® Twist-Lock™ Suction Cup for TomTom Rider 2 & Urban Rider - Medium - RAM-B-166-347U-TOM1

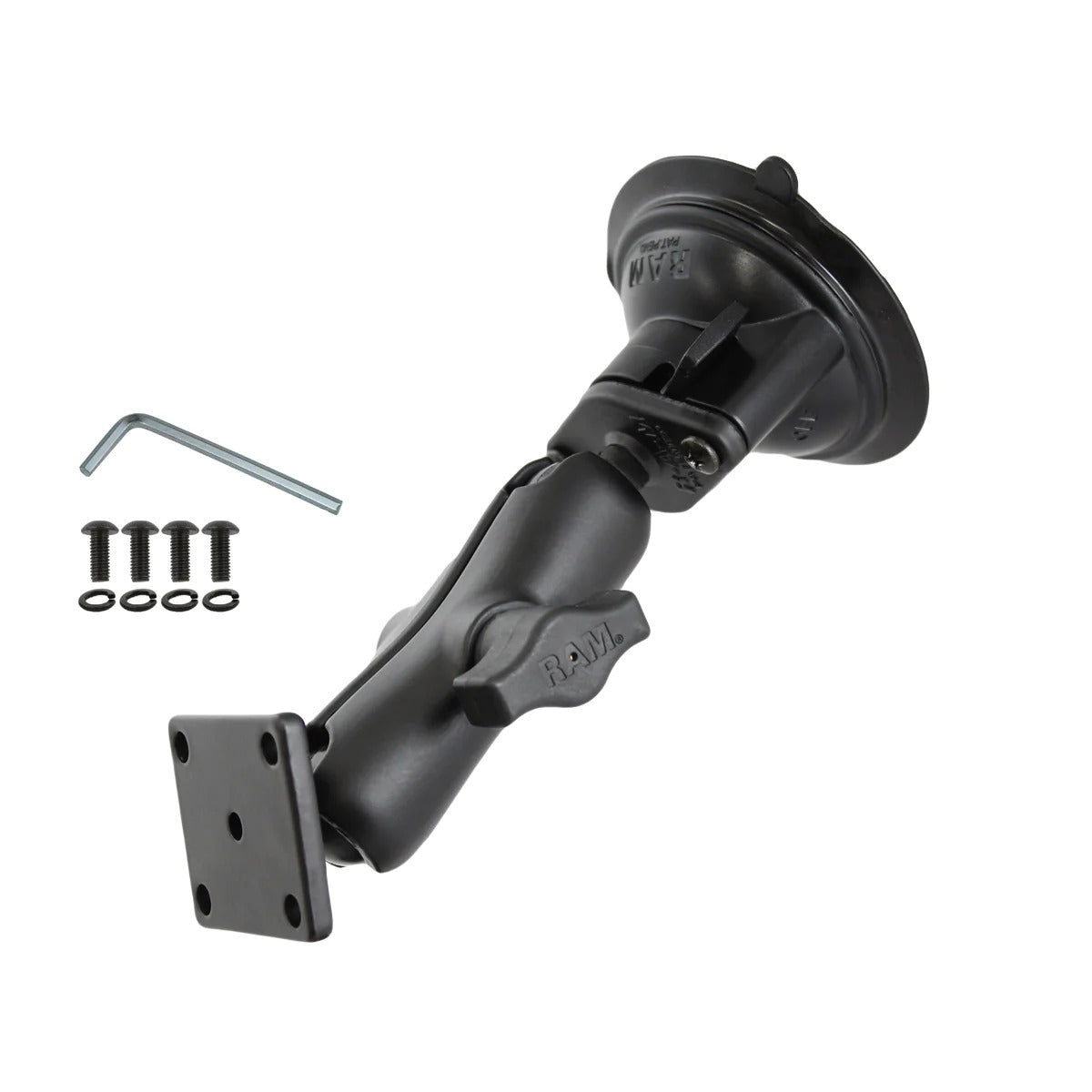

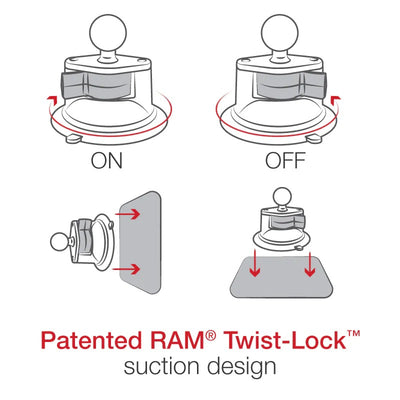

The RAM-B-166-347U-TOM1 consists of a 3.3" suction cup twist lock base, double socket arm, 2" x 1.7" plate and custom hardware for the TomTom Rider 2/Urban Rider. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included hardware allows attachment of the TomTom Rider 2/Urban Rider to the mount.

HARDWARE INCLUDED:
Assembly Hardware
(4) M5 x 12mm Machine Screws
(4) M5 Stainless Steel Lock Washers
(1) M3 Hex Key Wrench

PRODUCT DIMENSIONS:
Overall Height: 6.69"

SUCTION SIZE:
3.3" Diameter

SOCKET TO SOCKET LENGTH:
3"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.66 lb

COMPATIBLE DEVICES

• TomTom:

  Rider 2
  Urban Rider
