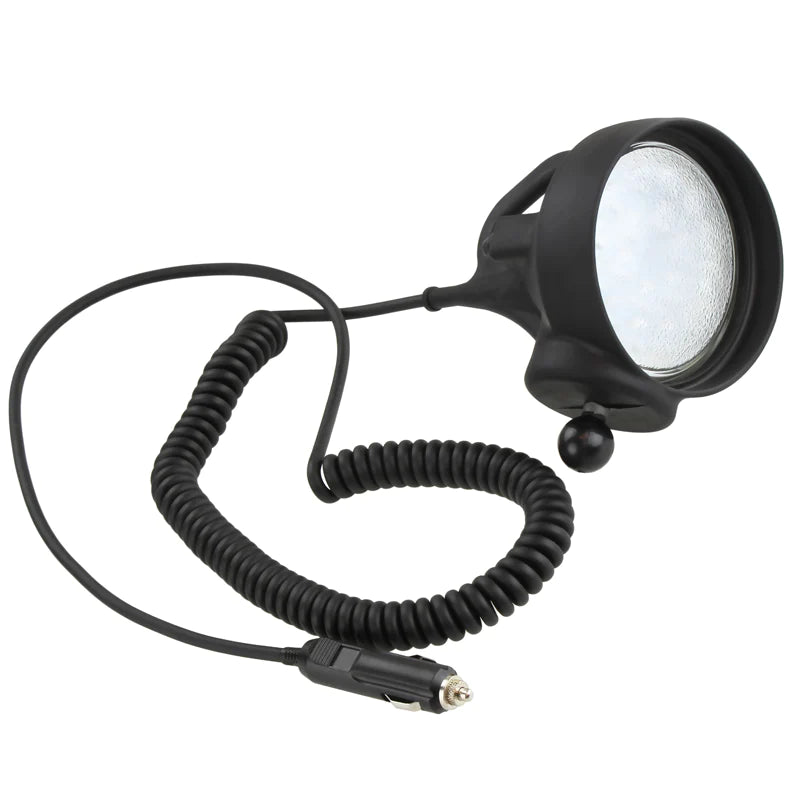

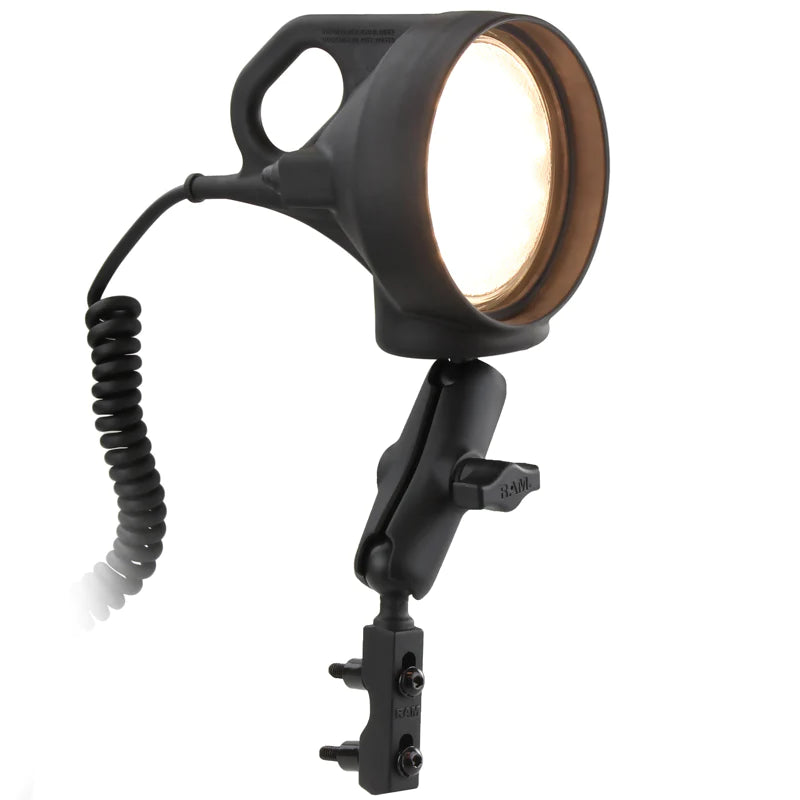

RAM® Brake/Clutch Reservoir Mount with LED Spotlight - RAM-B-174-152U

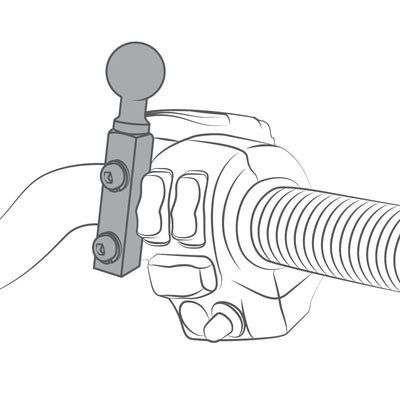

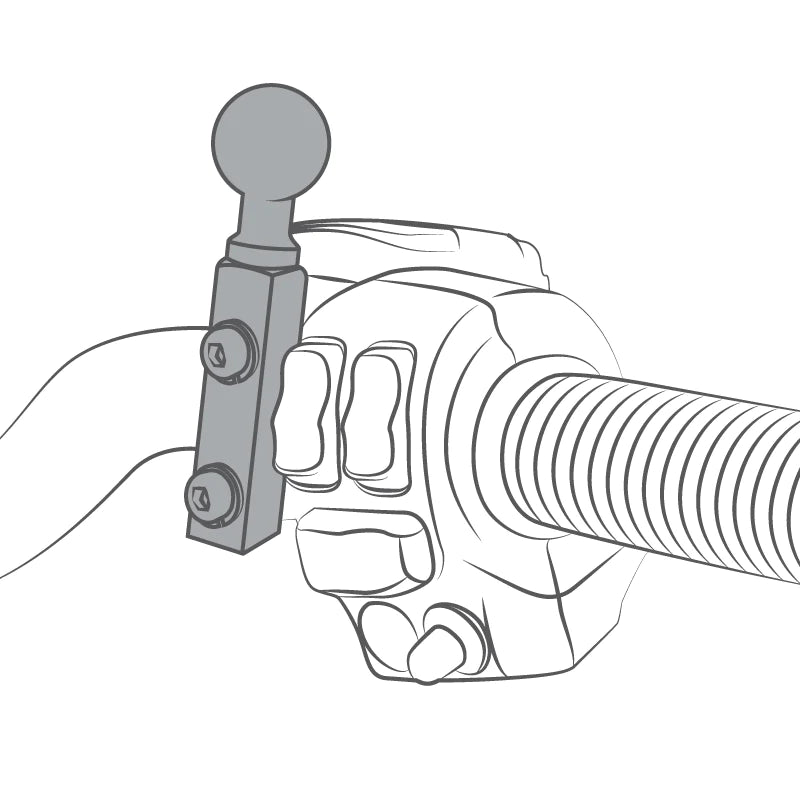

The RAM-B-174-152U consists of a 1" dia. ball rubber coated LED spotlight with brake/clutch reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot points, rubber ball and socket technology allows for almost infinite adjustment and perfect positioning angles.

HARDWARE INCLUDED:
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

BULB SPECIFICATIONS:
PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K Color Temp

CLAMP RANGE:
.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum
Rubber

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.51 lb
