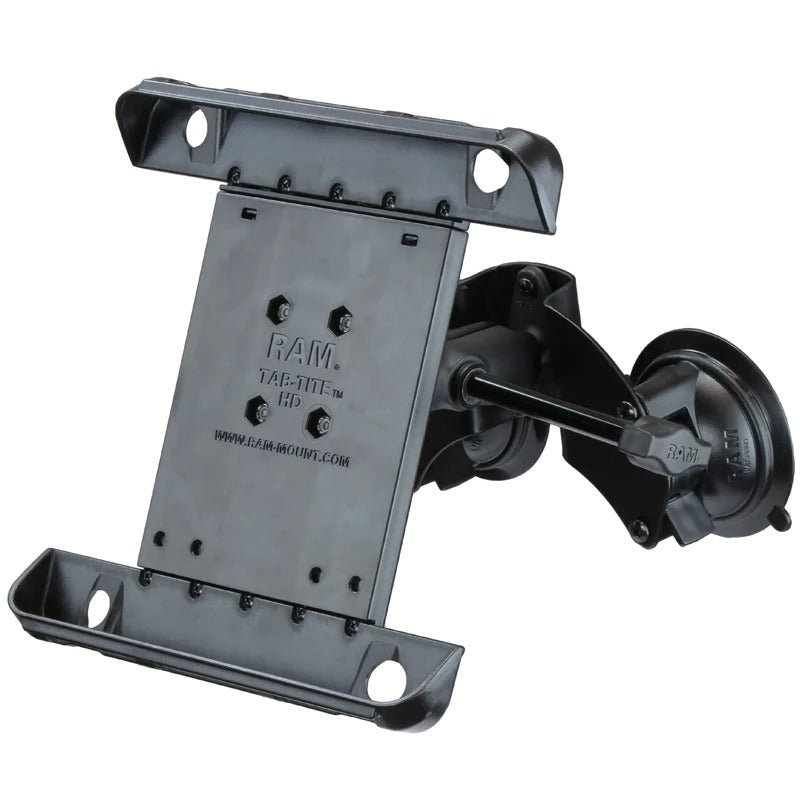

RAM® Tab-Tite™ Dual Suction Mount for iPad Gen 1-4 - Extension Knob - RAM-B-189-TAB3-ALA1U

The RAM-B-189-TAB3-ALA1U consists of a double 3.3" twist lock suction cup base, double socket arm, round base adapter, extended retention knob and Tab-Tite™ universal clamping cradle. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED:
Assembly Hardware

HOLDER DIMENSIONS:
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"


SUCTION SIZE:
(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
1.66 lb

COMPATIBLE DEVICES

• Apple:

  iPad (1st Generation)
  iPad (2nd Generation)
  iPad (3rd Generation)
  iPad (4th Generation)
  iPad Air 4
  iPad Air 5
  iPad Pro 11"
  iPad Pro 11" (2020)
  iPad Pro 11" (2021)

• ASUS:

  MeMO Pad FHD 10
  Transformer Pad

• Dell:

  Venue 10 7000
  Venue 11 Pro 7000

• HP:

  ElitePad 900
  ElitePad 900 G1
  Pro 610

• Lenovo:

  S6000
  Tab A10
  ThinkPad 10
  Yoga Tablet 10
  Yoga Tablet 10 HD+
  Yoga Tablet 2 (10 inch)
