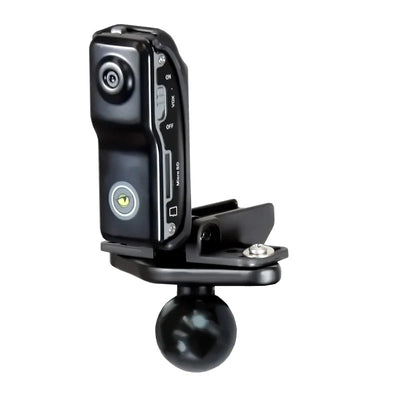

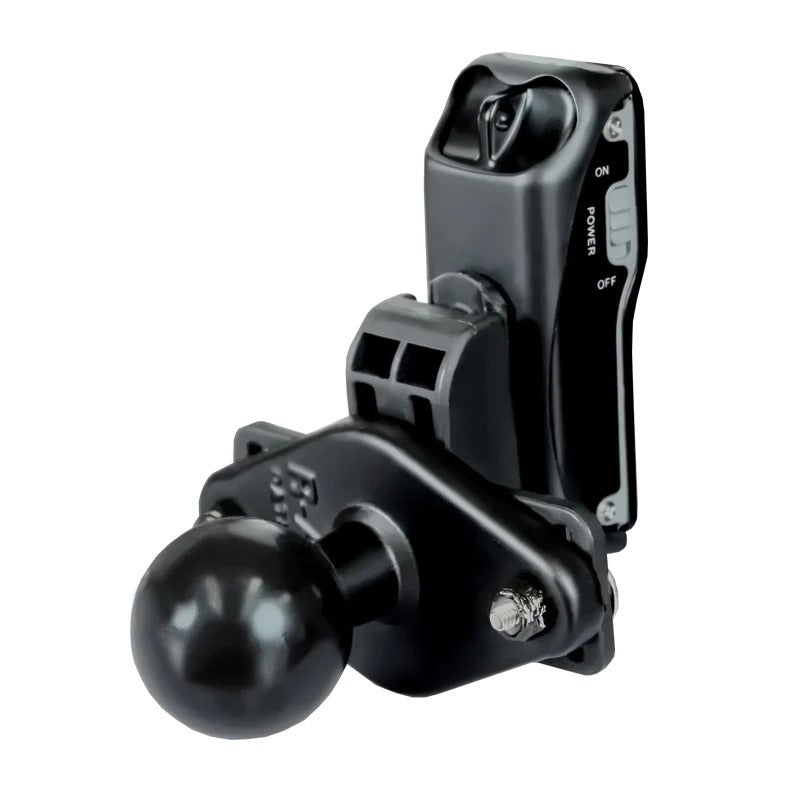

RAM® Diamond Ball Adapter with Mounting Hardware for Venom Cameras - RAM-B-238-VEN1U

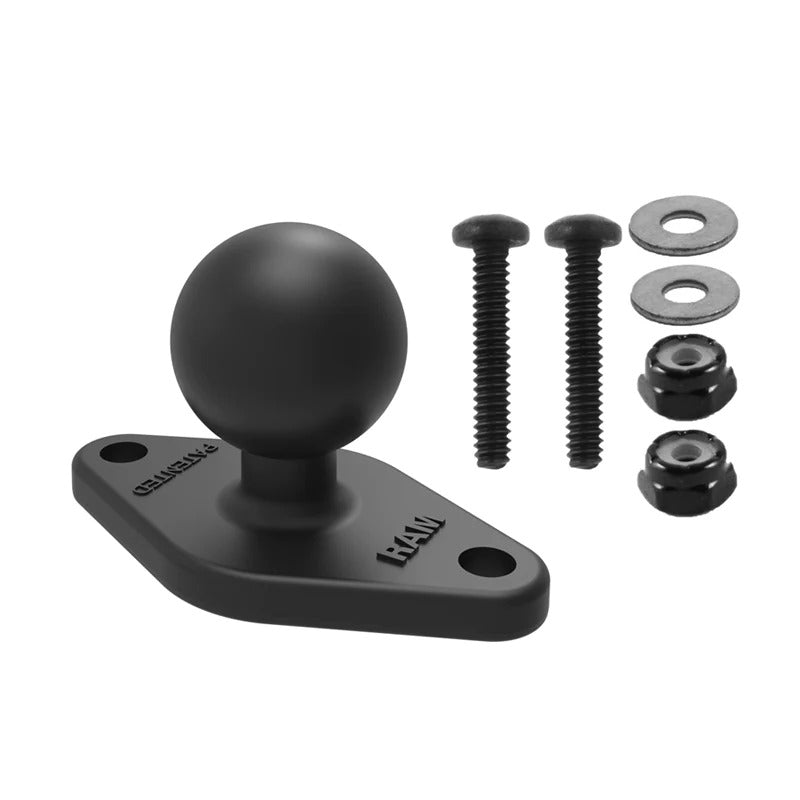

The RAM-B-238-VEN1U consists of a 1" diameter rubber ball connected at right angles to a 1.25" x 2.5" inch diamond base. The base has two holes 1.912" from center to center, positioned at both ends of the diamond base. Included is hardware that will attach the adaptor base directly to the Venom camera factory cradle.

HARDWARE INCLUDED:
(2) #4-40 x 5/8" Machine Screws
(2) #4-40 Nylock Nuts
(2) #6 Stainless Steel Washers

HOLE PATTERN:
2-Hole AMPS: 1.912"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.12 lb

• Venom:

  Cameras
