RAM® X-Grip® Large Phone Mount with Motorcycle Handlebar Clamp Base - RAM-B-367-UN10U

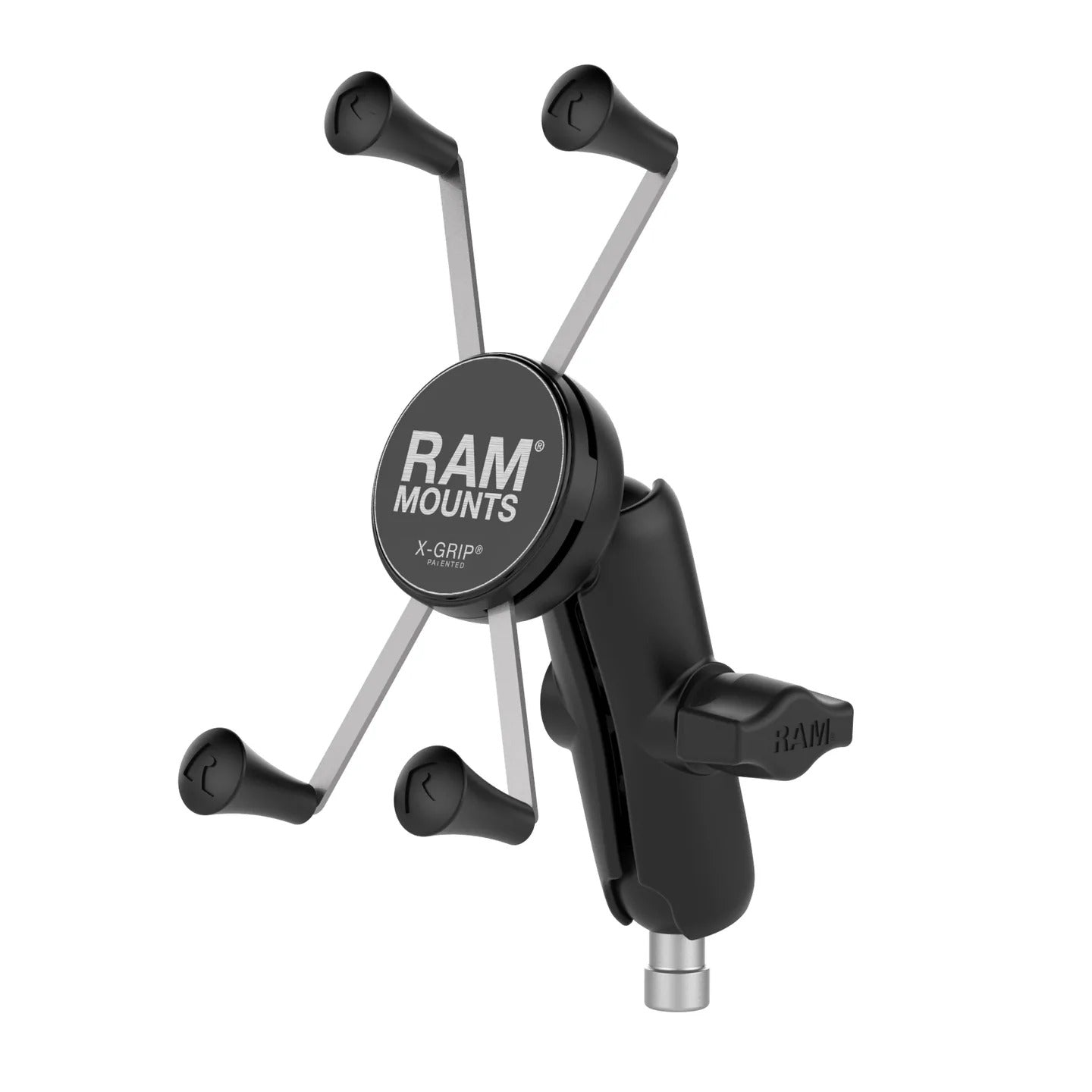

The RAM-B-367-UN10U consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip^® cradle. This mount will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the center. The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip^® IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip^® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

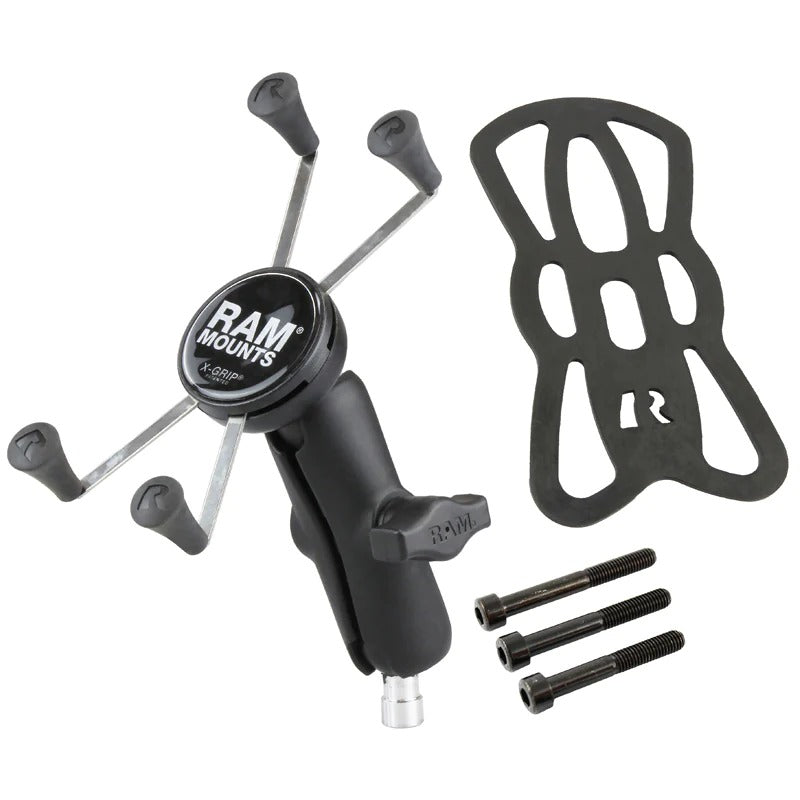

HARDWARE INCLUDED:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw


HOLDER DIMENSIONS:

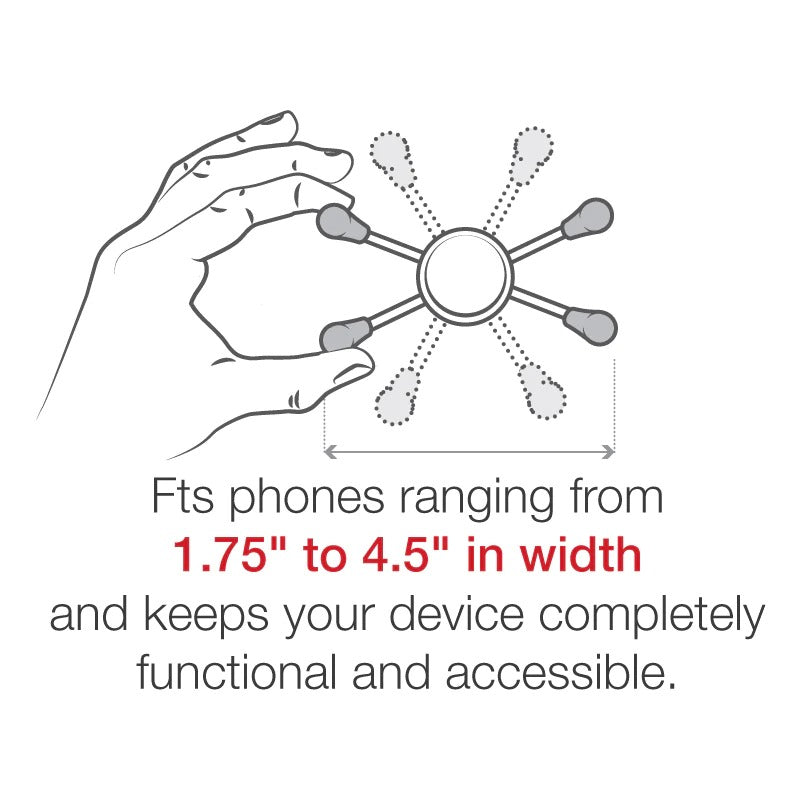

Width Range: 1.75" - 4.5"
Depth Range: .875" max

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum
High strength composite
Stainless steel


WEIGHT:
0.75 lb

ADDITIONAL INFORMATION:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

COMPATIBLE DEVICES

• Apple:

  iPhone 6s Plus
  iPhone 7 Plus
  iPhone 8 Plus
  iPhone Xs Max
  iPhone 11 Pro Max
  iPhone 12 Pro Max
  iPhone 13 Pro Max
  iPhone 14 Plus
  iPhone 14 Pro Max

• BlackBerry:

  Evolve X

• Blackview:

  BV9900
  BV9900 Pro

• Cat:

  S42
  S62
  S62 Pro

• Garmin:

  Drive 50
  Drive 51 LM
  Drive 52
  Drive 61 LM
  DriveSmart 51 LMT-S
  DriveSmart 61 LMT-S
  DriveTrack 71
  Nuvi 2788LM
  RV 660LMT
  RV 770 LMT-S

• Google:

  Pixel 2 XL
  Pixel 3 XL
  Pixel 3a XL
  Pixel 7 Pro

• HTC:

  Bolt
  U Ultra

• Huawei:

  Mate 20 X

• Kyocera:

  DuraSport 5G

• LG:

  Fiesta 2 LTE
  Fiesta LTE
  G8S ThinQ
  Harmony
  Stylo 2 V
  Stylo 3
  Stylo 3 Plus Titan
  Stylo 4
  V20
  V50 ThinQ
  X charge
  X venture

• Magellan:

  TR5
  TR7

• Motorola:

  moto e4 plus
  moto g4
  moto z2
  moto z2 play
  moto z3

• Rand:

  McNally Road Explorer 5
  McNally TND 540

• Razer:

  Phone 2

• Samsung:

  Galaxy A7
  Galaxy A7 (2017)
  Galaxy A7 (2018)
  Galaxy A8
  Galaxy A8 (2016)
  Galaxy A9 (2016)
  Galaxy A9 Pro (2016)
  Galaxy A9 (2018)
  Galaxy A70
  Galaxy A80
  Galaxy A90 5G
  Galaxy C7
  Galaxy C7 Pro
  Galaxy C9 Pro
  Galaxy E7
  Galaxy Grand Neo Plus
  Galaxy J7
  Galaxy J7 Max
  Galaxy J7 V
  Galaxy Note 5
  Galaxy Note 10 Plus
  Galaxy Note20 Ultra
  Galaxy On7
  Galaxy S10 5G
  Galaxy S8
  Galaxy S8 Active
  Galaxy S21 5G
  Galaxy S21+ 5G
  Galaxy S21 Ultra 5G
  Galaxy S22 Ultra 5G

• Sonim:

  RS60

• Sony:

  Xperia C4
  Xperia L2
  Xperia XA Ultra
  Xperia XA1 Ultra
  Xperia XA2 Ultra
  Xperia XZ Premium
