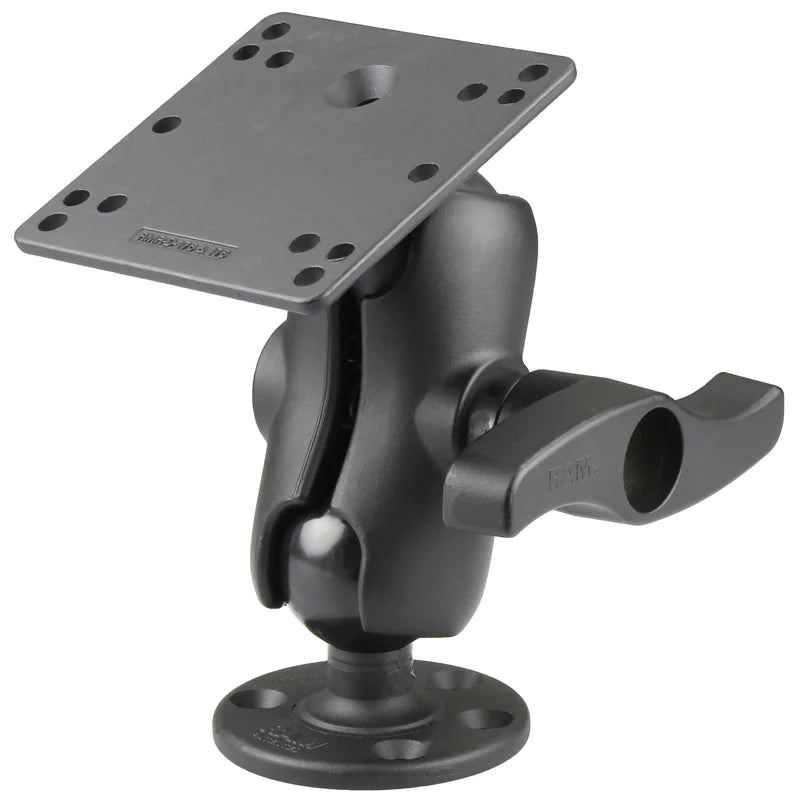

RAM® Double Ball Mount with 100x100mm VESA Plate and Large Knob - Short - RAM-D-101U-C-NEC2

The RAM-D-101U-C-NEC2 consists of a 3.68" diameter round base, SHORT length double socket arm (large knob) and 4.75" square plate with the VESA hole pattern. The 4.75" square plate has 4x100mm holes and 4x75mm holes in each corner. The 3.68" diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

PRODUCT DIMENSIONS:
Overall Height: 7.875"

SOCKET TO SOCKET LENGTH:
3.6"

HOLE PATTERN:
See Drawings

BALL SIZE:
D Size (2.25")

WEIGHT CAPACITY:
Standard Use: 6 lbs Heavy-Duty Use: 5 lbs

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
3.25 lb

  RAM® Large Round Plate with Ball - D Size RAM-D-202U

RAM® Double Socket Arm with Large Knob - D Size Short - RAM-D-201U-C-NEC2

  RAM® 100x100mm VESA Plate with Ball - D Size RAM-D-246U
