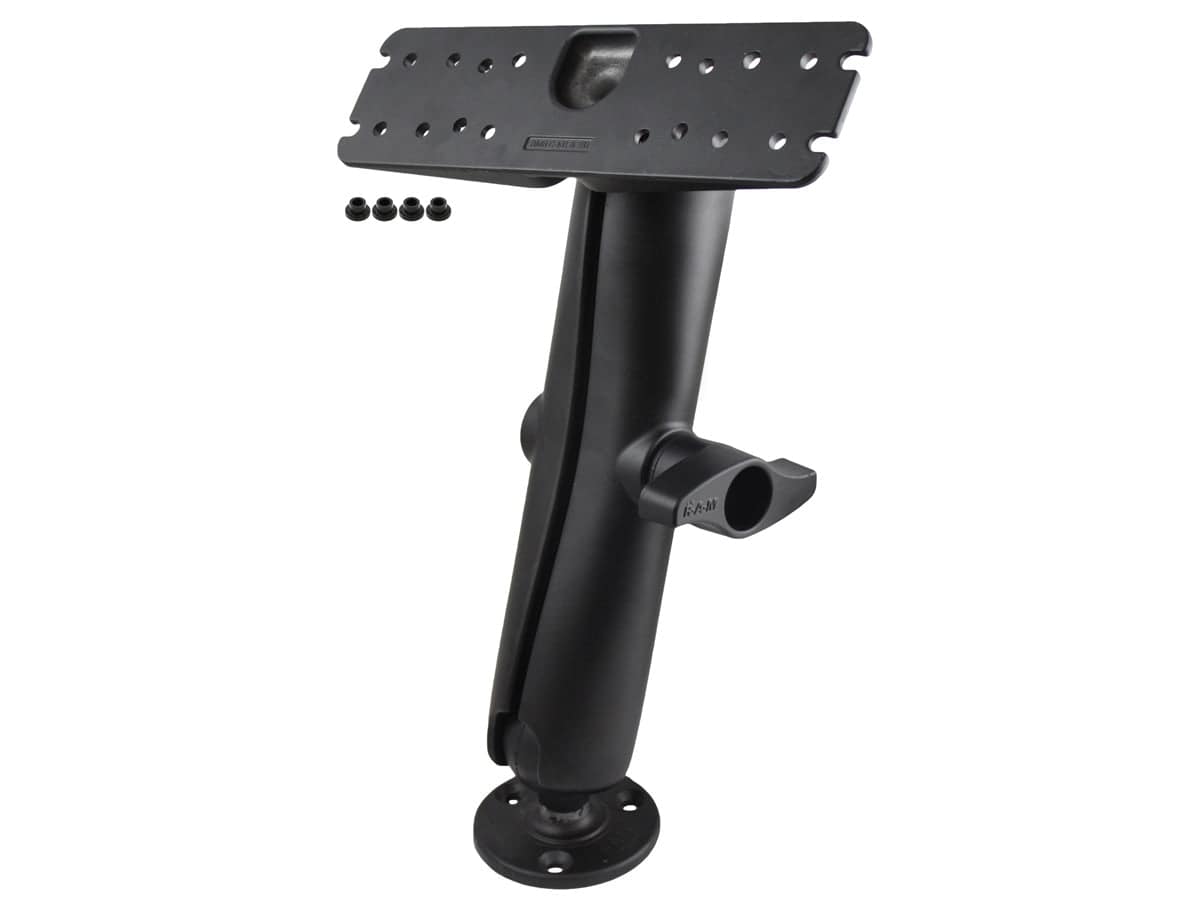

RAM D Size 2.25" Diameter Ball Mount with 3.68" Round Plate, Long Length Double Socket Arm & 11" X 3" Rectangle Plate - RAM-D-111U-E

The RAM-D-111U-E consists of a 3.68" diameter round base, LONG length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Overall Length:
16"

Weight Capacity:
Up to 6 lbs.

 Plate Hole Patterns - PDF

Optional:
Hi-Torq Wrench for extra tightening. RAM-KNOB9HU

RAM Large Cable Manager - RAP-402U

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
2.25" Rubber "D" Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Weight:
5.5 lbs.

RAM D Size 2.25" Diameter Ball Short Mount With 11" X 3" Rectangle Plate, & 3.68" Round Plate - RAM-D-111U-C

RAM D Size 2.25" Diameter Ball Mount With 3.68" Round Plate, Medium Length Double Socket Arm & 11" X 3" Rectangle Plate - RAM-D-111U

RAM 3" X 11" Rectangle Plate With D Size 2.25" Ball - RAM-D-111BU

RAM 3.68" Diameter Round Plate With D Size 2.25" Ball - RAM-D-202U

RAM Long Length Double Socket Arm For D Size 2.25" Balls - RAM-D-201U-E

• Garmin

• ECHOMAP Ultra 122sv
• ECHOMAP Ultra 126sv
• GPSMAP 1222/xsv Touch
• GPSMAP 1242xsv/Touch
• Fishfinders and GPS Chartplotters

• Lowrance

• HDS Carbon 9
• HDS Carbon 12
• Elite-9 CHIRP
• Elite-9 Ti
• Elite-9 Ti²
• Elite-12 Ti
• Elite-12 Ti²
• Fishfinders and GPS Chartplotters

• Humminbird

• Fishfinders and GPS Chartplotters

• Raymarine

• Fishfinders and GPS Chartplotters
