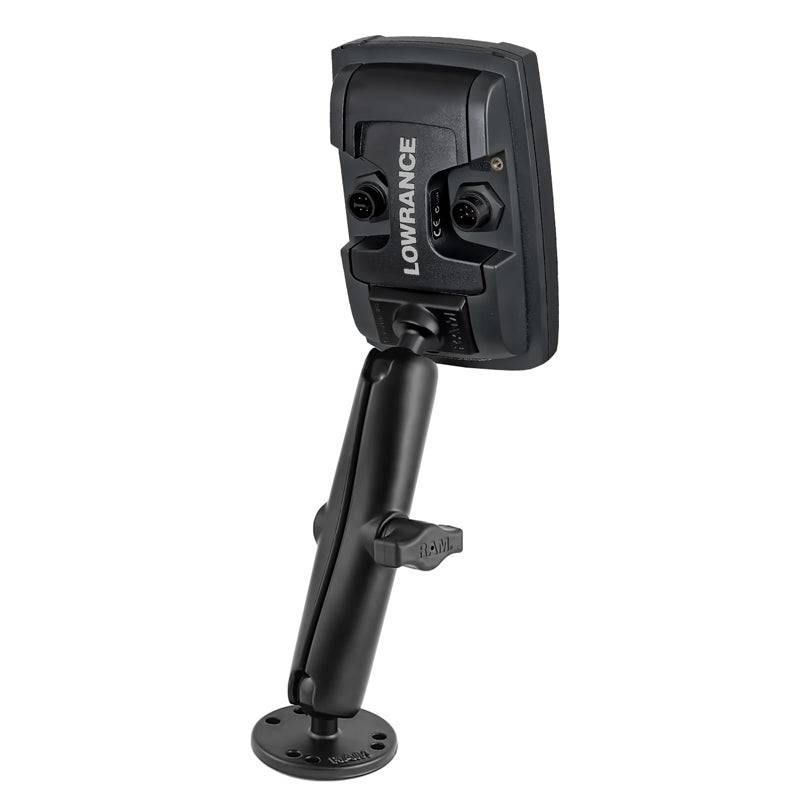

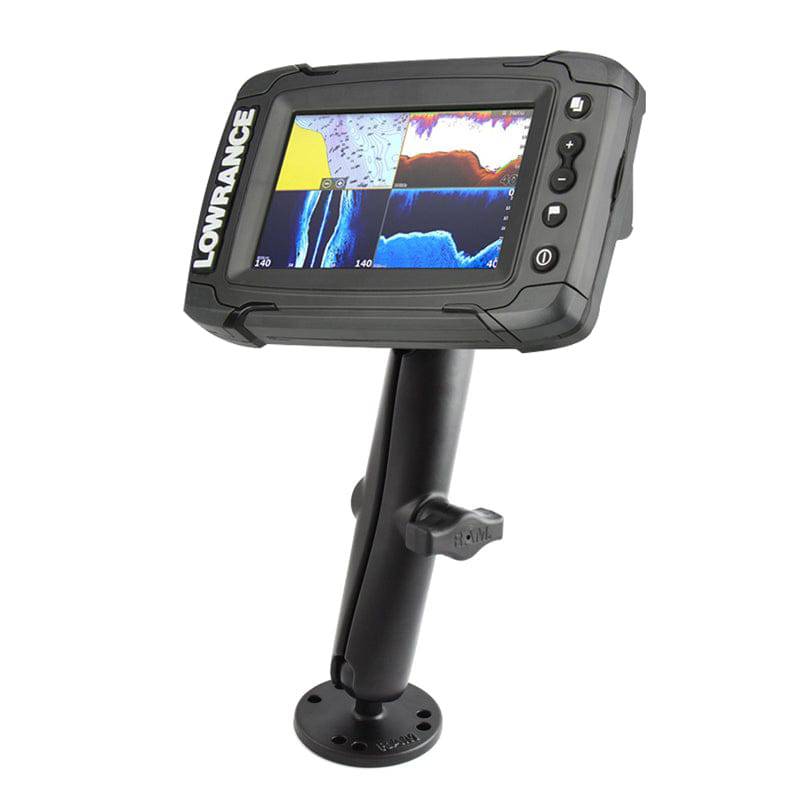

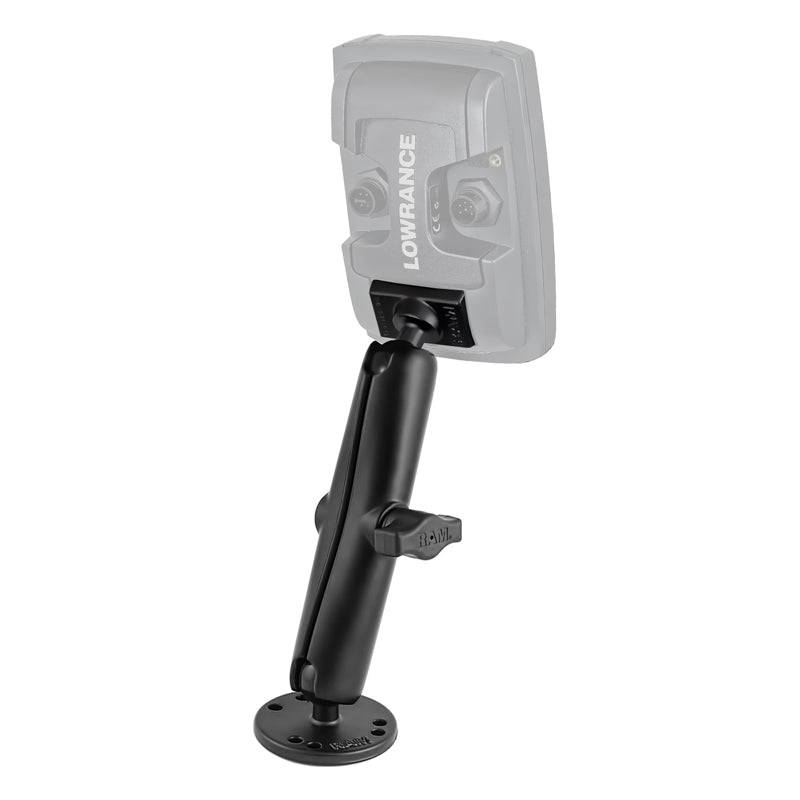

RAM® Double Ball Mount for Lowrance Elite-4 & Mark-4 - RAM-B-101-C-LO11

The RAM-B-101-C-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern, LONG double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
B Size 1" Rubber Ball

Note:
This product is not compatible with the standard Lowrance Elite-7.

Weight:
0.9 lbs.

RAM 1" Ball Marine Electronic Mount with Long Arm for Lowrance Elite-4 & Mark-4 Fishfinders

RAM® Mounts Interchangeable Components

Additional Mounting Base Options

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM Press-N-Lock™ Base with 12" Long Tube and 1" Diameter Ball - RAP-B-385-12U

RAM B Size 1" Balland Rectangular Plate with 1.5" x 2" 4-Hole Pattern - RAM-B-202U-225

RAM® Track Ball™ Quick Release Base - RAP-B-383U

RAM Press-N-Lock™ Base with 18" Long Tube and 1" Diameter Ball - RAP-B-385-18U

RAM Flex Adhesive Base With 1" Ball - RAP-B-378U

RAM Quick Release Adapter With B Size 1" Ball For "LIGHT USE" Lowrance Elite-4 & Mark-4 Series Fishfinders - RAM-B-202U-LO11

RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

RAM Long Length Double Socket Arm for B Size 1" Balls - RAM-B-201U-C

• Lowrance Elite-4
• Lowrance Elite-4 DSI
• Lowrance Elite-4 Gold
• Lowrance Elite-4x
• Lowrance Elite-4x DSI
• Lowrance Elite-4m
• Lowrance Mark-4
