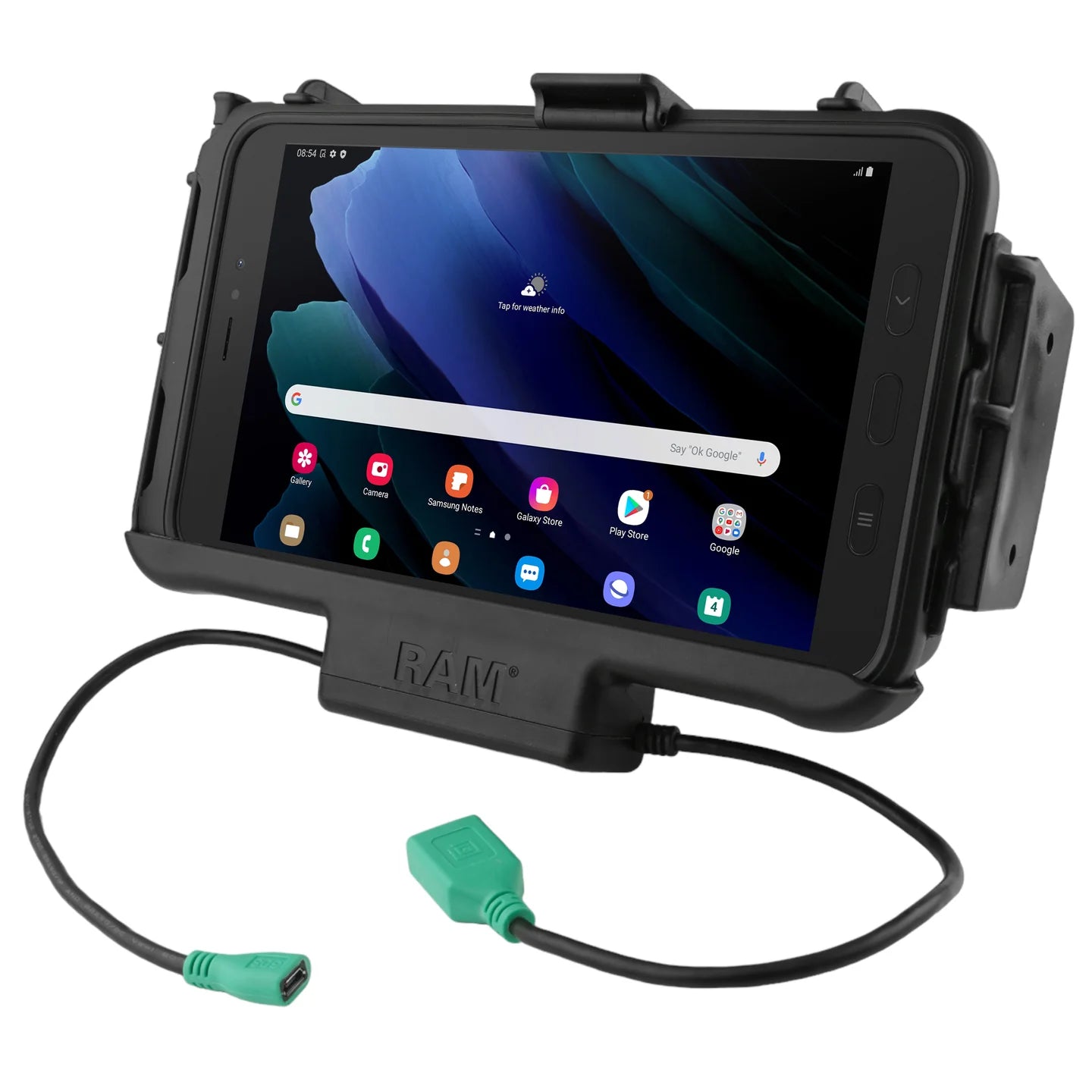

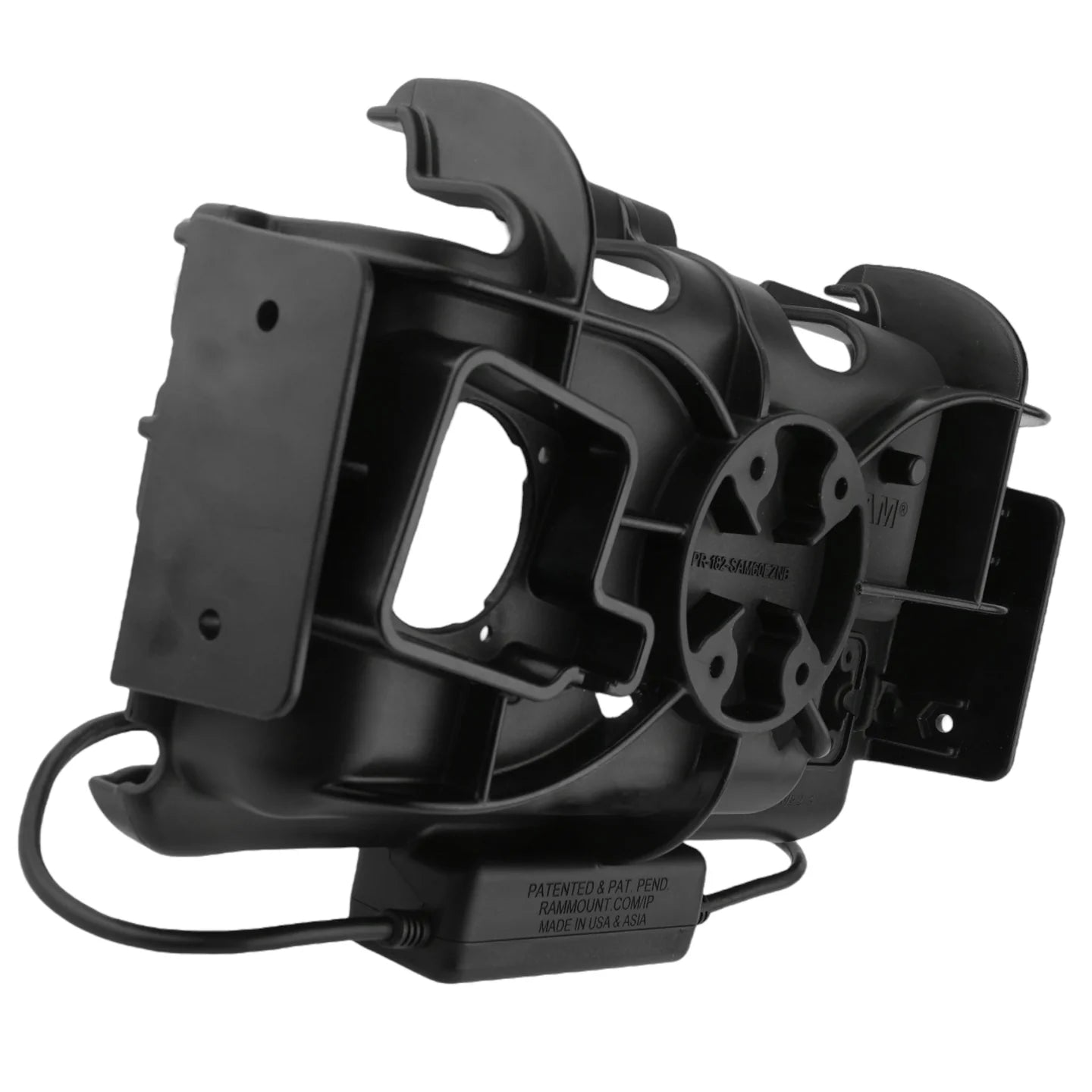

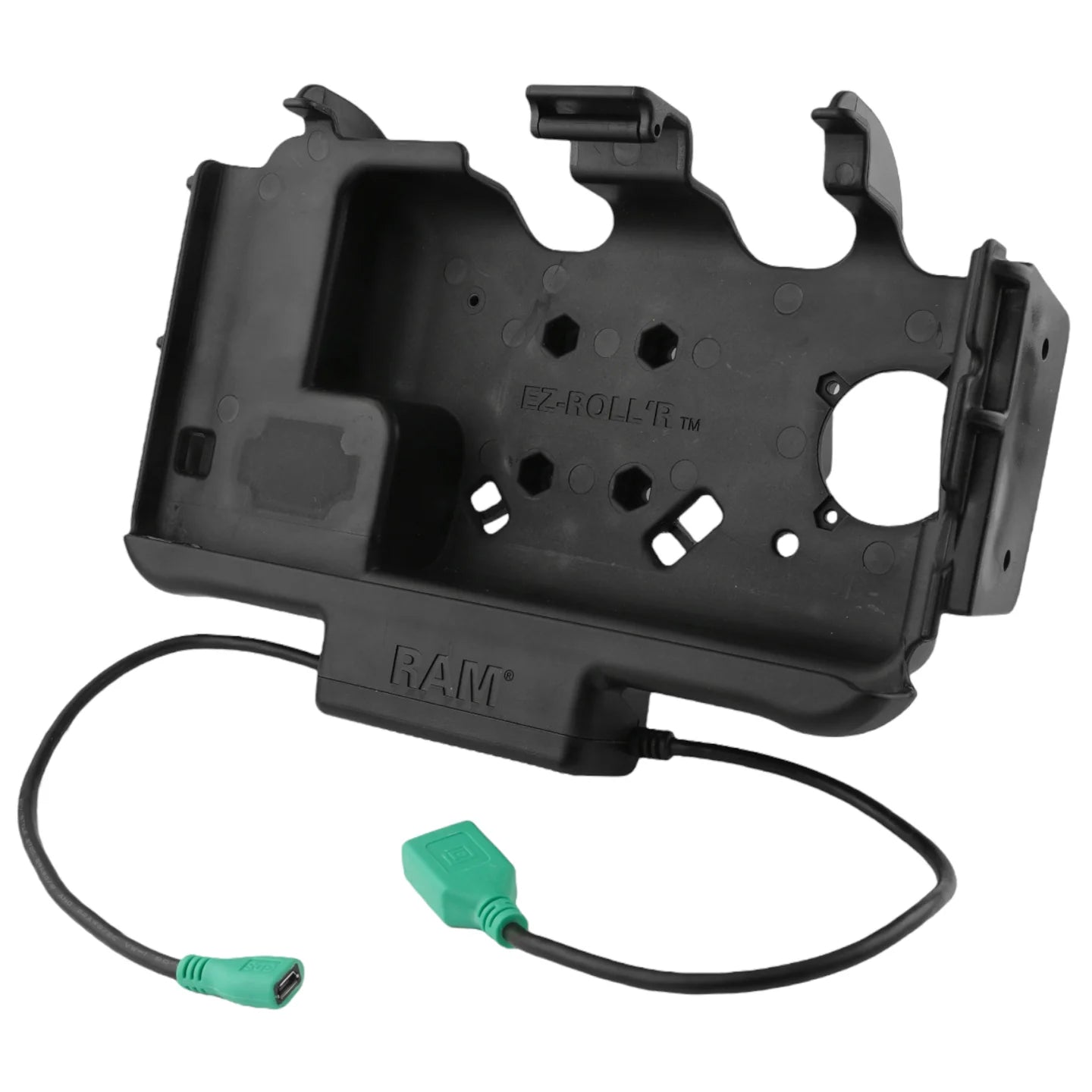

The RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active3 (RAM-HOL-SAM60PDNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation.
This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, NFC Reach™, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties.
EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable

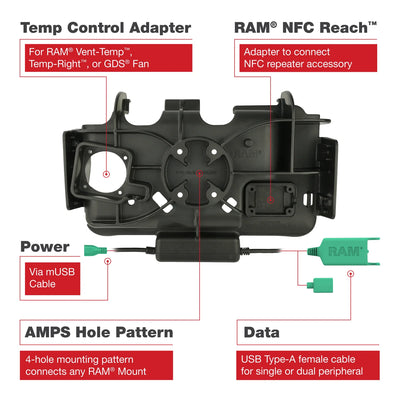

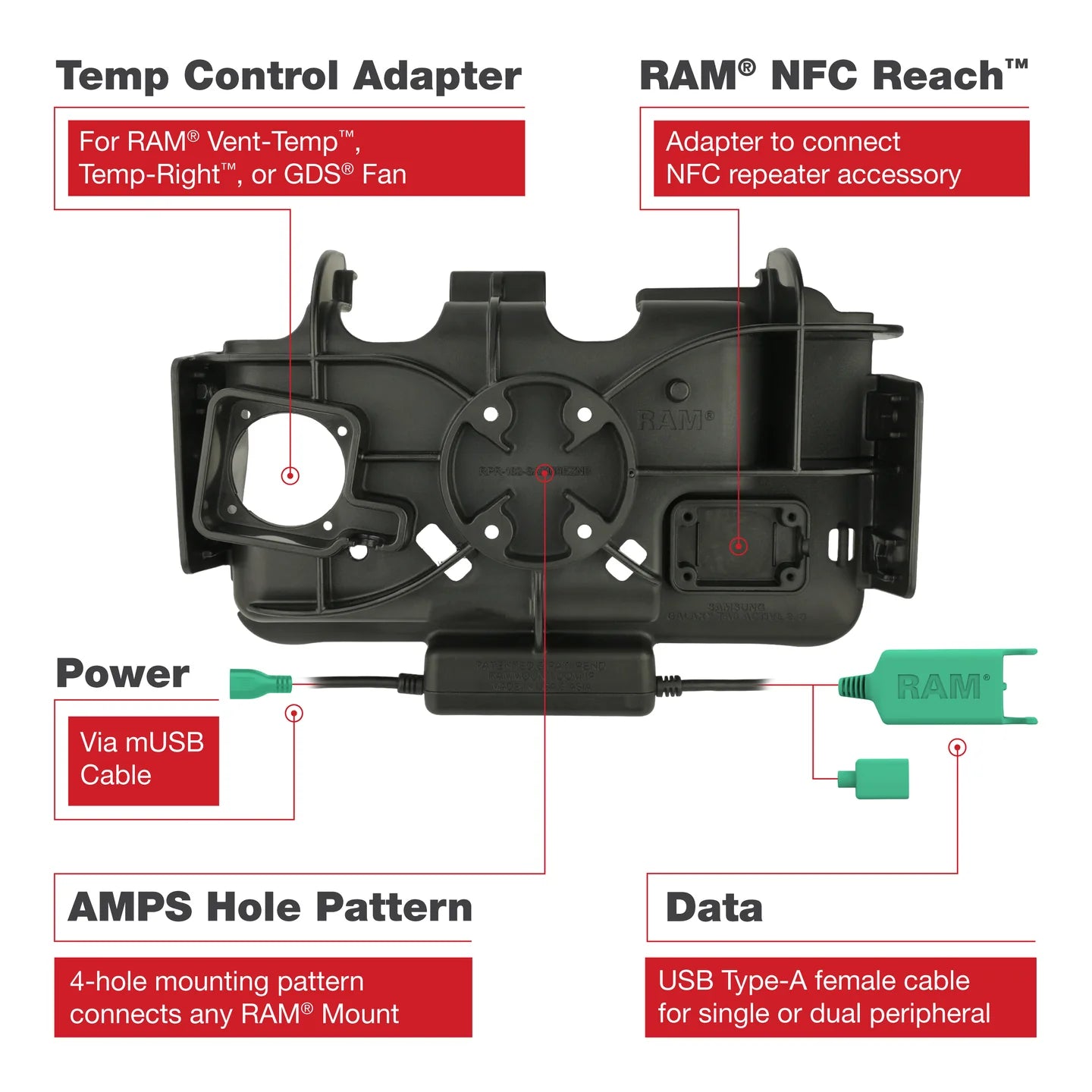

Compatible with most RAM® dock accessories including Temperature Control Accessories, NFC Reach™, GDS® Roto-Mag™, and side accessory attachments
Connect one additional peripheral via USB Type-A
Compatible with the Samsung OEM skin as well as the RAM® Skin™
Backed by a 3-year warranty

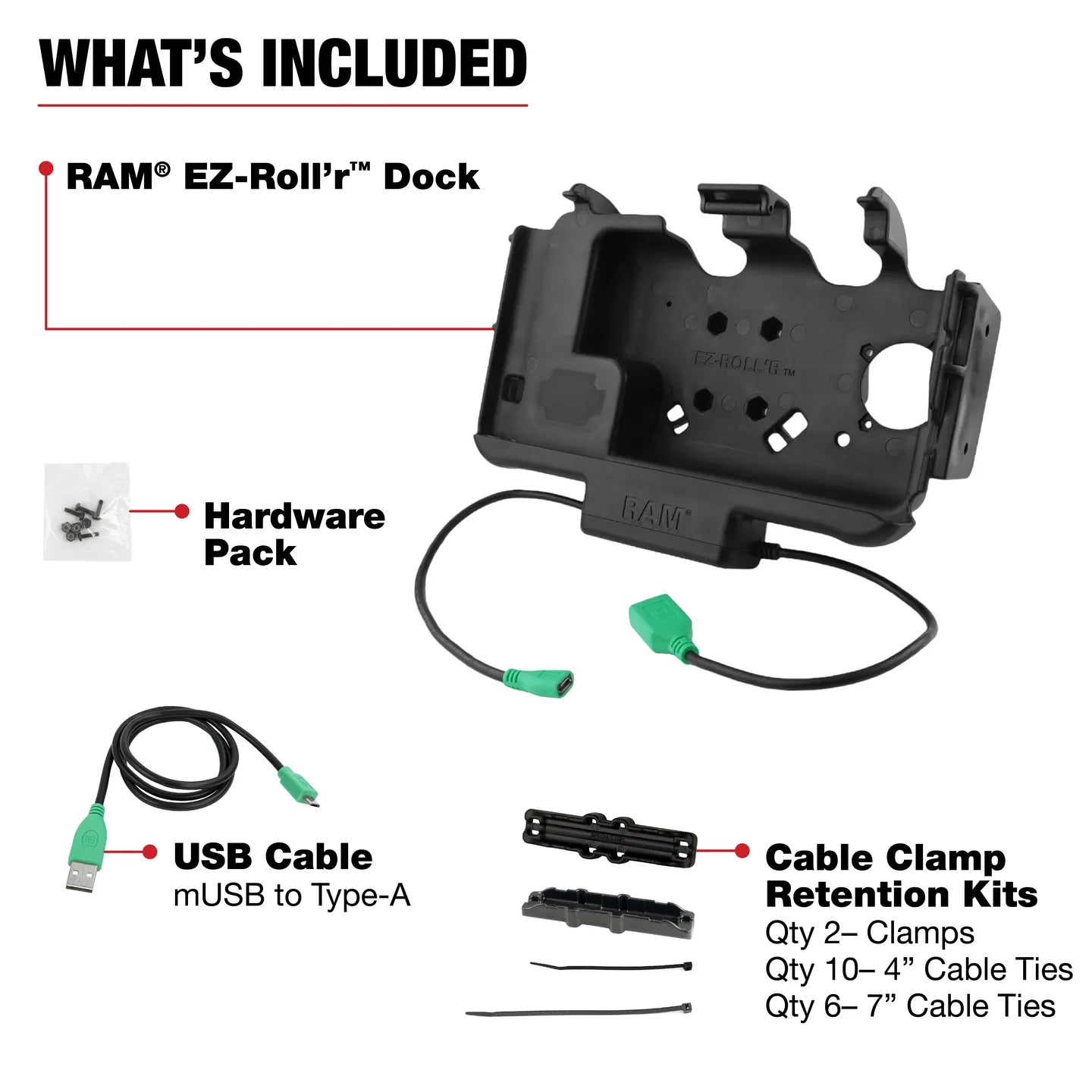

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(2) Optional Cable Clamp Housing
(6) Large Cable Ties
(10) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
4.4-5.4VDC (USB power source dependent)
4.4VDC-5.4VDC (USB power source dependent)
INPUT CABLE LENGTH
USB 1.1 Type-A
OUTPUT CABLE LENGTH
3 year warranty
