RAM-HOL-ZE7-2U
Out of Stock
( Chat Live to get an ETA )

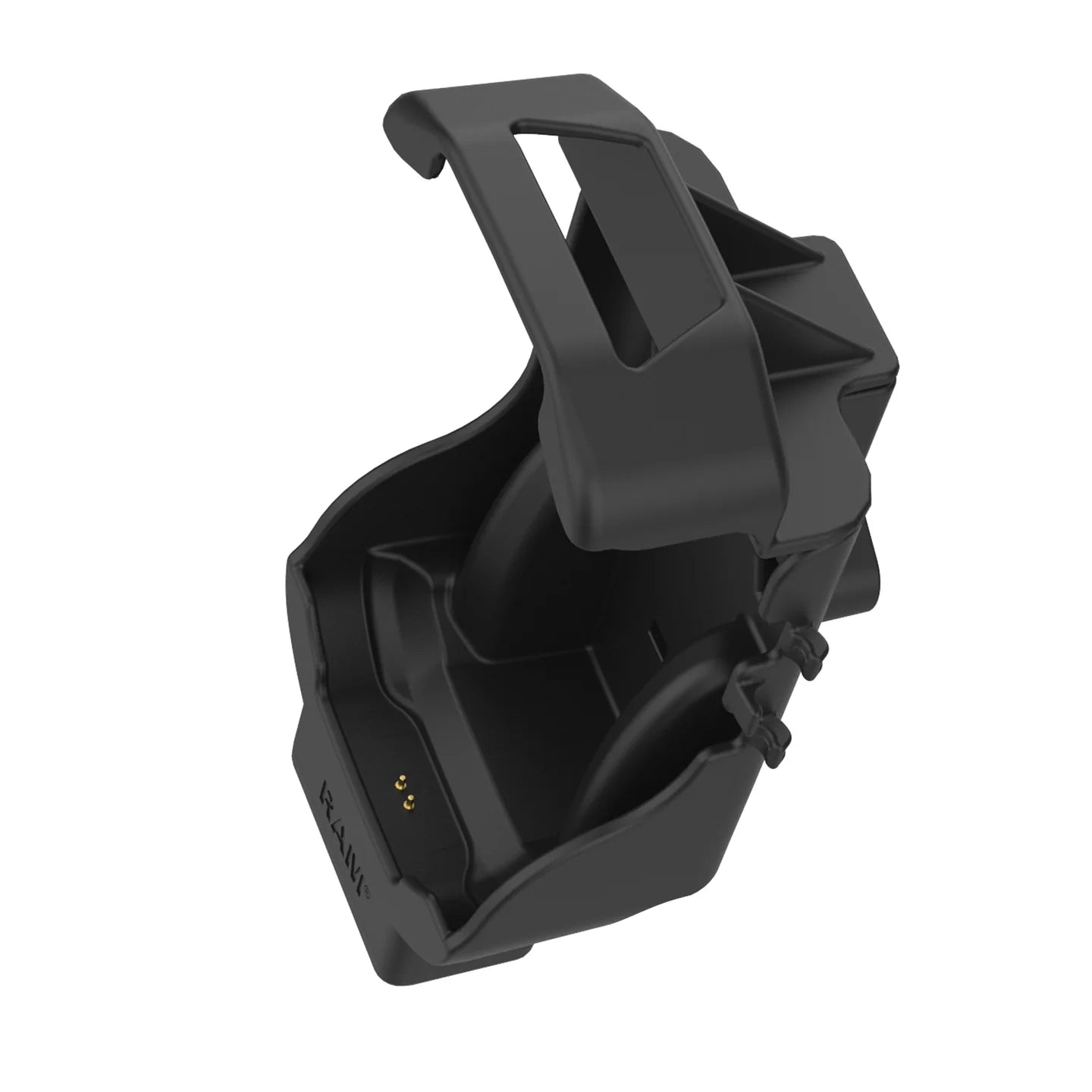

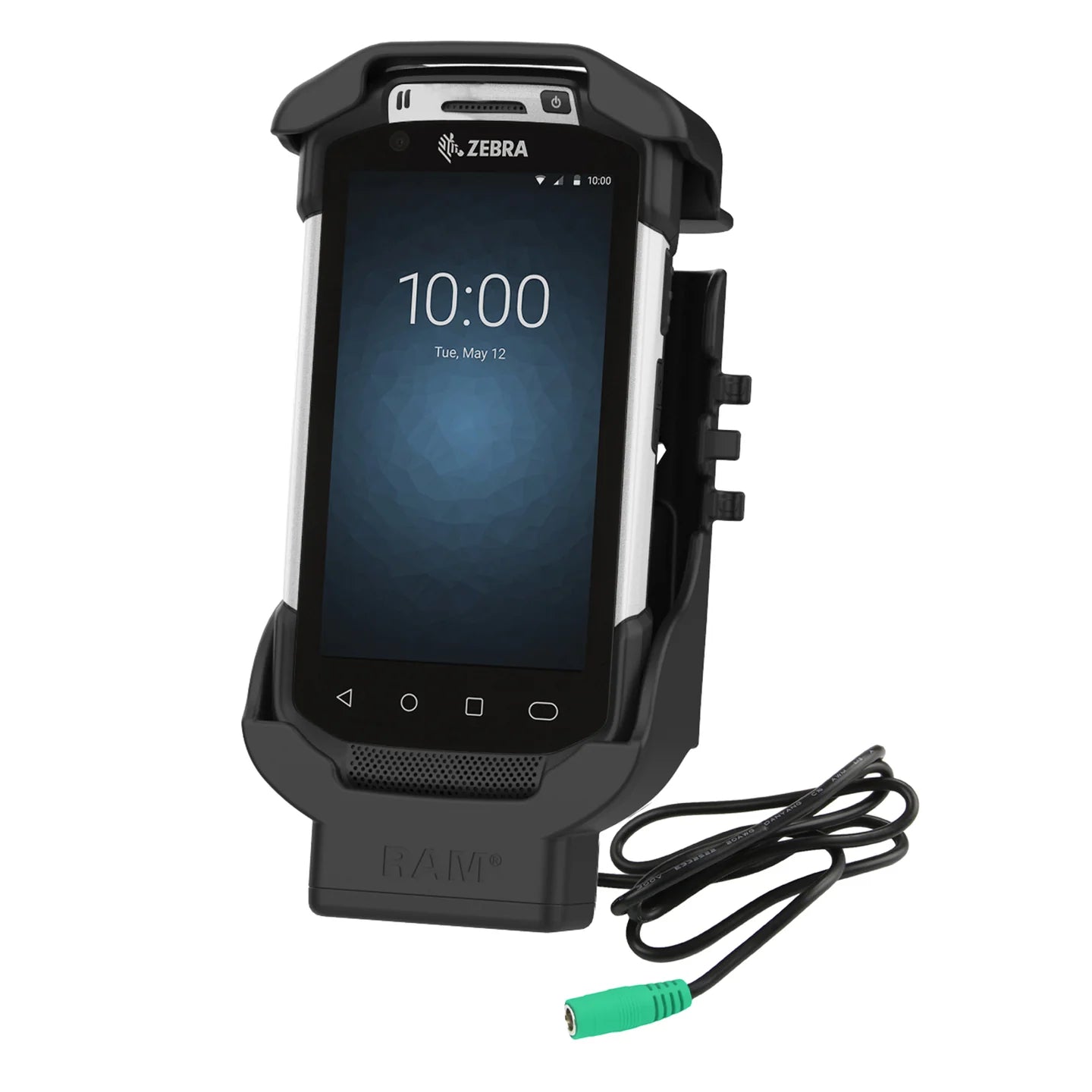

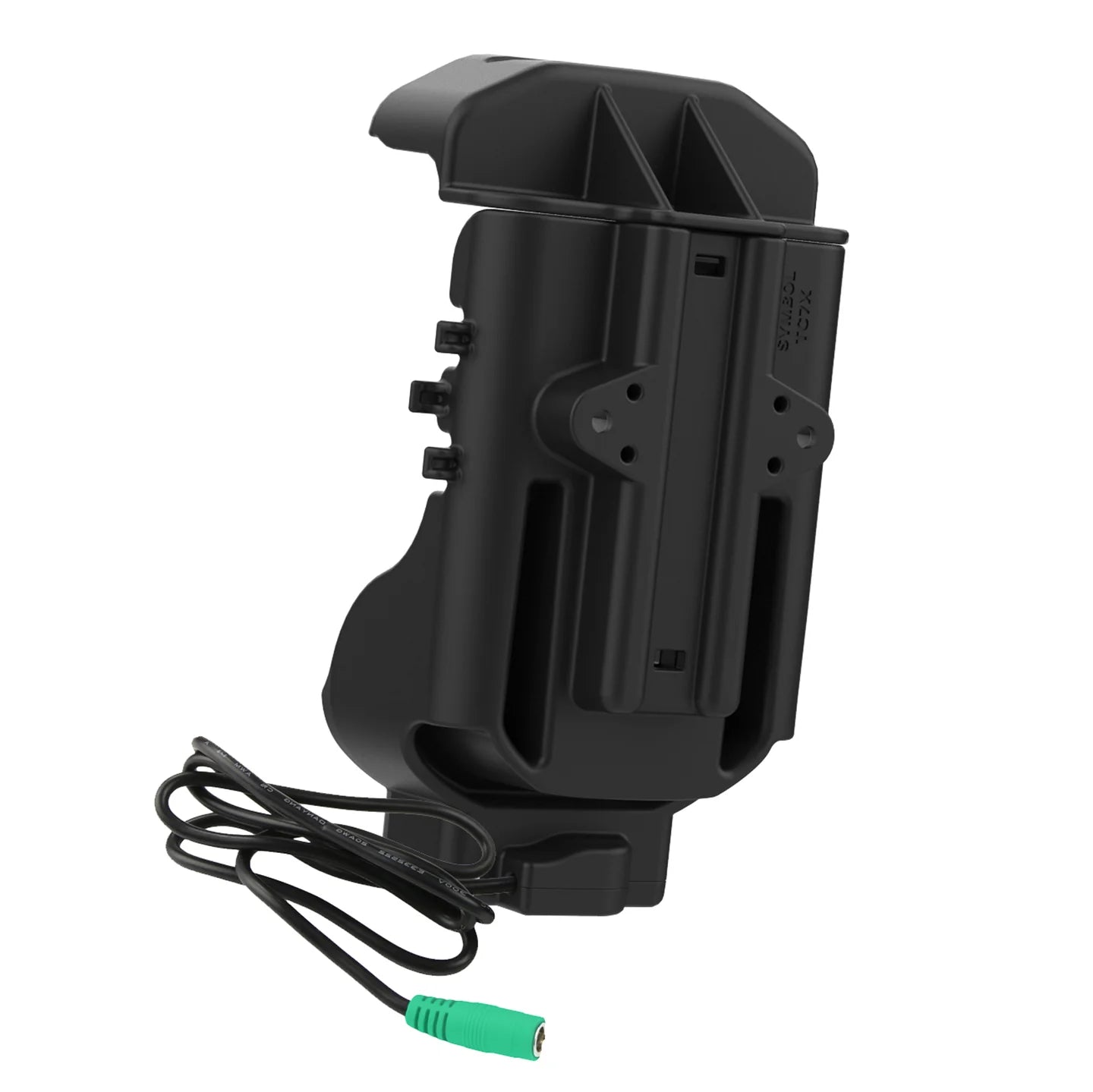

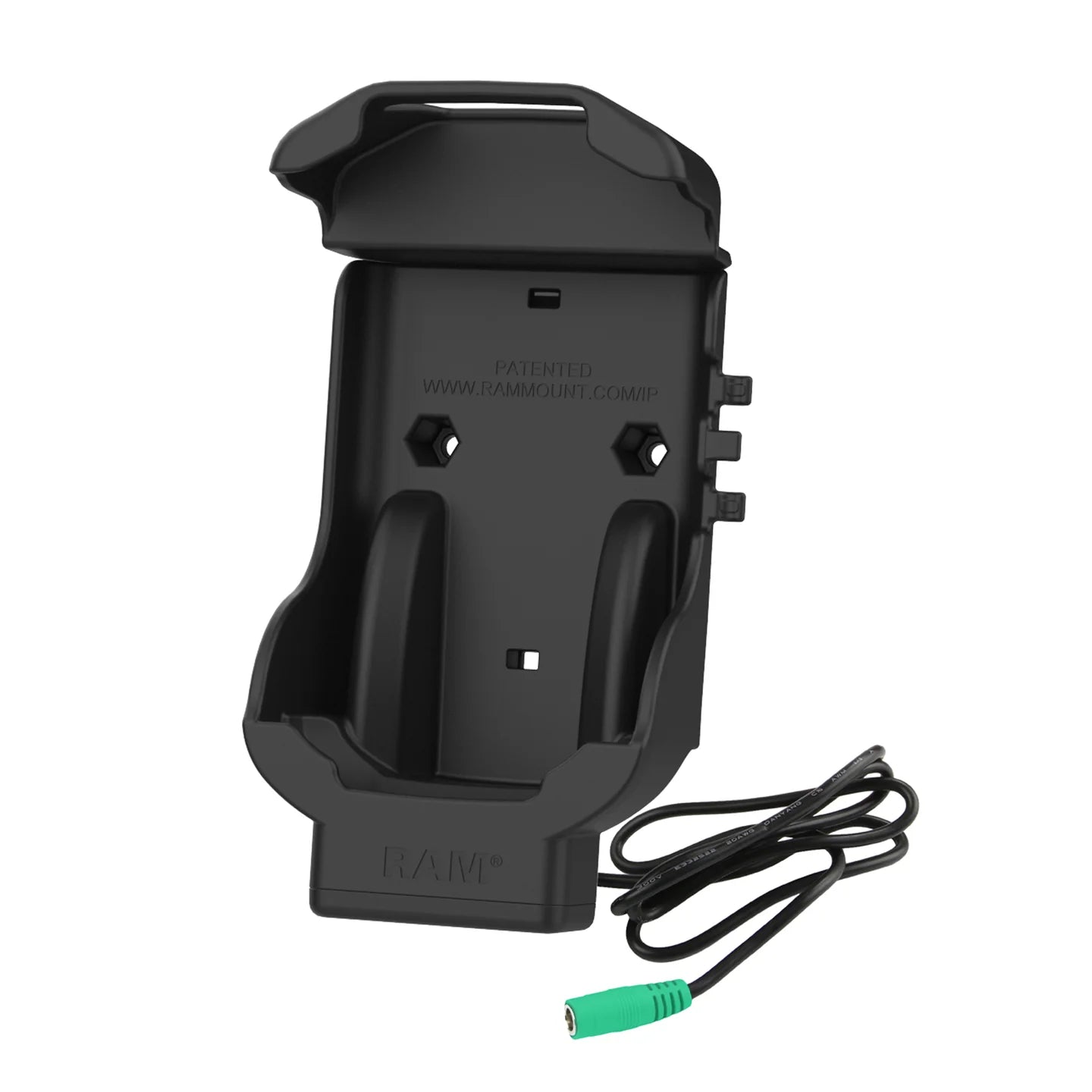

The RAM® Form-Fit Powered Dock for Zebra TC70, 72, 75 & 77 (RAM-HOL-ZE7-2U) is a spring-loaded cradle with stylus holder that allows you to secure your Zebra TC70, TC72, TC75, or TC77 with or without the Zebra Handstrap accessory. The cradle is compatible with RAM® two-hole AMPS pattern diamond bases that will connect to B and C size ball mounts, allowing for a wide variety of mounting options (hardware included). Compatible charging options for this cradle include the RAM-GDS-CHARGE-V7BU for hardwire applications or the RAM-POW-CIG-M55 cigarette charger. Spring-loaded, form-fit powered dock perfectly secures the Zebra TC70, TC72, TC75, or TC76 Compatible with the Zebra Handstrap accessory Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environment Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS PACKAGING TYPE INPUT CONNECTOR WARRANTY WEIGHT ADDITIONAL INFORMATION TC-70 TC-72 TC-75 TC-77 COMPATIBLE ARMS COMPATIBLE BASES
Description Specs & Features
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
(1) USB Type A Cable with 90-Degree DC Plug
2-Hole AMPS: 1.912"
High strength composite
Poly Bag
USB Type A
3 year warranty
0.62 lb
Chargers not included. See "Complete Your Solution" tab to view compatible charging accessories. Compatibility
Zebra
Instructions Mounting Options
RAM 1.5" Ball Flat Surface Mount With 2.5" Round Base & Diamond Base - RAM-138U
RAM® Double Ball Mount With Diamond Plate Adapter - RAM-138U-B
RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-238U
RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-B-238U
RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-D-238U
RAM 2.5" Round Plate with AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U
RAM Double U-Bolt Base with 1.5" Ball for Rails from .75" to 1.25" in Diameter - RAM-235U
RAM Zinc Coated U-Bolt Base With 1.5" Ball For Rails From 1.25" To 1.5" In Diameter - RAM-235-1U
RAM 3" Max Width Clamp Base with 1.5" Ball - RAM-247U-3
RAM 4" Max Width Clamp Base With 1.5" Ball - RAM-247U-4
RAM® Double U-Bolt Base With 1.5" Ball For Rails .75" To 1" In Diameter - RAM-235-2U
RAM 2.5" Max Width Clamp Base With 1.5" Ball - RAM-247U-25
RAM 2" To 2.5" Rail Clamp Base With 1.5" Ball - RAM-271U-2
RAM 1.25" to 1.875" Rail Clamp Base with 1.5" Ball - RAM-271U-12
RAM Universal No-Drill™ RAM POD HD™ Vehicle Mount With Double Socket Arm & Diamond Base (AMPs 2-Hole Pattern) - RAM-316-HD-238U
RAM® Male Cigarette Plug With 3M Cable - RAM-POW-CIG-M55
GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U
GDS® Modular 30-64V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V8BU
