GDS® Tough-Dock™ + Dual USB for Samsung Tab Active4 Pro & Tab Active Pro - RAM-GDS-DOCK-SAM54CD2U

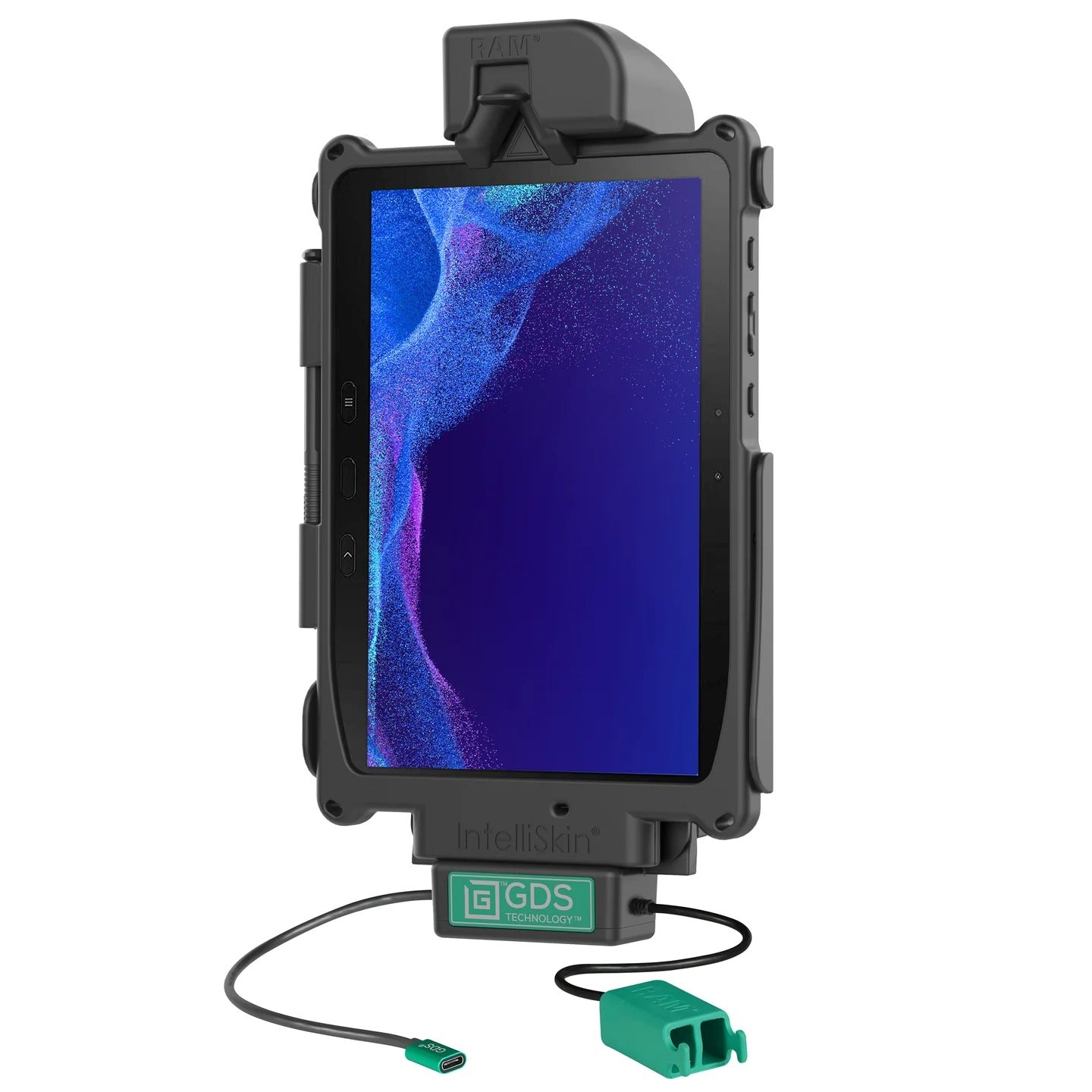

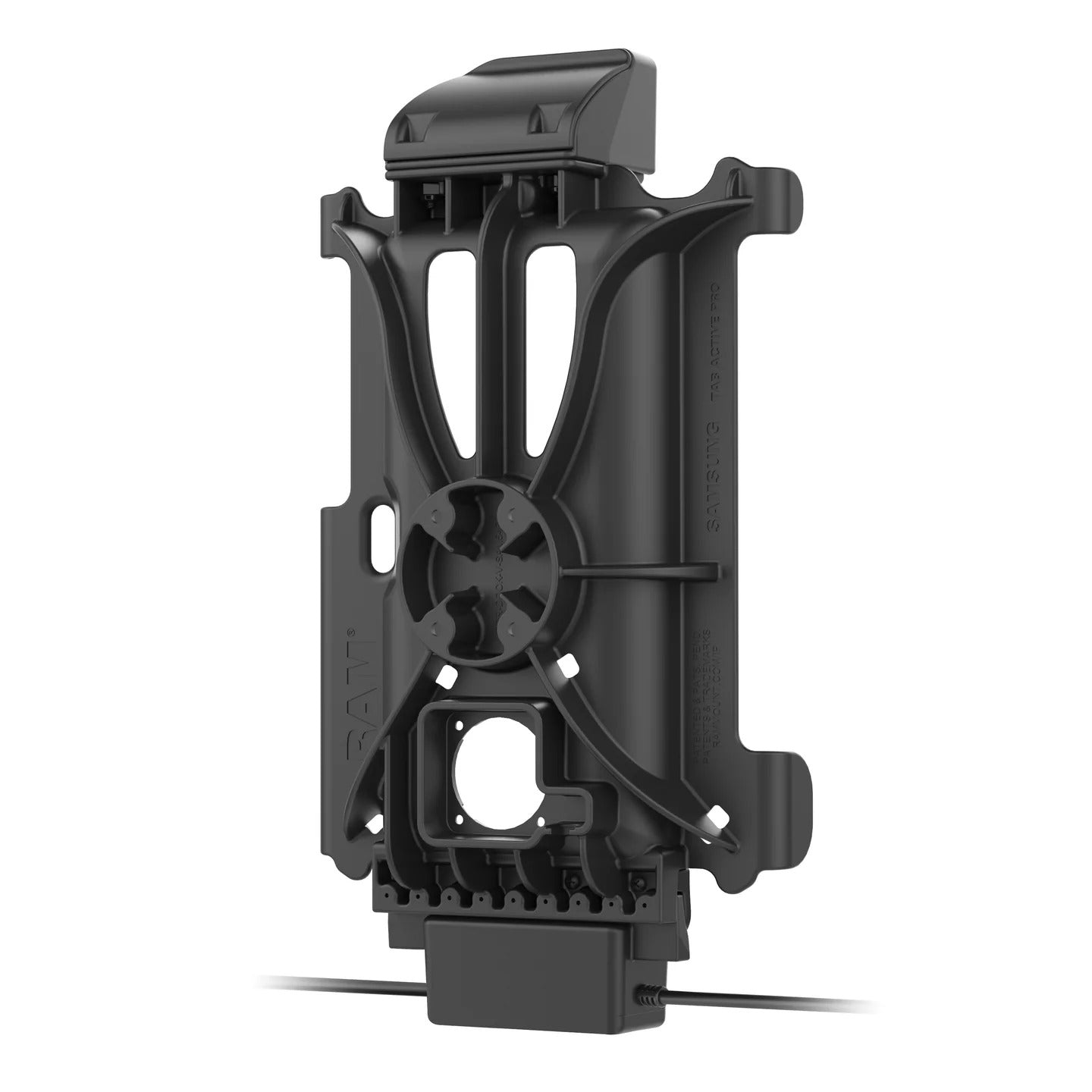

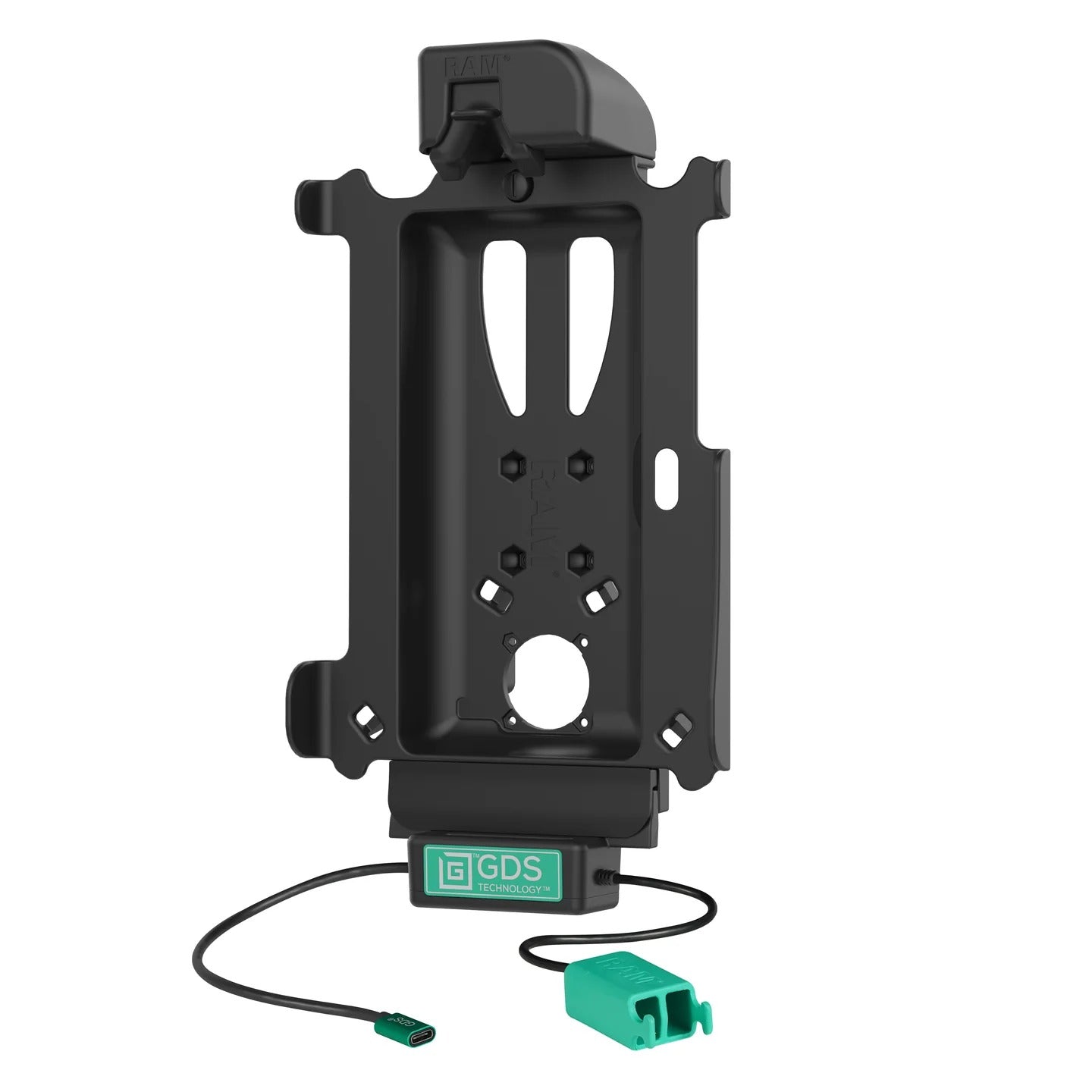

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54CD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty.

• Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve
• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection
• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

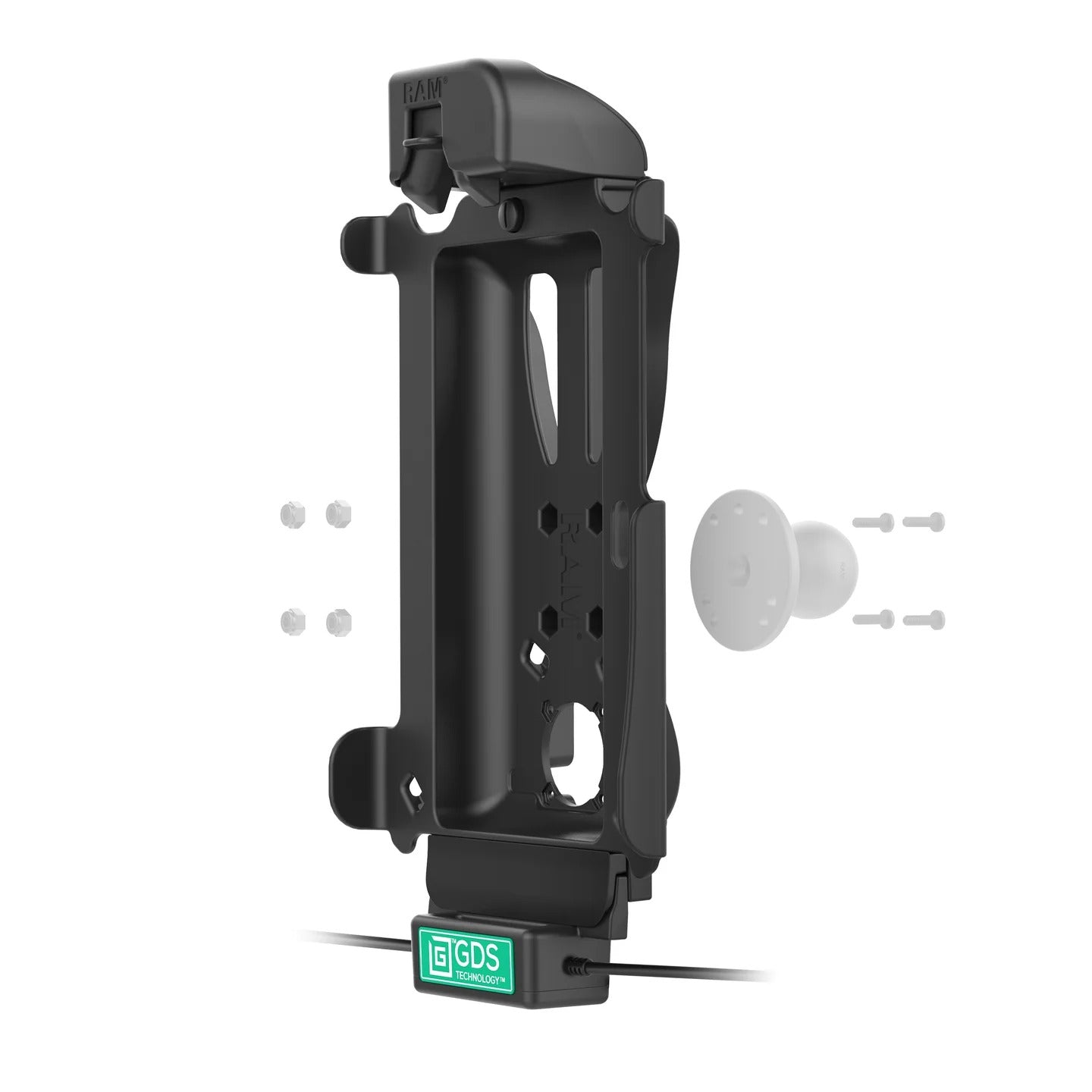

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5V - 12V @ 3A max
Each Peripheral: 5V @ 500mA max

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C
USB Type A for 2 Peripherals

OUTPUT CABLE LENGTH:
.21 Meters

WARRANTY:
3 year warranty

WEIGHT:
1.35 lb

COMPATIBLE DEVICES

• Samsung:

  Galaxy Tab Active Pro with IntelliSkin® Next Gen
  Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
