GDS® Tough-Dock™ + Single USB for Samsung Tab A7 Lite 8.7" - RAM-GDS-DOCK-SAM80CDU

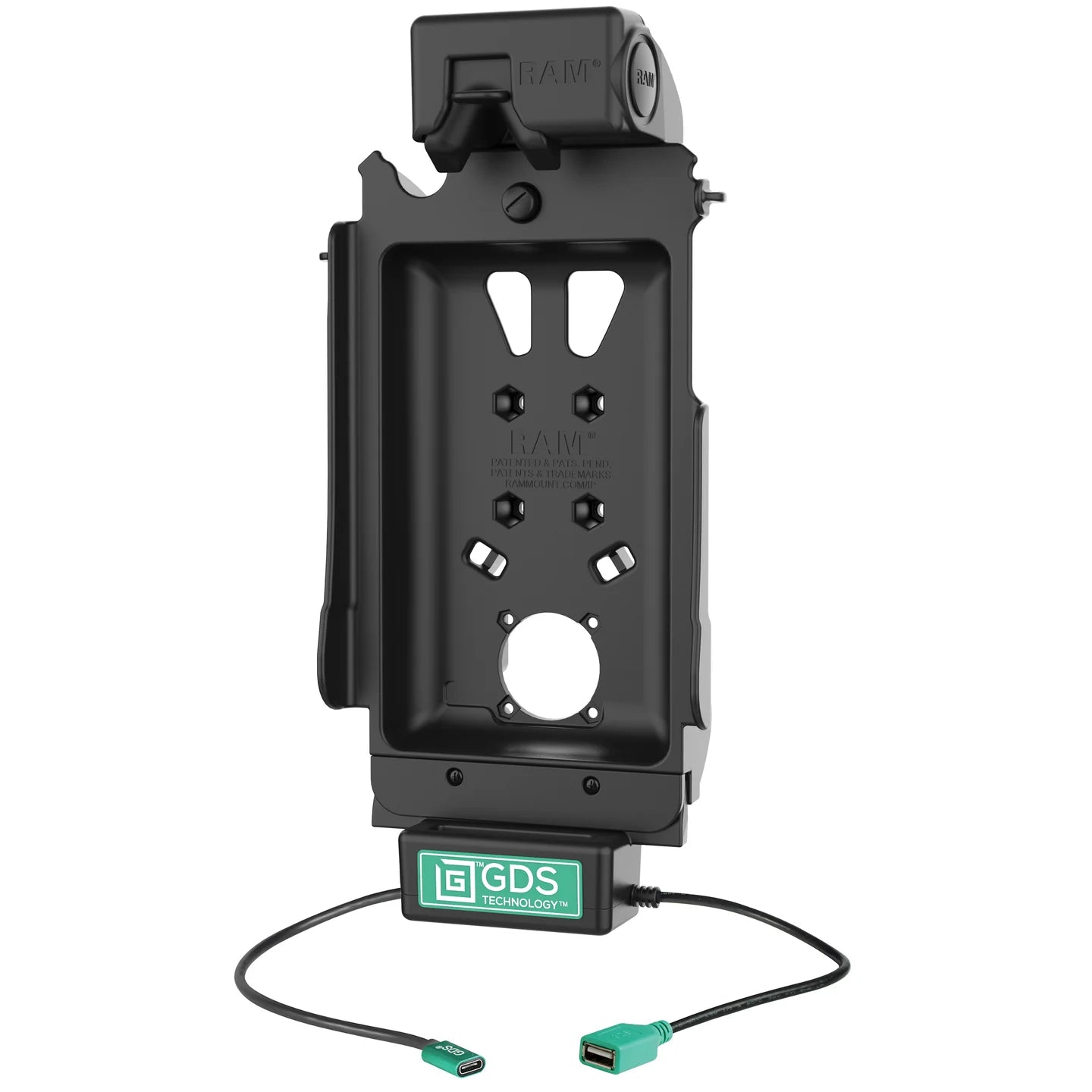

This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty.

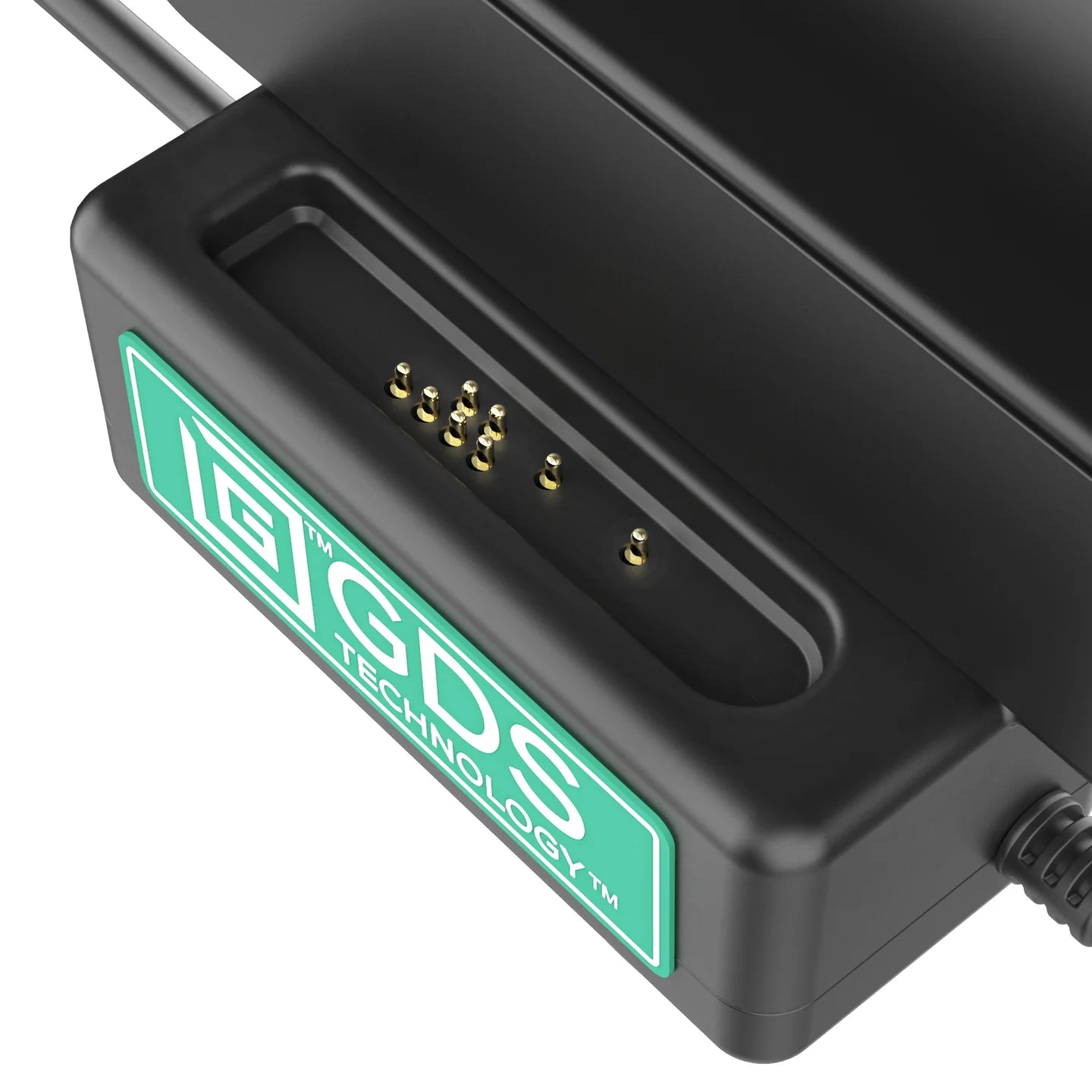

• Spring-loaded vehicle dock featuring GDS^® Technology^™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral

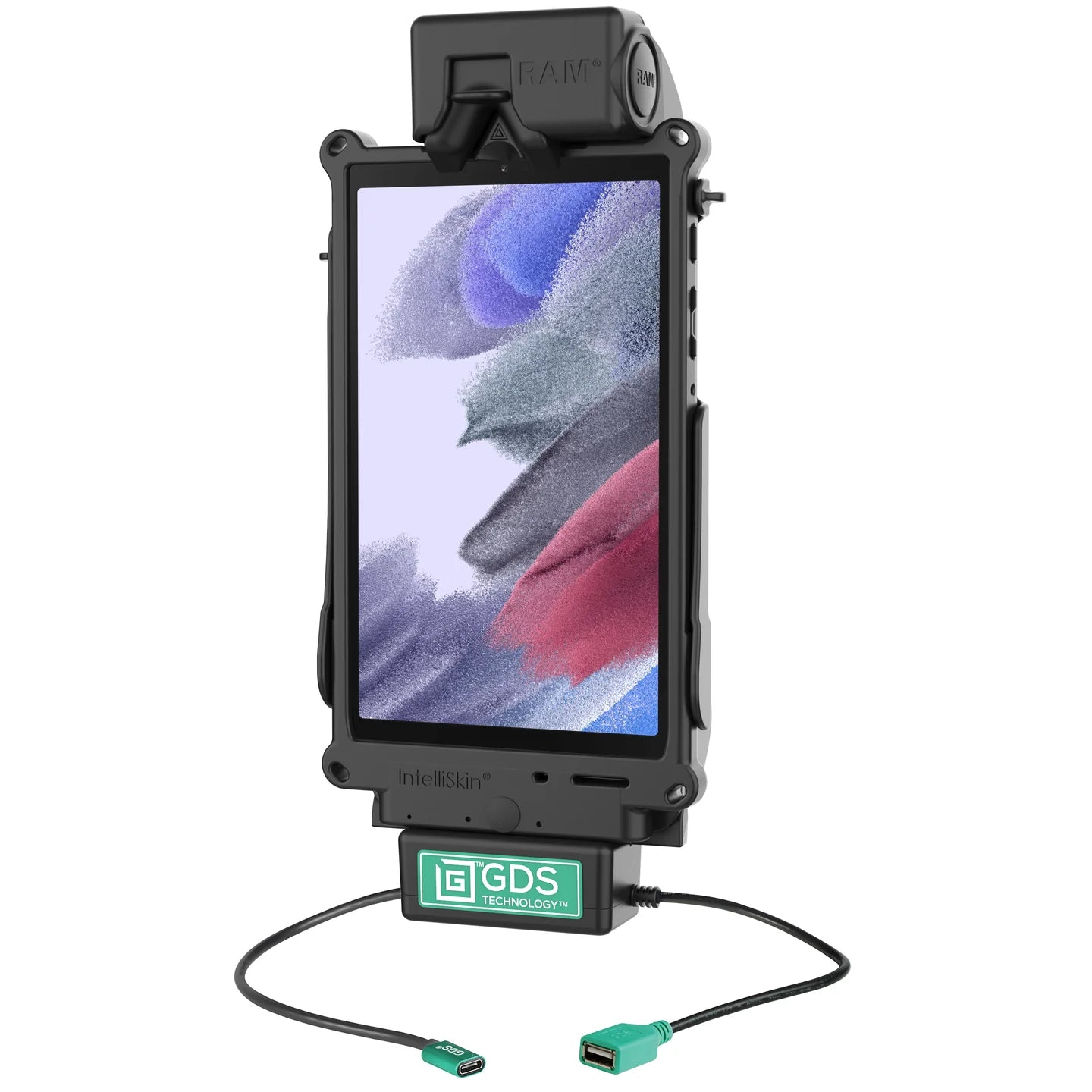

• Designed specifically for the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) wrapped in an IntelliSkin^® Next Gen protective sleeve

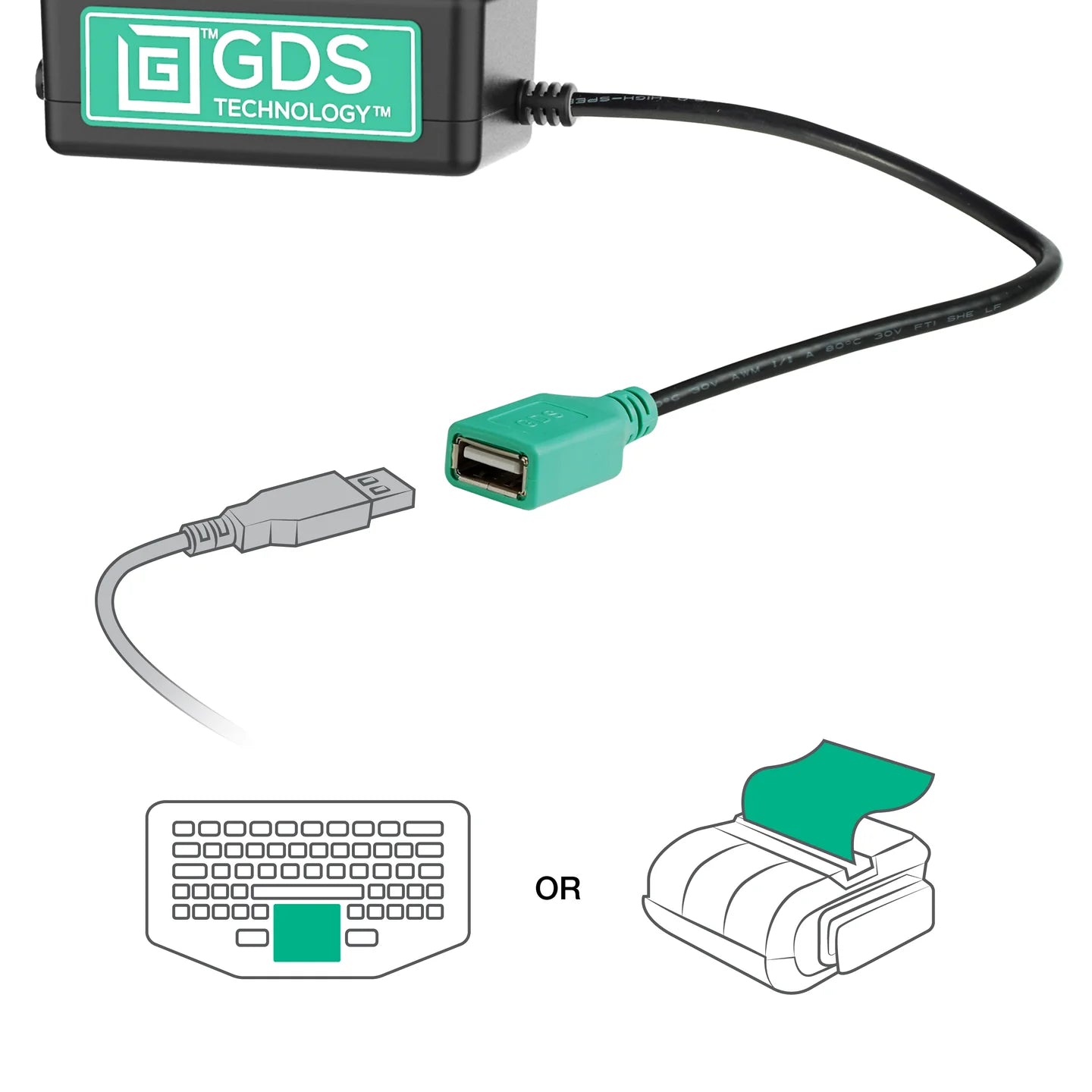

• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and single USB Type-A for peripheral connection

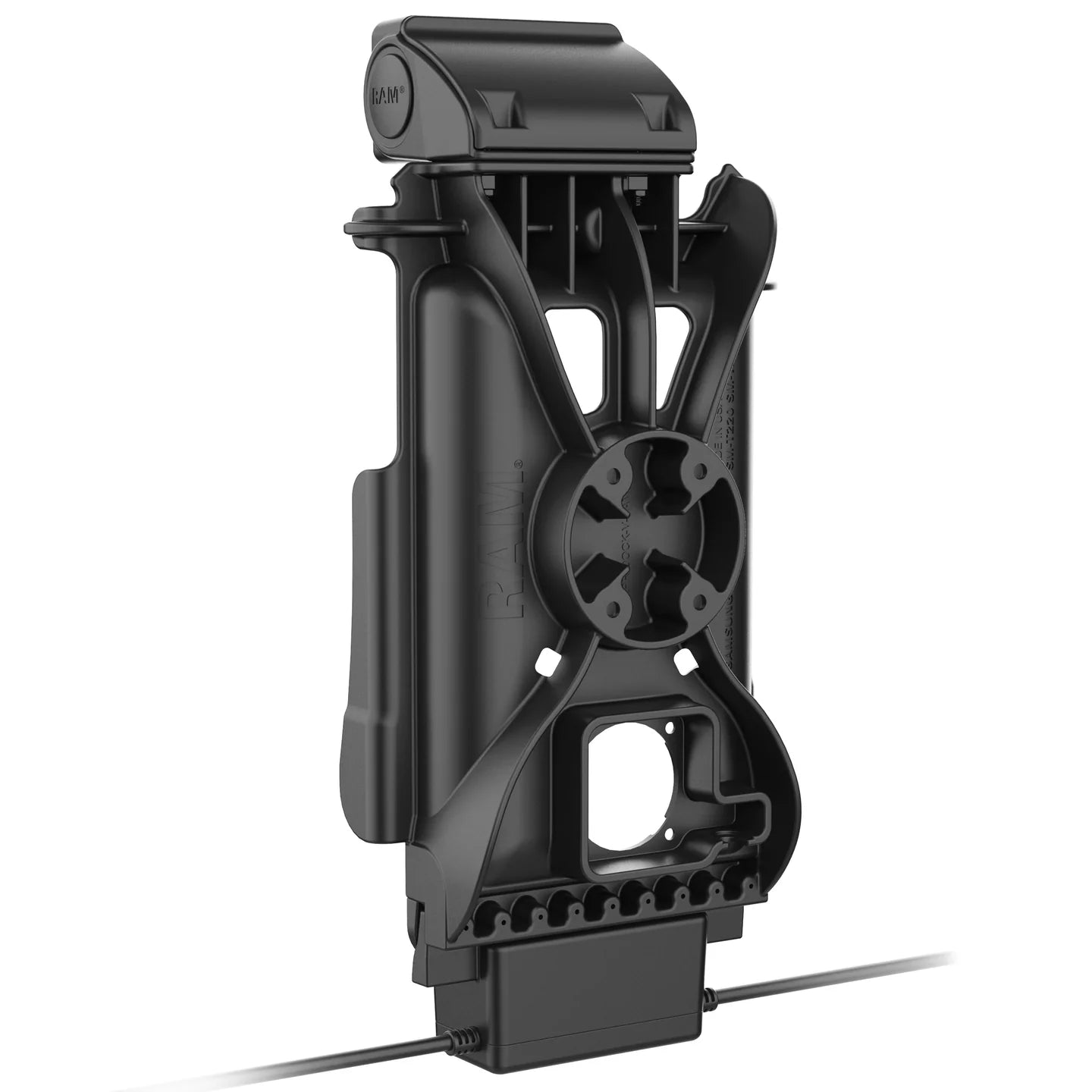

• RAM^® Mounts Compatible^™ and compatible with the GDS^® Hand-Stand^™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5V - 12V @ 2A

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C USB Type A for 1 Peripheral

OUTPUT CABLE LENGTH:
.21 Meters

WARRANTY:
3 year warranty

WEIGHT:
1.24 lb

COMPATIBLE DEVICES

• Samsung:

  Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
