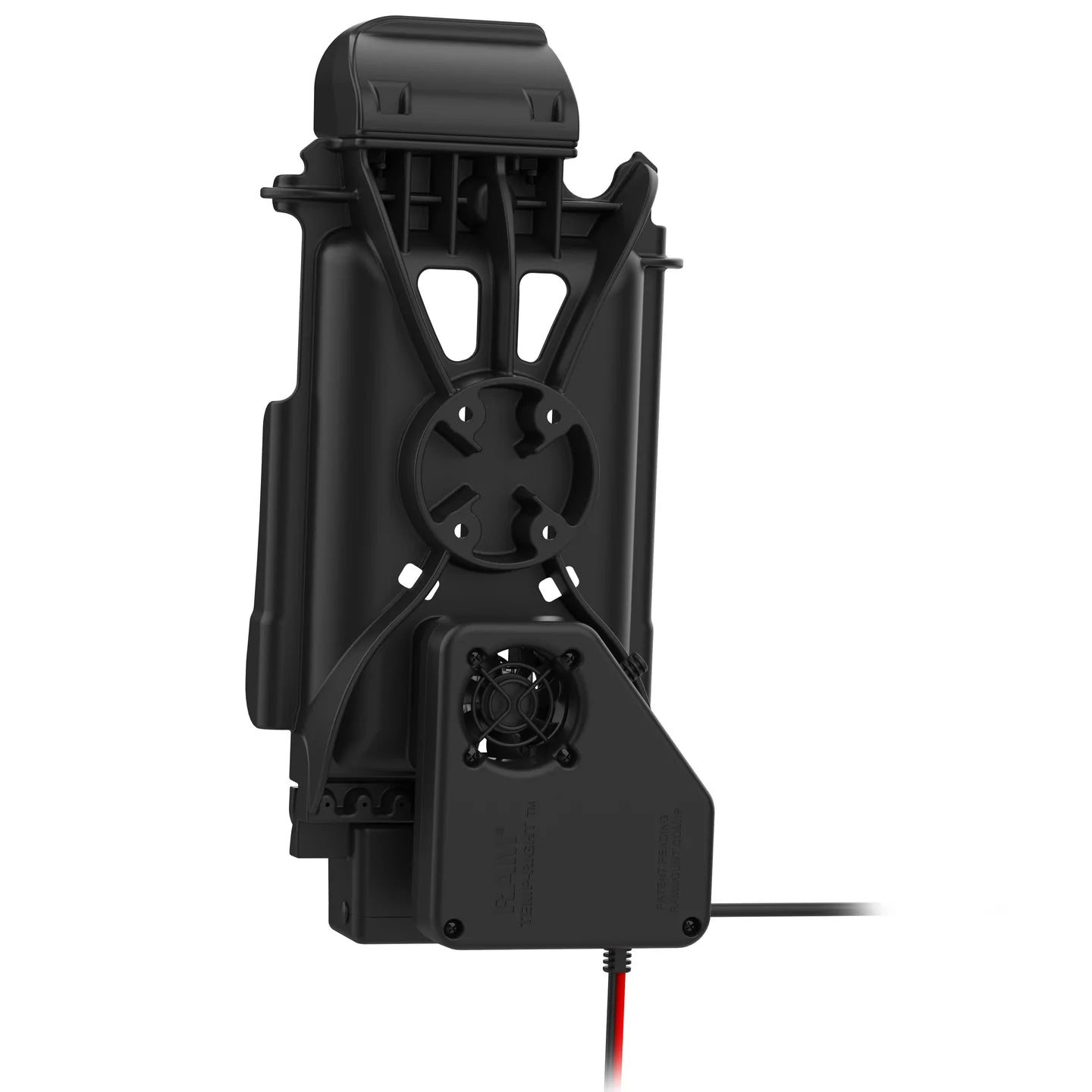

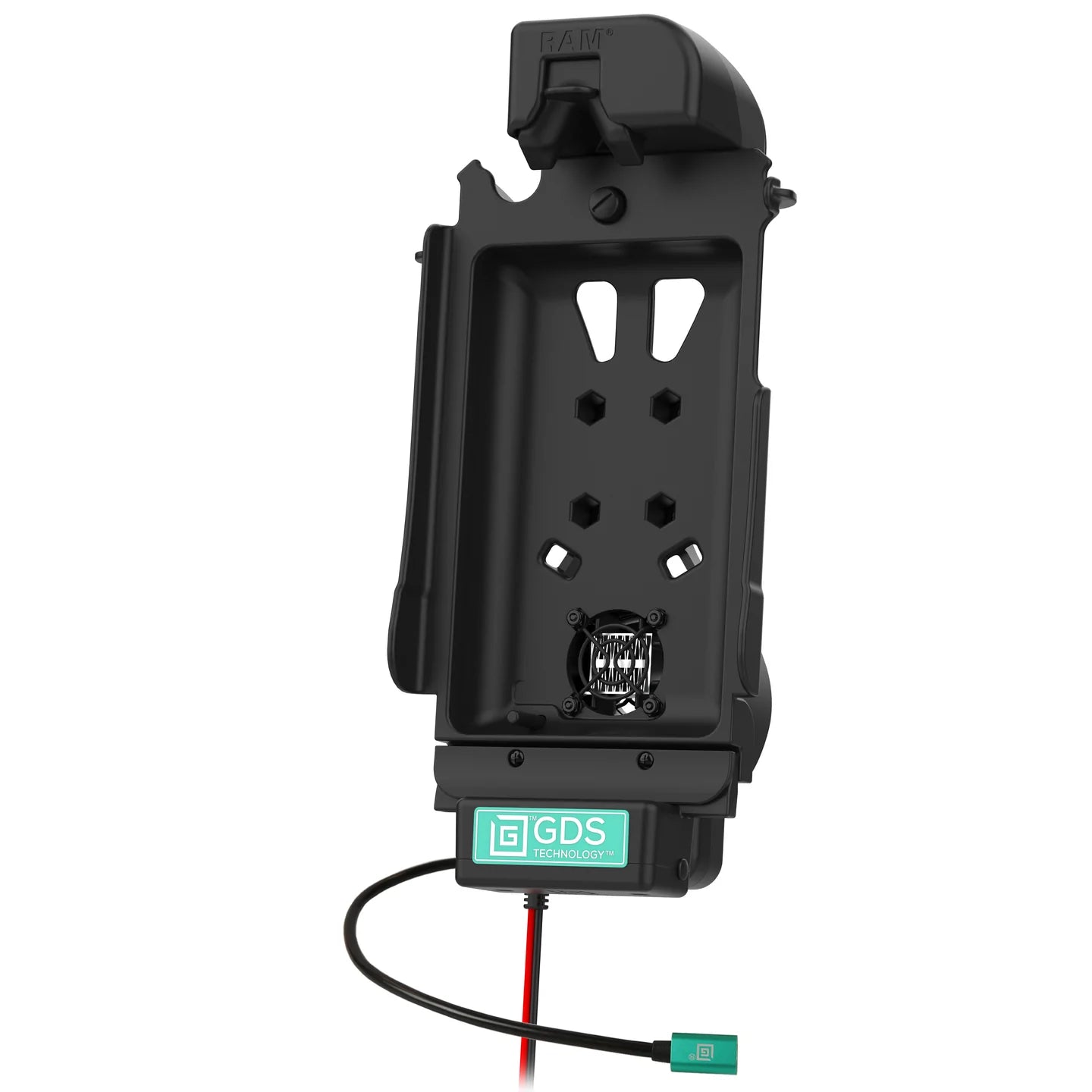

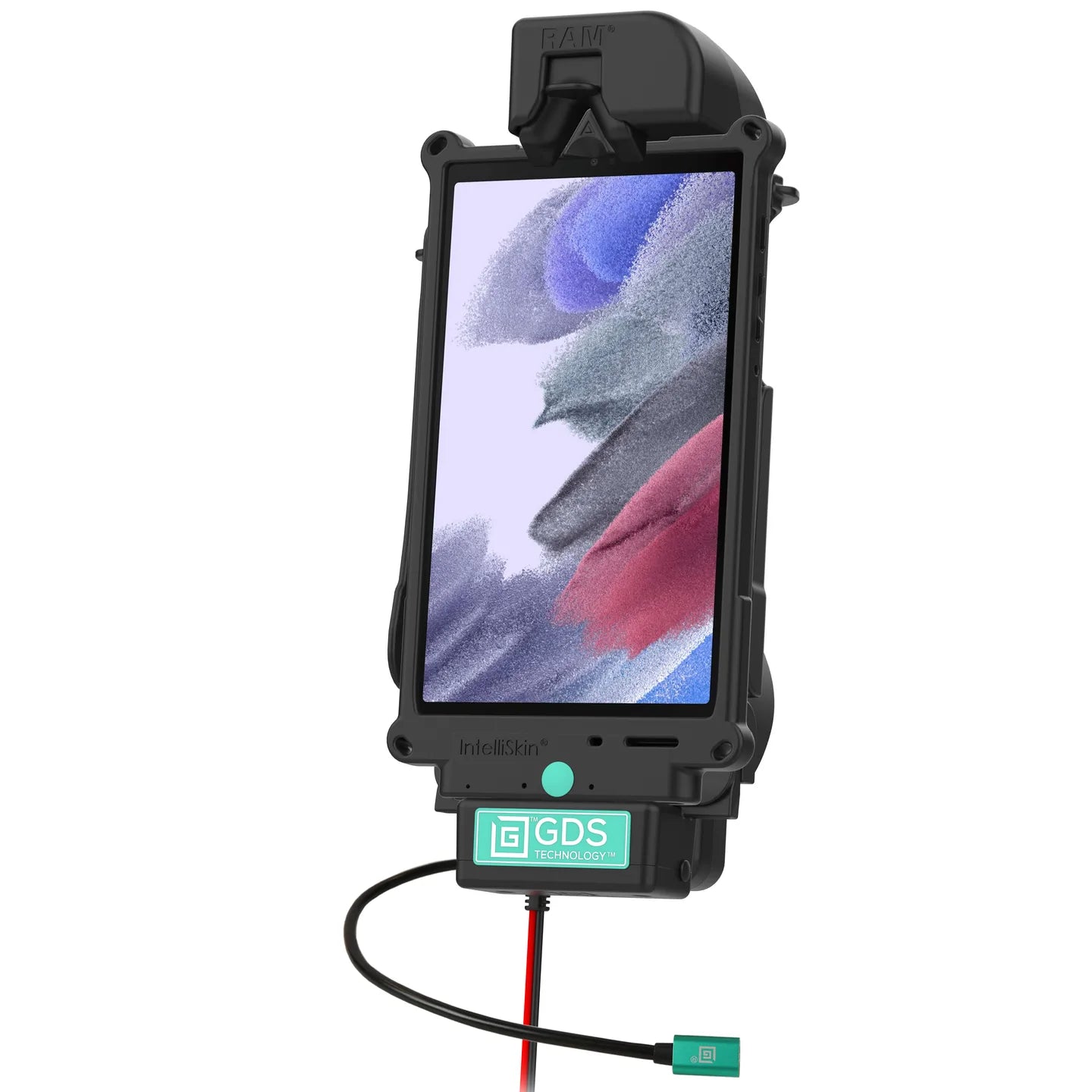

GDS® Tough-Dock™ with Heating Module for Samsung Tab A7 Lite 8.7” - RAM-GDS-DOCK-SAM80CPHU

This GDS® Tough-Dock™ is designed specifically to support the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a Type-C power connector and a cutout for an audio jack cable, the GDS® Tough-Dock™ supports charging capabilities and audio connection for the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225). Also included is the new RAM® Temp-Right™ heater module — an external attachment with its own dedicated 11-16VDC hardwire charger. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty.

• Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) wrapped in an IntelliSkin^® Next Gen protective sleeve
• Includes RAM^® Temp-Right^™ heater module to regulate device temperatures and maintain functionality in extreme cold environments; contains integrated 11-16VDC hardwire charger
• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection
• RAM^® Mounts Compatible^™ and compatible with the GDS^® Hand-Stand^™ and GDS^® Roto-Mag^™ accessory attachments
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Cable Clamp (1) USB Type-C to Type-A Cable

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

POWER SPECIFICATIONS:
RAM® Temp-Right™ Heater Module: 75W Heater Input Voltage: 11 - 16VDC Heater Output: 7A @ 12V

OUTPUT VOLTAGE:
5V - 12V @ 3A

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C

WARRANTY:
3 year warranty

WEIGHT:
0.0 lb

COMPATIBLE DEVICES

• Samsung:

  Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
