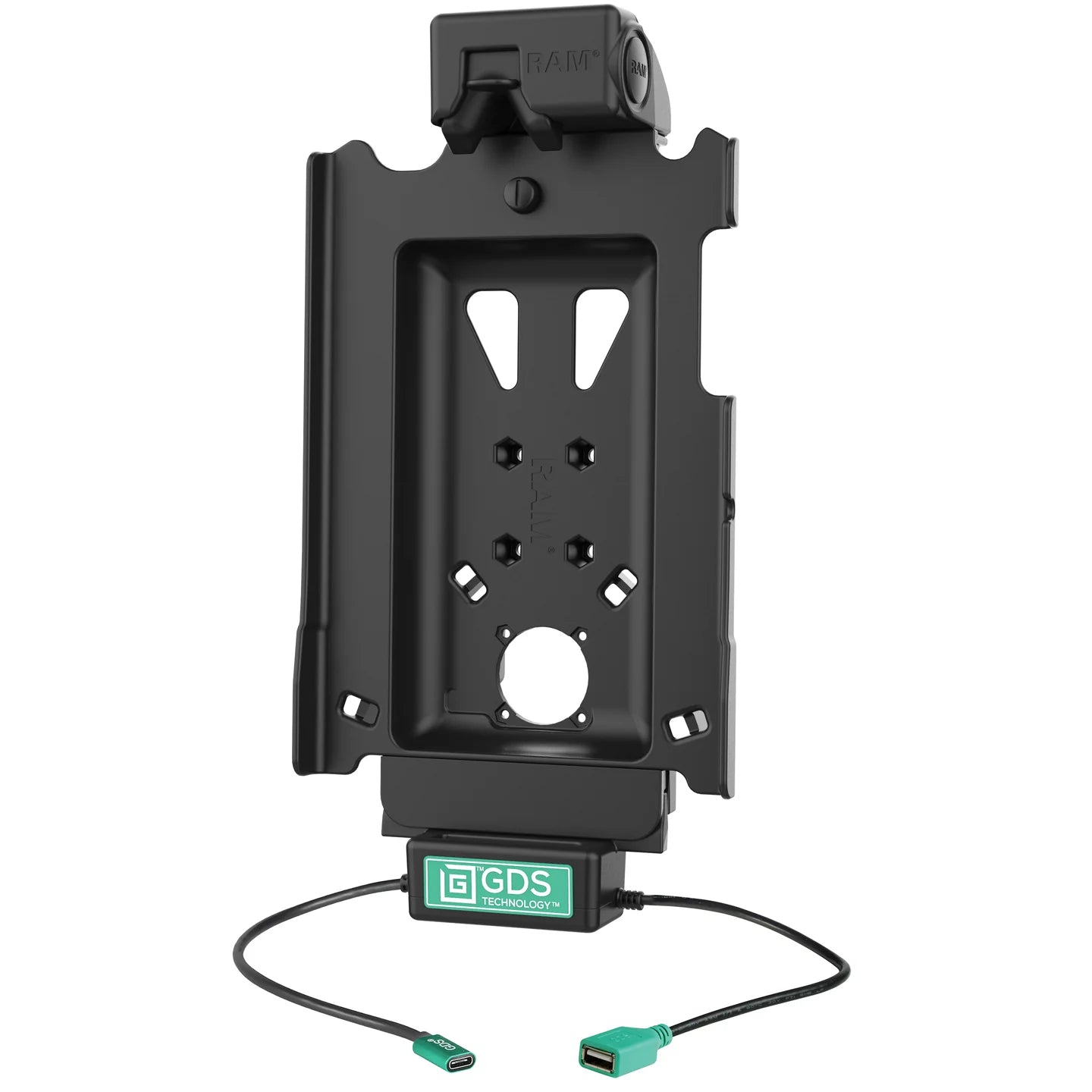

GDS® Tough-Dock™ + Single USB for Samsung Tab A8 10.5" SM-X200 - RAM-GDS-DOCK-SAM83CDU

This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A8 10.5" SM-X200 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty.

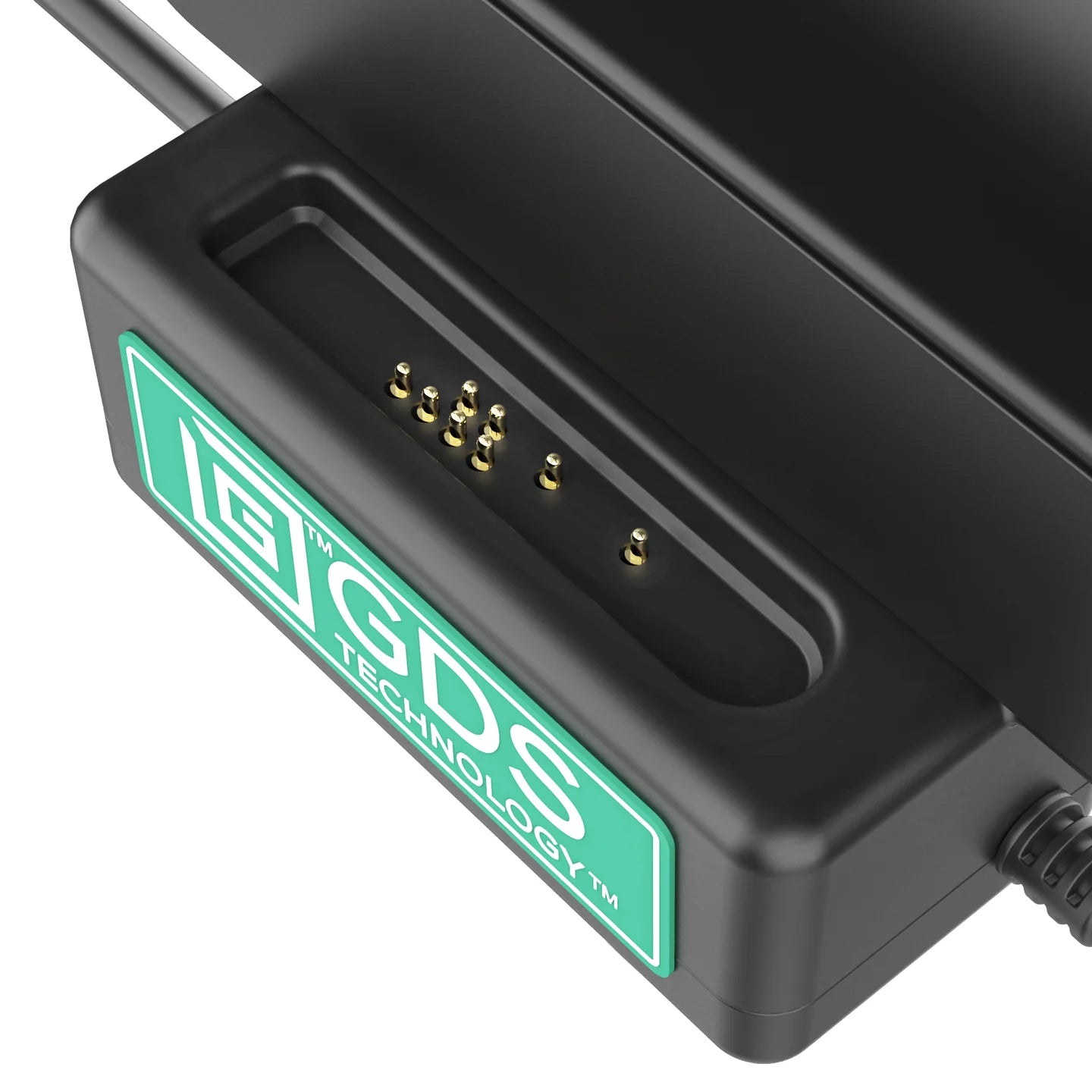

• Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral

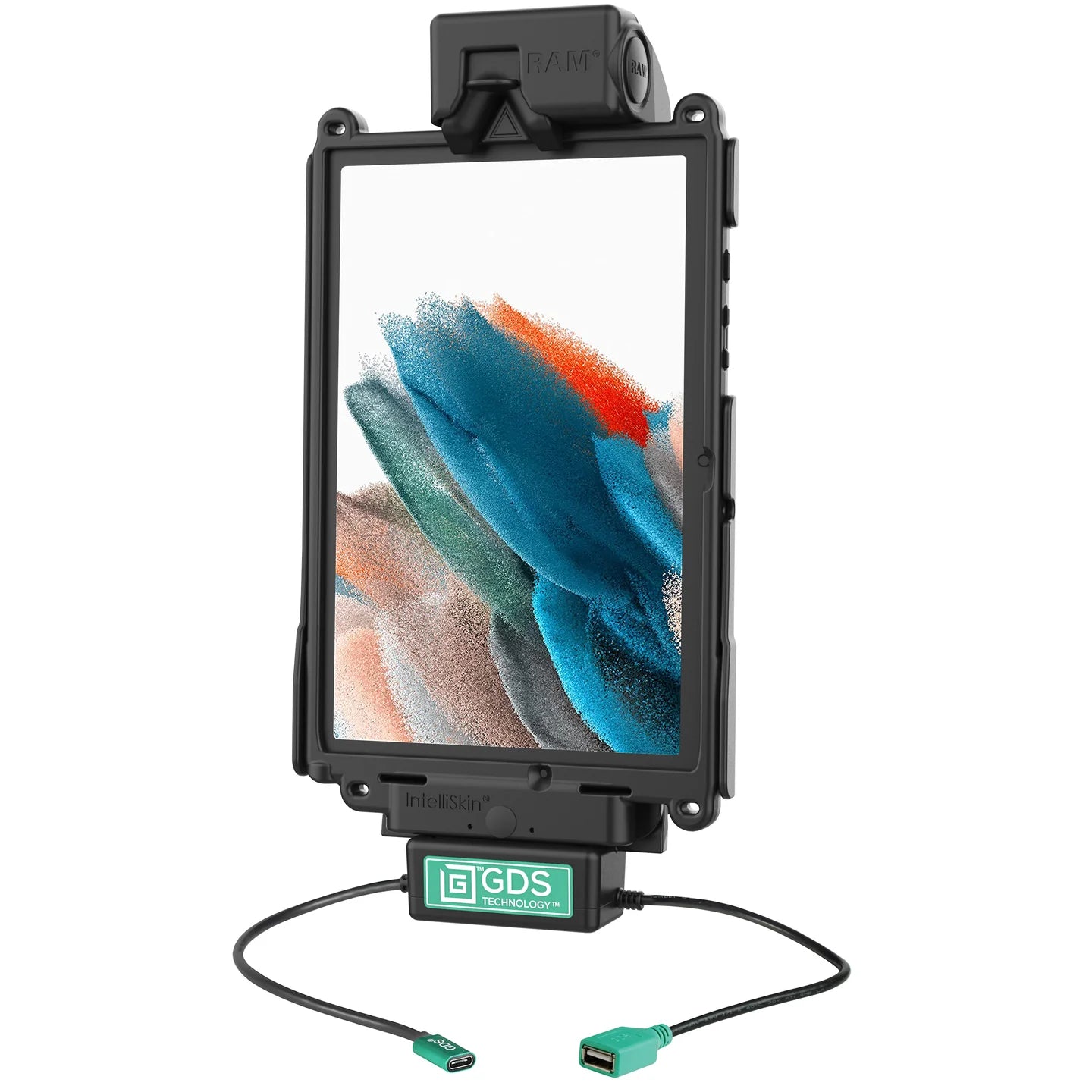

• Designed specifically for the Samsung Galaxy Tab A8 10.5" SM-X200 wrapped in an IntelliSkin® Next Gen protective sleeve

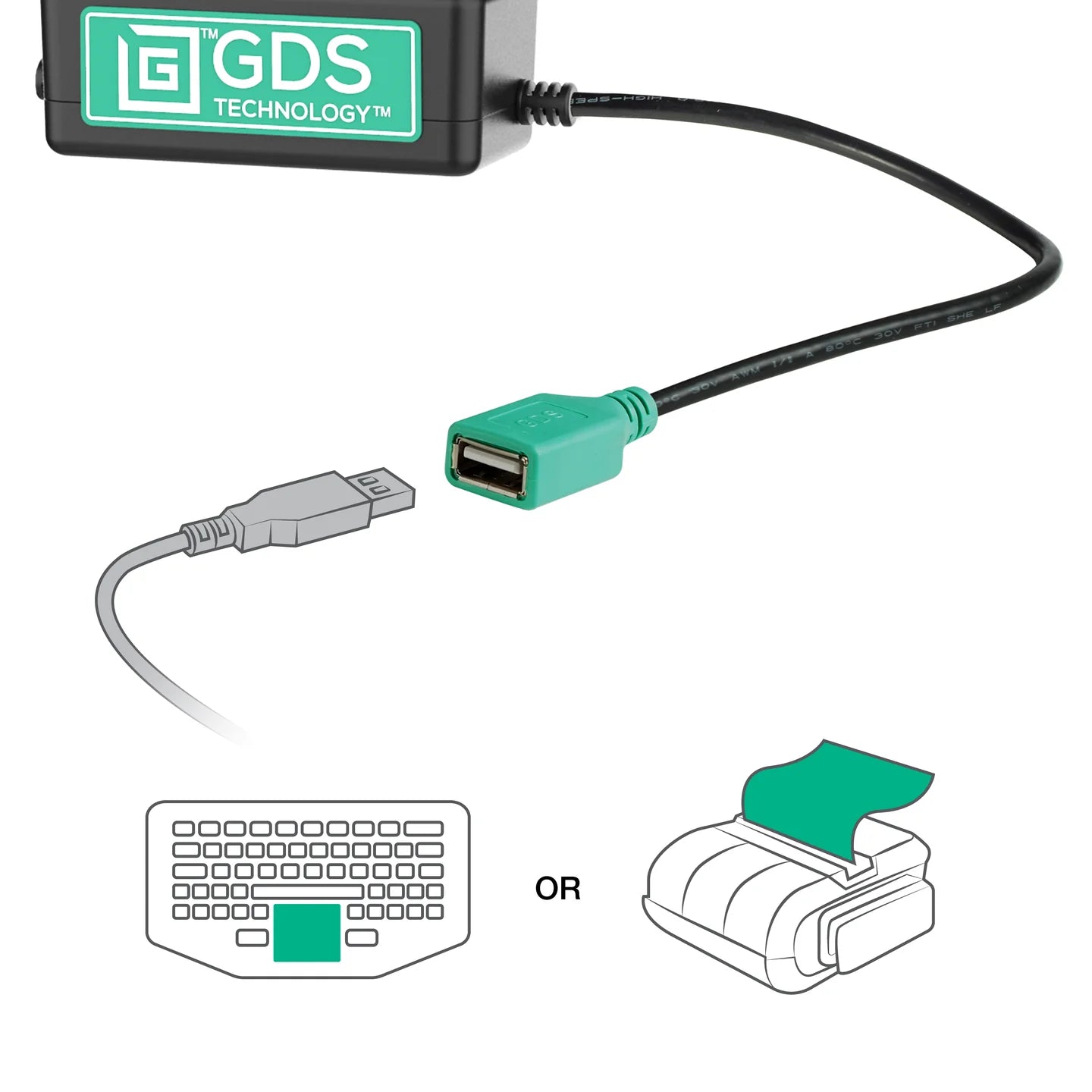

• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and single USB Type-A for peripheral connection
• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5V - 12V @ 3A

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C
USB Type A for 1 Peripheral

OUTPUT CABLE LENGTH:
.21 Meters

WARRANTY:
3 year warranty

WEIGHT:
1.15 lb

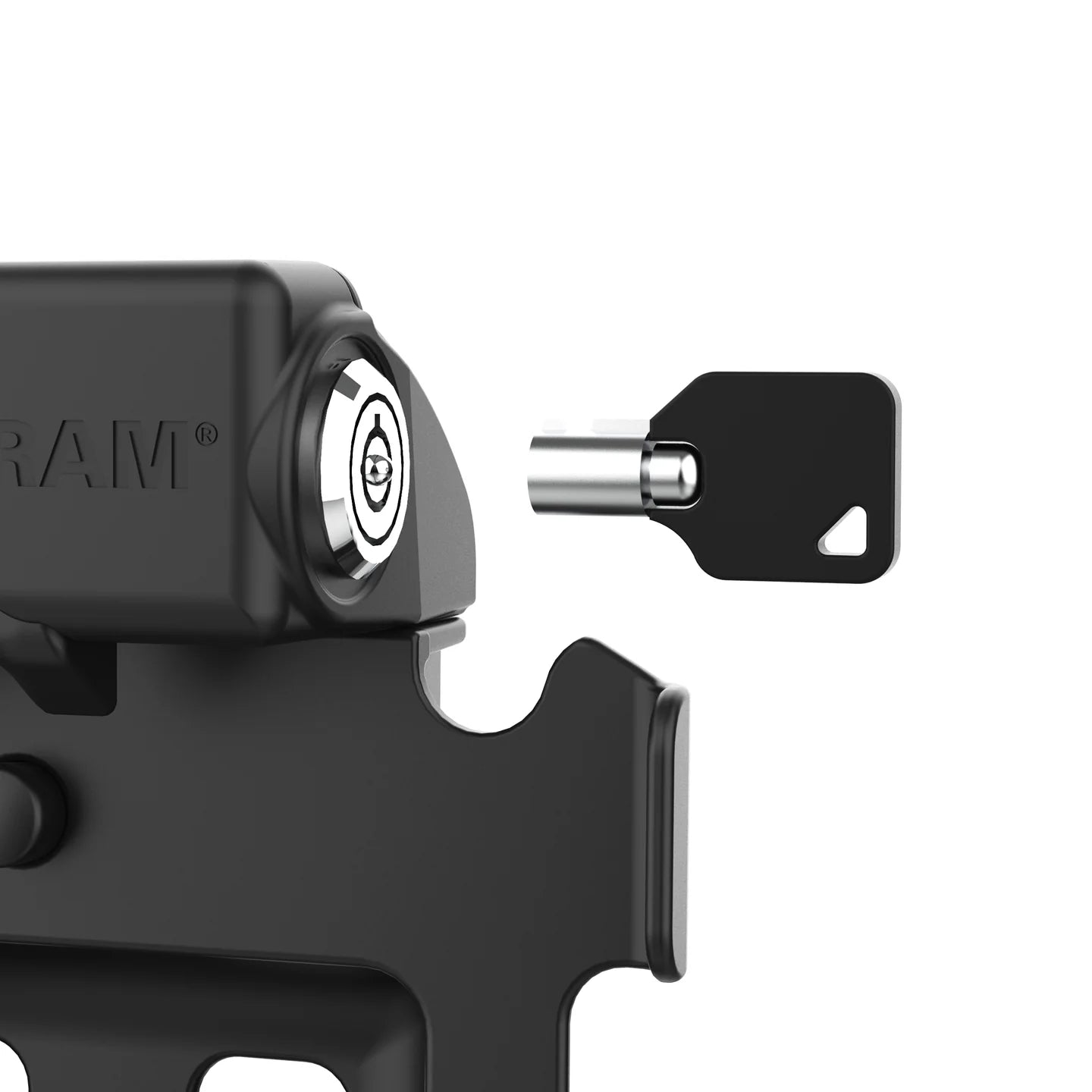

  GDS® Tough-Dock™ & Cool-Dock™ Top Latch - RAM-GDS-DOCKHU
