Locking GDS® Tough-Dock™ + Dual USB for Samsung Tab A7 Lite 8.7" - RAM-GDS-DOCKL-SAM80CD2U

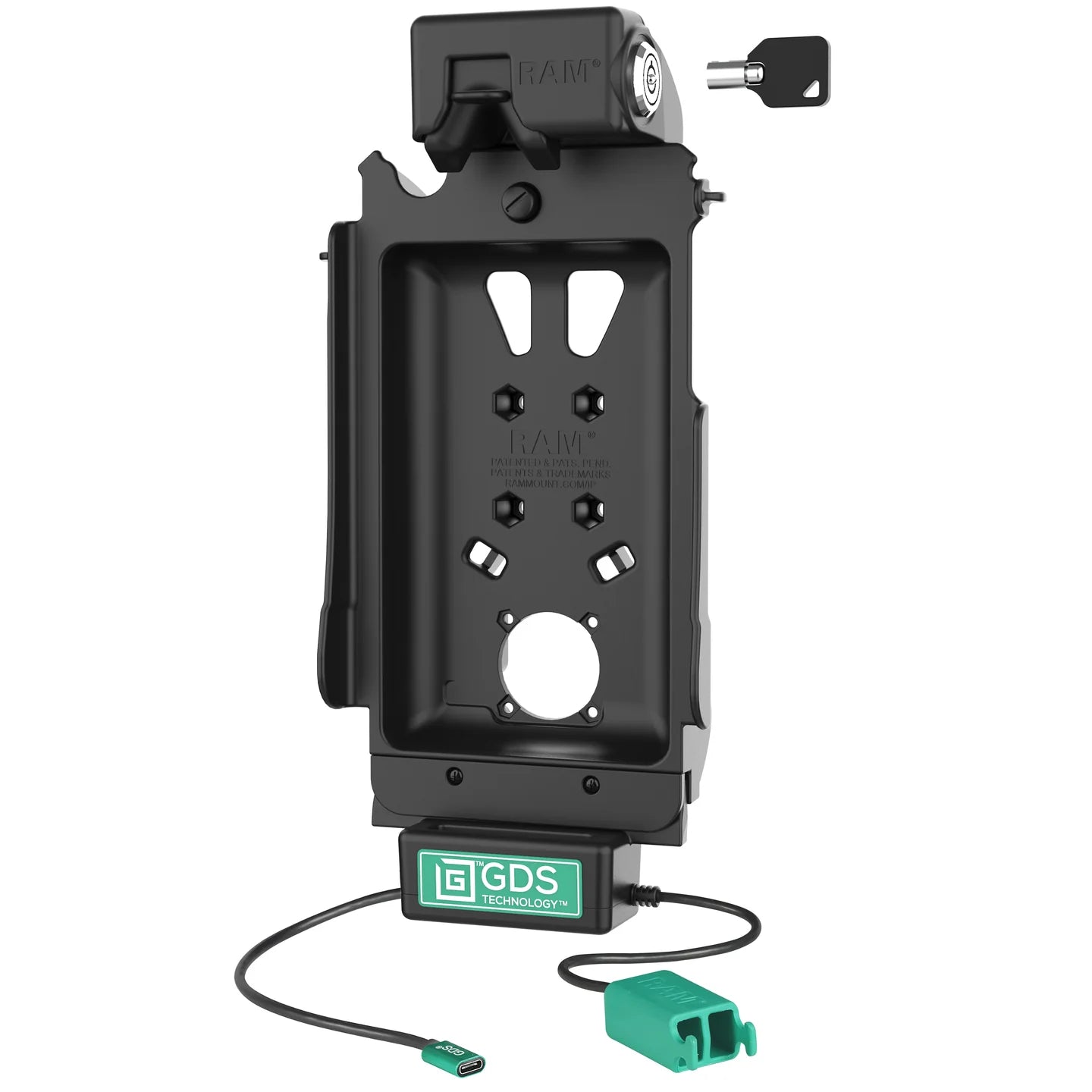

This key-locking GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty.

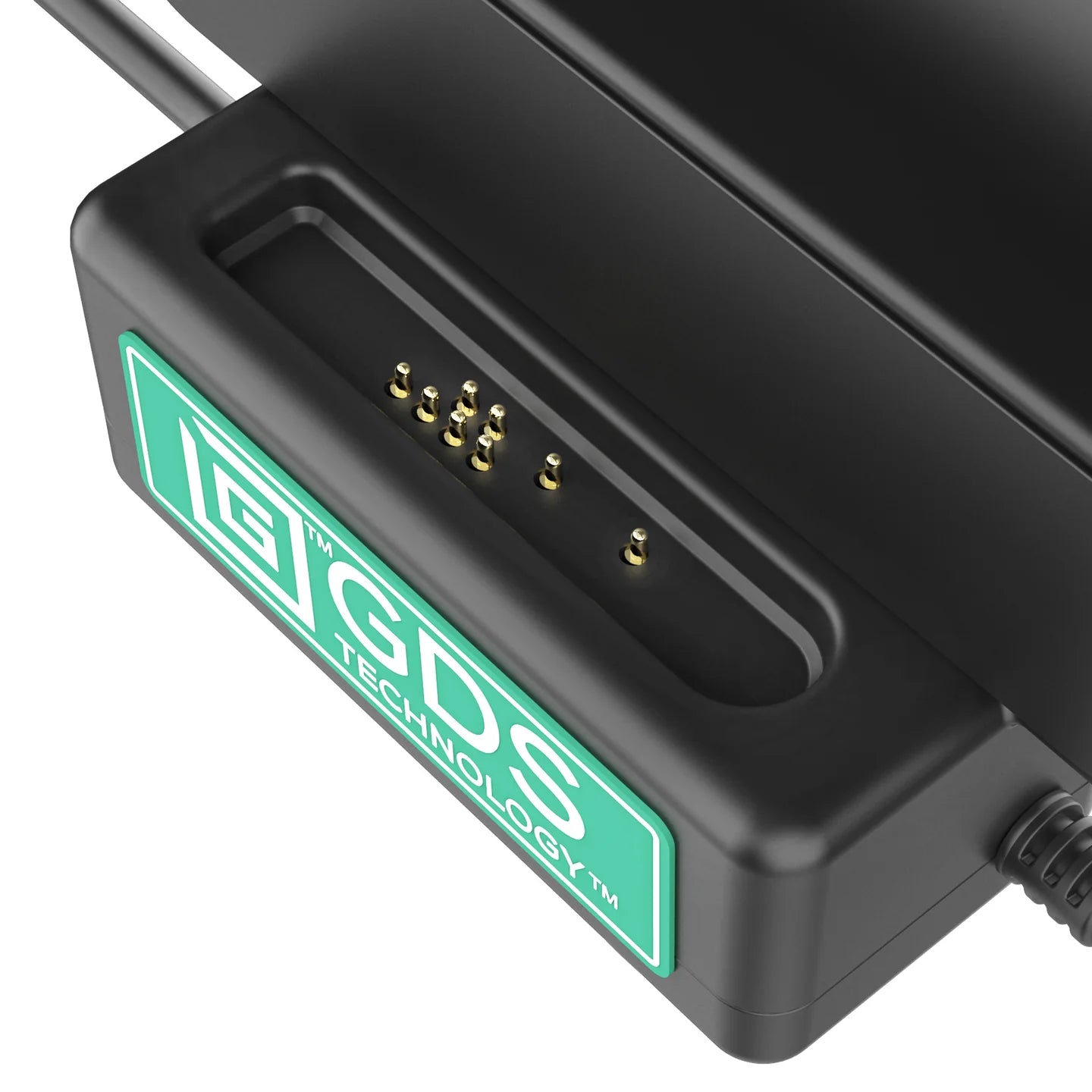

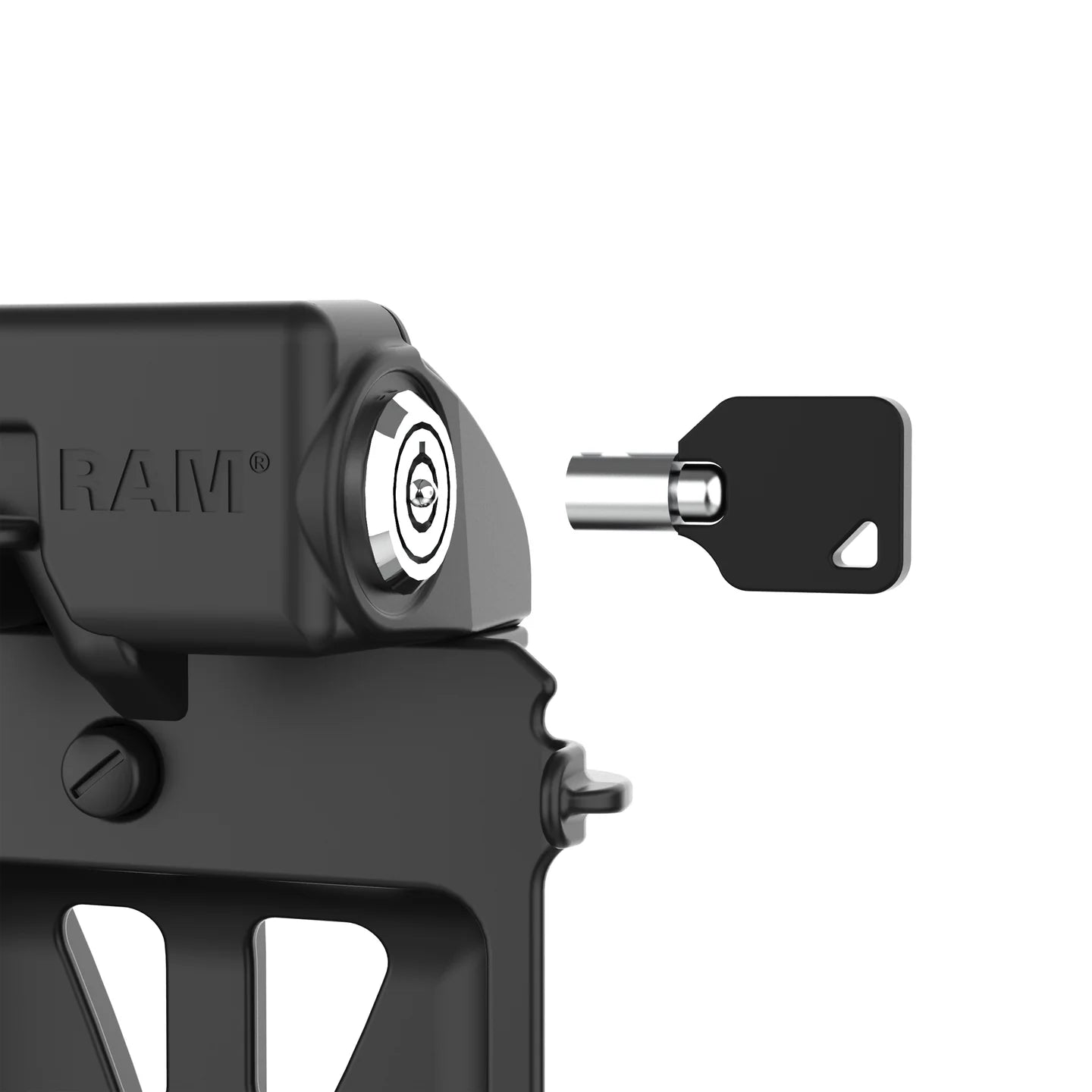

• Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection for up to two additional USB peripherals

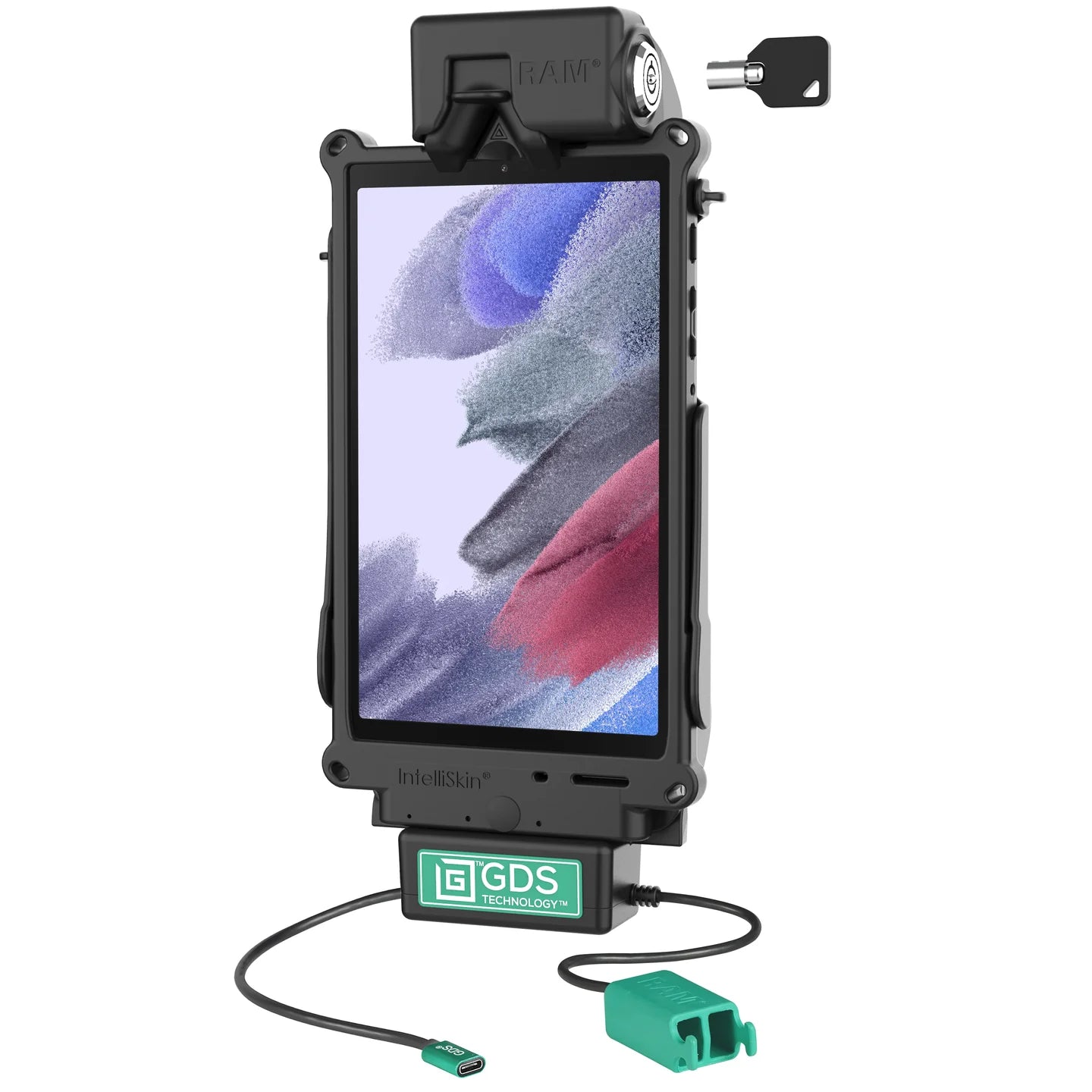

• Designed specifically for the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) wrapped in an IntelliSkin® Next Gen protective sleeve

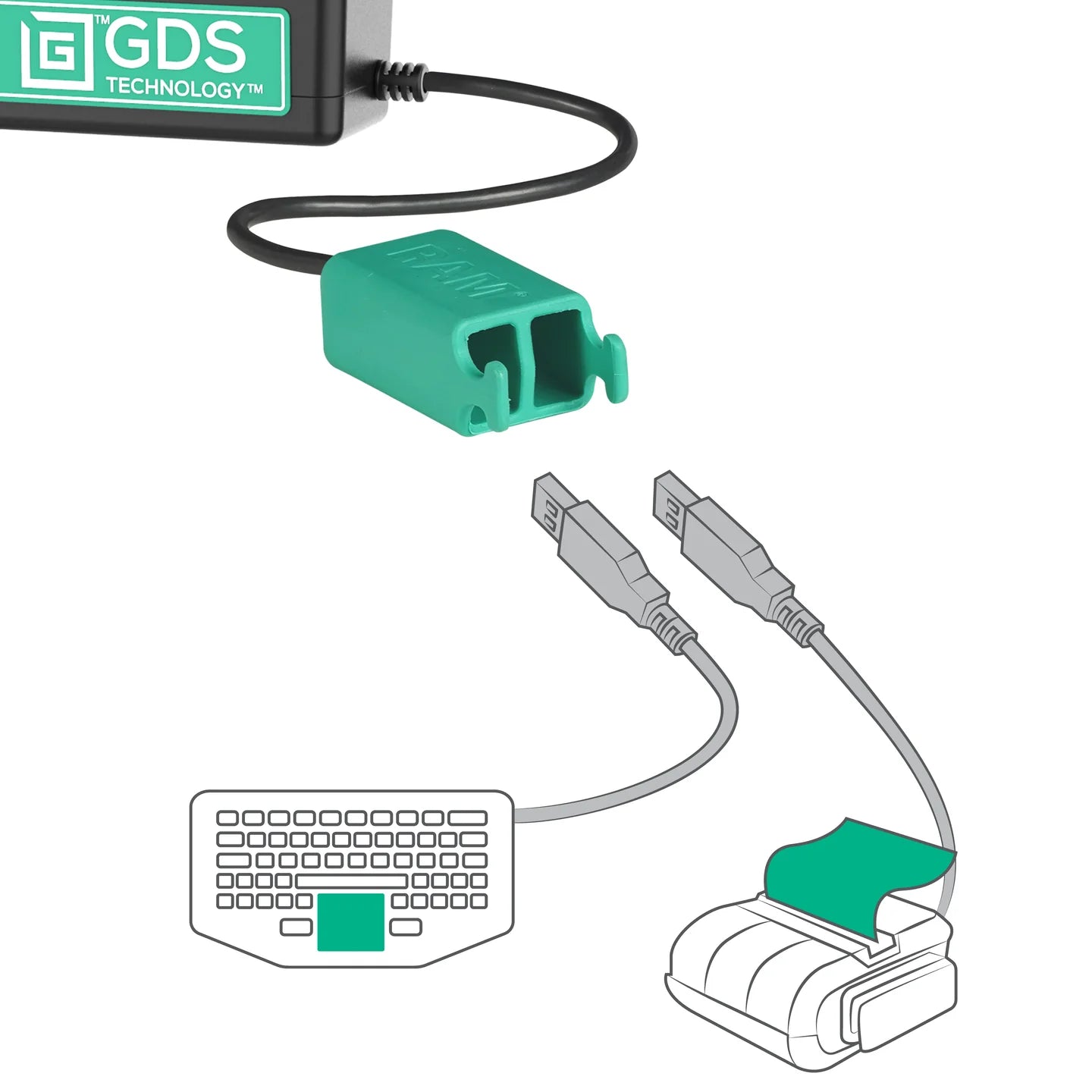

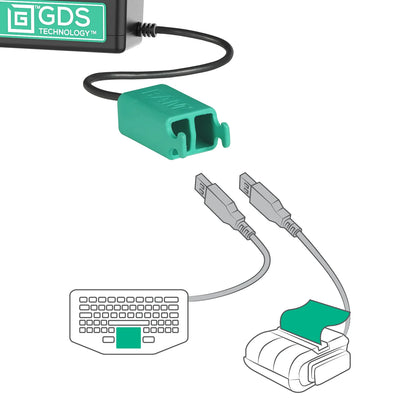

• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection
• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

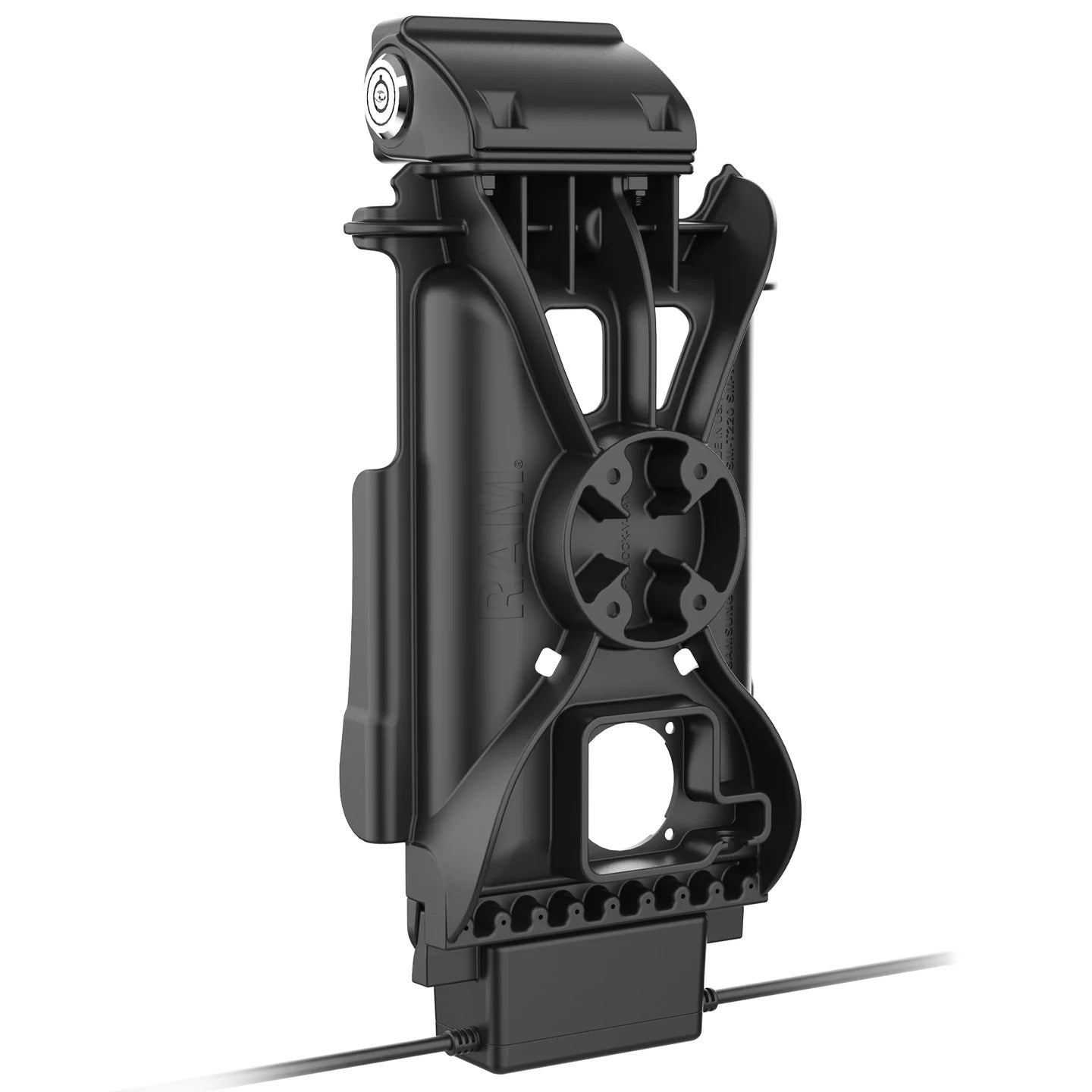

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5V - 12V @ 3A max
Each Peripheral: 5V @ 500mA max

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C
Dual USB Type A for 2 Peripherals

OUTPUT CABLE LENGTH:
.21 Meters

WARRANTY:
3 year warranty

WEIGHT:
1.29 lb

COMPATIBLE DEVICES

• Samsung:

  Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
