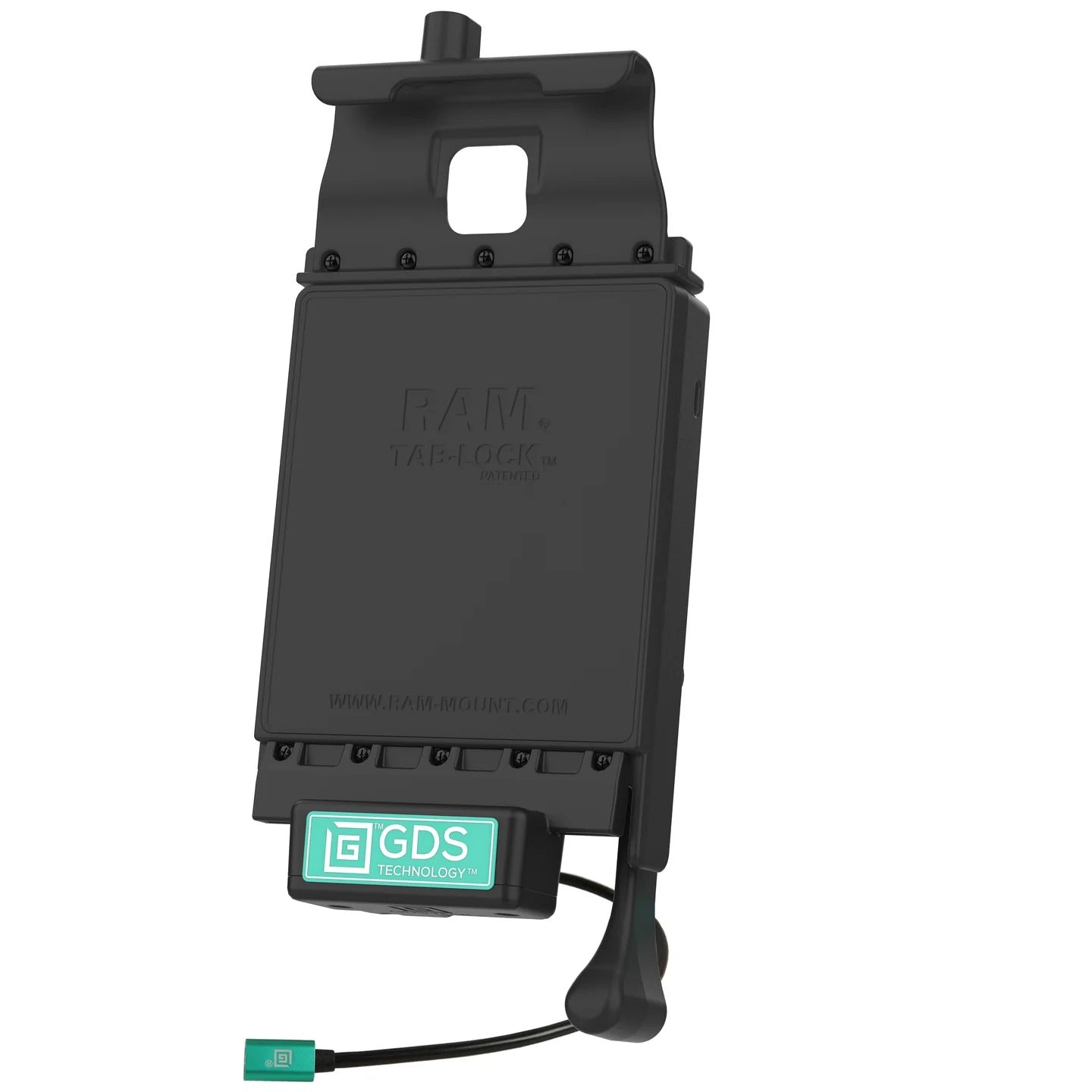

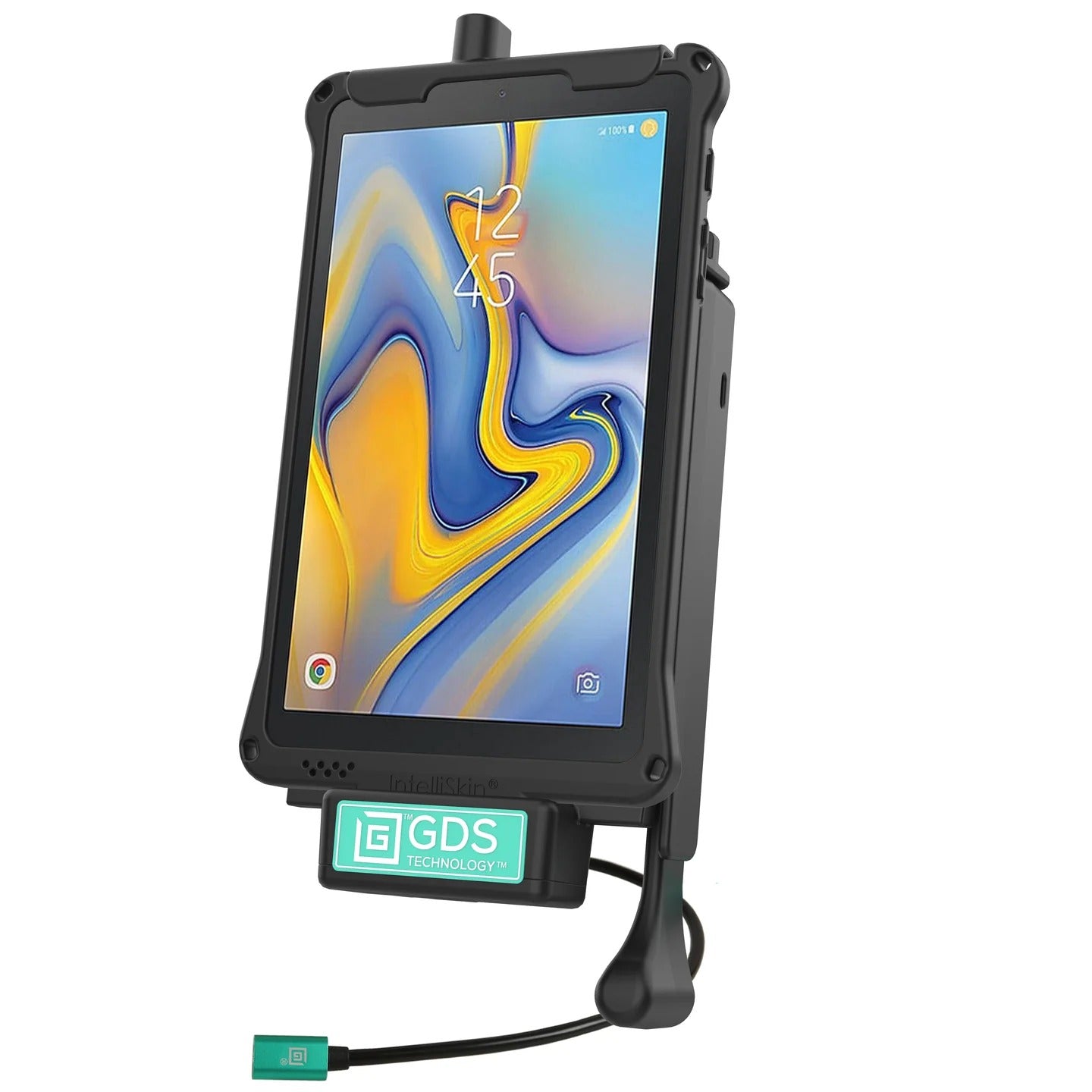

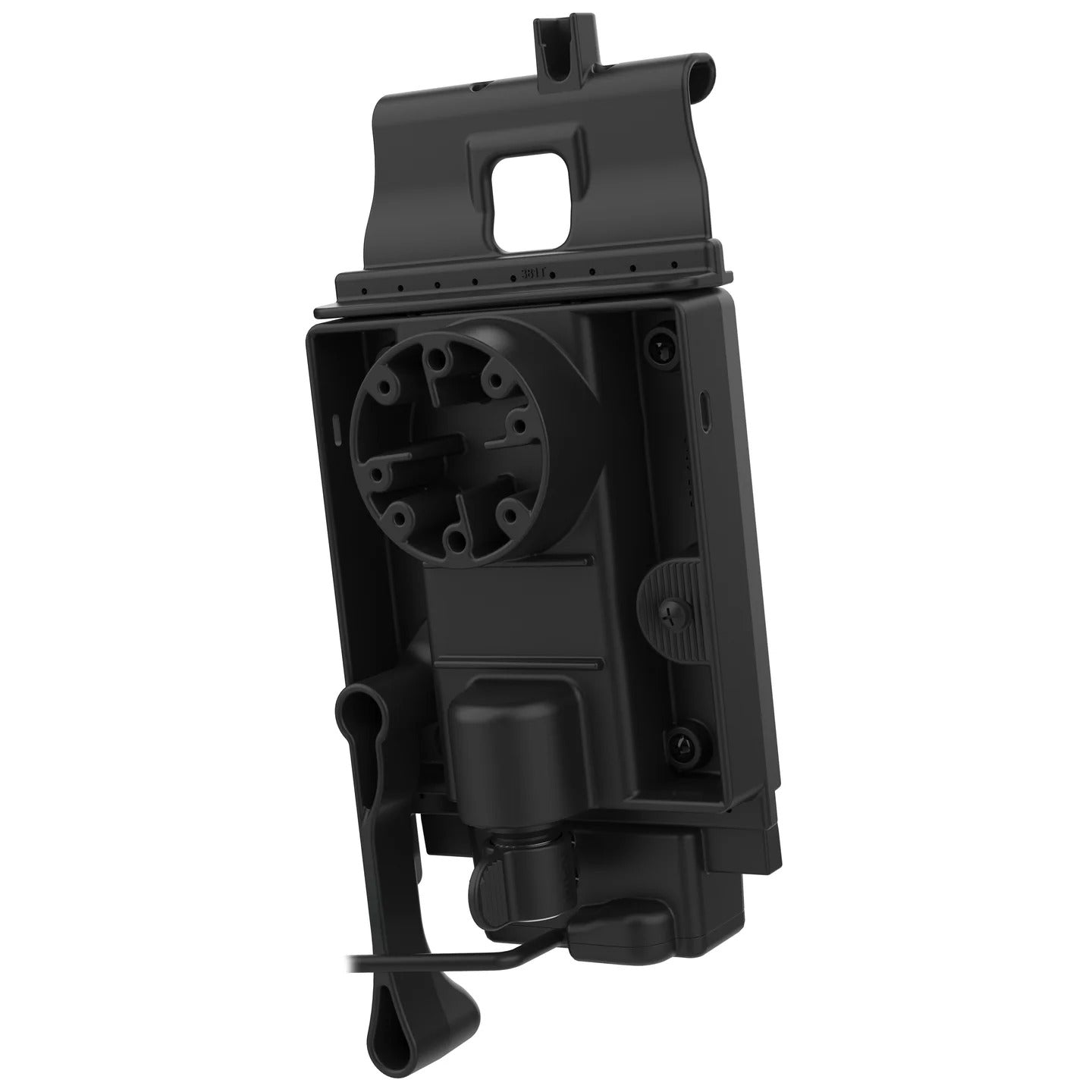

GDS® Vehicle Dock for the Samsung Tab A 8.0 (2018) SM-T387 - RAM-GDS-DOCKL-V2-SAM40CU

The RAM® Locking Vehicle Dock with GDS® is a spring-loaded, quick-release cradle with a keyed lock that offers a secure fit with easy access to the mounted tablet. This docking station is compatible with the Samsung Galaxy Tab A 8.0 (2018) SM-T387 with IntelliSkin®. The integrated GDS® platform enables data sync and charging capabilities. Without the need to remove the IntelliSkin® sleeve from the device, users can quickly and efficiently mount the tablet in the vehicle dock while keeping the device charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.

• Spring-loaded locking vehicle dock featuring GDS® Technology™ for data and charging capabilities
• Specifically designed for the Samsung Galaxy Tab A 8.0 (2018) SM-T387 with IntelliSkin®
• Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

HARDWARE INCLUDED:
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5V - 20V @ 3A

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C

WARRANTY:
3 year warranty

WEIGHT:
1.84 lb

COMPATIBLE DEVICES

• Samsung:

  Galaxy Tab A 8.0 (2018) SM-T387 with IntelliSkin®
