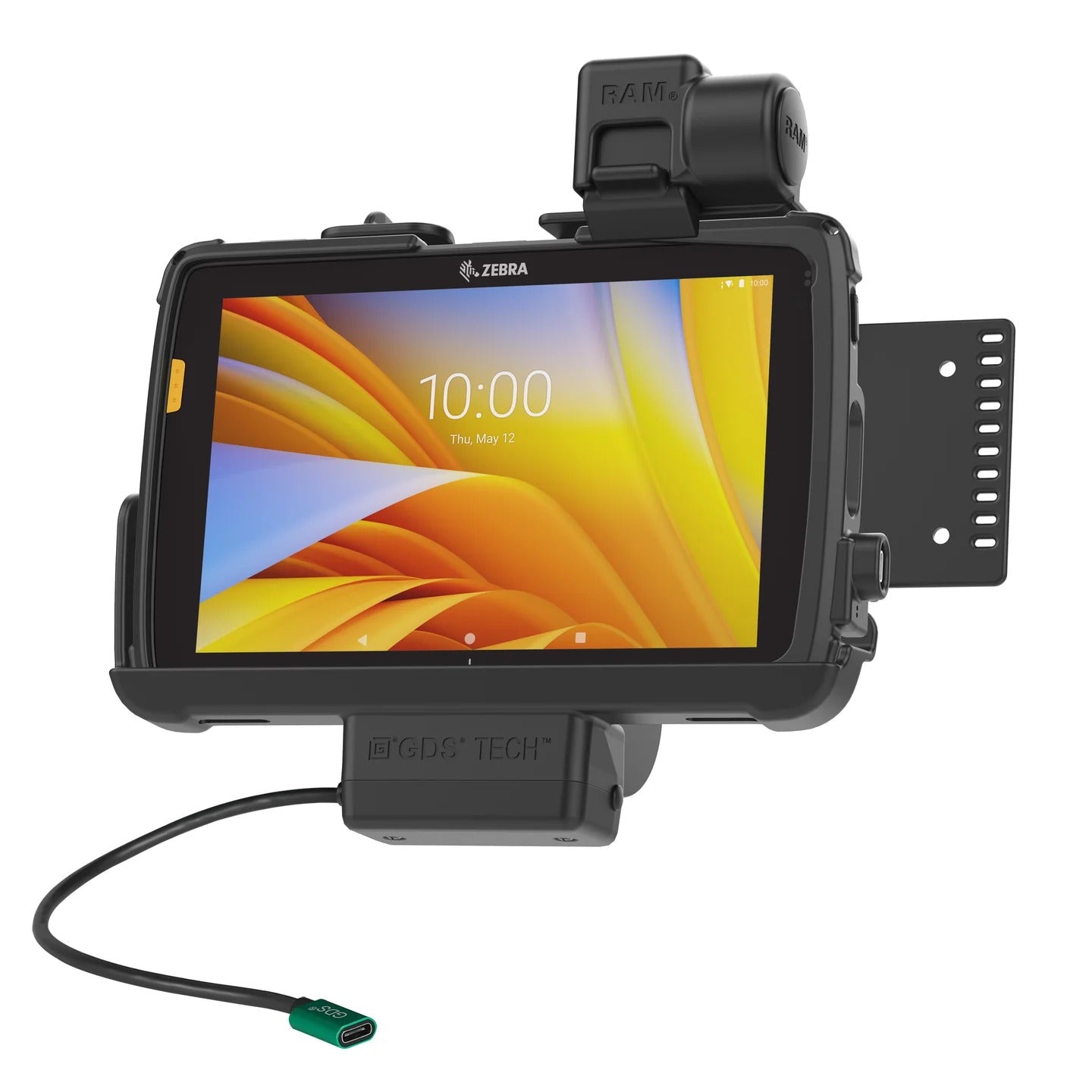

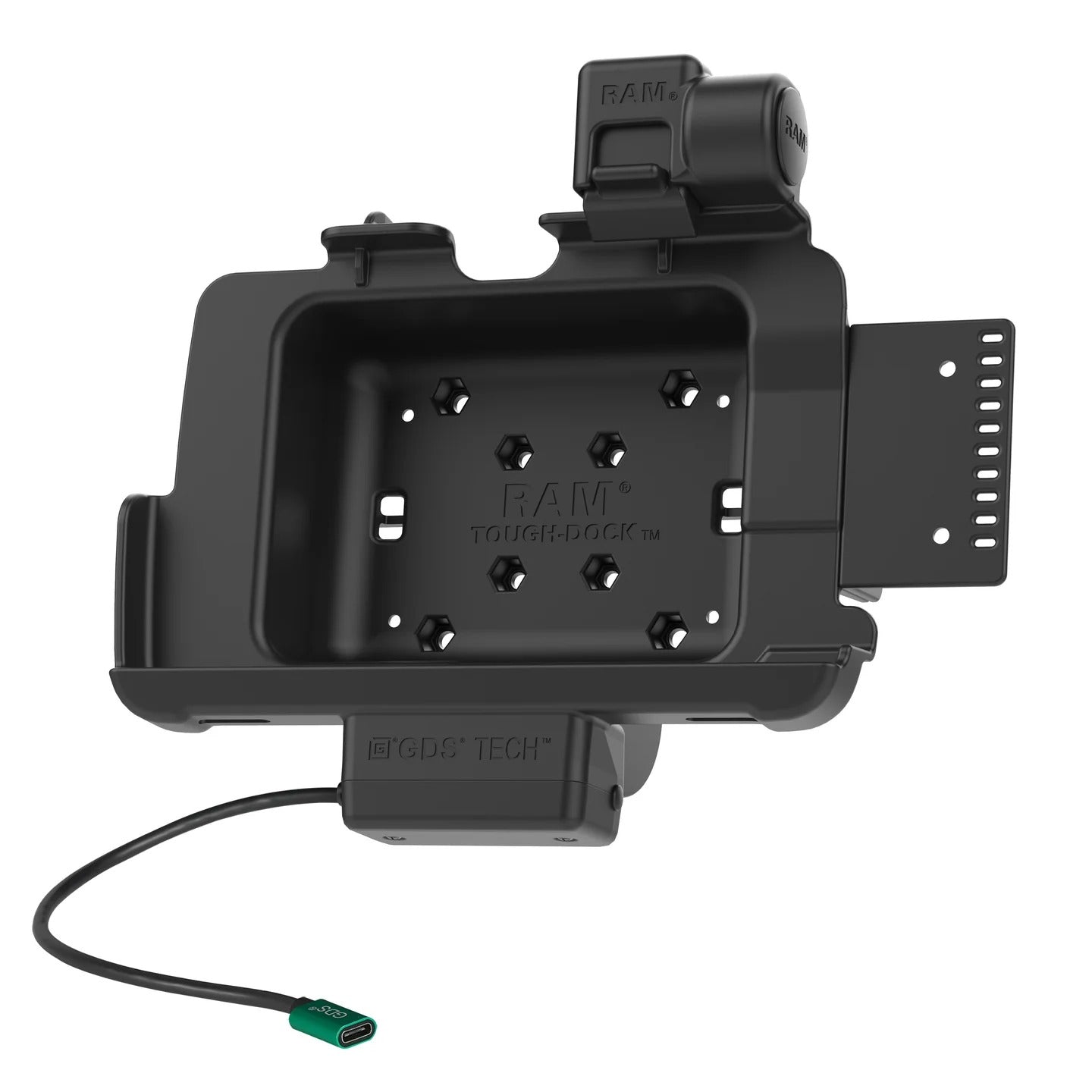

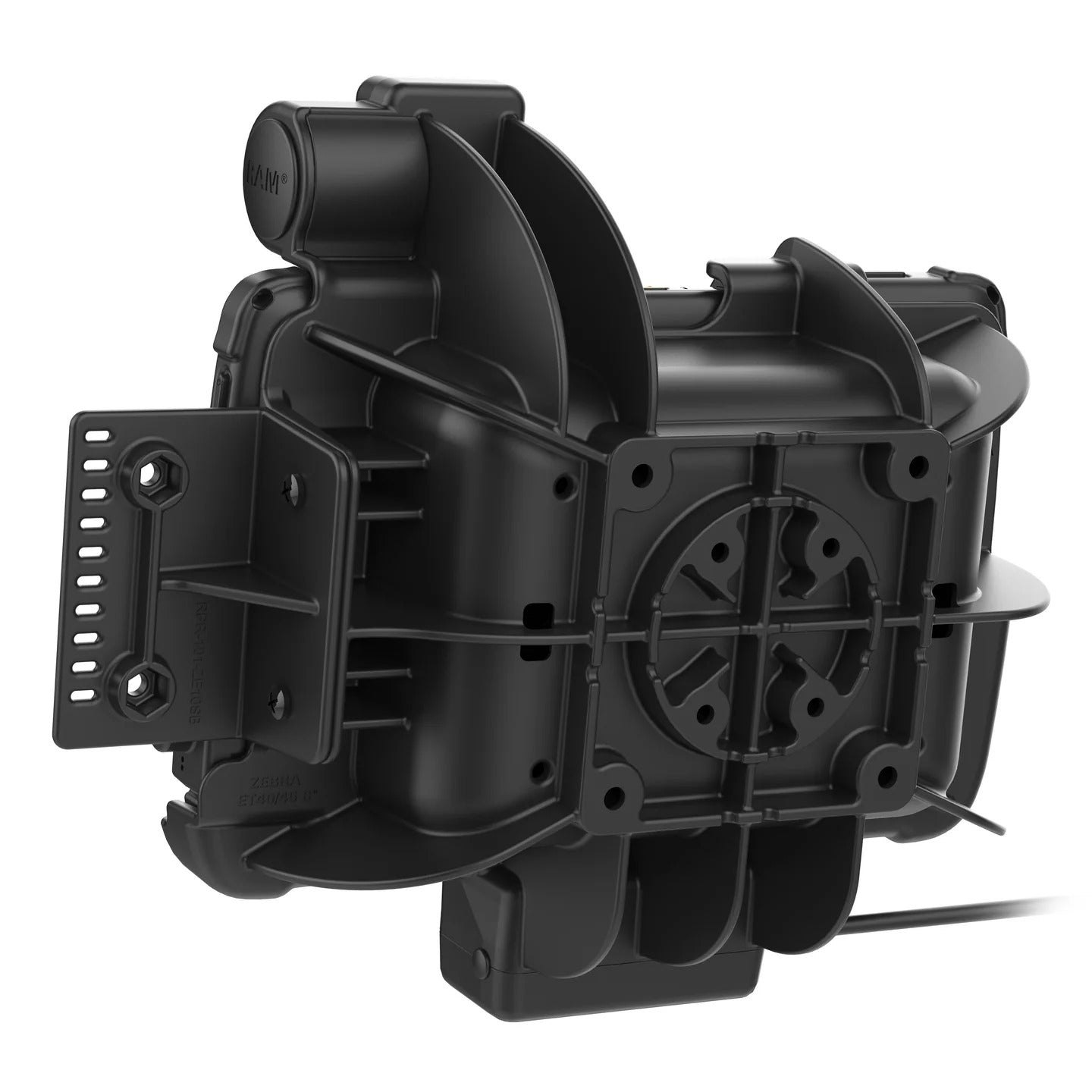

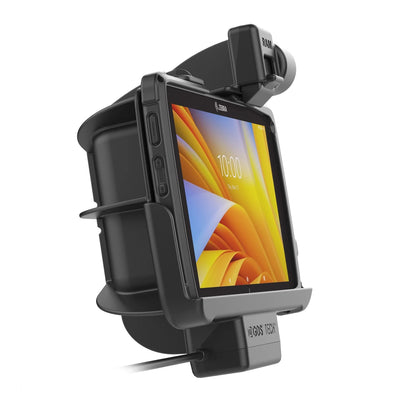

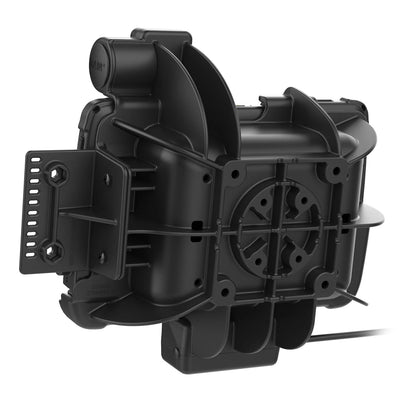

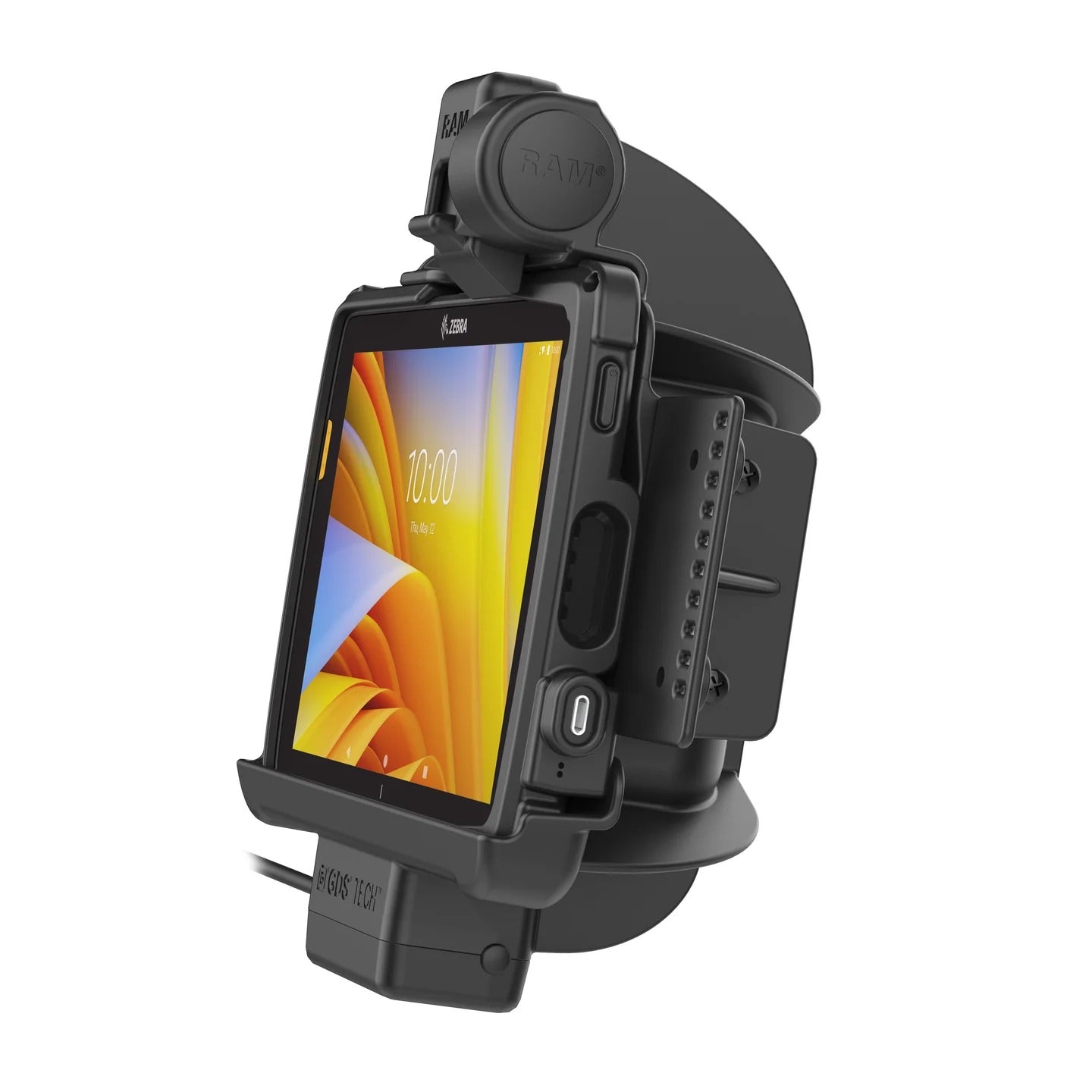

GDS® Powered Dock with Latch for Zebra ET4x 8" Tablet with IntelliSkin® - RAM-GDS-DOCKNLL-ZE20PU

For frequent docking and undocking of the Zebra ET40 & ET45 8" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE20PU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 8" is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

• Form-fit dock designed specifically for the Zebra ET40 & ET45 8" tablets with IntelliSkin® protective sleeve, featuring GDS® Technology™

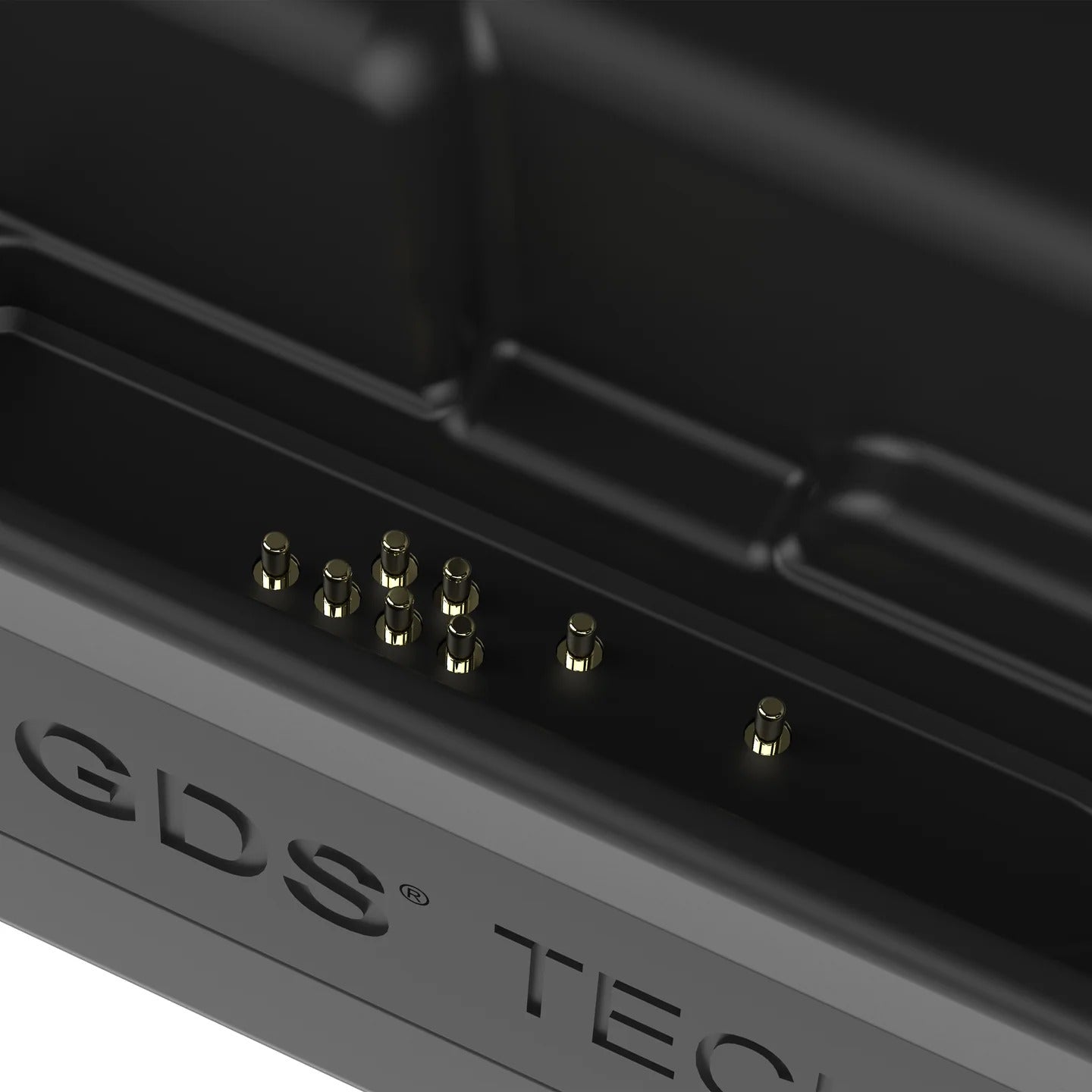

• When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
• Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

HOLE PATTERN:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5V - 20V @ 3A

POWER OUTPUT:
60W

INPUT CONNECTOR:
USB Type-C

INPUT CABLE LENGTH:
.21 Meter

CERTIFICATIONS:
CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY:
3 year warranty

WEIGHT:
1.42 lb

ADDITIONAL INFORMATION:
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.

COMPATIBLE DEVICES

• Zebra:

  ET40 8" Tablet with IntelliSkin® Next Gen
  ET45 8" Tablet with IntelliSkin® Next Gen

IntelliSkin® Next Gen for Zebra ET4x 8" Tablet

  IntelliSkin® Next Gen for Zebra ET4x 8" Enterprise Tablet - RAM-GDS-SKIN-ZE20C-NG
