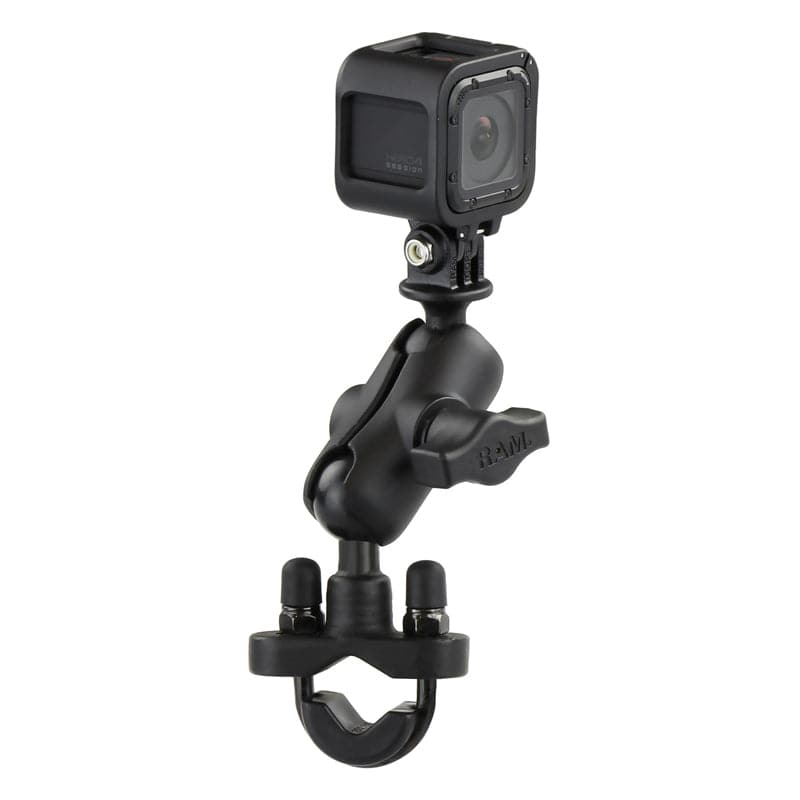

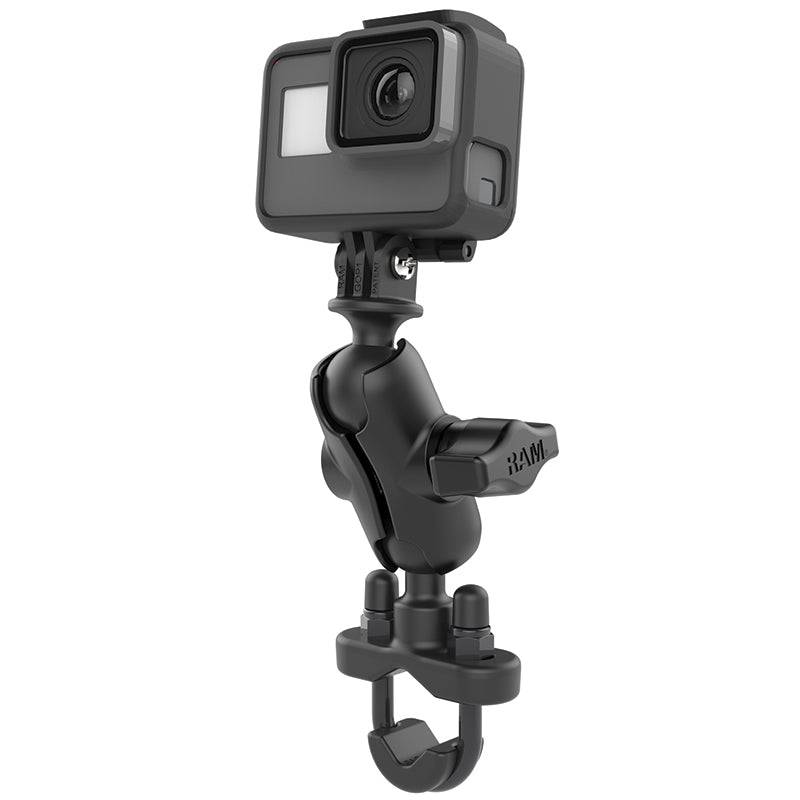

RAM® Handlebar U-Bolt Double Ball Mount with Action Camera Adapter - RAM-B-149Z-A-GOP1U

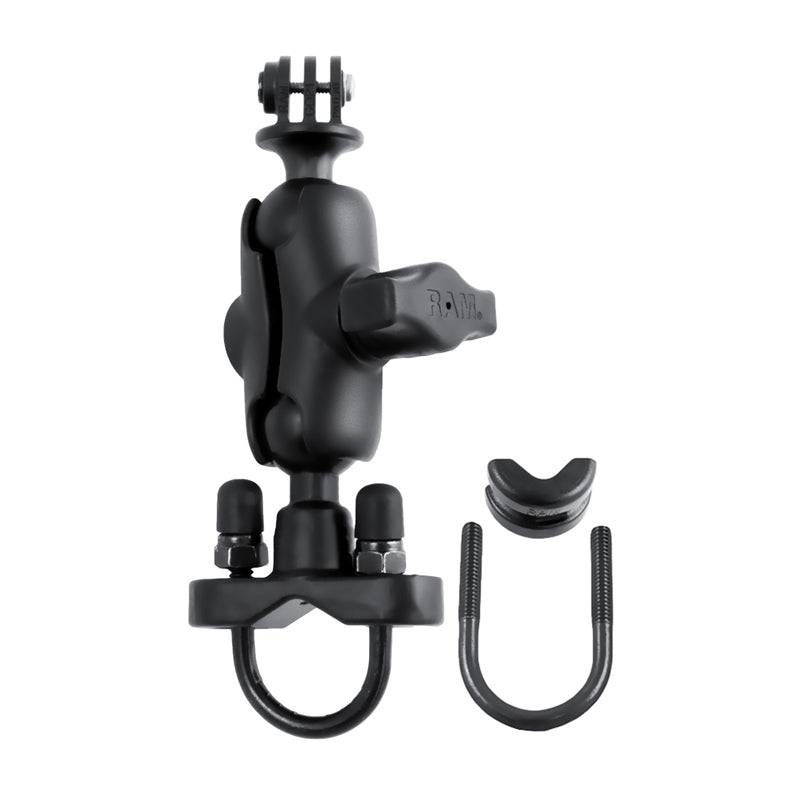

The RAM-B-149Z-A-GOP1U consists of a zinc coated u-bolt base, SHORT size double socket arm and 1" diameter ball with custom GoPro^® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".

U-Bolt Dimensions:
Accommodates rails from 0.5" to 1.25" in diameter

Material:
High Strength Composite and Powder Coated Marine Grade Aluminum

Ball Size:
B Size 1" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag. GoPro camera and black thumb screw not included with purchase.

Weight:
0.51 lbs.

 Action Camera Ball Adapter Instructions - PDF

RAM Handlebar Rail Mount, U-Bolt, Short Socket Arm & Ball with Custom GoPro® Hero Adapter

RAM® Mounts Interchangeable Components

Additional Mounting Base Options

RAM Motorcycle Base with 9mm Hole and 1" Ball - RAM-B-272U

RAM Motorcycle Fork Stem Base with 1" Ball - RAM-B-342U

RAM 2.5" Round Base with the AMPs Hole Pattern, 1" Ball & Triple Magnetic Base Adapter - RAM-B-202-339U

RAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter - RAM-B-231U

RAM Flex Adhesive Base with 1" Ball - RAP-B-378U

RAM Universal Small Tough-Clamp™ with 1" Diameter Rubber Ball - RAP-B-397-1U

RAM Small Tough-Claw™ with B Size 1" Diameter Rubber Ball - RAP-B-400U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

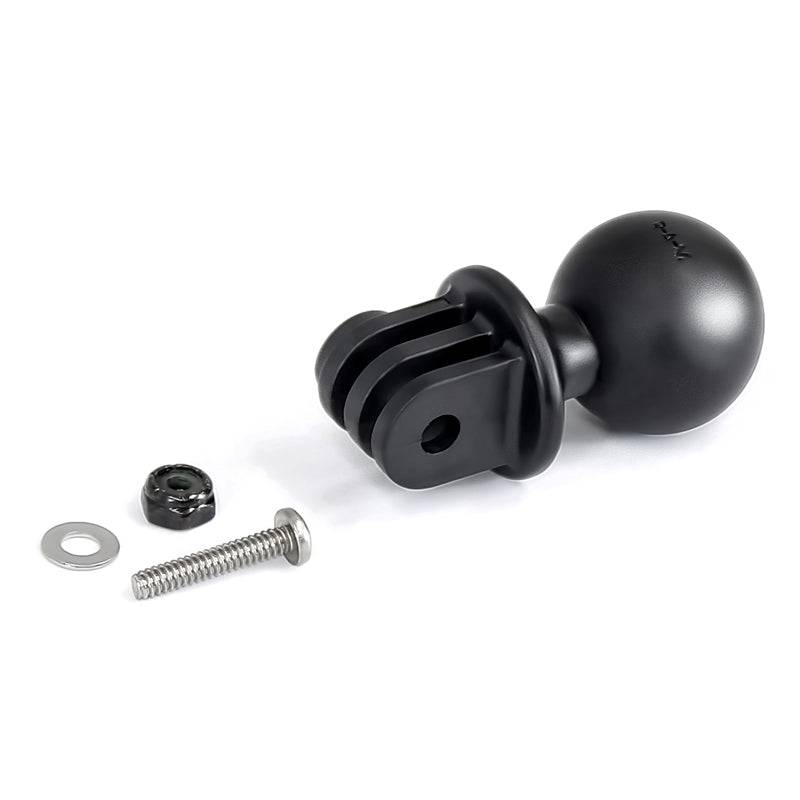

RAM Action Camera Universal Ball Adapter - RAP-B-202U-GOP1

RAM Short Double Socket Arm for B Size 1" Balls - RAM-B-201U-A

RAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZU
