RAM® Key Locking Power + Data Dock for Panasonic FZ-S1 & FZ-L1 - RAM-HOL-PAN15PDKLU

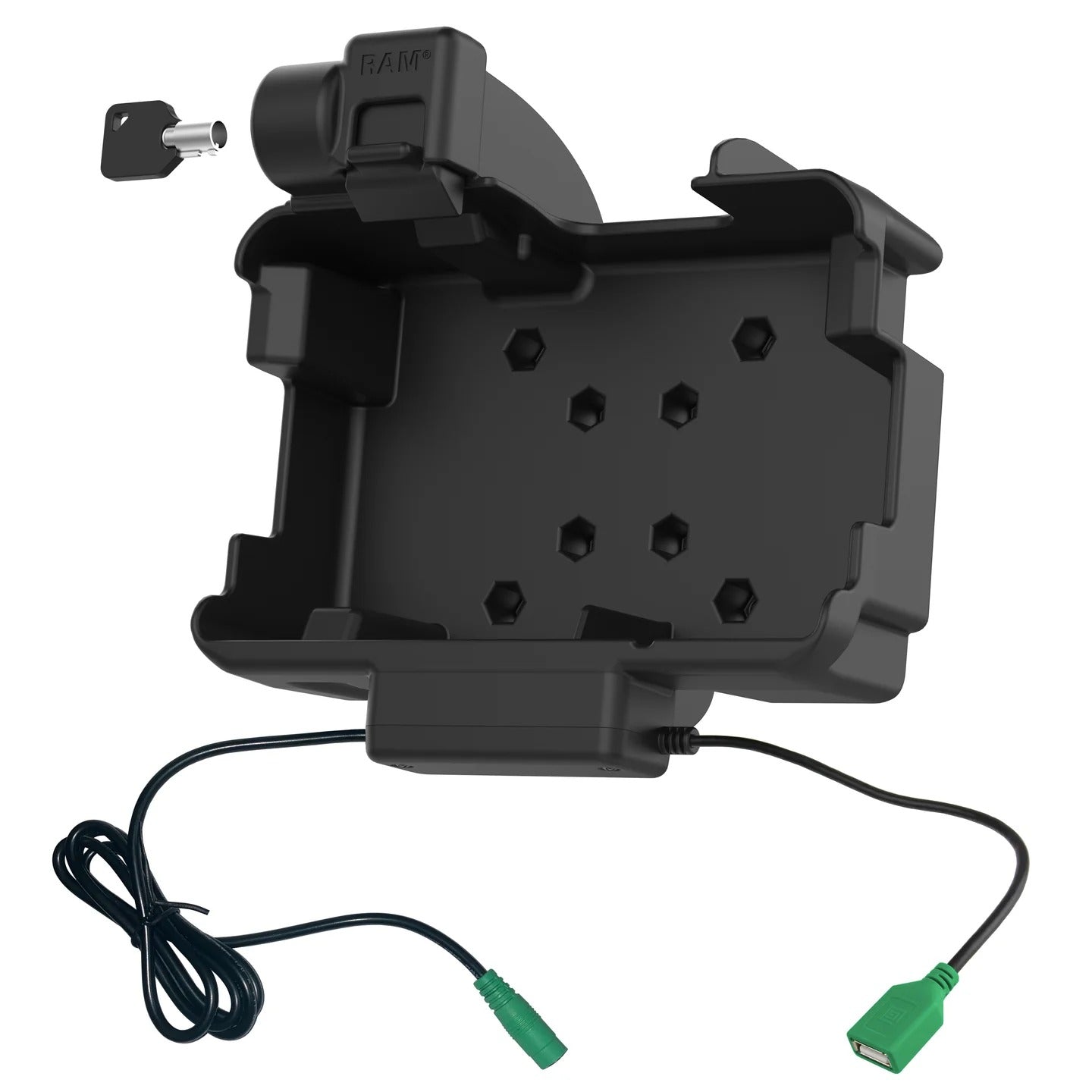

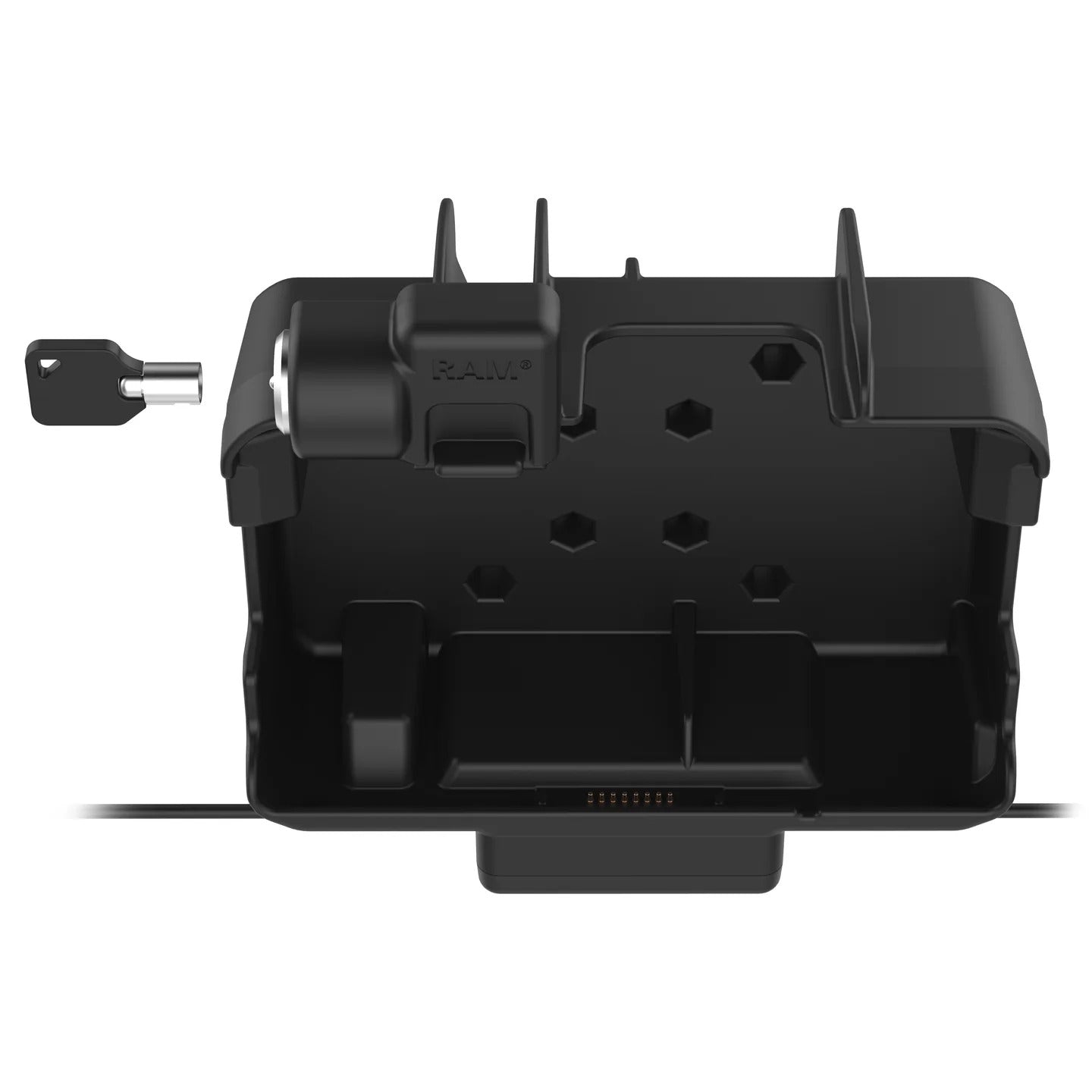

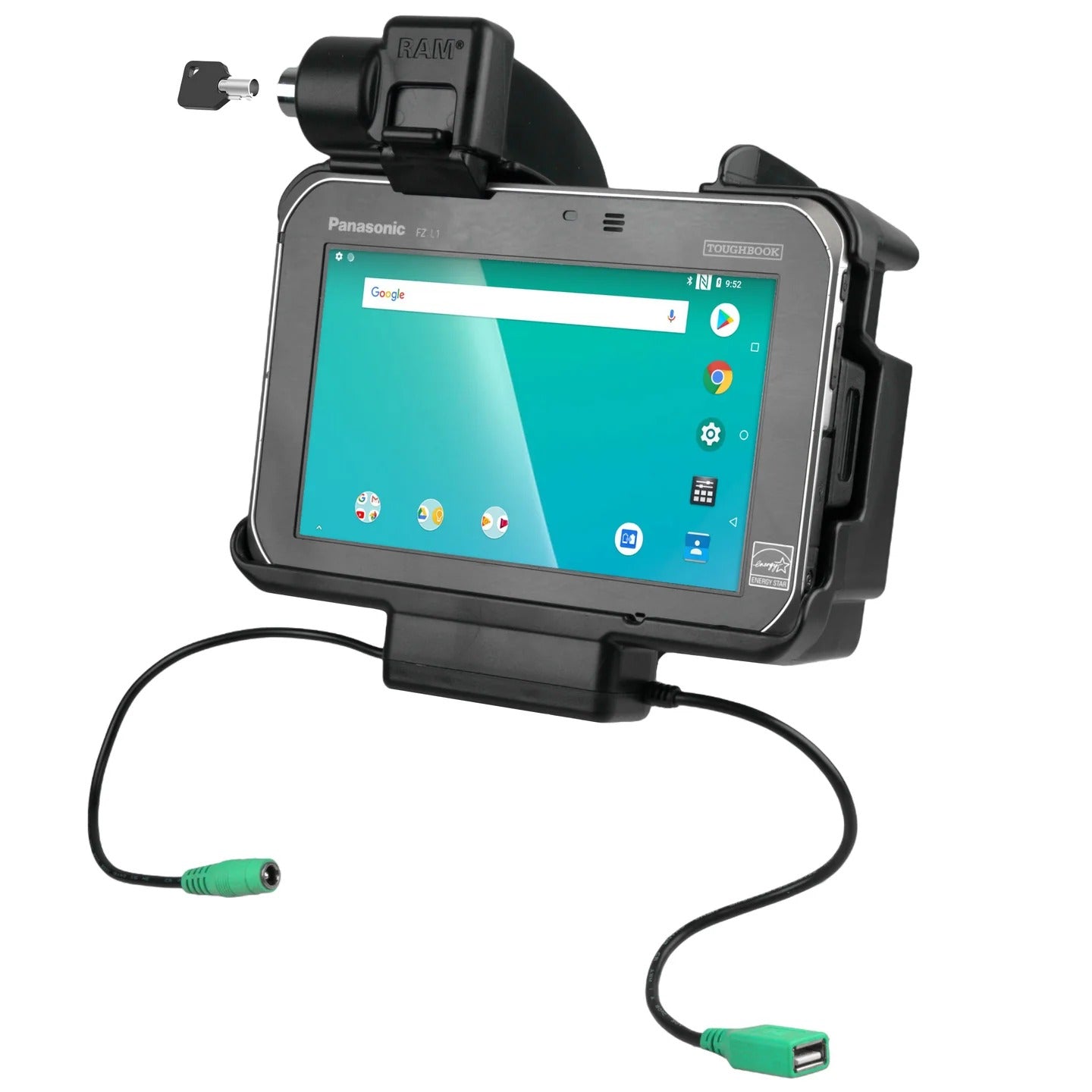

Featuring data and charging capabilities and a key lock for theft deterrence, the RAM® Vehicle Dock for the Panasonic FZ-S1 & FZ-L1 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. This dock features cutouts that leave all buttons and ports exposed and easily accessible, while also enabling the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as a scanner, hand strap, and extended battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

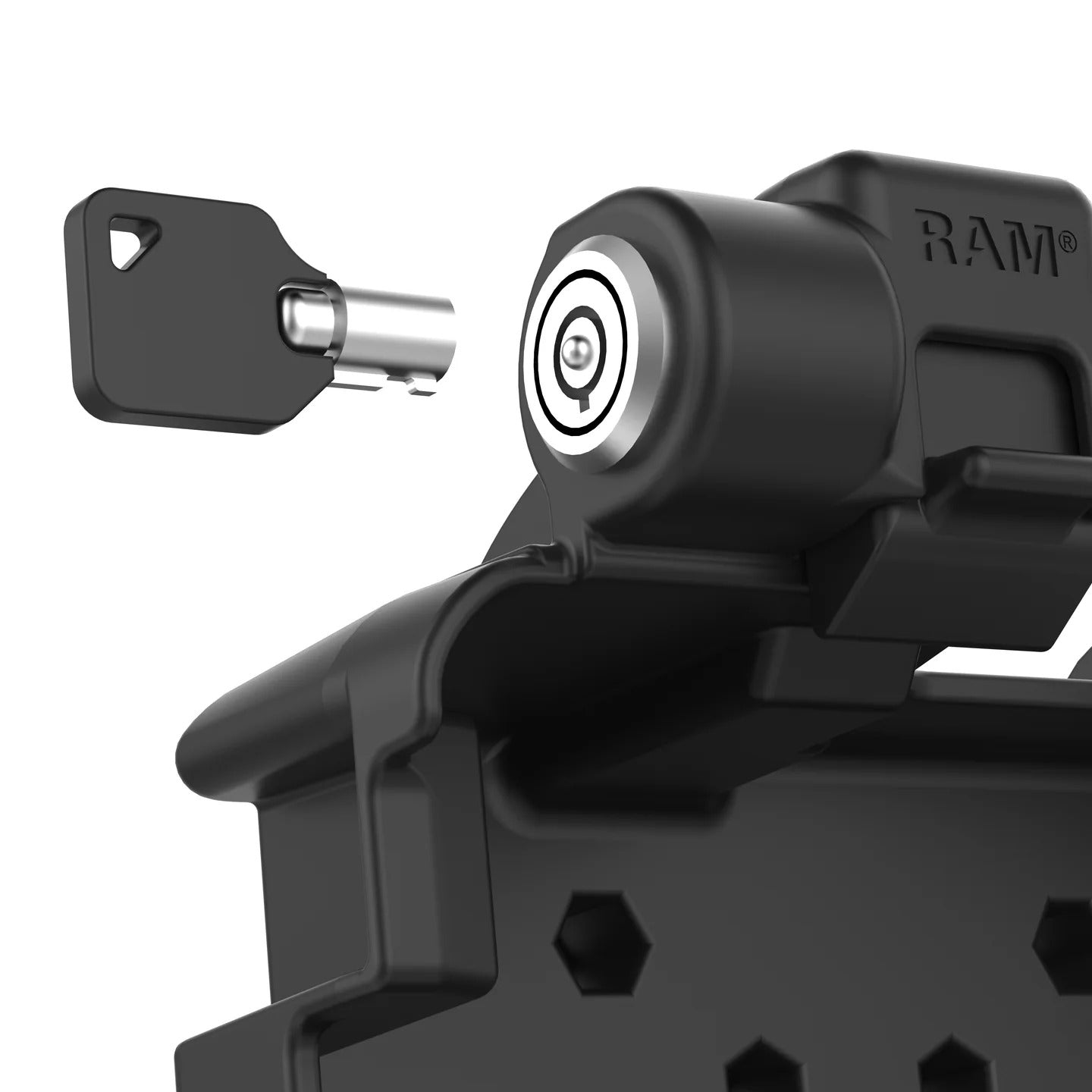

• Key locking power and data dock for the Panasonic FZ-S1 & FZ-L1 tablet via DC 5.5mm power jack and USB Type A for adding a peripheral
• When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, keyboards, mice, joysticks and extended battery; tablet scanning works while tablet is docked

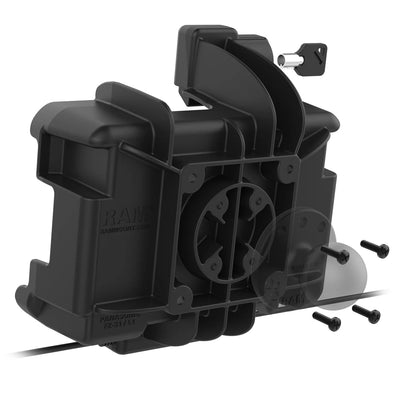

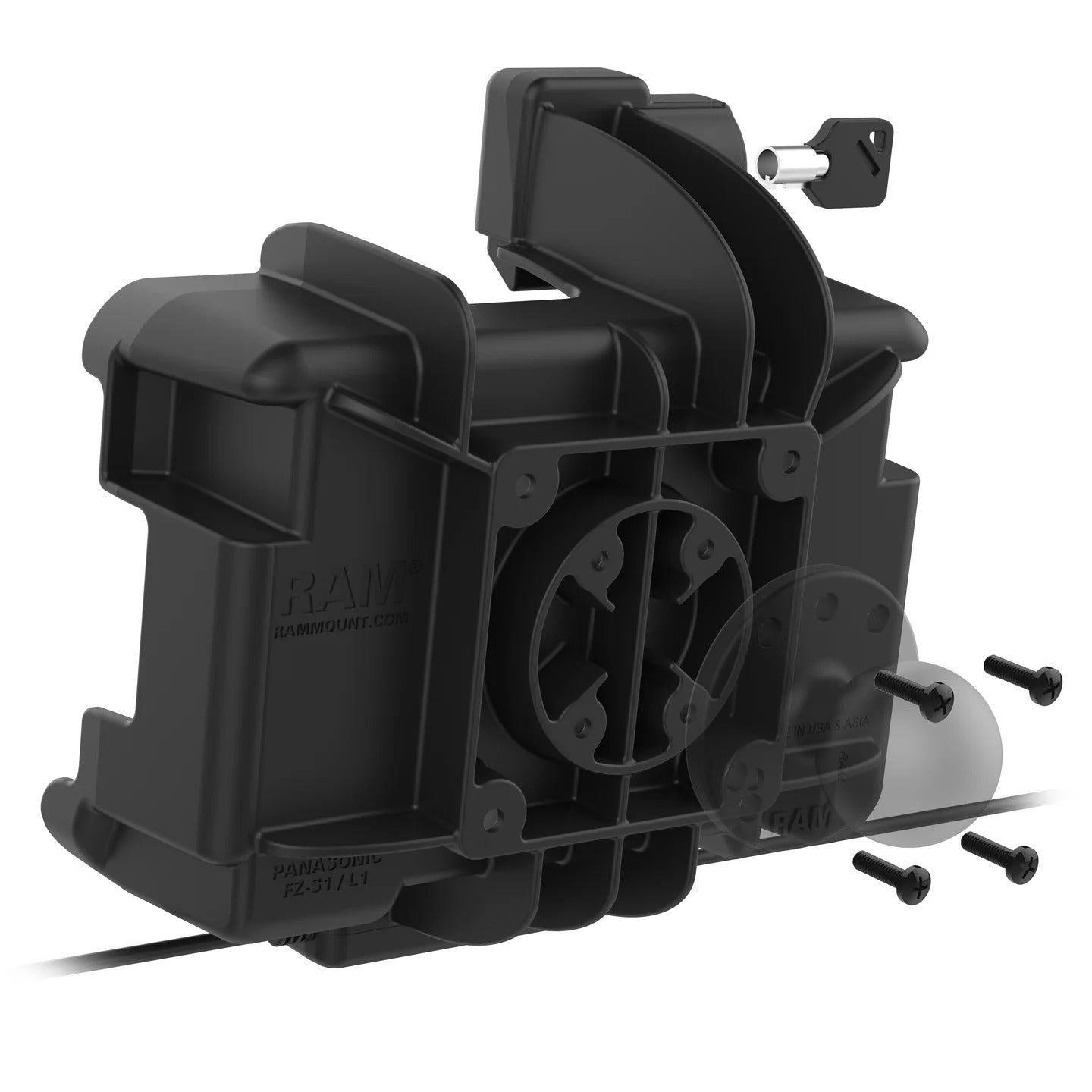

• Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
4.5 - 5.4 VDC

OUTPUT VOLTAGE:
4.5 - 5.4 VDC

OUTPUT CURRENT:
900mA

INPUT CONNECTOR:
USB Type A

INPUT CABLE LENGTH:
8.4"

OUTPUT CONNECTOR:
USB 1.1 Type A

OUTPUT CABLE LENGTH:
8.4"

TRANSFER SPEED:
12Mbps

COMPLIANCE:
FCC, IC, e-Mark

CERTIFICATIONS:
CE, RoHS

WEIGHT:
1.58 lb

COMPATIBLE DEVICES

• Panasonic:

  Toughbook FZ-L1
  Toughbook FZ-S1
