RAM® Powered Dock for Panasonic FZ-A3 - RAM-HOL-PAN16PU

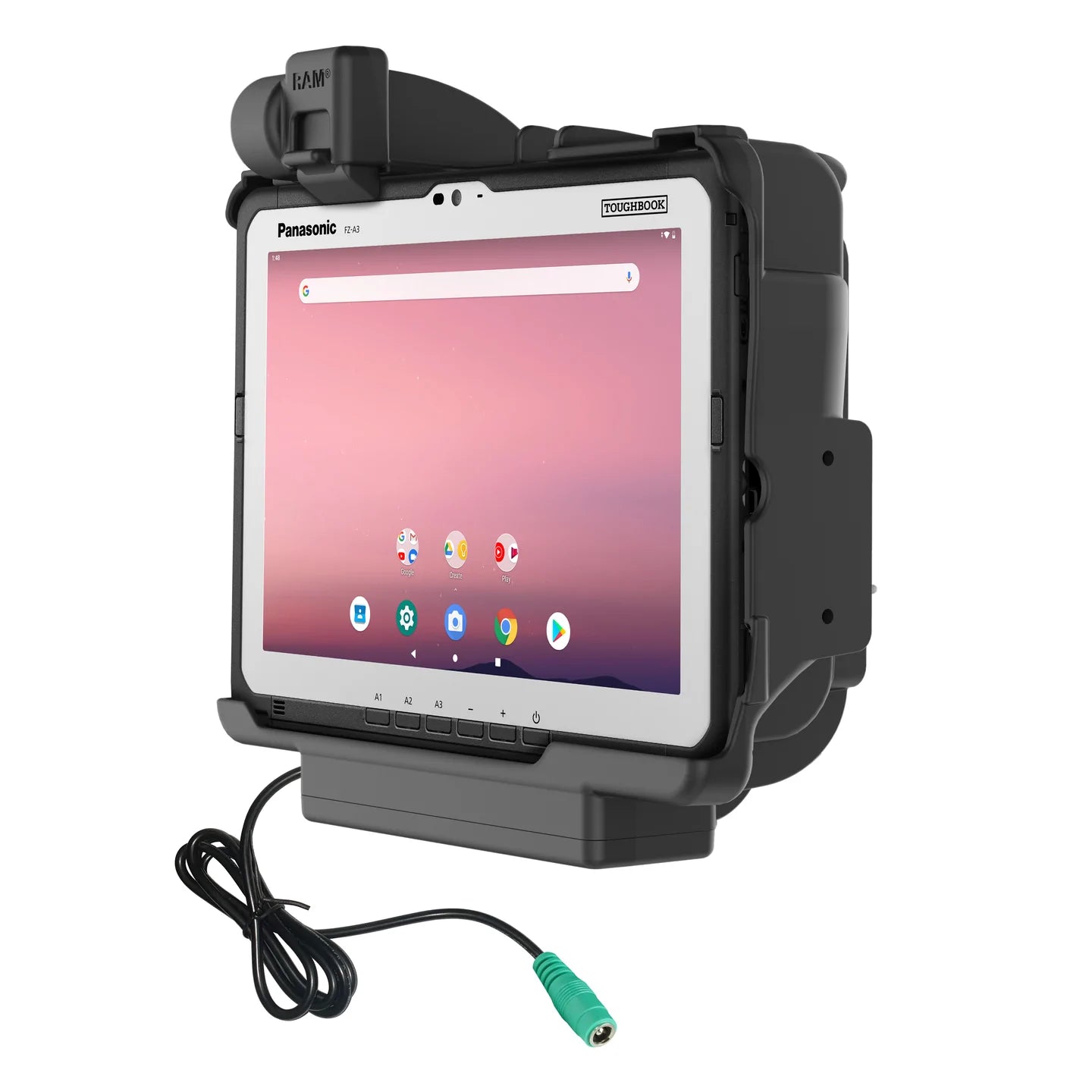

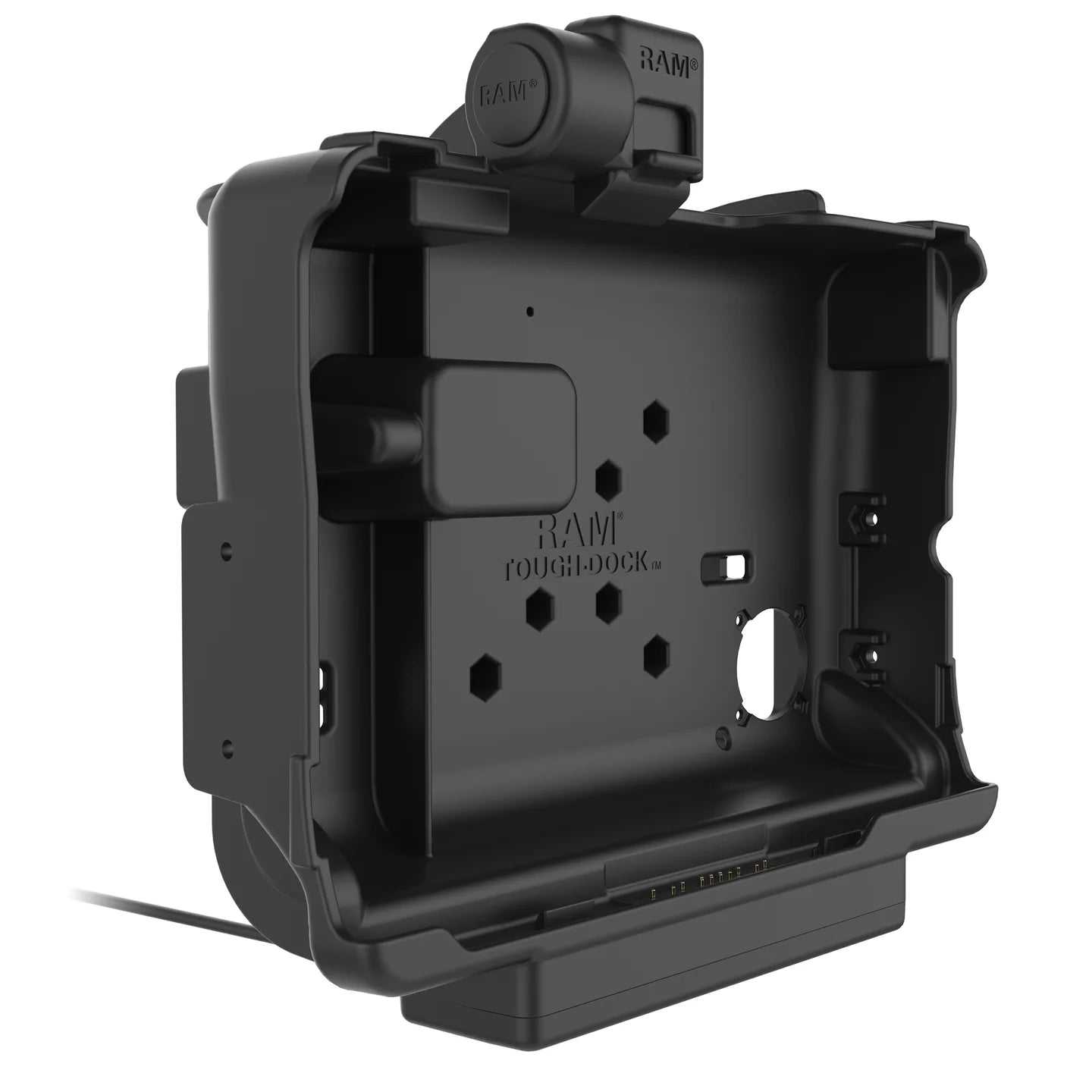

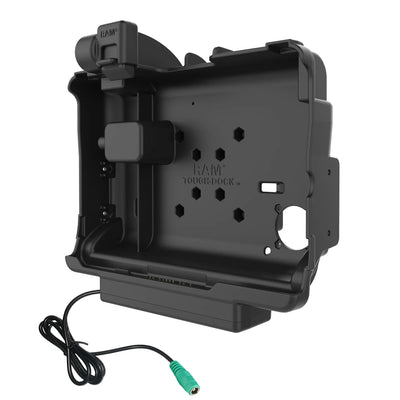

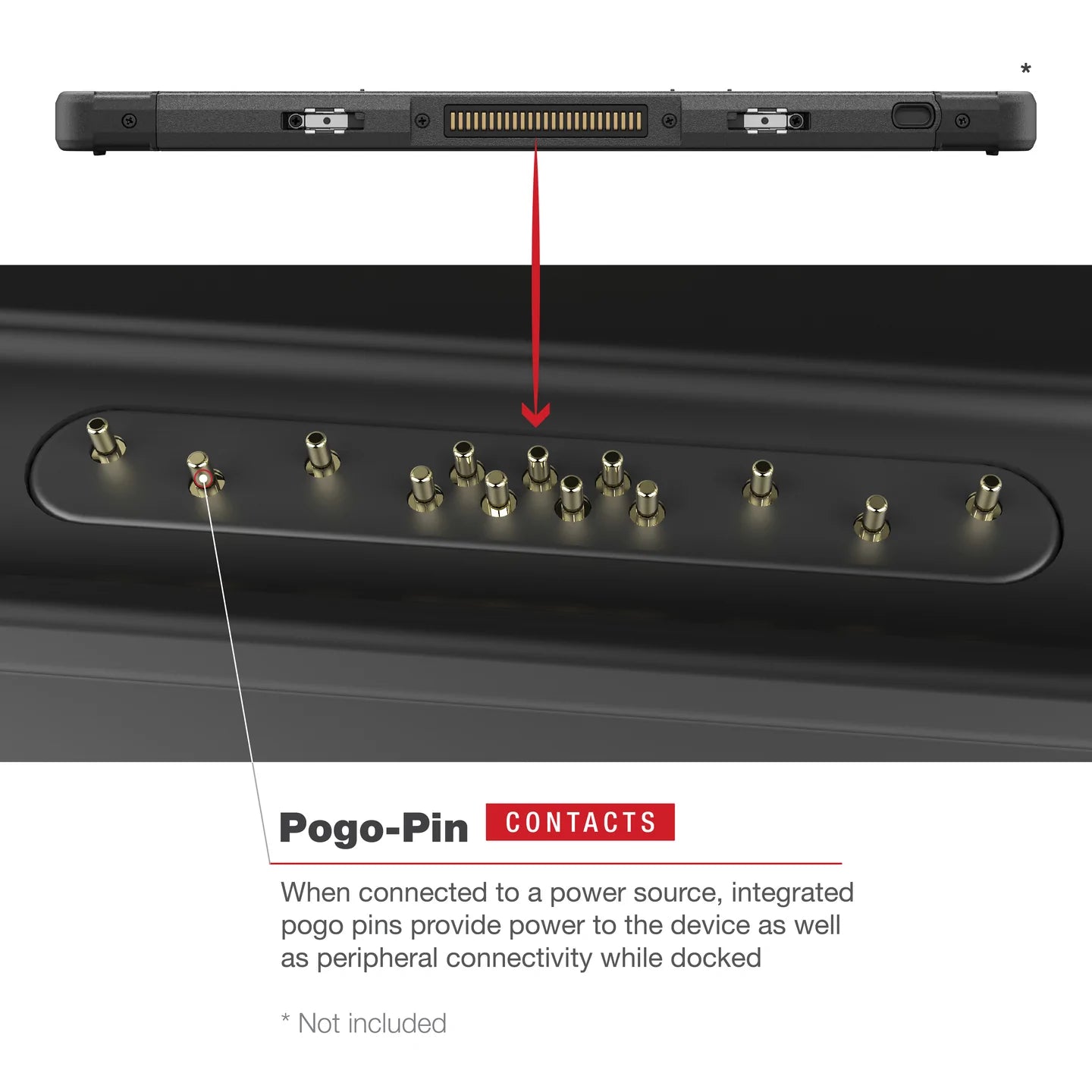

The RAM® powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

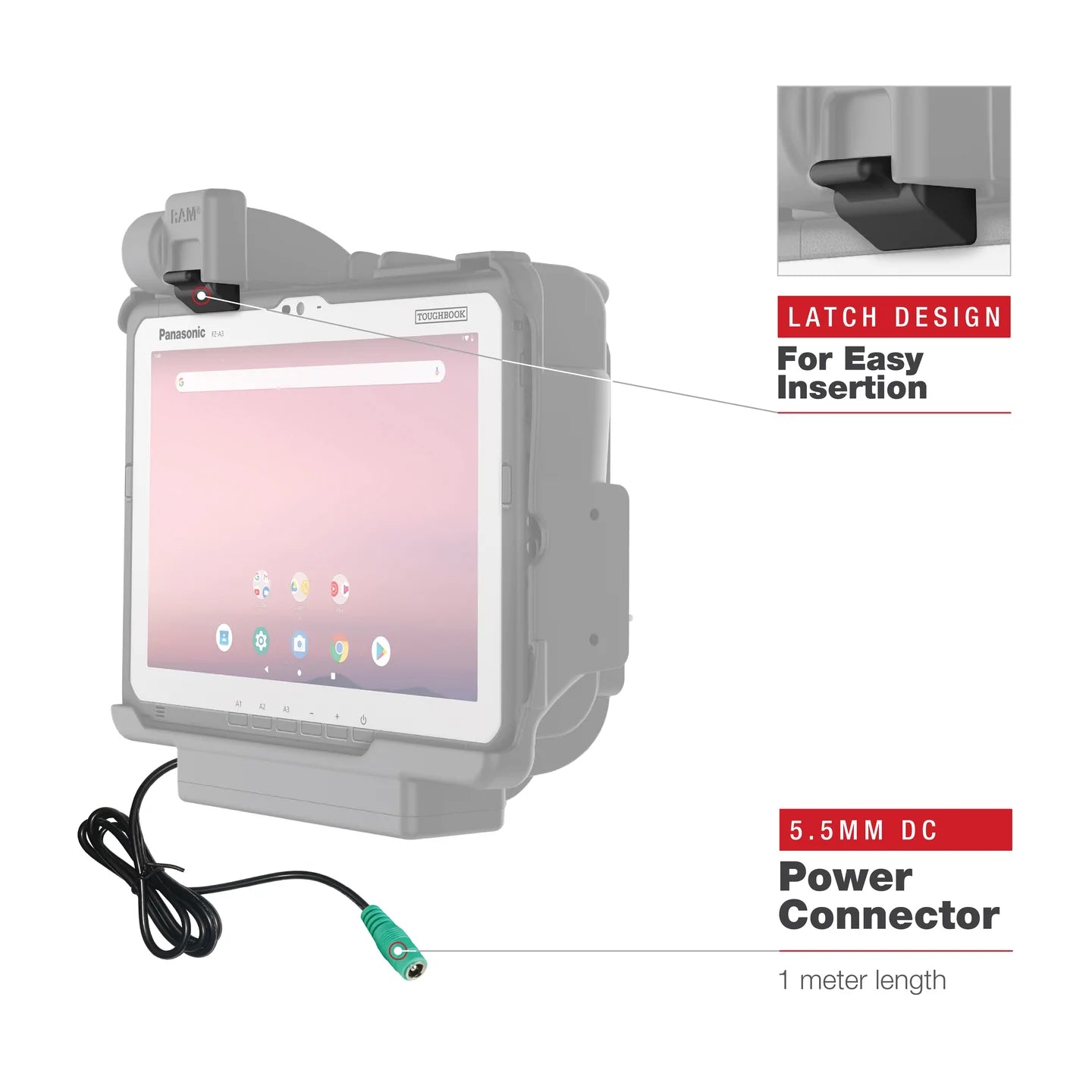

• Spring-loaded powered dock provides charging capabilities for the Panasonic FZ-A3 tablet via DC 5.5mm power jack

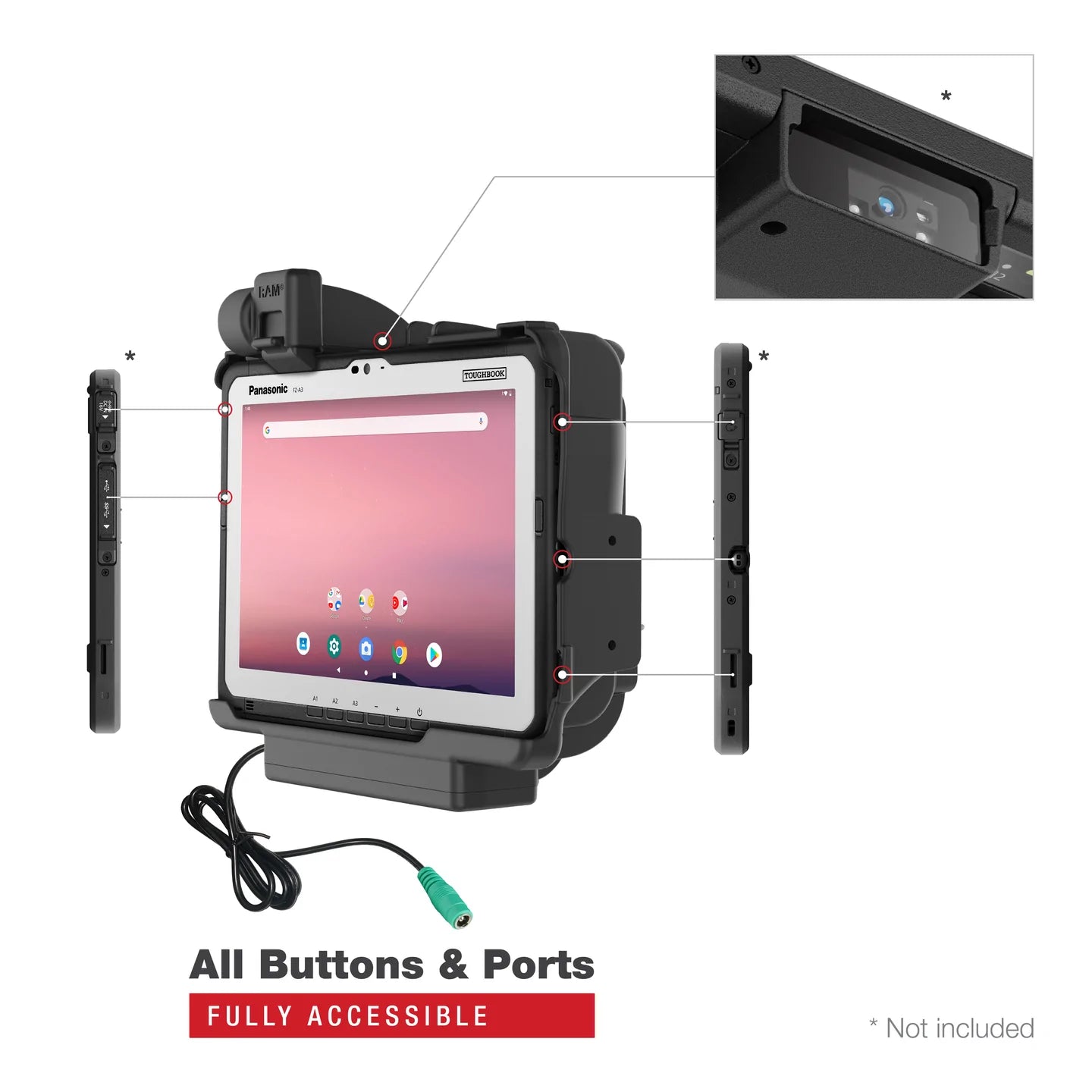

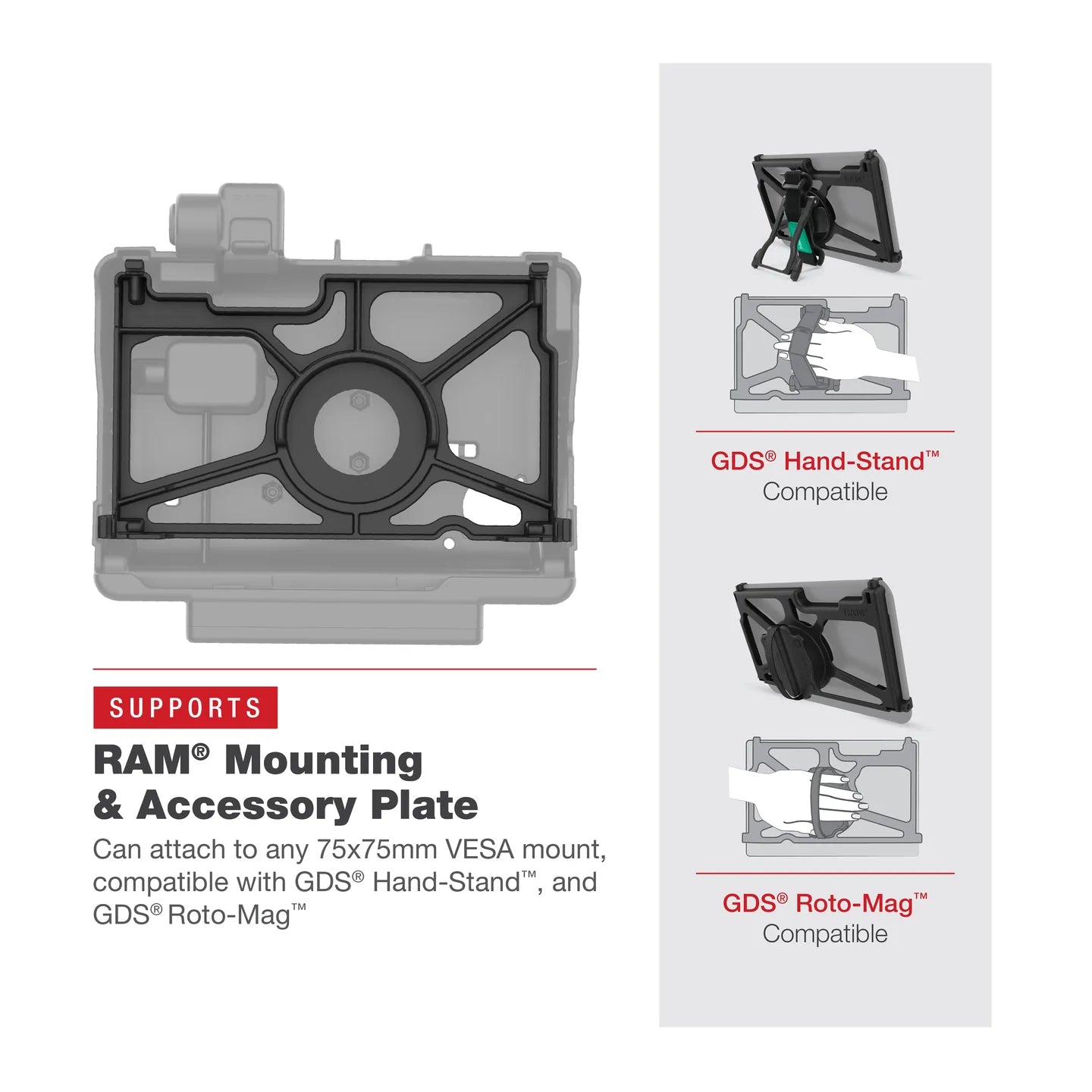

• All buttons and ports on device are exposed and fully accessible; supports Panasonic extended battery and the RAM^® Mounting & Accessory Plate

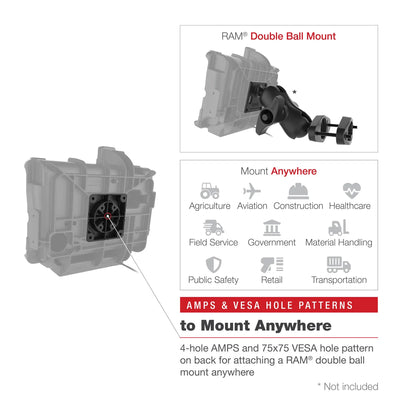

• Compatible with RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

PRODUCT DIMENSIONS:
Overall Height: 10.5"
Overall Width: 11.19"
Overall Depth: 4.16"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

COMPLIANCE:
FCC, IC, e-Mark

CERTIFICATIONS:
CE, RoHS

WEIGHT:
2.07 lb

ADDITIONAL INFORMATION:
This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U.

COMPATIBLE DEVICES

• Panasonic:

  FZ-A3

DC Hardwire Chargers with 16VDC Output

  GDS® 28-60VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm - RAM-GDS-CHARGE-V15U

  GDS® 10-28VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm - RAM-GDS-CHARGE-V14U

RAM® Ergonomic Accessories for Panasonic FZ-A3

  GDS® Roto-Mag™ 3-in-1 Accessory for Panasonic FZ-A3 - RAM-GDS-ROTO2-PAN16U

  GDS® Hand-Stand™ for Panasonic FZ-A3 - RAM-GDS-HS1-PAN16U

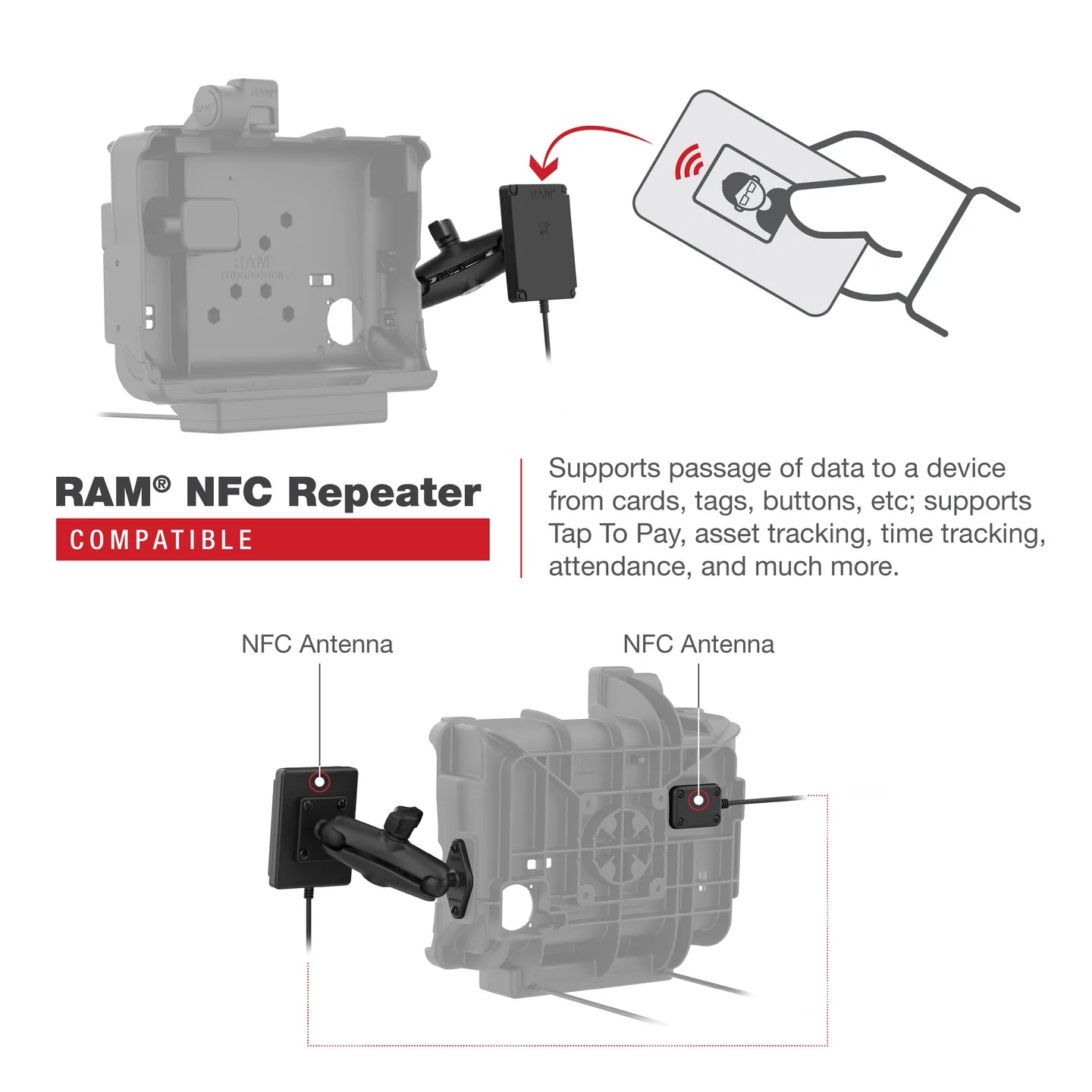

NFC Repeater Accessories
