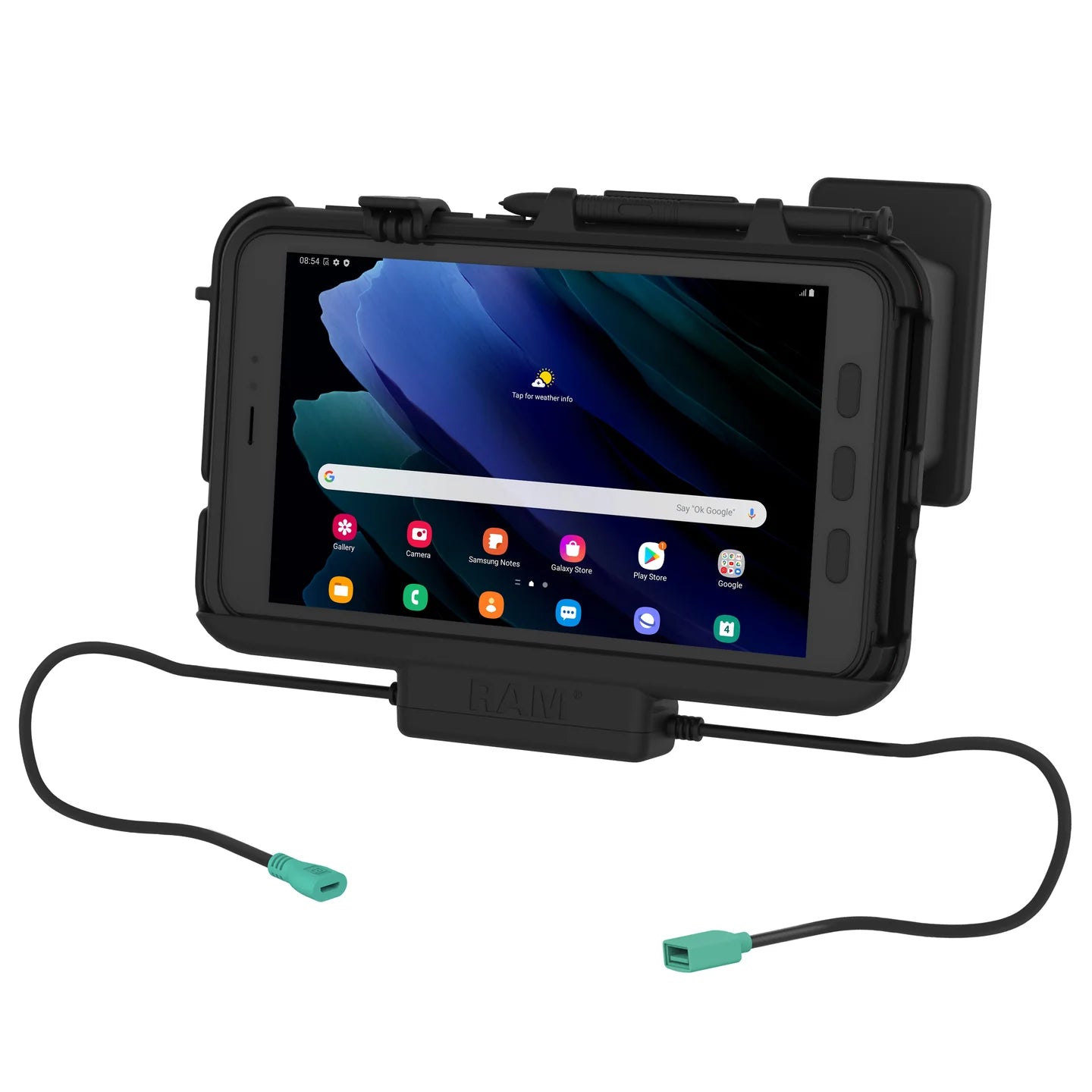

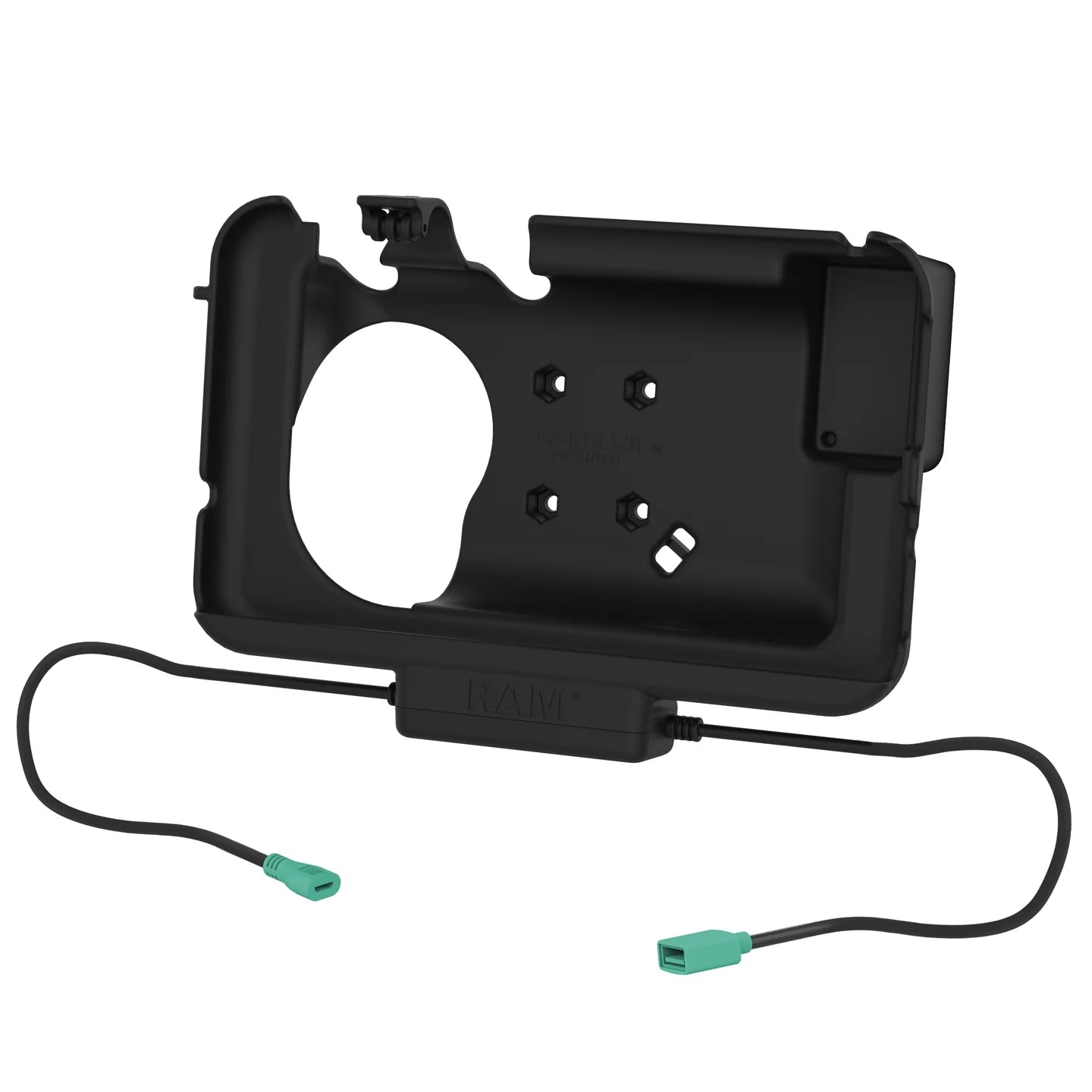

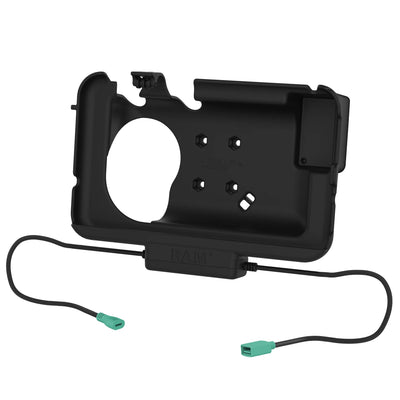

RAM® Power + Data Dock for Tab Active3 with OtterBox uniVERSE - RAM-HOL-SAM60PD-OT1U

This powered dock for the Samsung Tab Active3 wrapped in an OtterBox uniVERSE case has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this dock's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation.

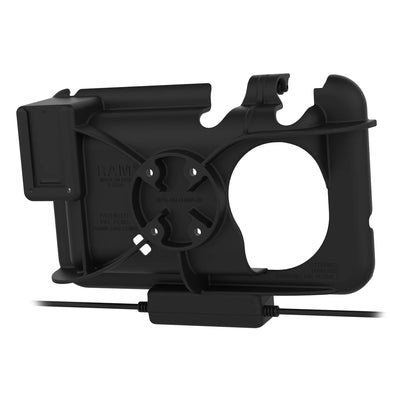

This dock also includes and integrated OtterBox uniVERSE accessory holder on the back of the holder to accommodate any accessory with a uniVERSE module. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2 CIG cigarette vehicle charger for supplying power.

• RAM^® EZ-Roll'r^™ form-fit powered dock for the Samsung Galaxy Tab Active3 wrapped in an OtterBox uniVERSE case provides charging and connects one additional USB peripheral through an integrated pogo pin connector
• Integrated OtterBox uniVERSE accessory holder on the back of the holder accommodates any accessory with a uniVERSE module
• Accommodates OtterBox uniVERSE Module Hand & Neck Strap attachments and NFC reader while devices are docked
• Compatible with B and C size RAM^® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE:
5.20VDC

POWER OUTPUT:
500mA

INPUT CONNECTOR:
mUSB 2.0 Female

INPUT CABLE LENGTH:
.22 Meter

OUTPUT CONNECTOR:
USB 1.1 Type A

OUTPUT CABLE LENGTH:
.22 Meter

TRANSFER SPEED:
12Mbps

WARRANTY:
3 year warranty

WEIGHT:
0.8 lb

ADDITIONAL INFORMATION:
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

COMPATIBLE DEVICES

• Samsung:

  Tab Active3 with OtterBox uniVERSE
