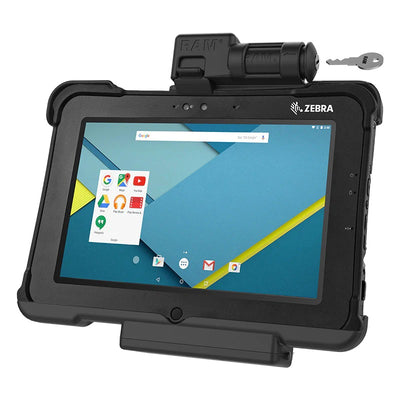

GDS® Key Locking Form-Fit Holder for Zebra XSLATE L10 - RAM-HOL-ZE15KLU

The GDS® Vehicle Dock features a key-locking form-fit design specifically for the Zebra XSLATE L10, including cutouts leaving all buttons and ports exposed. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

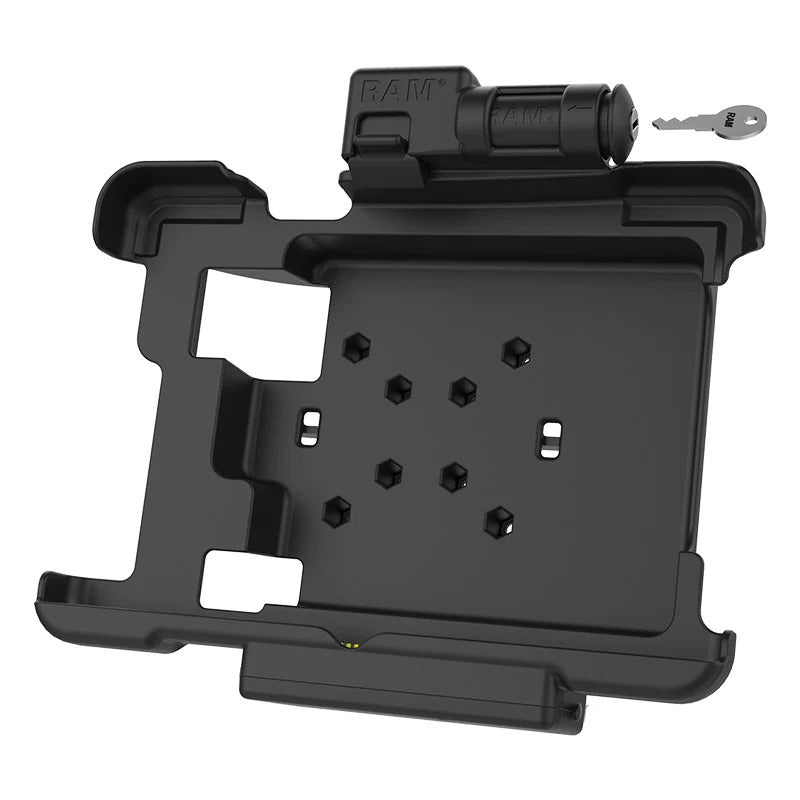

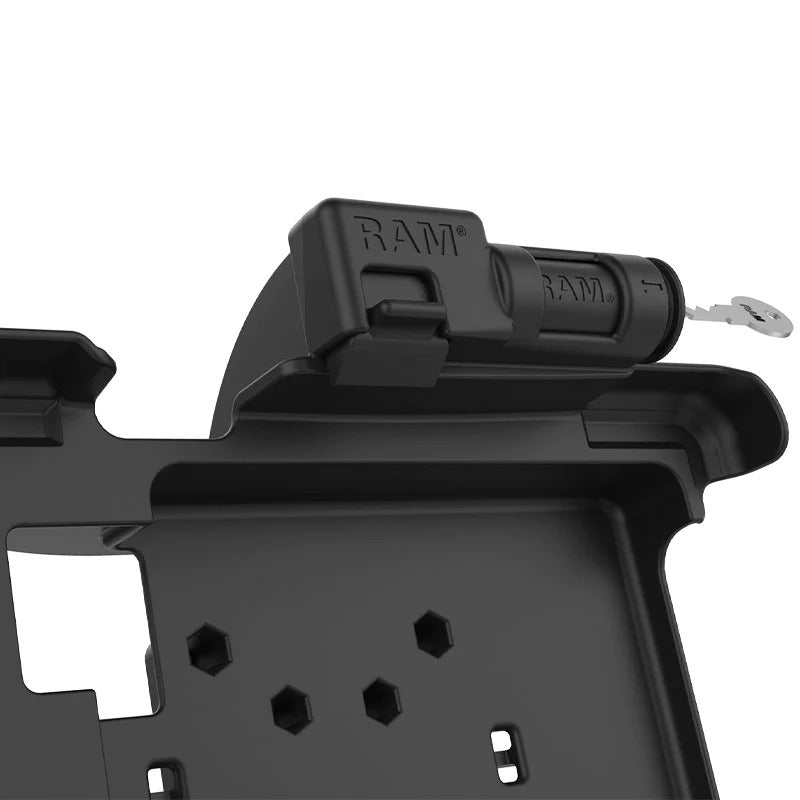

• Spring-loaded key-locking form-fit holder perfectly secures the Zebra XSLATE L10; includes set of keys for locking capabilities

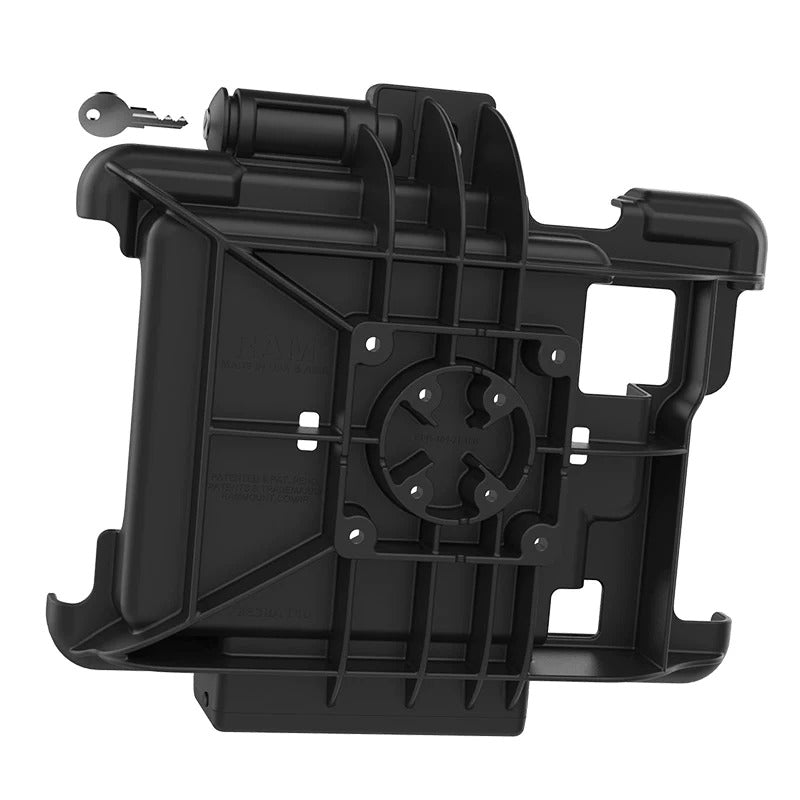

• Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket; tablet scanning works while tablet is docked
• Backed by a lifetime warranty

HARDWARE INCLUDED:
(2) Keys
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(6) Small Cable Ties

HOLE PATTERN:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
2.05 lb

COMPATIBLE DEVICES

• Zebra:

  XSLATE L10
