RAM-HOL-SAM58PD2KLNU
More on the way!
( Chat Live to get an ETA )

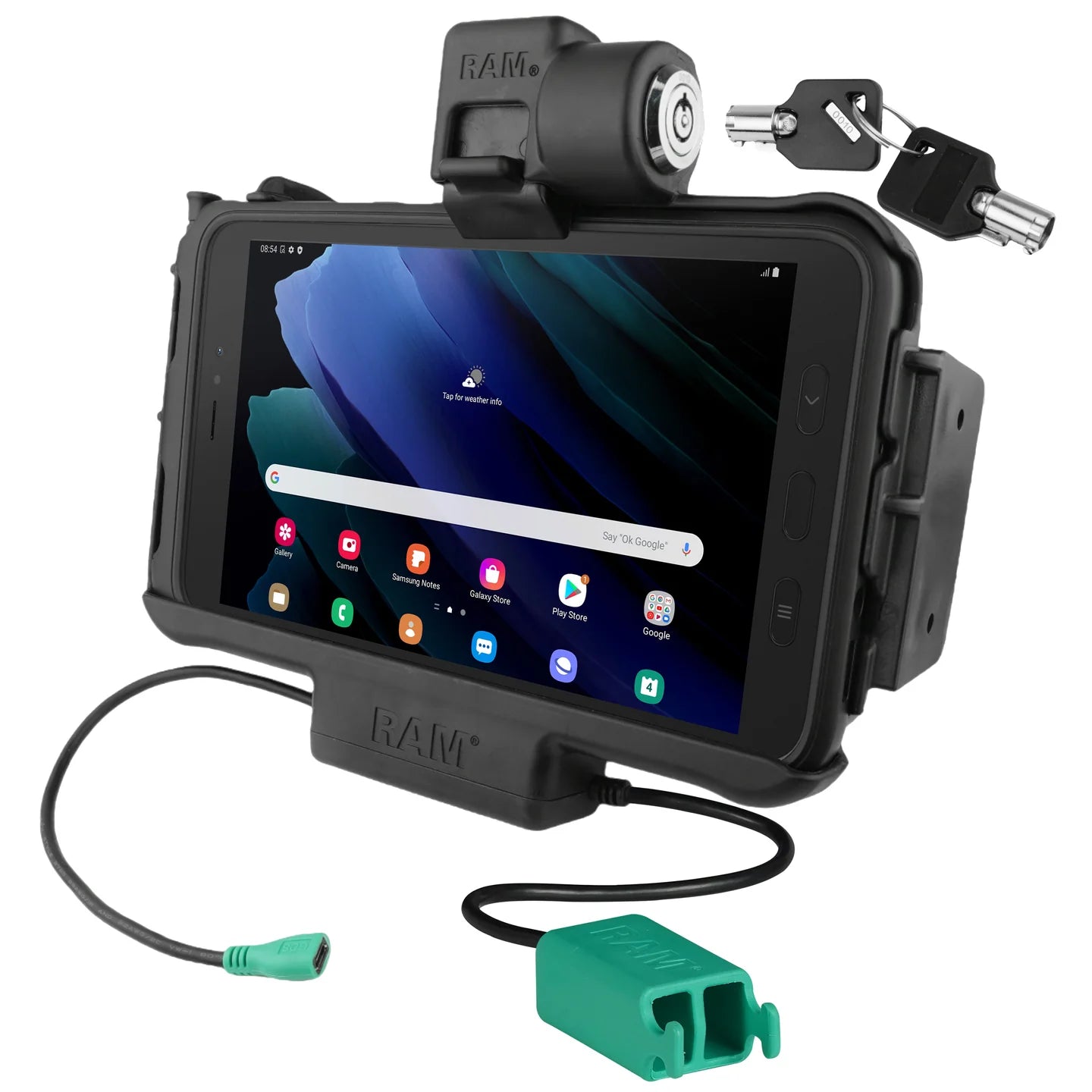

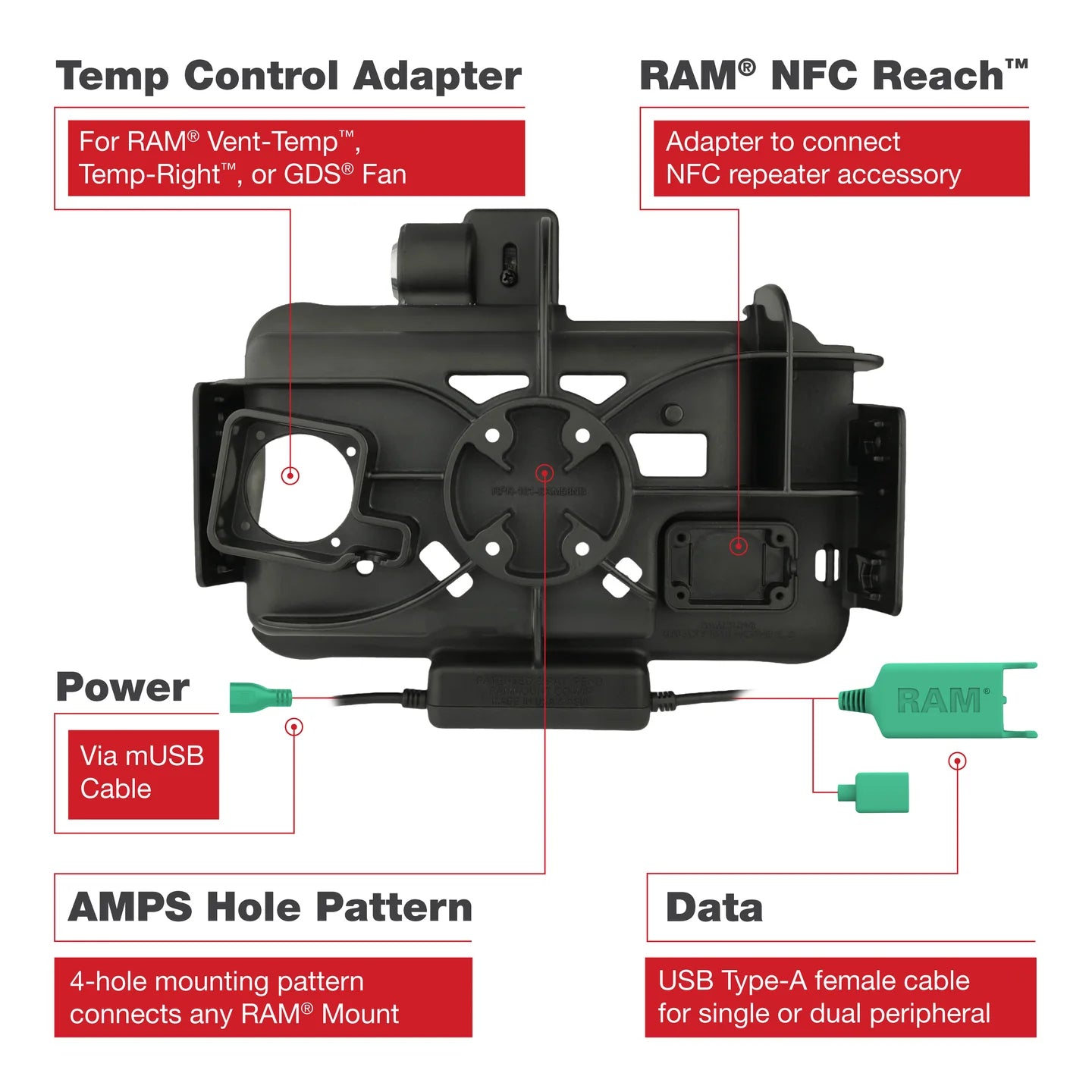

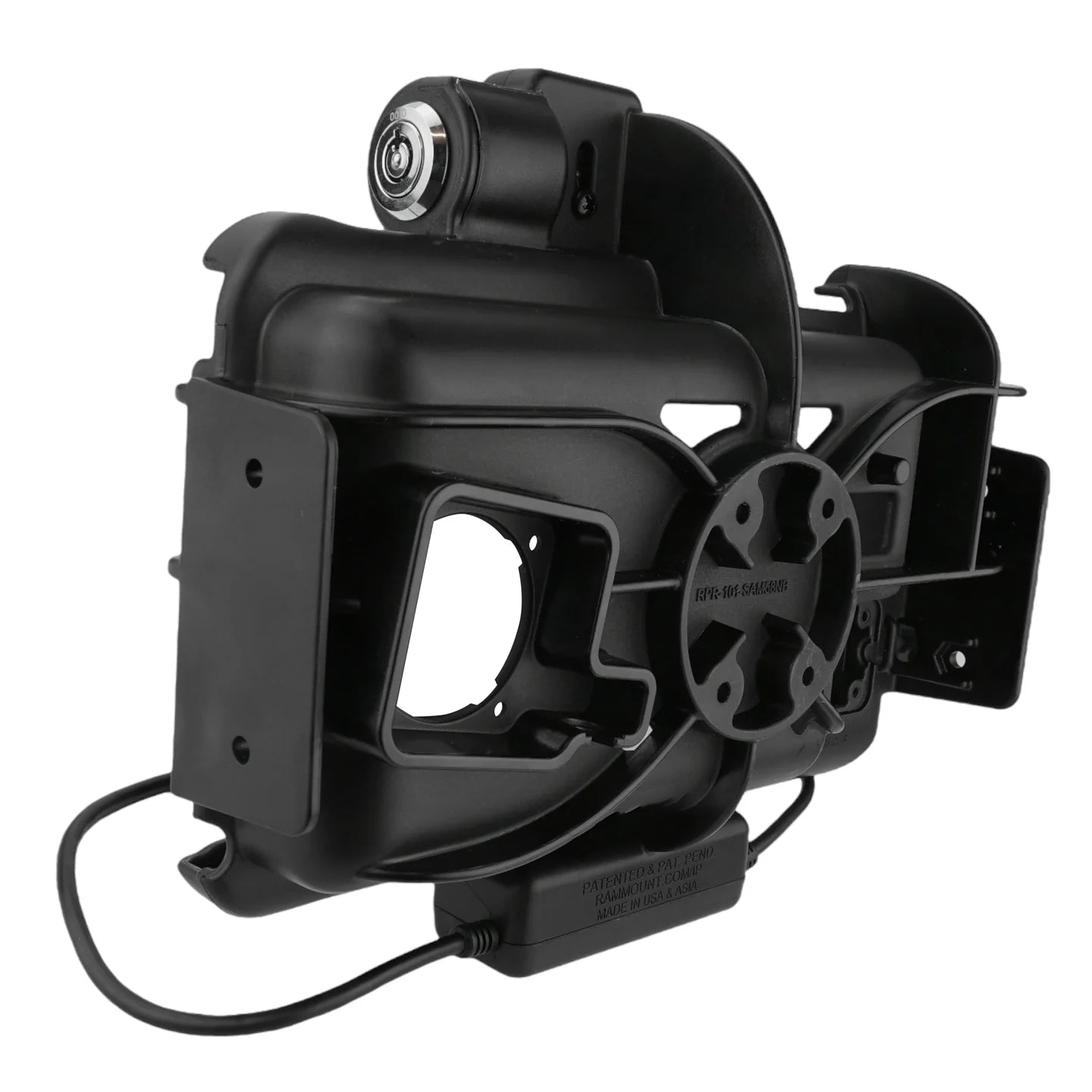

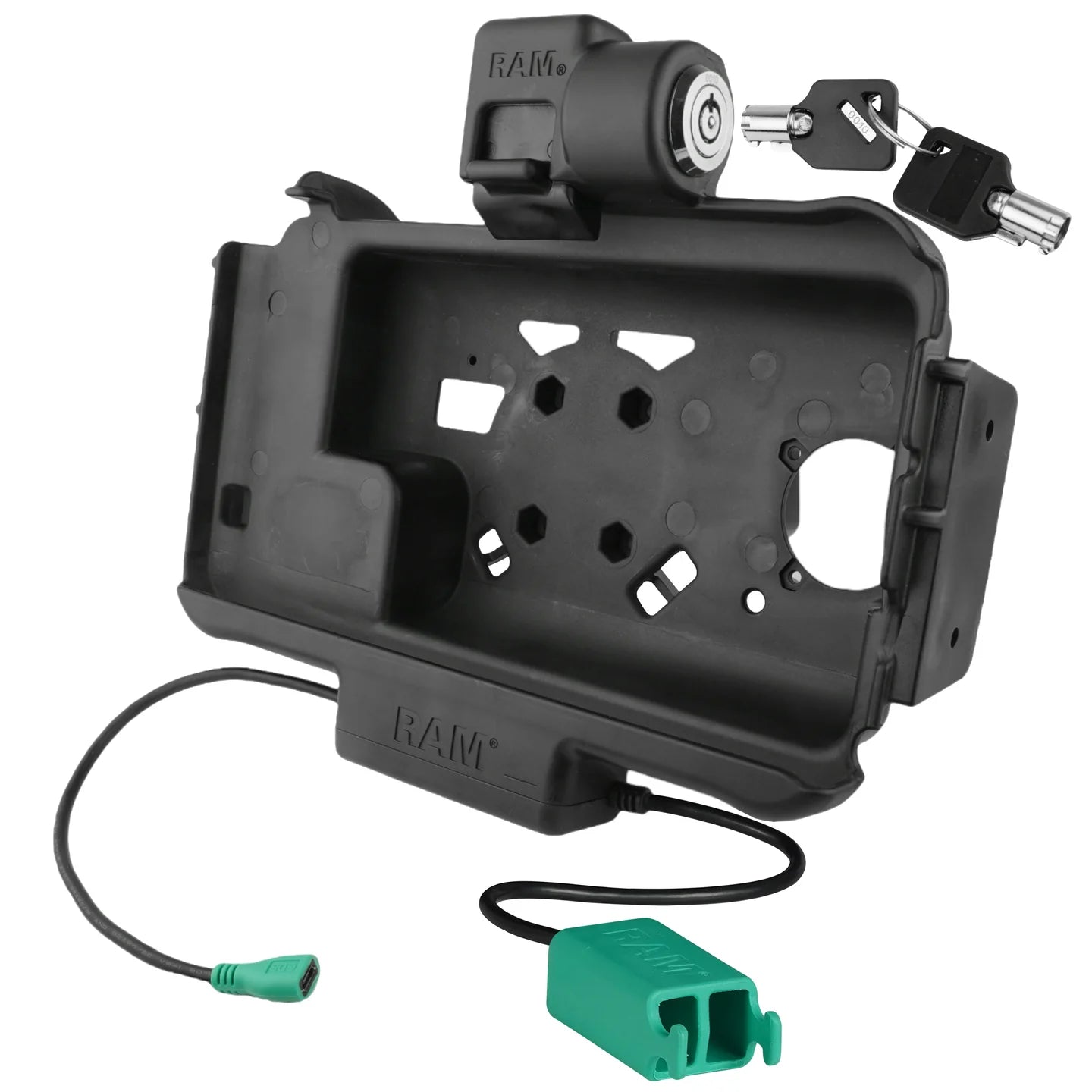

The RAM® Locking Modular Power + Dual USB Dock for Tab Active3 (RAM-HOL-SAM58PD2KLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, NFC Reach™, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. FEATURES Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable Compatible with most RAM® dock accessories including Temperature Control Accessories, NFC Reach™, GDS® Roto-Mag™, and side accessory attachments Connect two additional peripherals via USB Type-A Compatible with the Samsung OEM skin as well as the RAM® Skin™ Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS INPUT VOLTAGE OUTPUT VOLTAGE INPUT CONNECTOR INPUT CABLE LENGTH OUTPUT CONNECTOR OUTPUT CABLE LENGTH TRANSFER SPEED WARRANTY WEIGHT Additional Information Instructions
Description
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(8) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
4.4-5.4VDC (USB power source dependent)
4.4VDC - 5.4VDC (USB power source dependent)
mUSB Female
214mm
(2) USB 2.0 Type A
217mm
12Mbps
3 year warranty
1.33 lb
This dock is not compatible with the GDS® Hand-Stand™ Components Compatibility
Samsung Tab Active3
Mounting Options
RAM C Size 1.5" Ball Mount With 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U
RAM® Drill-Down Dashboard Mount With Backing Plate - C Size Short - RAM-101-B-225B2U
RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U
RAM® No-Drill™ Mount For '17-23 Ford F-Series + More - RAM-VB-195-SW2
RAM® No-Drill™ Mount For '19-23 Chevy Silverado, 2021-2023 Tahoe + More - RAM-VB-203-SW2
RAM® No-Drill™ Mount For '12-23 RAM 2500-5500 + More - RAM-VB-178A-SW2
RAM 1.5" Ball Medium Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U
RAM® Double Socket Arm With Round Ball Plate - RAM-103U-D
RAM 1.5" Ball Short Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U-B
RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U
RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1
RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U Additional Information
Dual USB Data Cable Management Instructions
GDS® USB-A To MUSB Male Straight Cable - 1.2 Meters Long - RAM-GDS-CAB-MUSB2-1
GDS® MUSB & Type-C Cable Clamp - RAM-GDS-CAB-CLAMP1U
