RAM-HOL-SAM58PKLNU

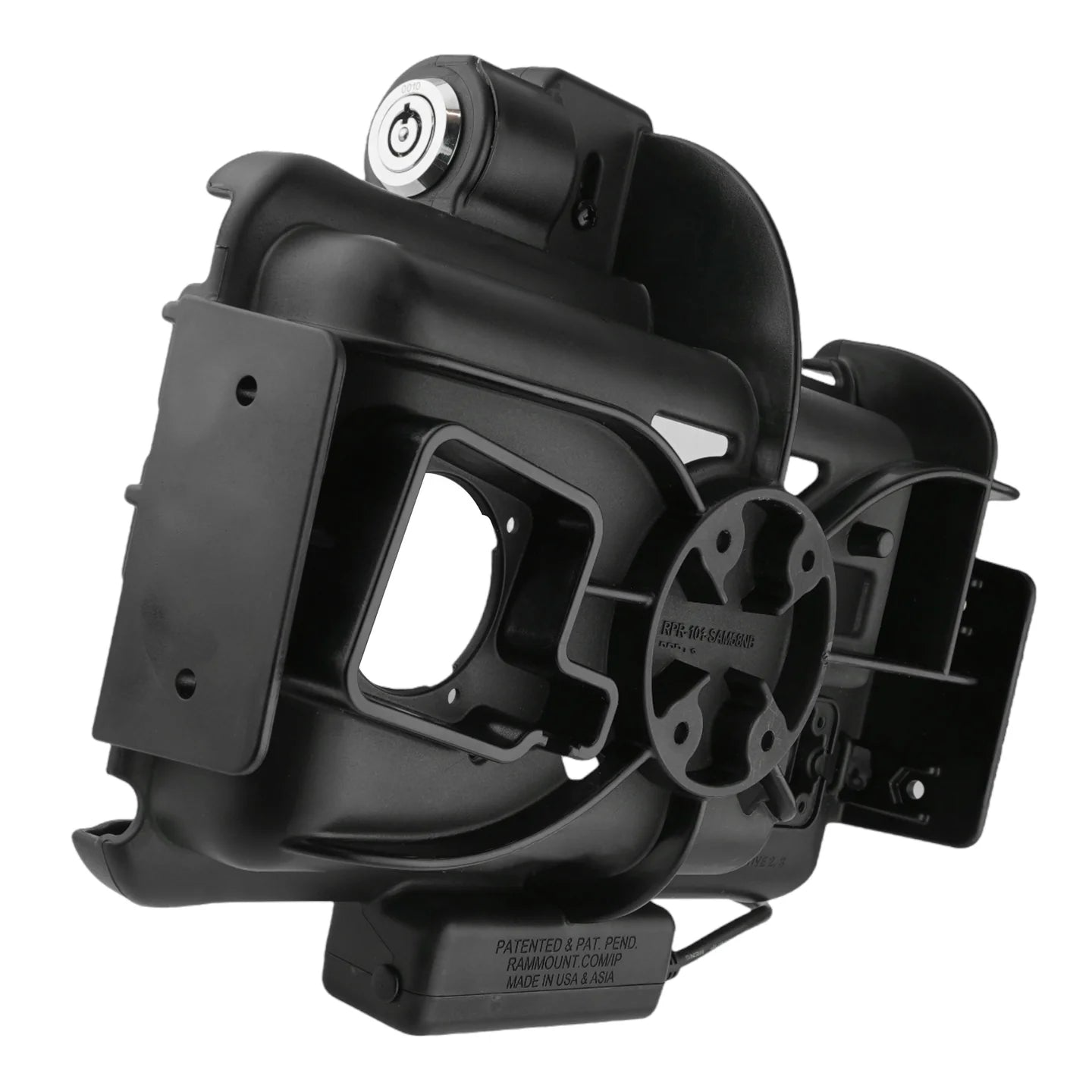

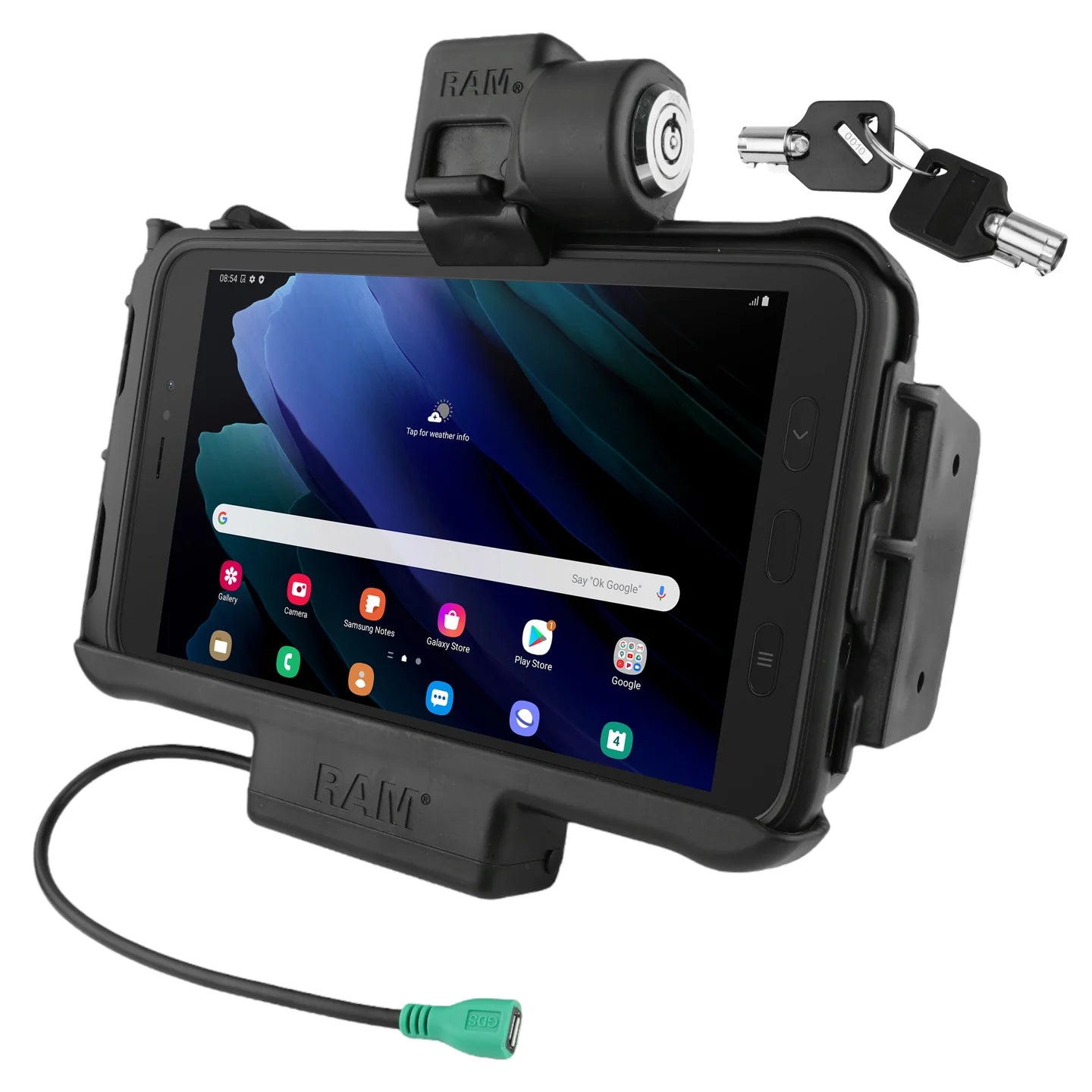

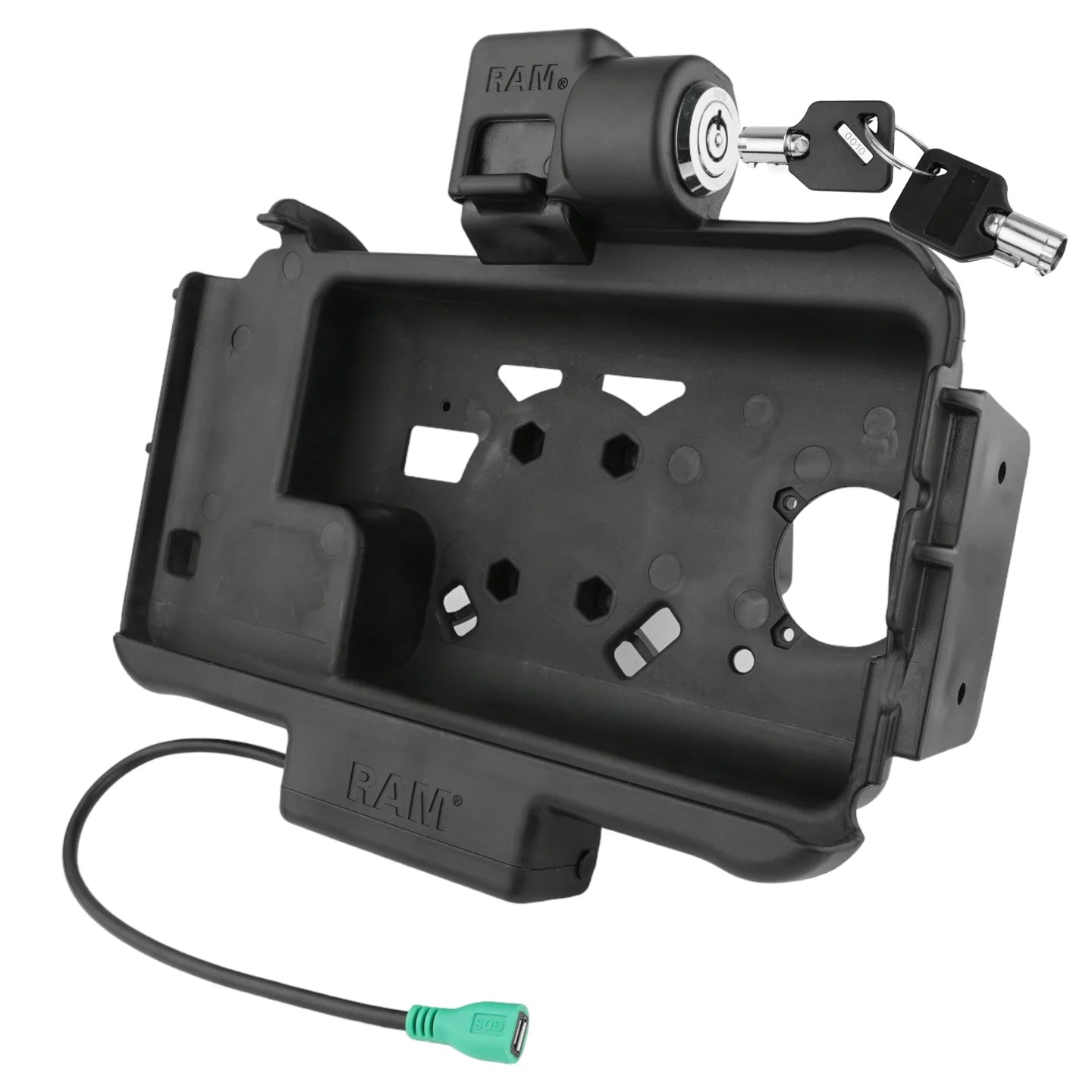

RAM® Locking Modular Powered Dock for Samsung Tab Active5 & 3 - RAM-HOL-SAM58PKLNU

The RAM® Locking Modular Powered Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58PKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience.

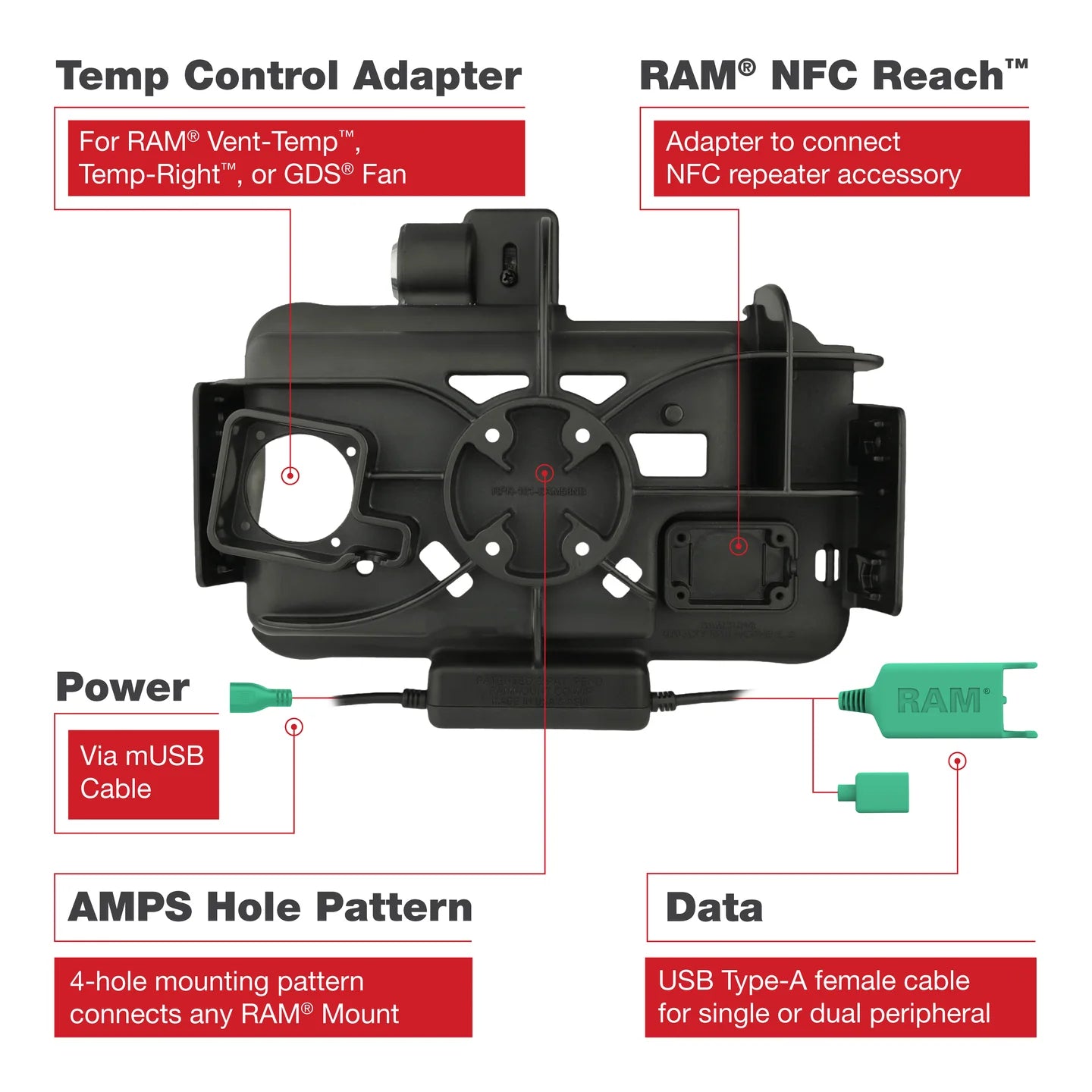

This key-locking modular dock is compatible with the RAM® Skin or factory device skin along with most RAM® accessories including: Temperature Control Accessories, NFC Reach, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand but are compatible with the GDS® Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties.

FEATURES

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & 3; provides charging through an integrated pogo pin connection and mUSB cable

  • Compatible with most RAM® dock accessories including Temperature Control Accessories, NFC Reach, GDS® Roto-Mag, and side accessory attachments

  • Compatible with the Samsung OEM skin as well as the RAM® Skin

  • Backed by a 3-year warranty

HARDWARE INCLUDED
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

INPUT VOLTAGE
4.4-5.4VDC (USB power source dependent)

OUTPUT VOLTAGE
4.4VDC - 5.4VDC (USB power source dependent)

INPUT CONNECTOR
mUSB Female

INPUT CABLE LENGTH
214mm

WARRANTY
3 year warranty

WEIGHT
1.33 lb

Additional Information
This dock is not compatible with the GDS® Hand-Stand

Samsung

Tab Active3

Tab Active5
