RAM-HOL-ZE26PDLU
Out of Stock
( Chat Live to get an ETA )

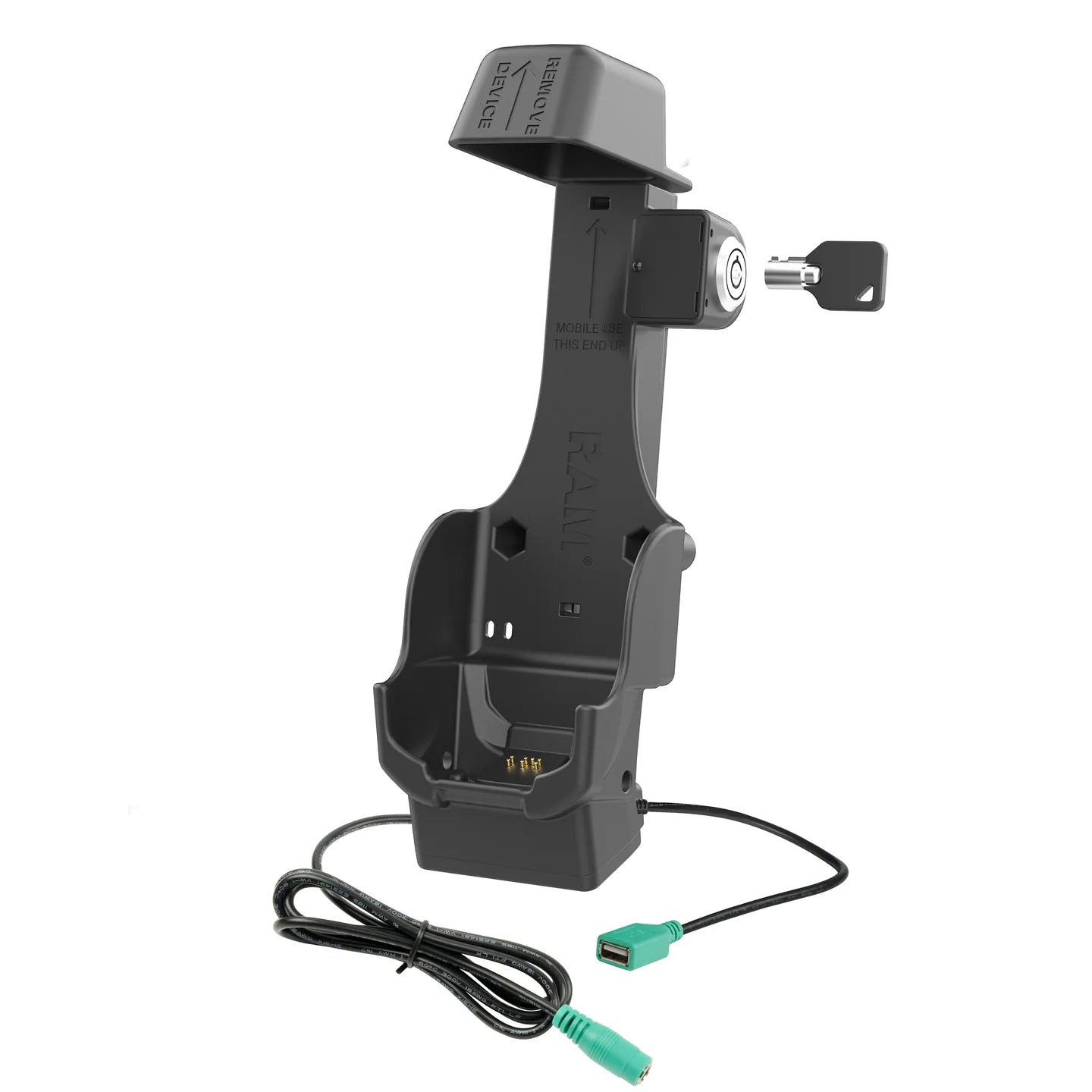

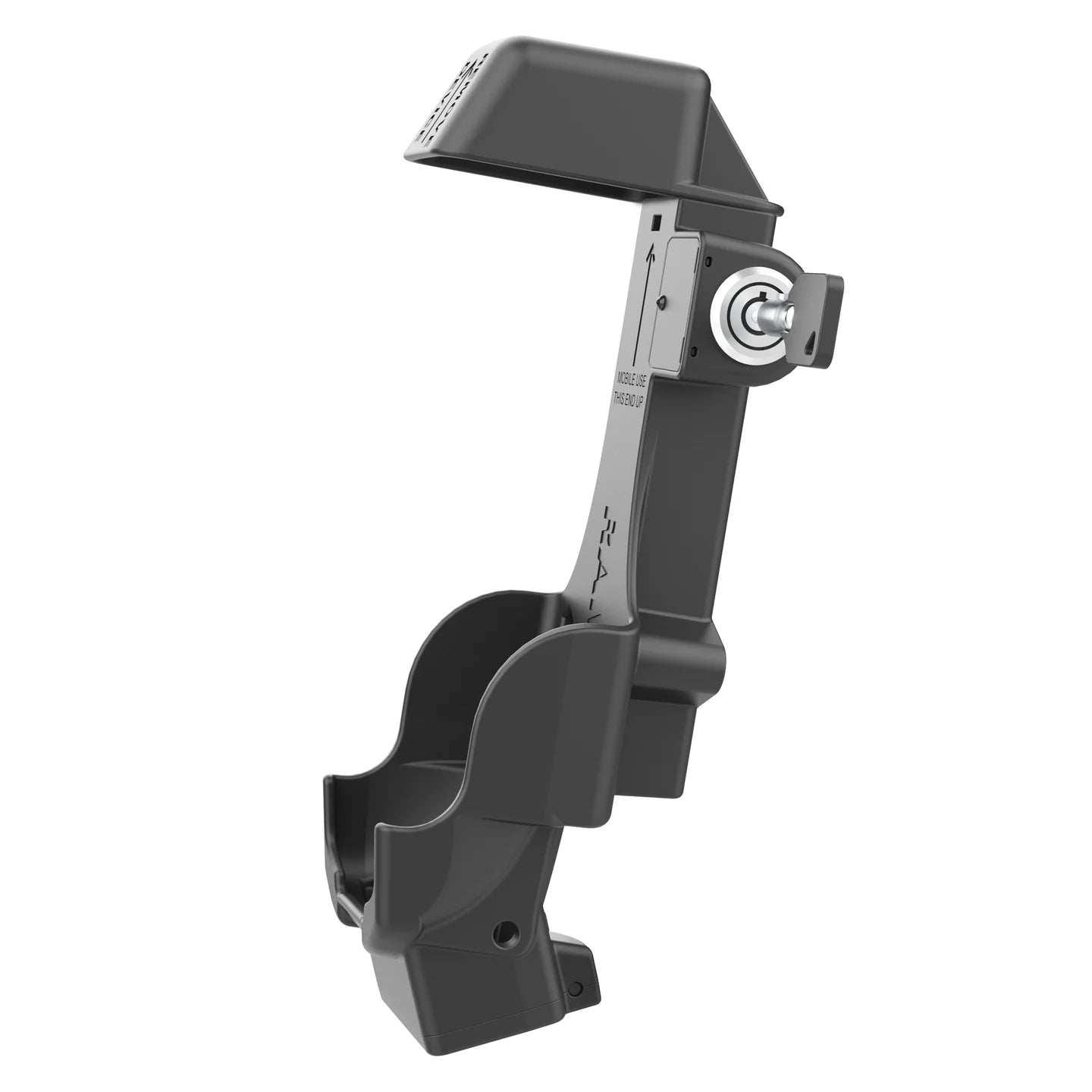

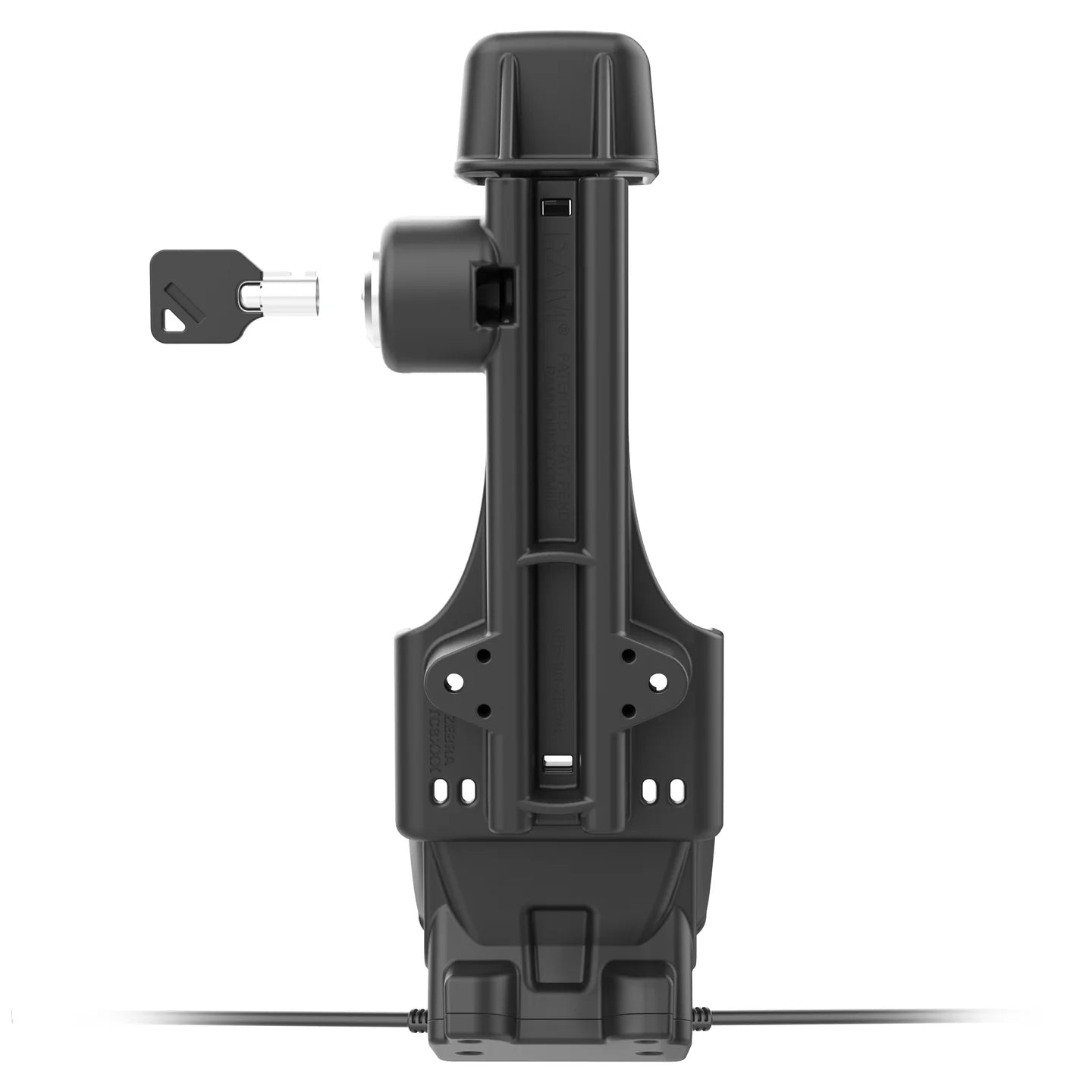

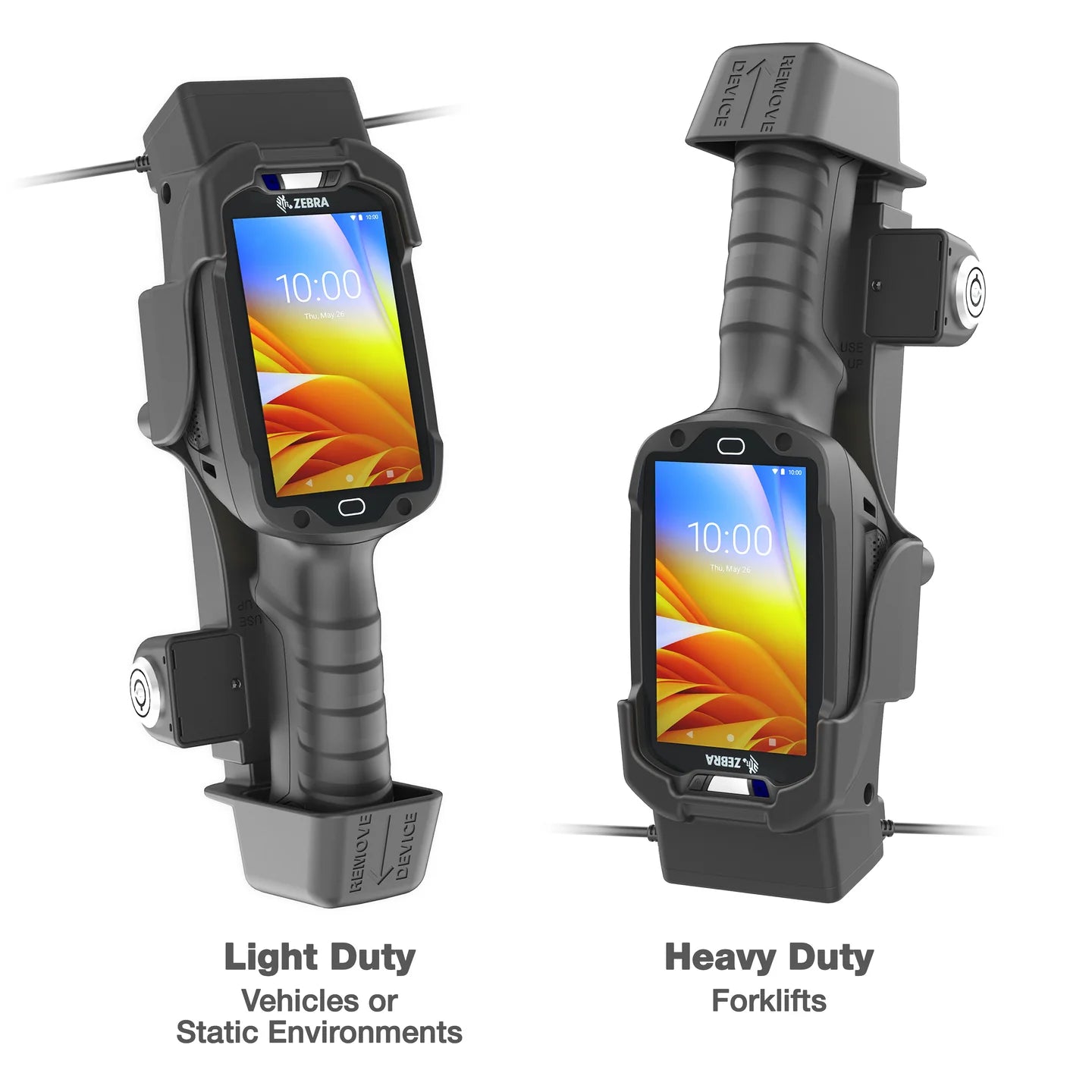

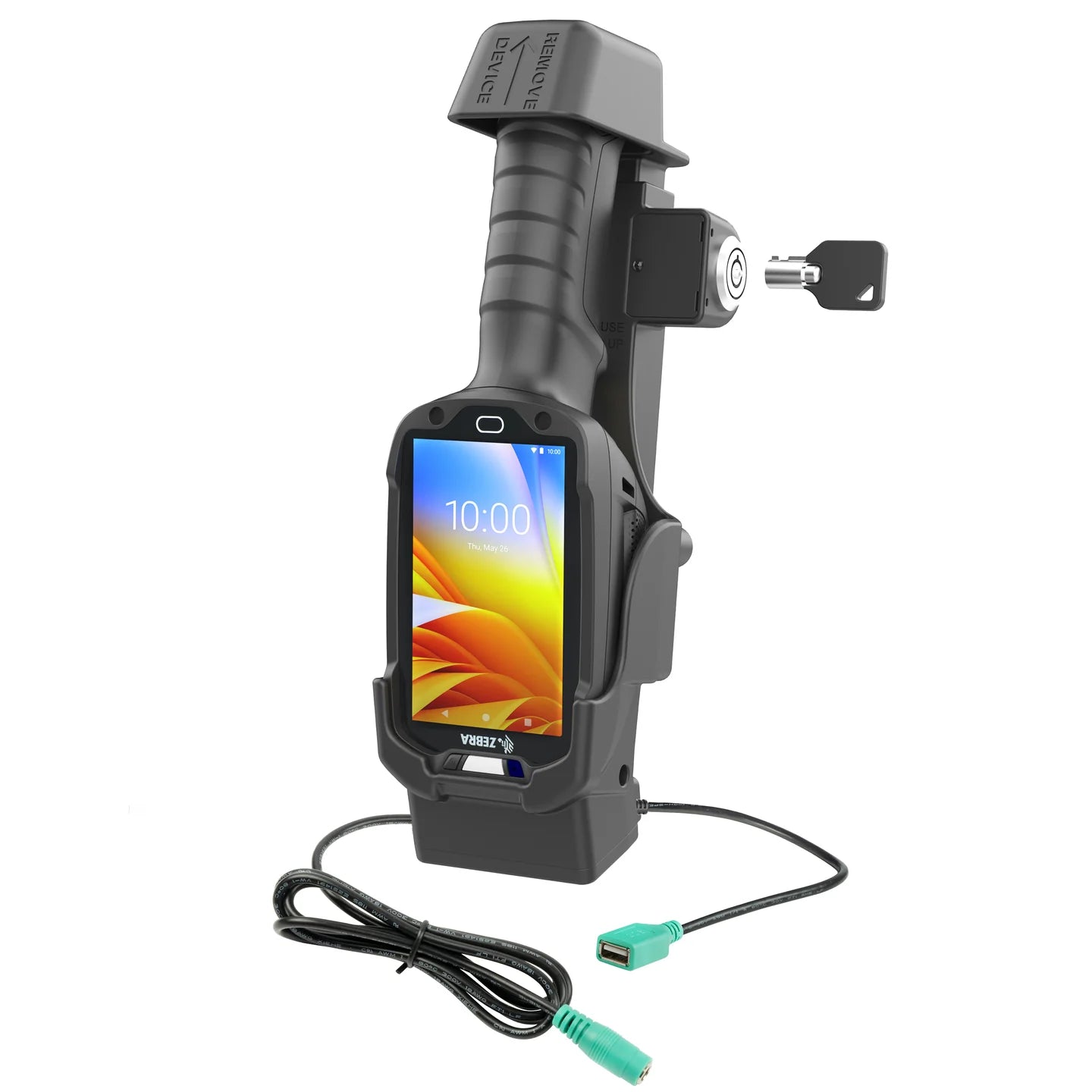

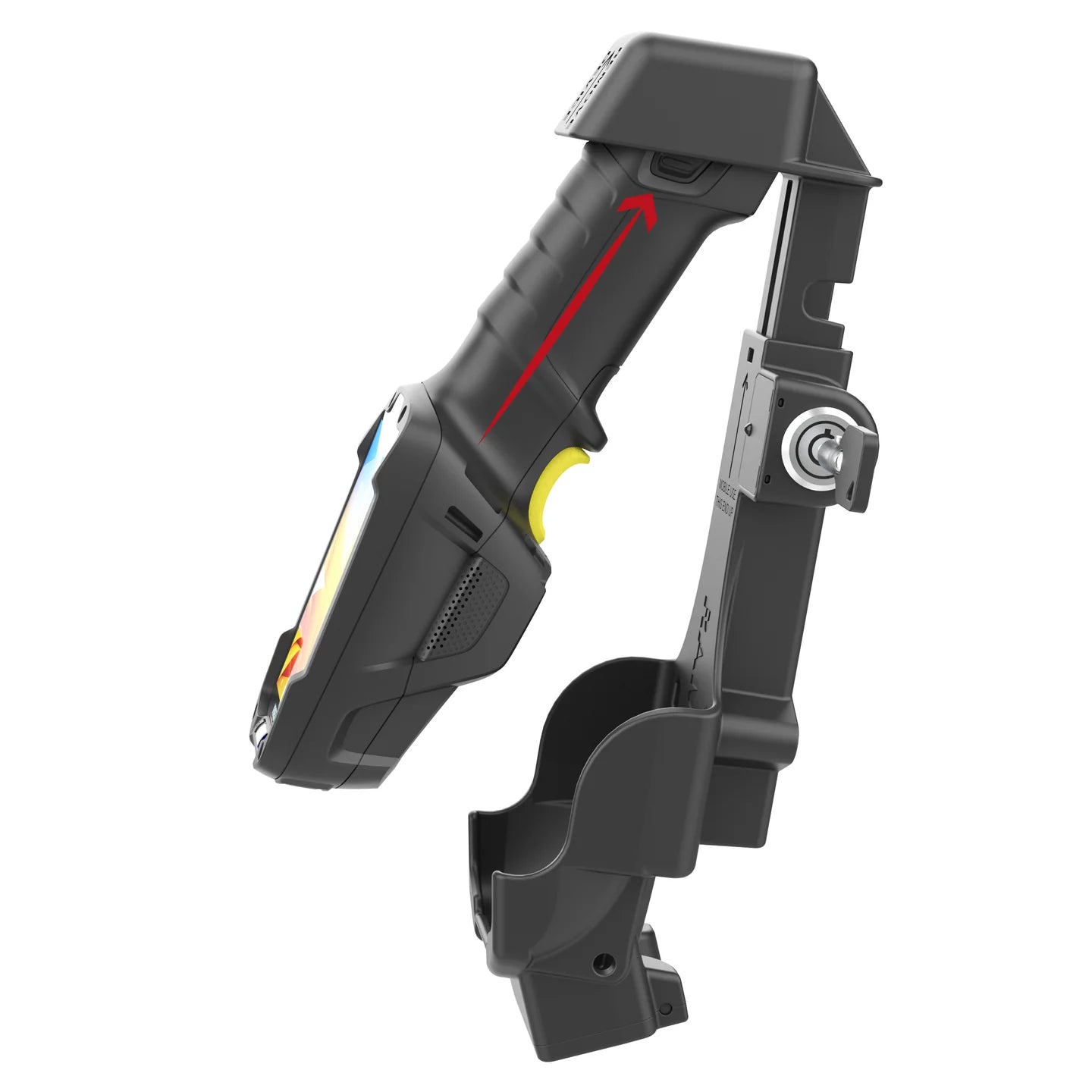

This Locking Power + Data Spring-Loaded Dock (RAM-HOL-ZE26PDLU) features a form-fitting design specifically for the Zebra TC8300. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution. FEATURES Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device Includes a single USB Type-A connector for peripheral support Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability Backed by a 3-year warranty HARDWARE INCLUDED PRODUCT DIMENSIONS HOLE PATTERN MATERIALS WARRANTY Zebra TC8300 RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-238U RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-B-238U RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-D-238U RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1 RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U GDS® Modular 10-30V Hardwire Charger With 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V7B1U GDS® Modular 30-64V Hardwire Charger With 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V8BU Documents
Description
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
Overall Height: 10.36"
Overall Width: 3.25"
Overall Depth: 4.08"
2-Hole AMPS: 1.912"
High strength composite
3 year warranty Compatibility
Mounting Options
Additional Information
