RAM-HOL-SAM58PDKLTU
Out of Stock
( Chat Live to get an ETA )

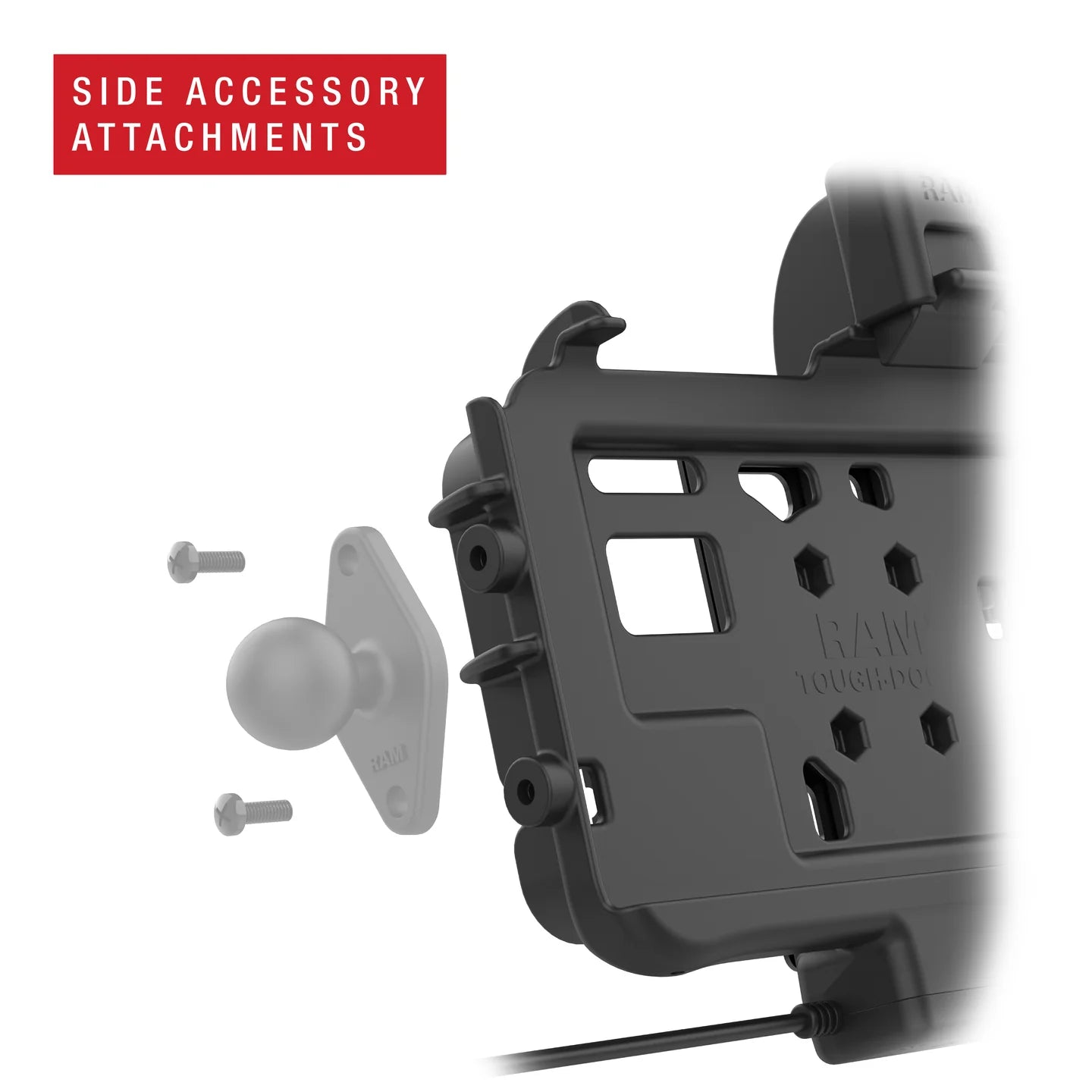

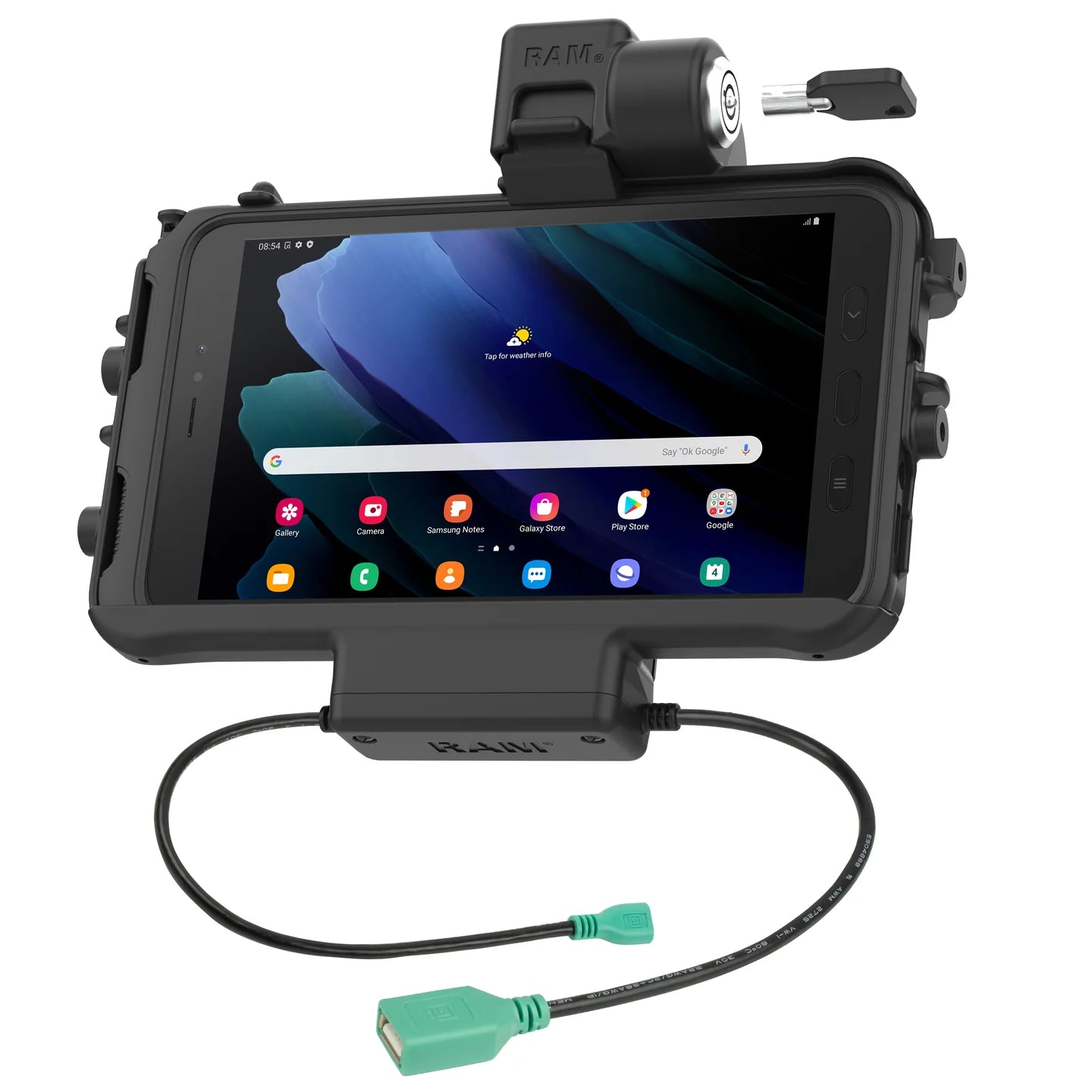

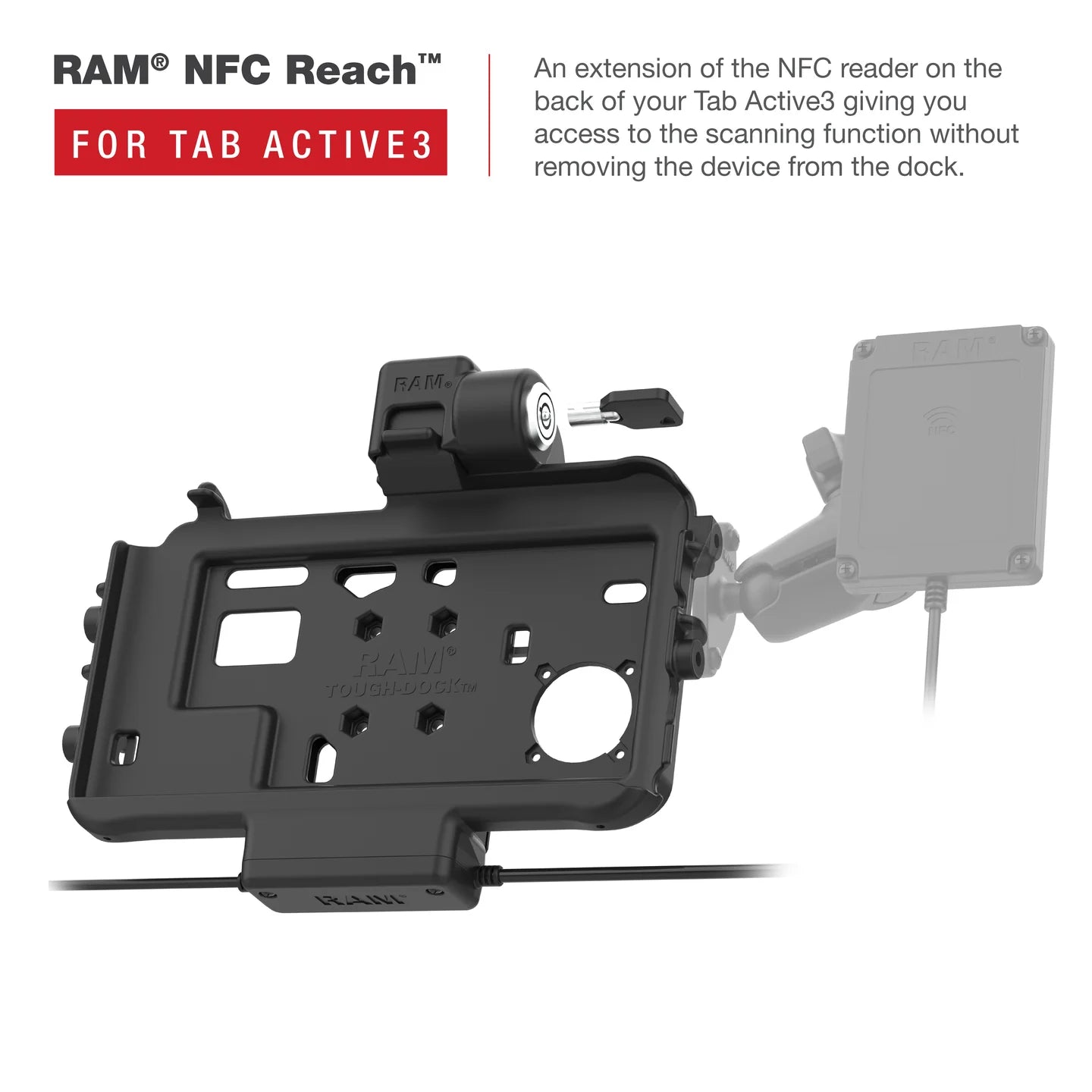

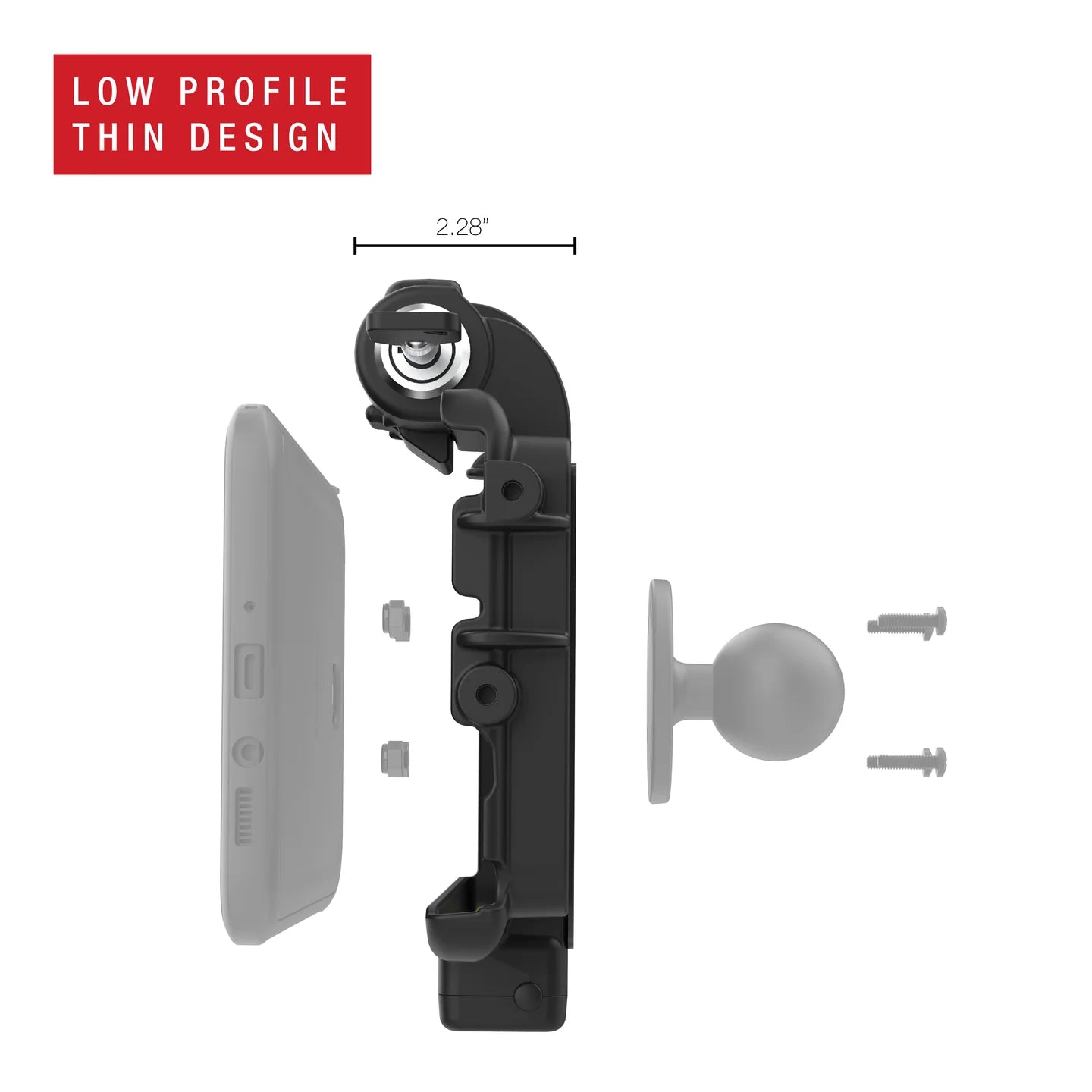

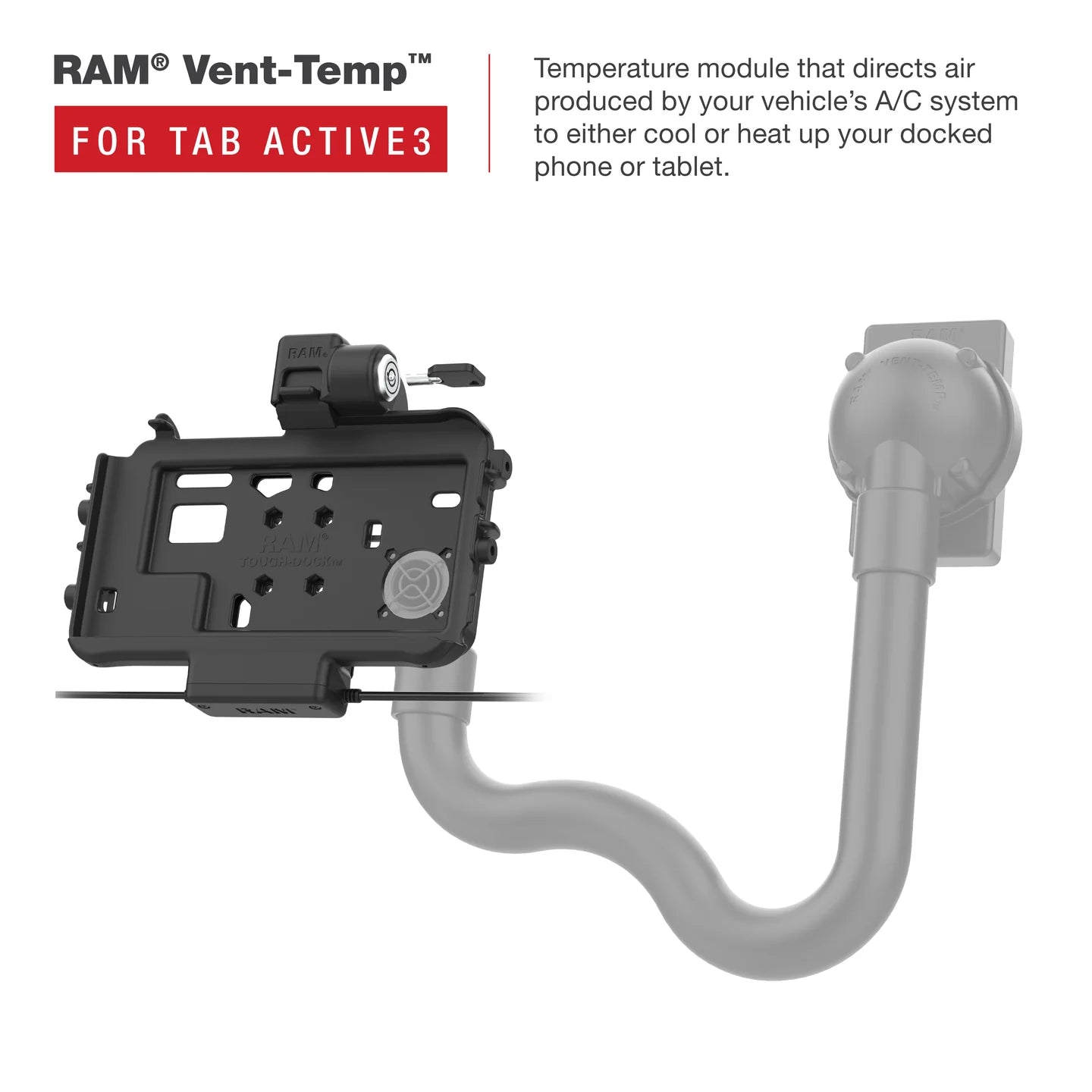

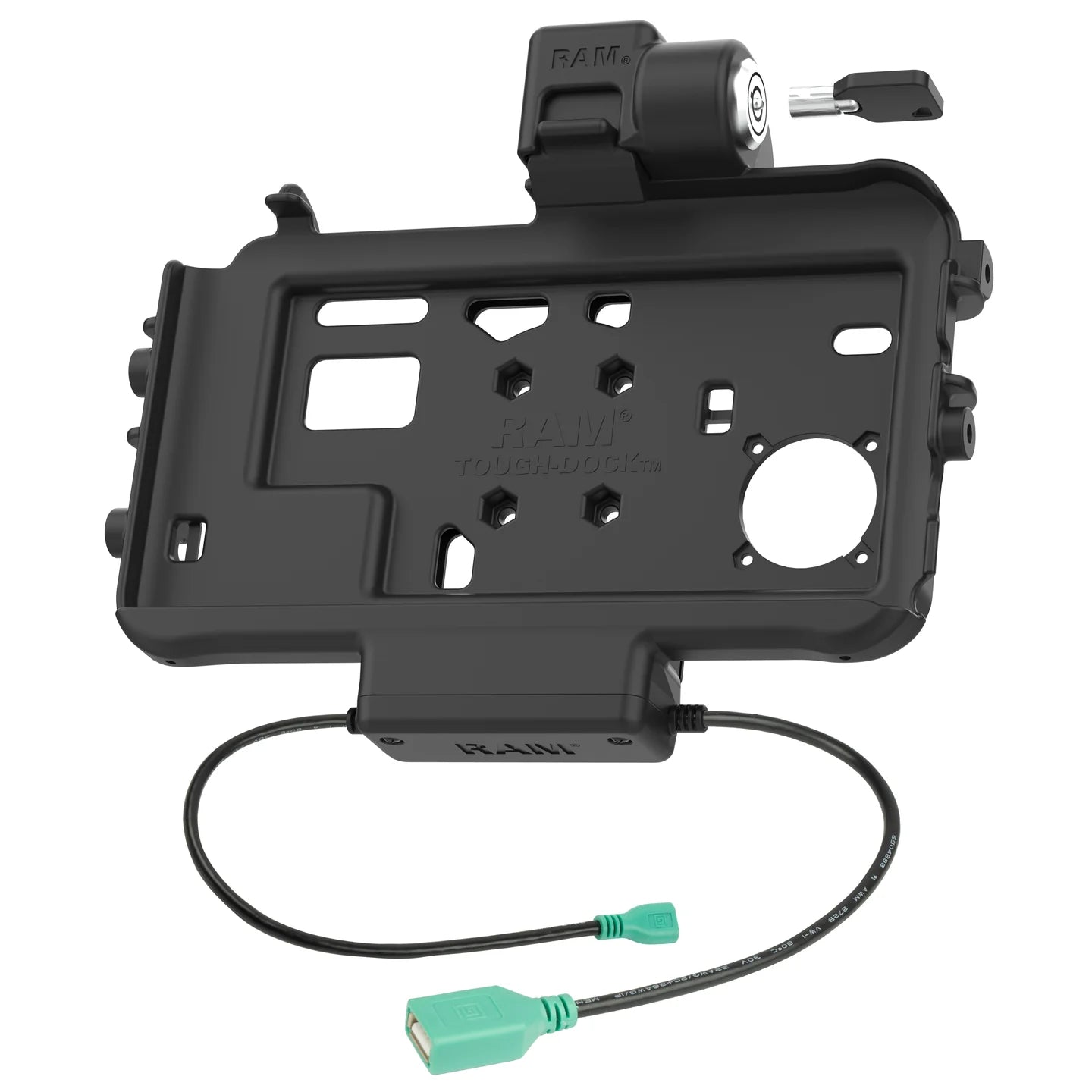

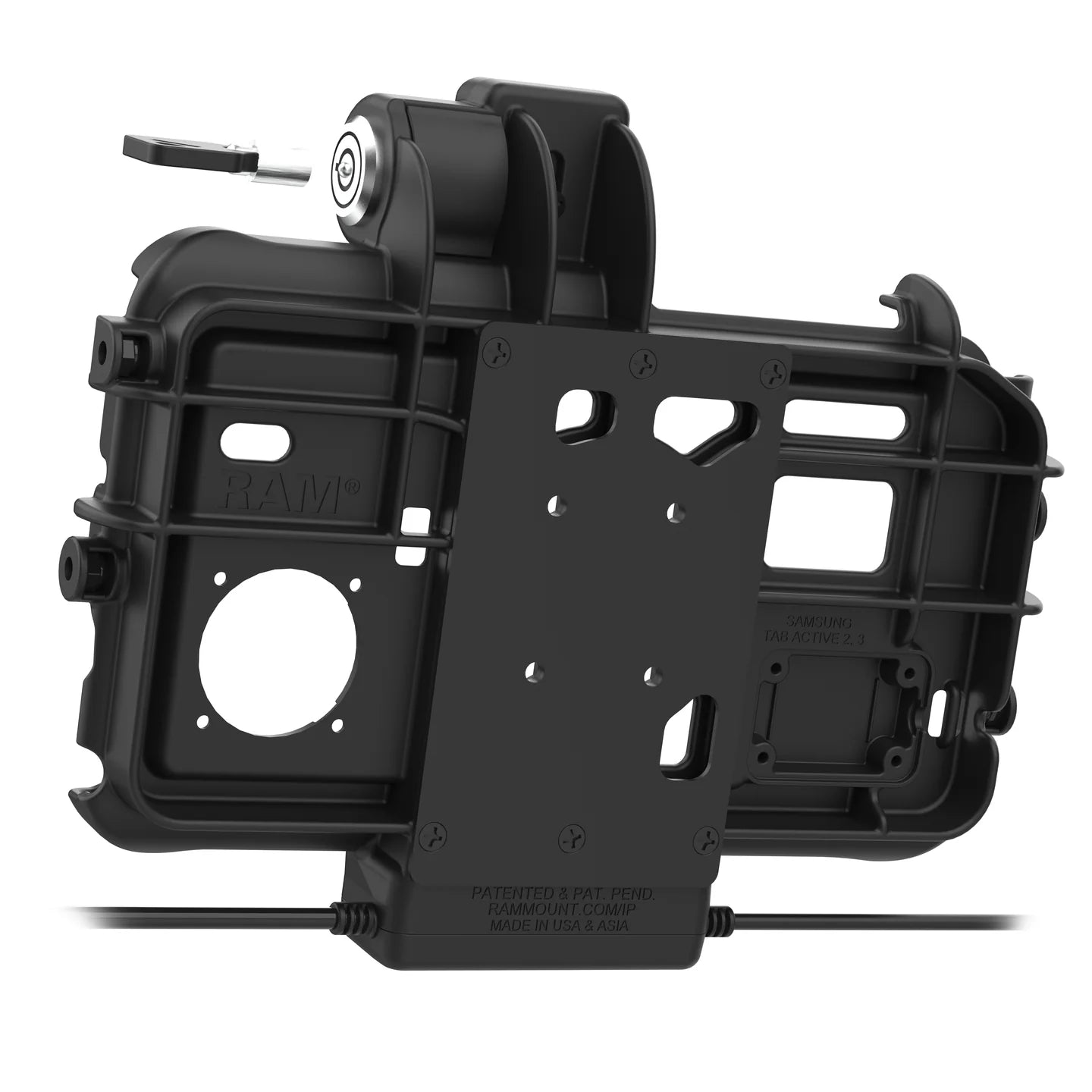

The low-profile RAM® Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58PDKLTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated mUSB cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is an mUSB to USB Type-A extension cord, cable clamp, and zip ties for cable management. FEATURES Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM® Skin™ Slim-profile design at 2.28" depth with metal reinforcement plate Compatible with most RAM® dock accessories including RAM® Vent-Temp™, NFC Reach™, and side accessory attachments Provides charging connectivity through integrated pogo pin technology and mUSB cable; provides peripheral support via single USB Type-A cable Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS INPUT VOLTAGE OUTPUT VOLTAGE INPUT CONNECTOR INPUT CABLE LENGTH OUTPUT CONNECTOR OUTPUT CABLE LENGTH TRANSFER SPEED WARRANTY WEIGHT Additional Information
Description
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(10) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
4.4-5.4VDC (USB power source dependent)
4.4VDC - 5.4VDC (USB power source dependent)
mUSB Female
214mm
USB 1.1 Type A
215mm
12Mbps
3 year warranty
1.4 lb
This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™. Components Compatibility
Samsung Tab Active3
Mounting Options
RAM C Size 1.5" Ball Mount With 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U
RAM® Drill-Down Dashboard Mount With Backing Plate - C Size Short - RAM-101-B-225B2U
RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U
RAM® No-Drill™ Mount For '17-23 Ford F-Series + More - RAM-VB-195-SW2
RAM® No-Drill™ Mount For '19-23 Chevy Silverado, 2021-2023 Tahoe + More - RAM-VB-203-SW2
RAM® No-Drill™ Mount For '12-23 RAM 2500-5500 + More - RAM-VB-178A-SW2
RAM 1.5" Ball Medium Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U
RAM® Double Socket Arm With Round Ball Plate - RAM-103U-D
RAM 1.5" Ball Short Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U-B
RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U
RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1
RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U
GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U
GDS® 2-Port USB Car Charger With Qualcomm® Quick Charge™ - RAM-GDS-CHARGE-USB2QCCIG
GDS® USB Type-A Male & Type-A Female Clamp - RAM-GDS-CAB-CLAMP2U Additional Information
GDS® USB-A To MUSB Male Straight Cable - 1.2 Meters Long - RAM-GDS-CAB-MUSB2-1
GDS® MUSB & Type-C Cable Clamp - RAM-GDS-CAB-CLAMP1U
