RAM-HOL-SAM58PKLTU
Out of Stock
( Chat Live to get an ETA )

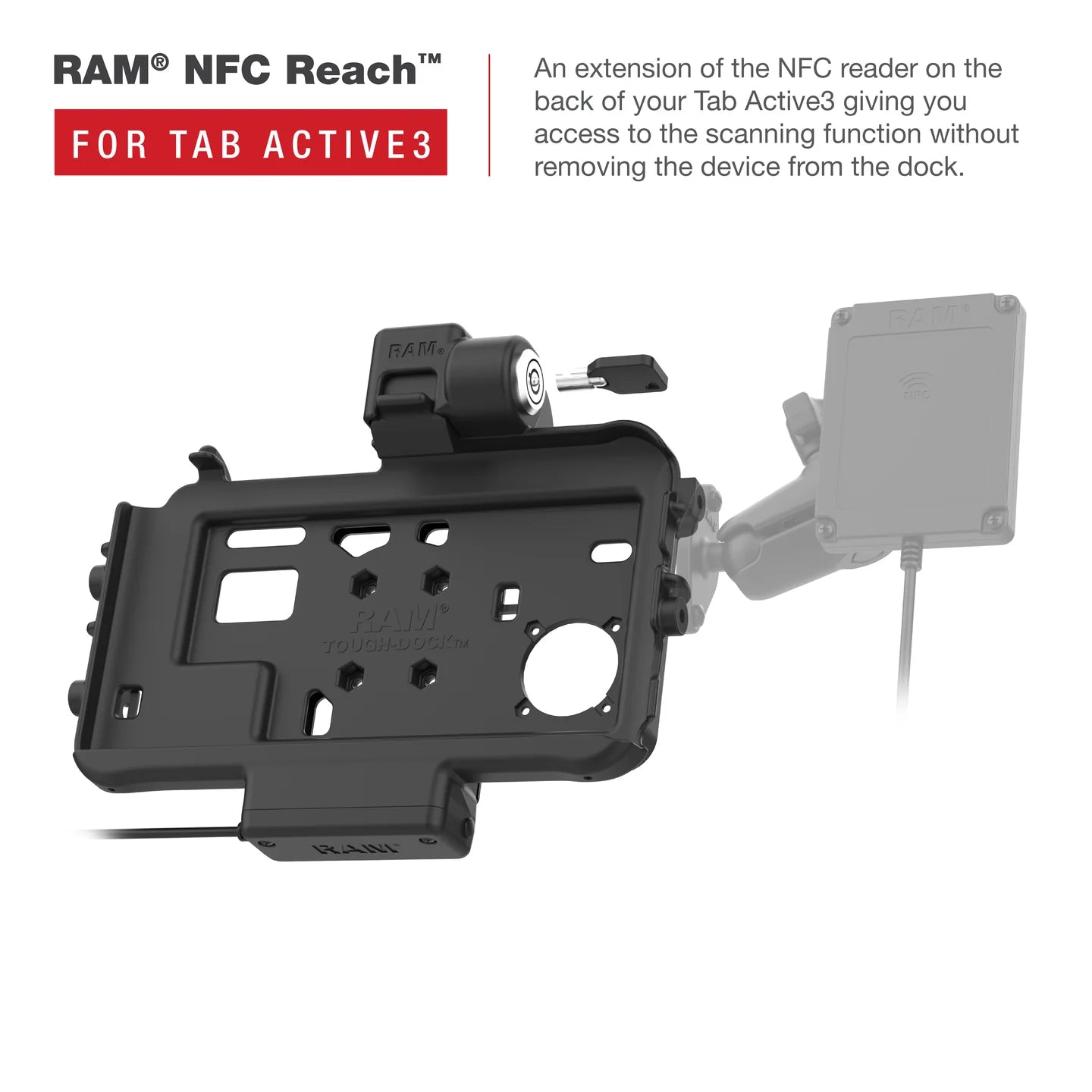

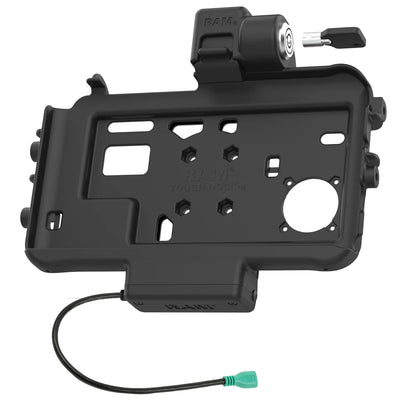

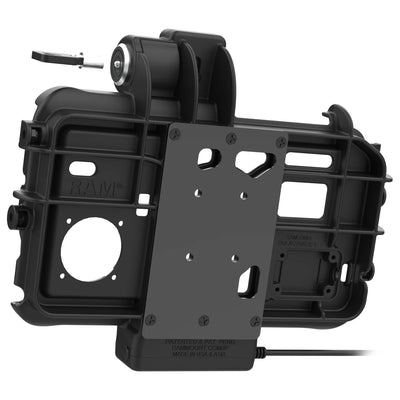

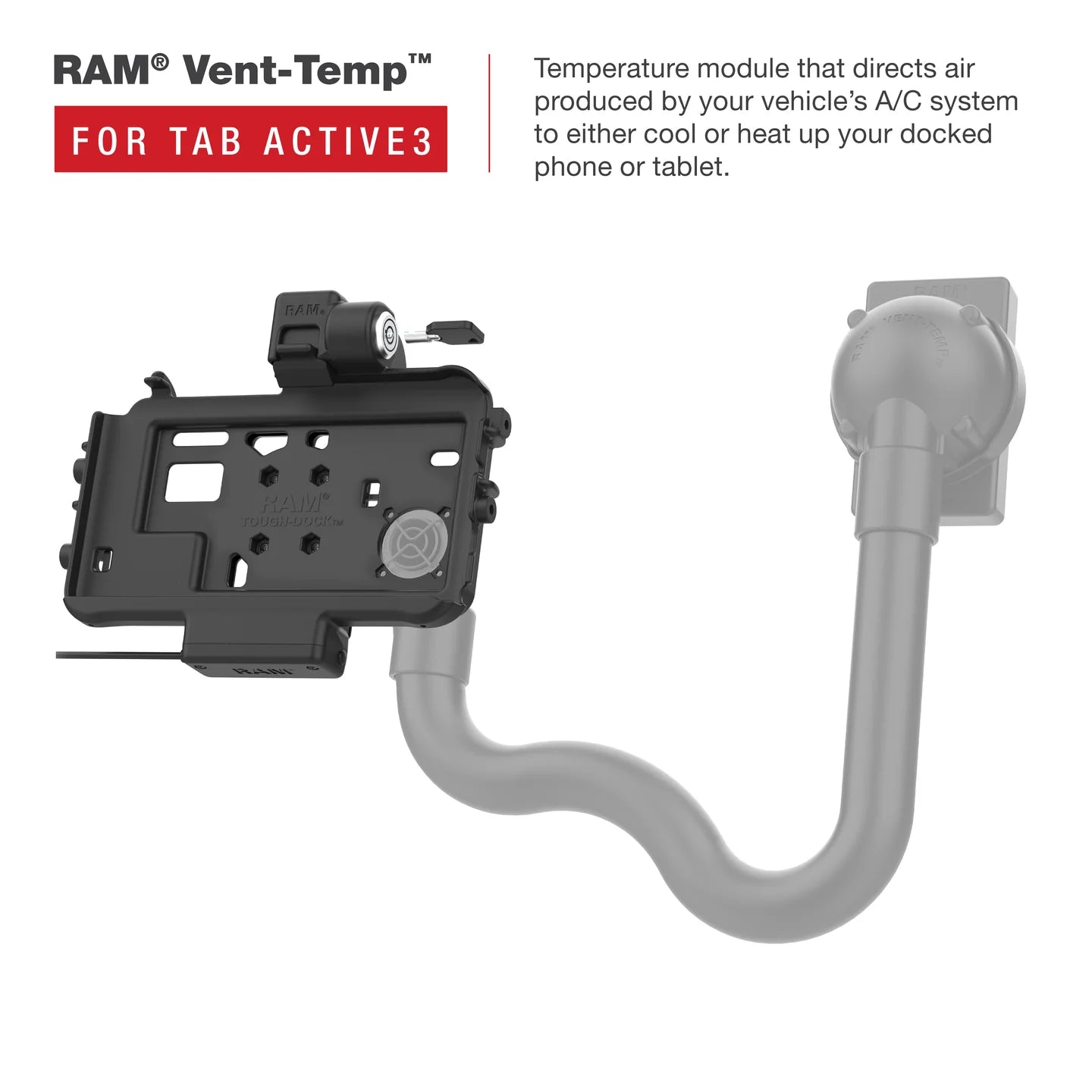

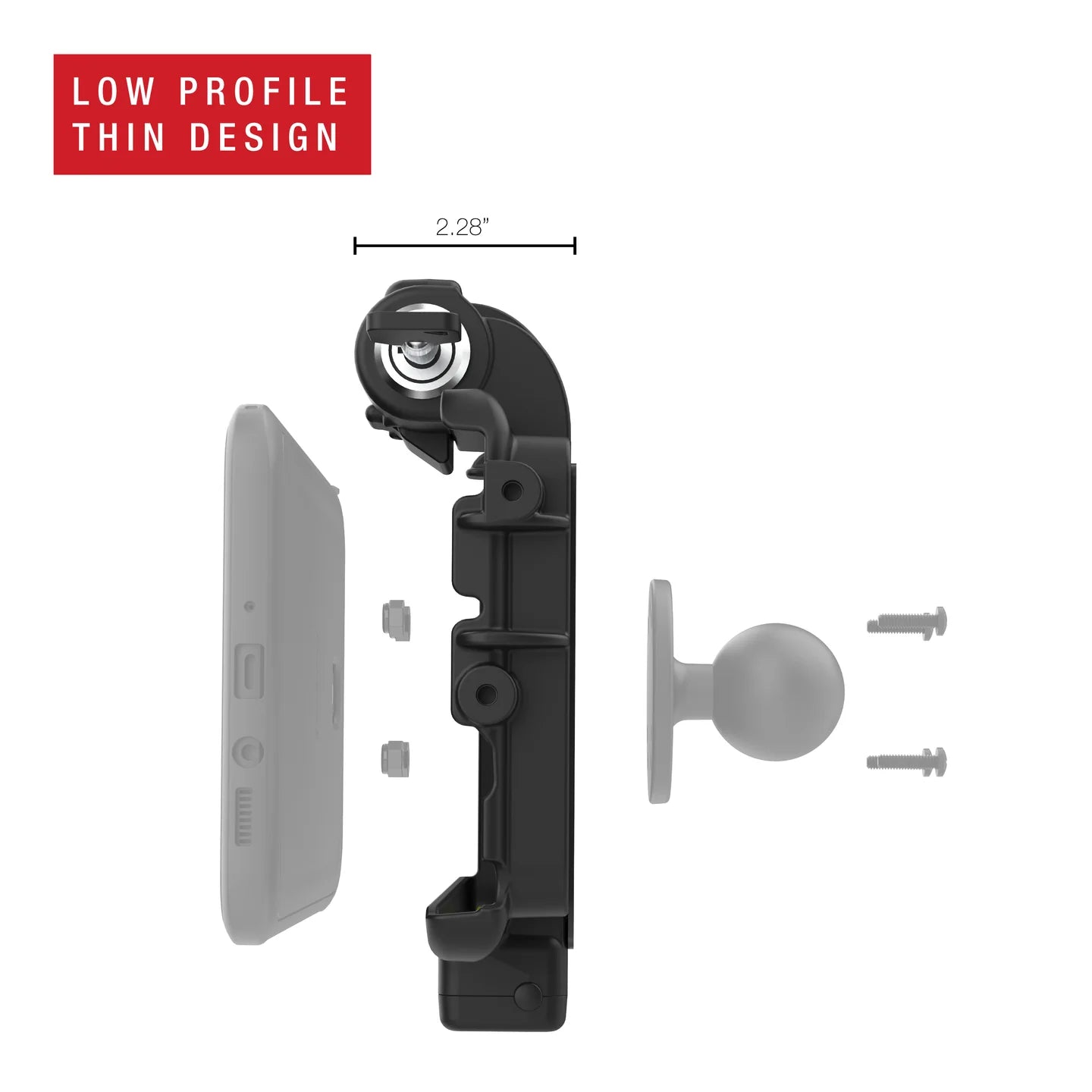

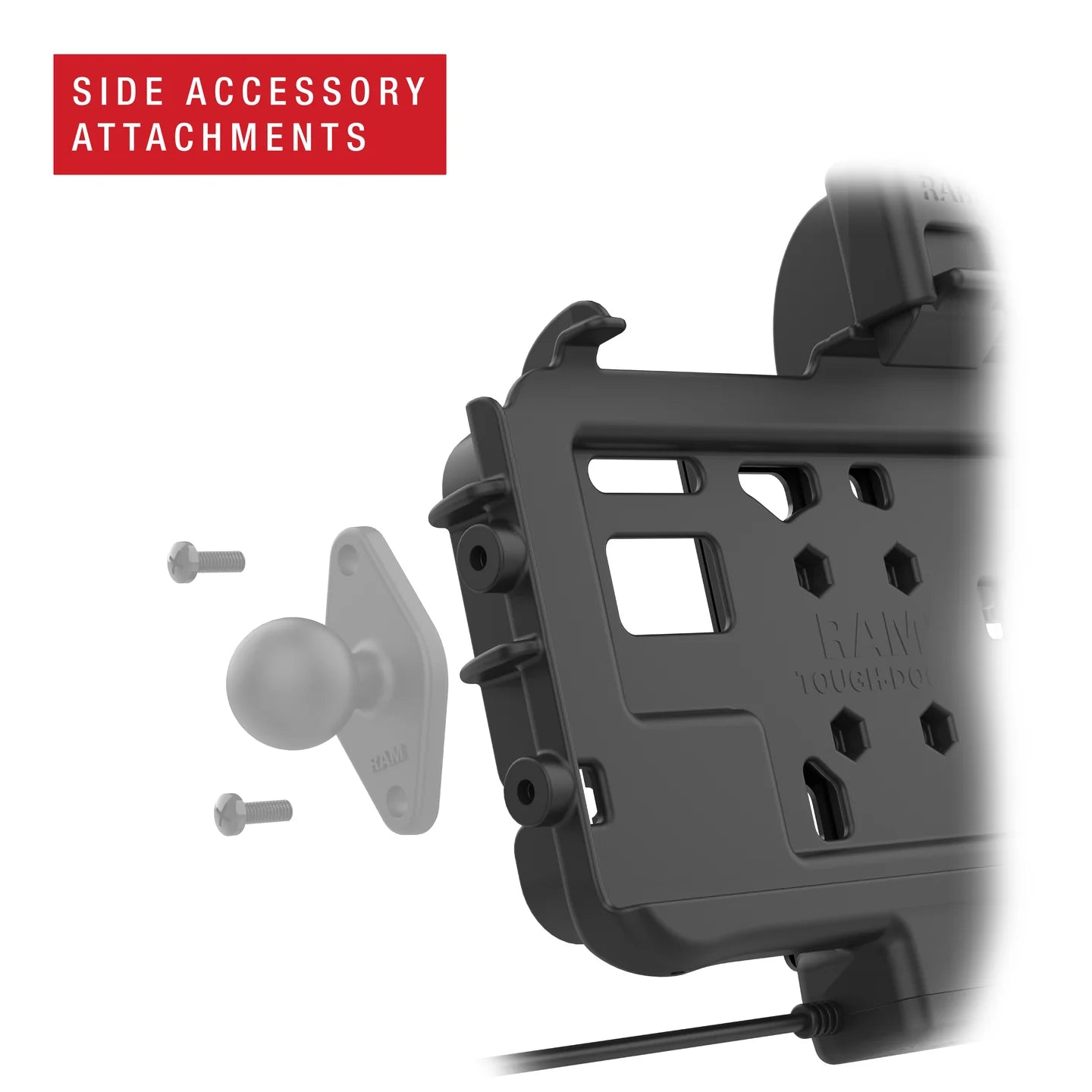

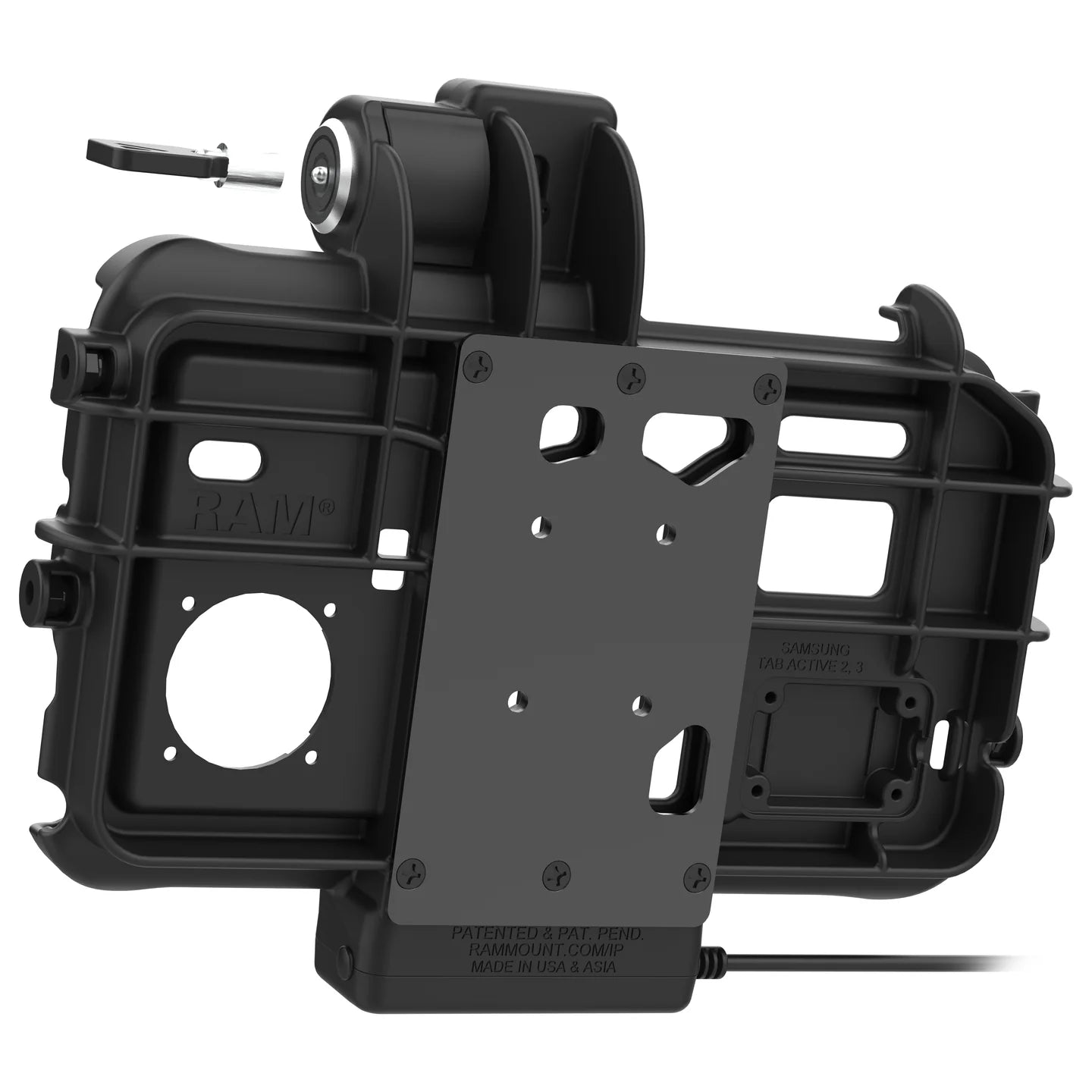

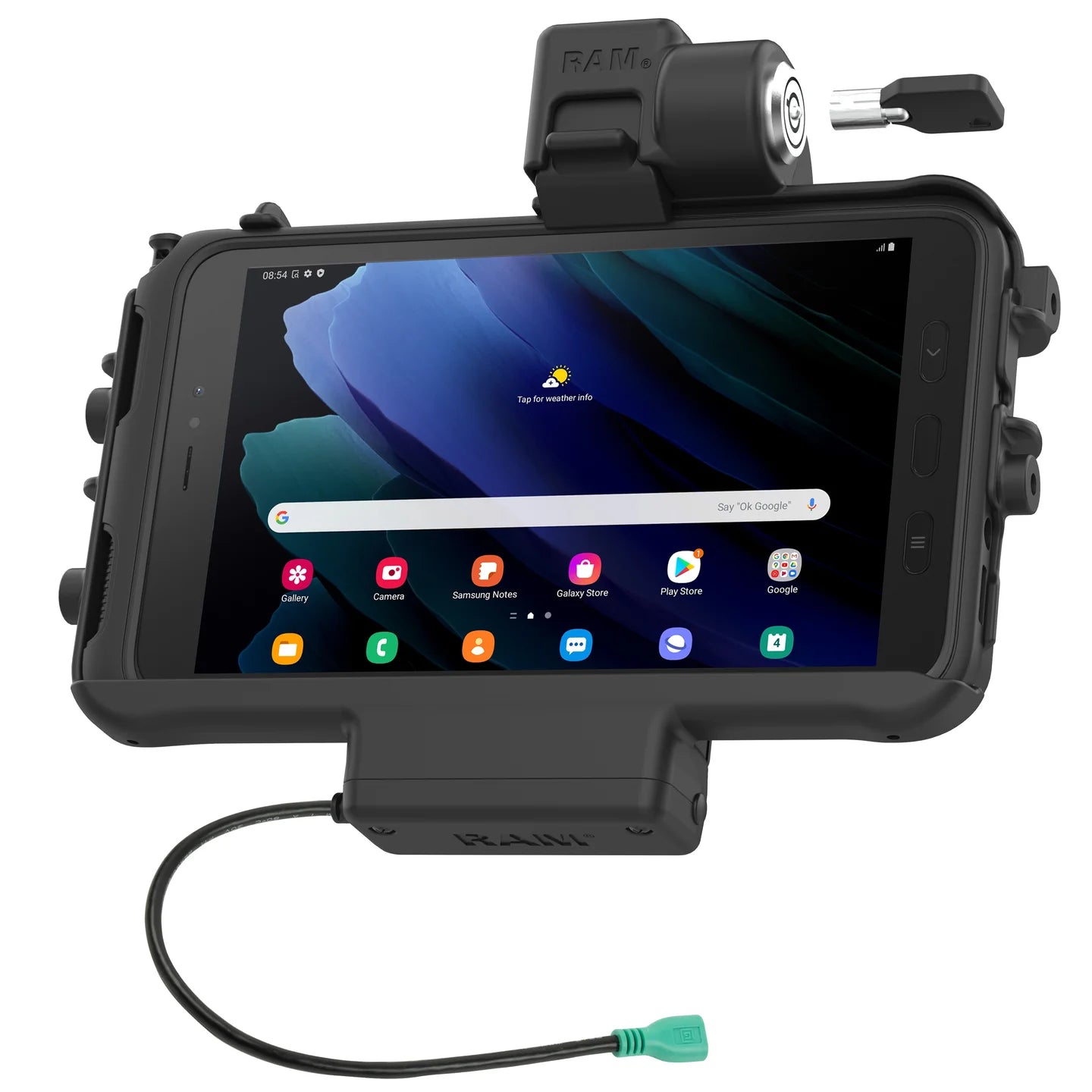

The low-profile RAM® Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58PKLTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated mUSB cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is an mUSB to USB Type-A extension cord, cable clamp, and zip ties for cable management. FEATURES Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM® Skin™ Slim-profile design at 2.28" depth with metal reinforcement plate Compatible with most RAM® dock accessories including RAM® Vent-Temp™, NFC Reach™, and side accessory attachments Provides charging connectivity through integrated pogo pin technology and mUSB cable Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS INPUT VOLTAGE OUTPUT VOLTAGE INPUT CONNECTOR INPUT CABLE LENGTH WARRANTY WEIGHT Additional Information
Description
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
4.4-5.4VDC (USB power source dependent)
4.4VDC - 5.4VDC (USB power source dependent)
mUSB Female
214mm
3 year warranty
1.5 lb
This dock is not compatible with the GDS® Hand-Stand™ Compatibility
