RAM-HOL-SAM58PTU
Out of Stock
( Chat Live to get an ETA )

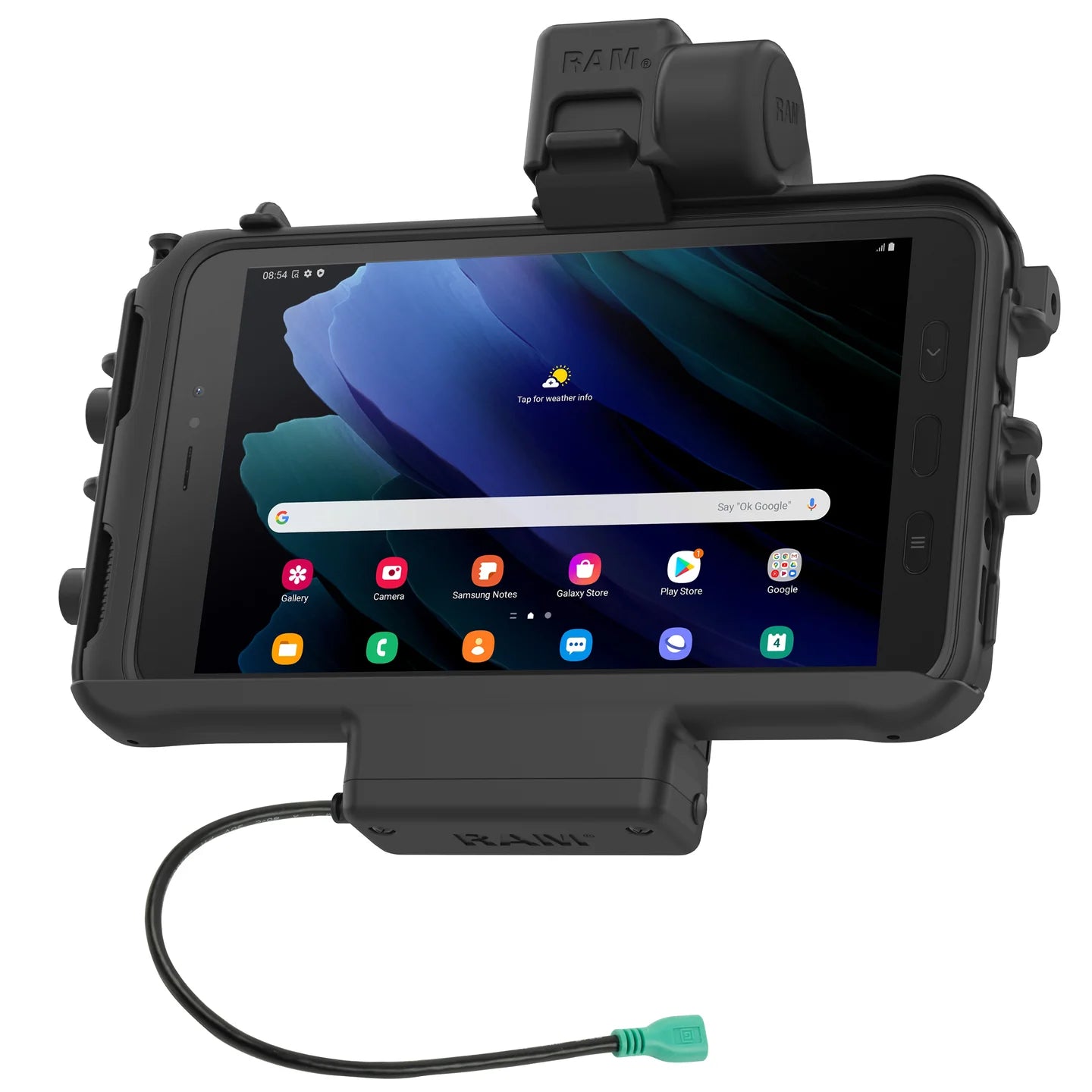

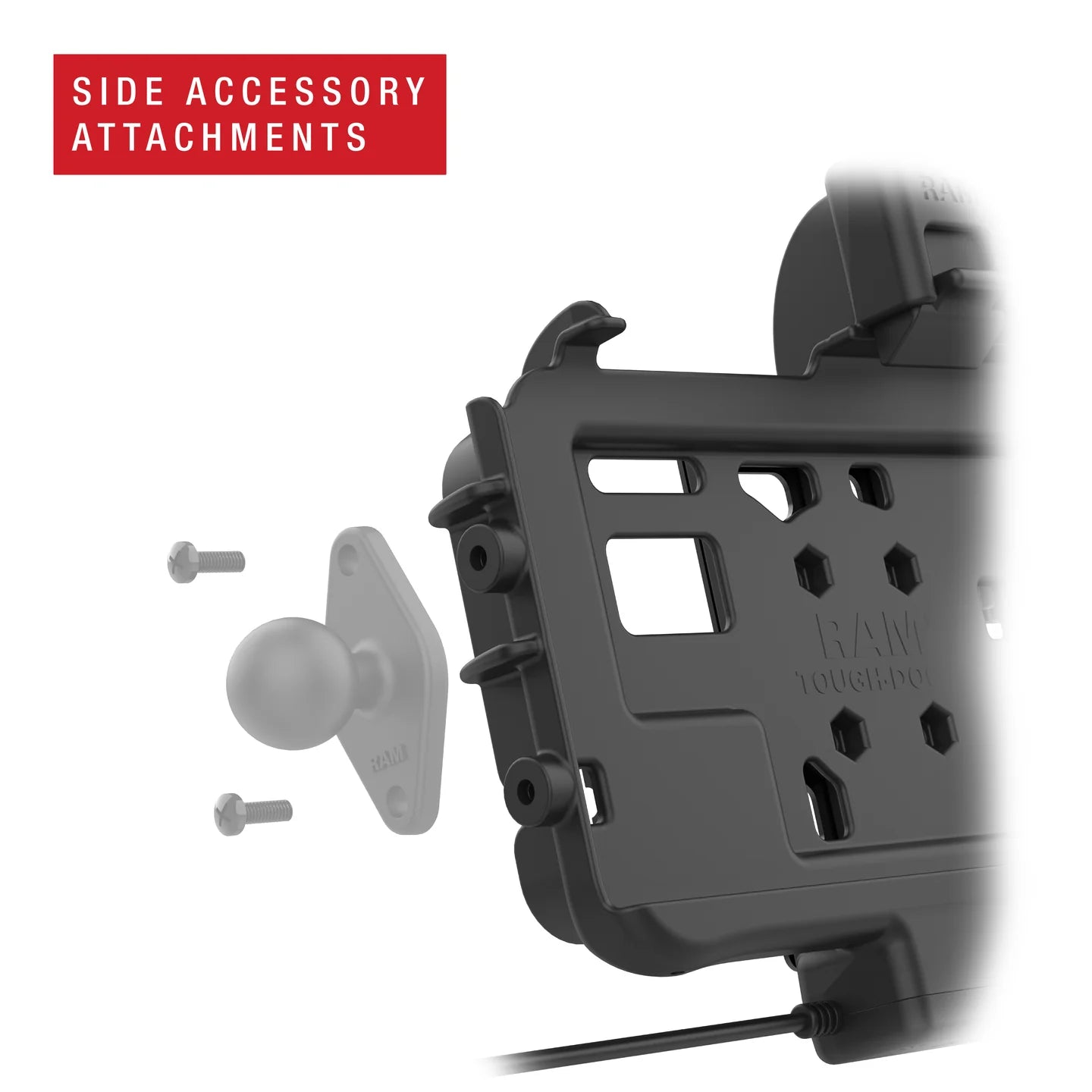

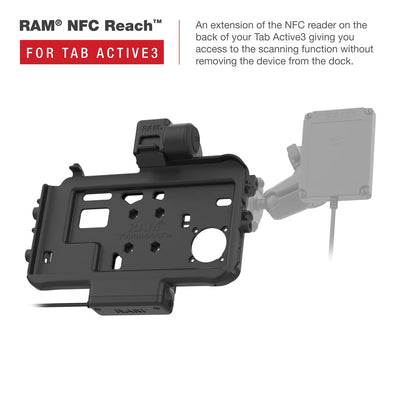

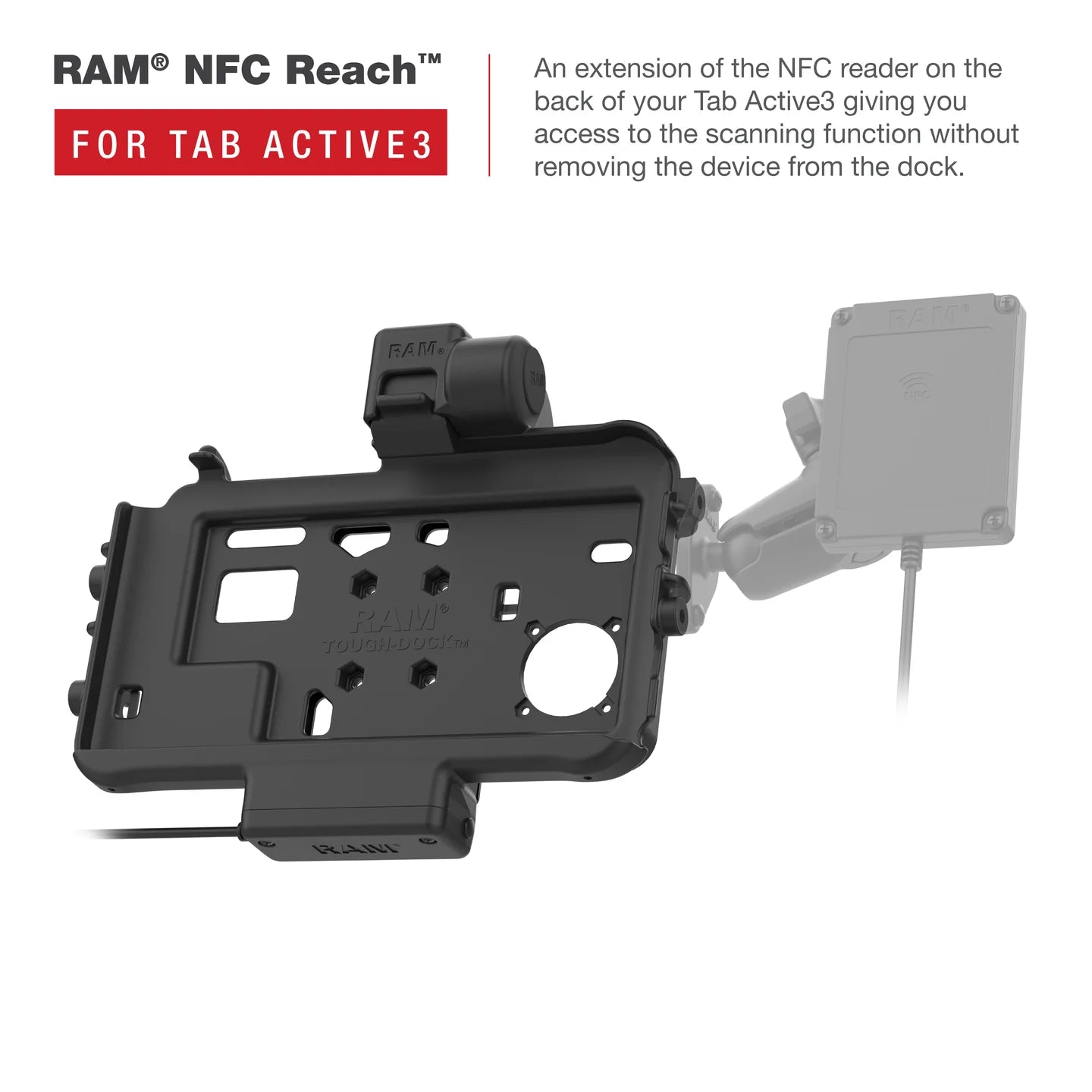

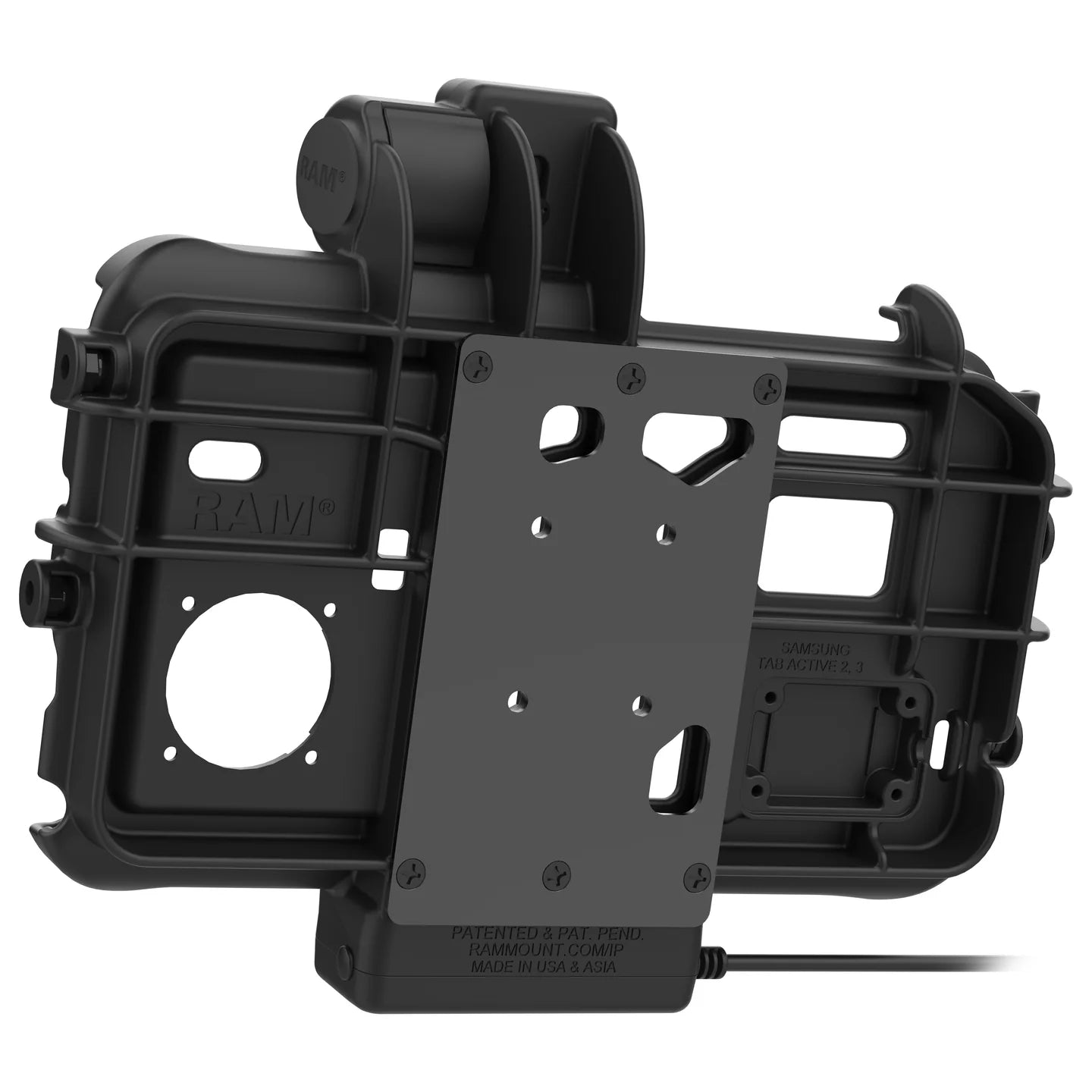

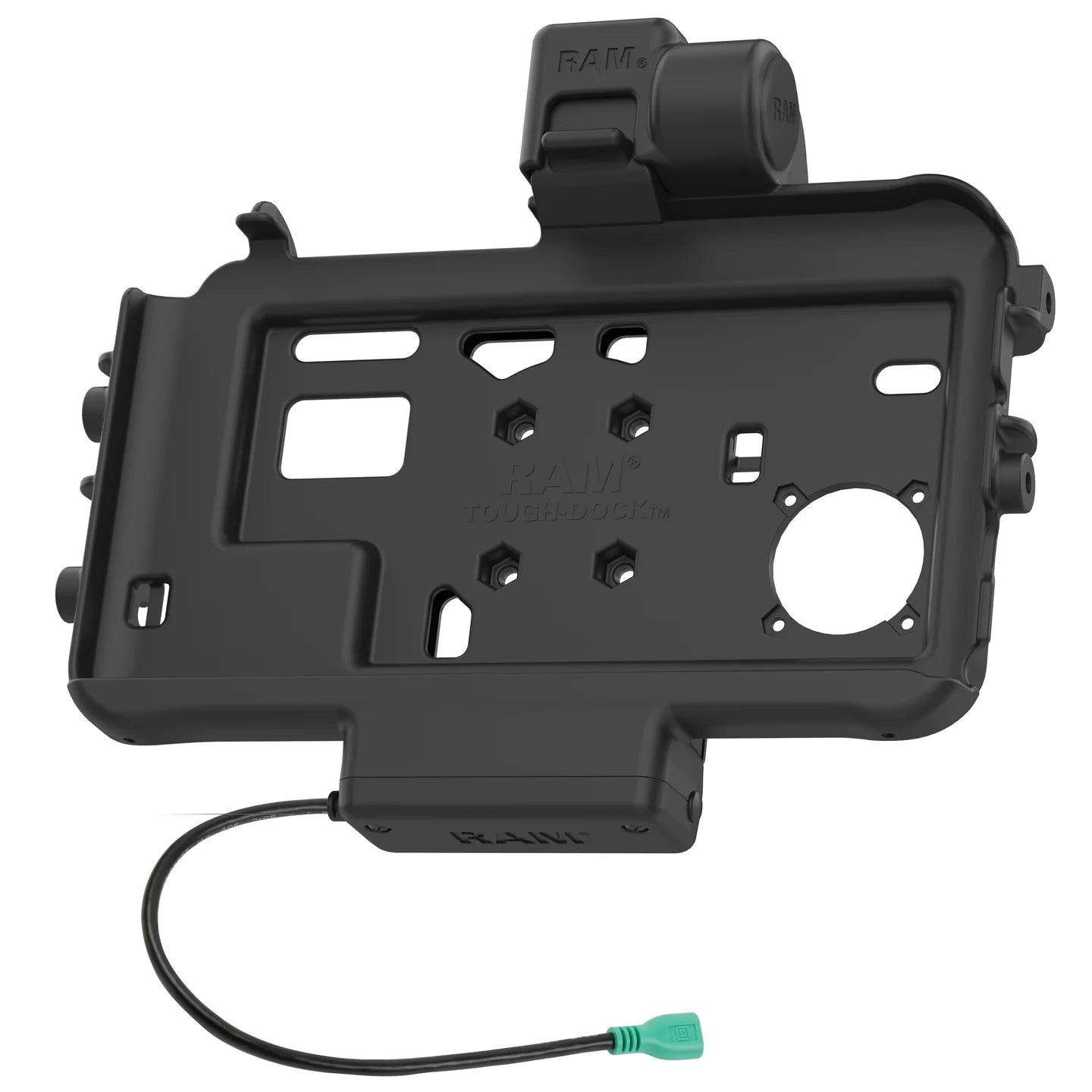

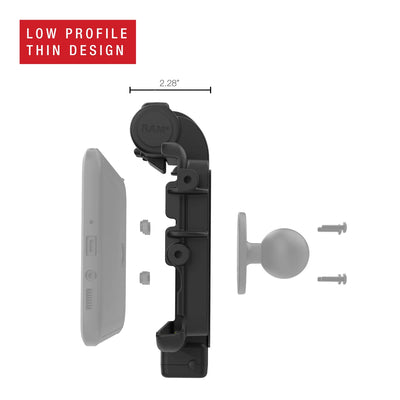

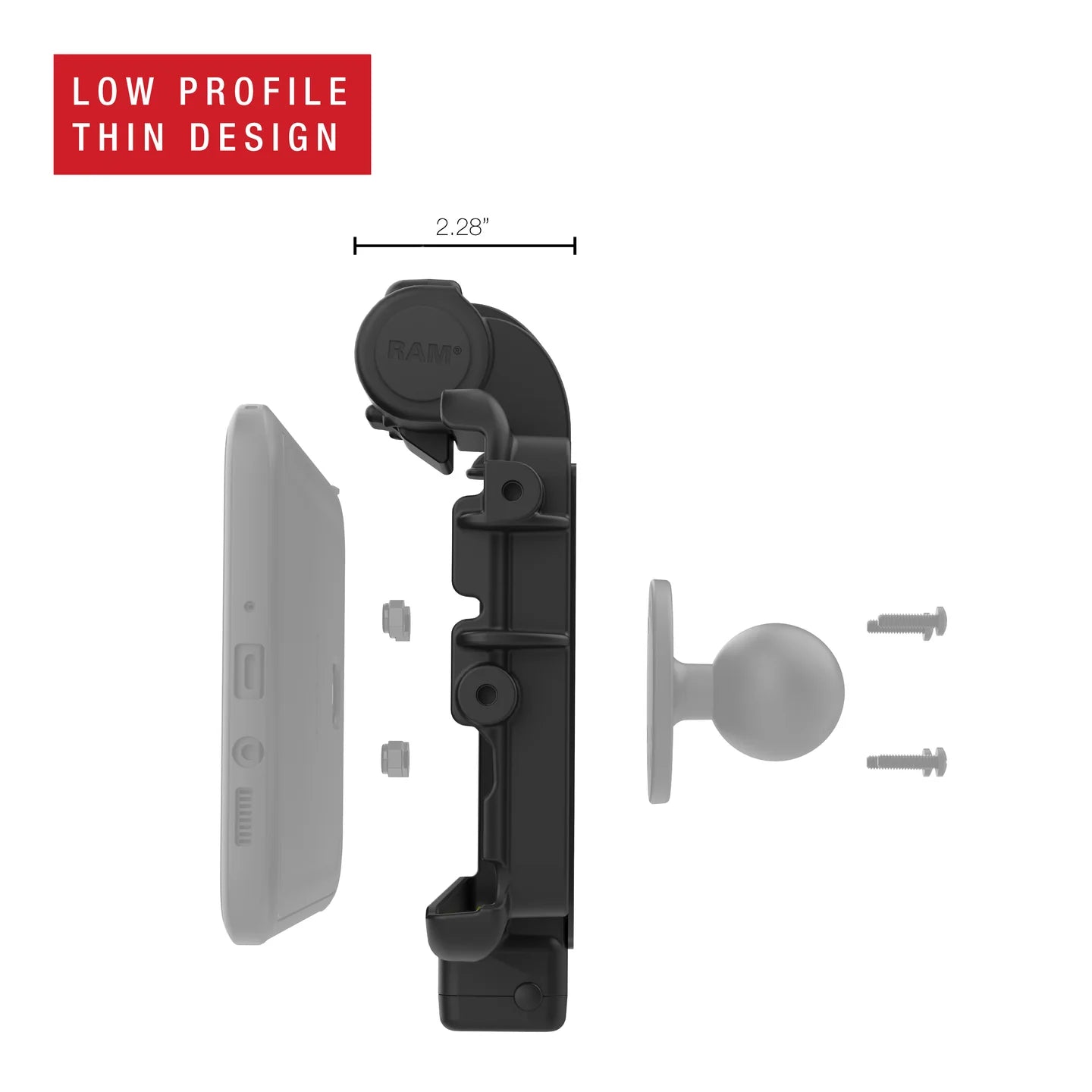

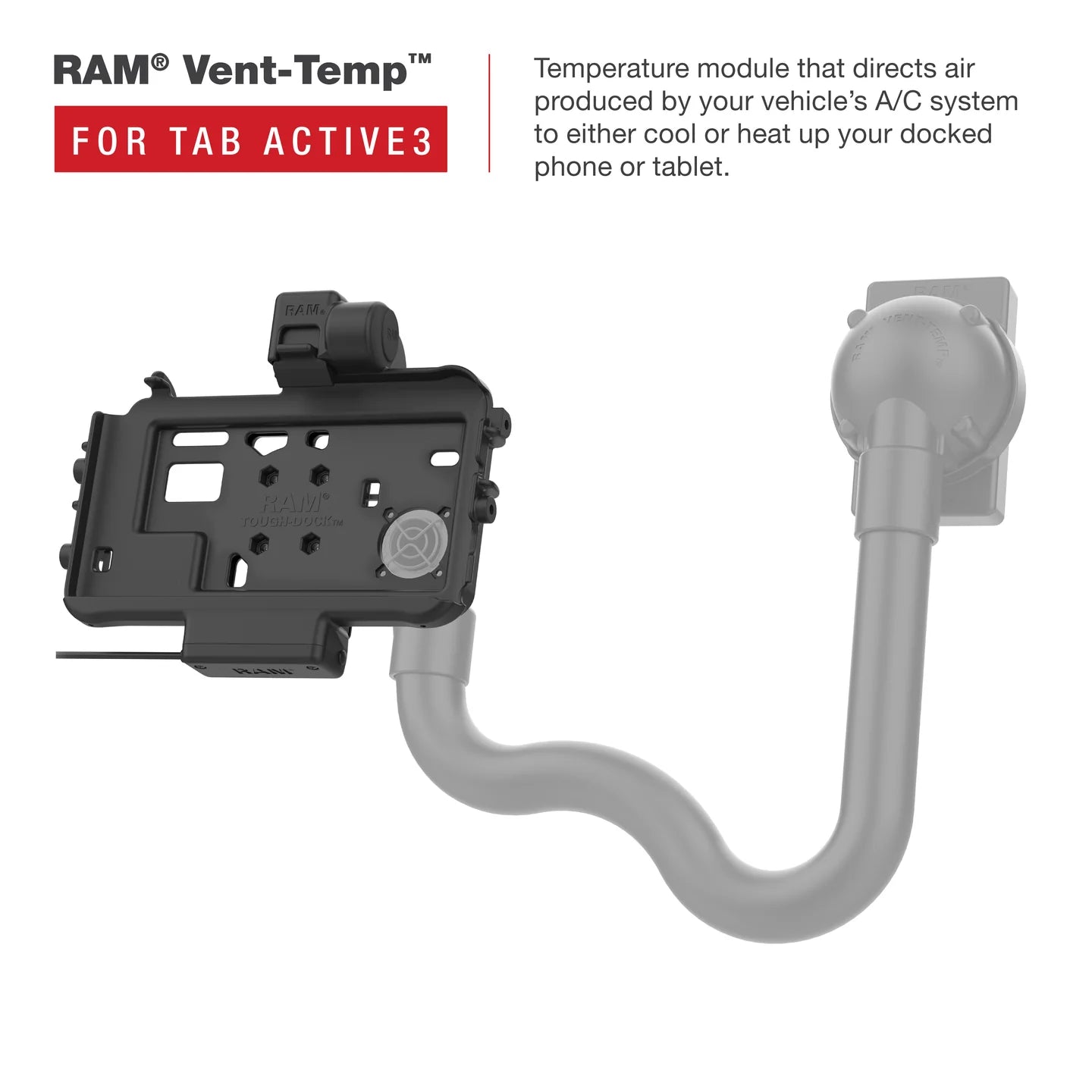

The low-profile RAM® Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58PTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated mUSB cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is an mUSB to USB Type-A extension cord, cable clamp, and zip ties for cable management. FEATURES Form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM® Skin™ Slim-profile design at 2.28" depth with metal reinforcement plate Compatible with most RAM® dock accessories including RAM® Vent-Temp™, NFC Reach™, and side accessory attachments Provides charging connectivity through integrated pogo pin technology and mUSB cable Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS INPUT VOLTAGE OUTPUT VOLTAGE INPUT CONNECTOR INPUT CABLE LENGTH WARRANTY WEIGHT This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
Description
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
4.4-5.4VDC (USB power source dependent)
4.4VDC - 5.4VDC (USB power source dependent)
mUSB Female
214mm
3 year warranty
0.98 lb Compatibility
Samsung Tab Active3
Samsung Tab Active5
Mounting Options
RAM C Size 1.5" Ball Mount With 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U
RAM® Drill-Down Dashboard Mount With Backing Plate - C Size Short - RAM-101-B-225B2U
RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U
RAM® No-Drill™ Mount For '17-23 Ford F-Series + More - RAM-VB-195-SW2
RAM® No-Drill™ Mount For '19-23 Chevy Silverado, 2021-2023 Tahoe + More - RAM-VB-203-SW2
RAM® No-Drill™ Mount For '12-23 RAM 2500-5500 + More - RAM-VB-178A-SW2
RAM 1.5" Ball Medium Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U
RAM® Double Socket Arm With Round Ball Plate - RAM-103U-D
RAM 1.5" Ball Short Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U-B
RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U
RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1
RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U
GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U
GDS® 2-Port USB Car Charger With Qualcomm® Quick Charge™ - RAM-GDS-CHARGE-USB2QCCIG
GDS® USB Type-A Male & Type-A Female Clamp - RAM-GDS-CAB-CLAMP2U Additional Information
