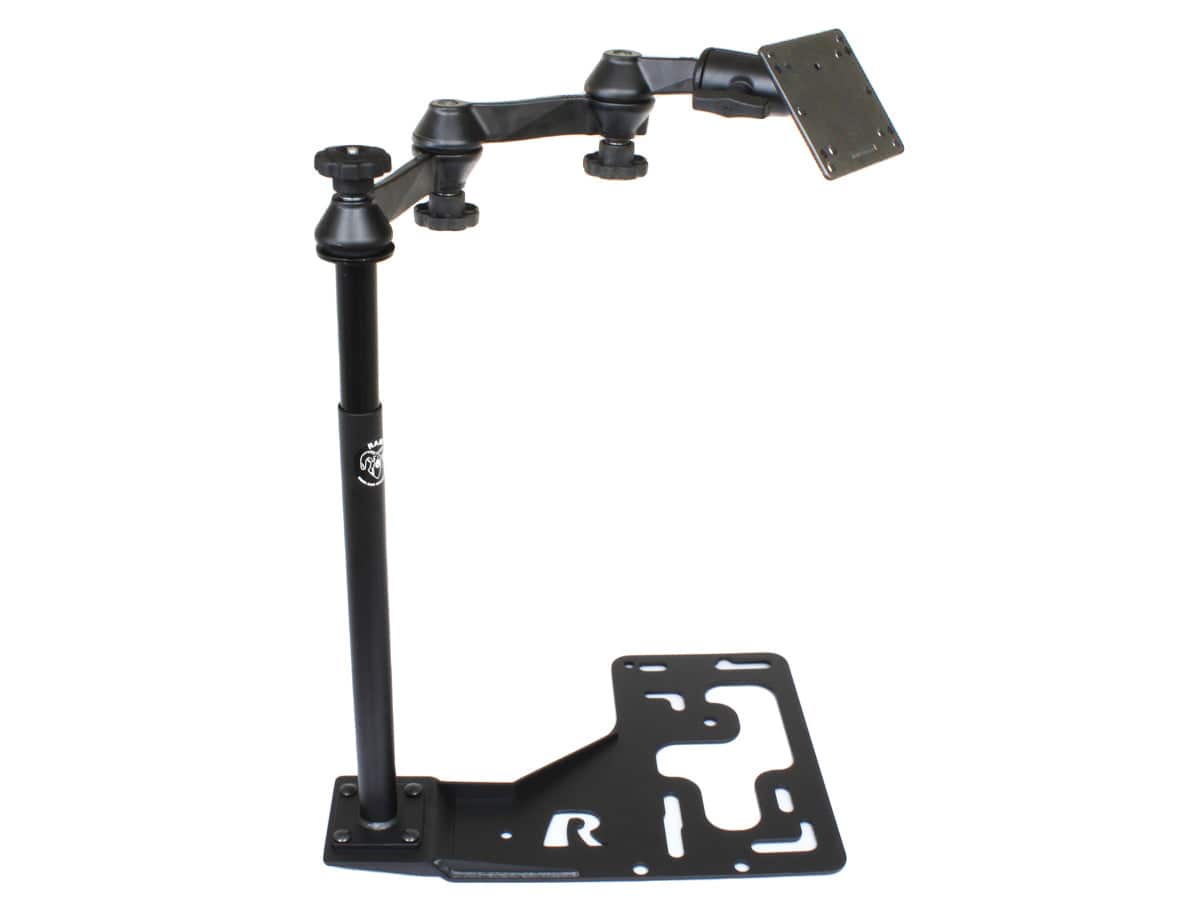

RAM® No-Drill™ Mount for Heavy Duty Trucks with 100x100mm VESA Plate - RAM-VB-168-246

The RAM^® No-Drill^™ mounting base features a heavy-duty steel mounting base custom designed to fit these vehicles perfectly. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the base in the vehicle. This configuration provides a telescoping feature that ranges from 12 to 18 inches. The triple swing arm provides articulation and 18 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. This vehicle base kit comes with the VESA plate that includes 75mm x 75mm and 100mm x 100mm hole patterns.

HARDWARE INCLUDED

Assembly Hardware

HOLE PATTERN

See Drawing

BALL/SOCKET SIZE

C Size (1.5")

MATERIALS

Powder coated steel
Marine grade-aluminum

PACKAGING TYPE

Box

WEIGHT

22.0 lbs.

 Drawing File - 100 x 100mm VESA Plate

 Drawing File - Universal Vehicle Base

 RAM No-Drill Seat Bases Instructions 168 Series - PDF

 Upper Tele-Pole Assembly Guide - PDF

 Universal No-Drill™ Vehicle Base for heavy duty trucks - RAM-VB-168

RAM 18" Long Lower Female Tele-Pole™ - RAM-VP-TBF18U

RAM 12" Long Top Male Tele-Pole™ - RAM-VP-TTM12U

RAM 6" Single Swing Arm Extension - RAM-VB-109-3U

RAM 12" Double Swing Arm With Single Open Socket For 1.5" Balls - RAM-VB-110-1NBU

RAM 4.75" Square Base with VESA (4 X 75mm) (4 X 100mm) Hole Patterns & 1.5" Ball - RAM-246U
