RAM-HOL-ZE26PHU
Out of Stock
( Chat Live to get an ETA )

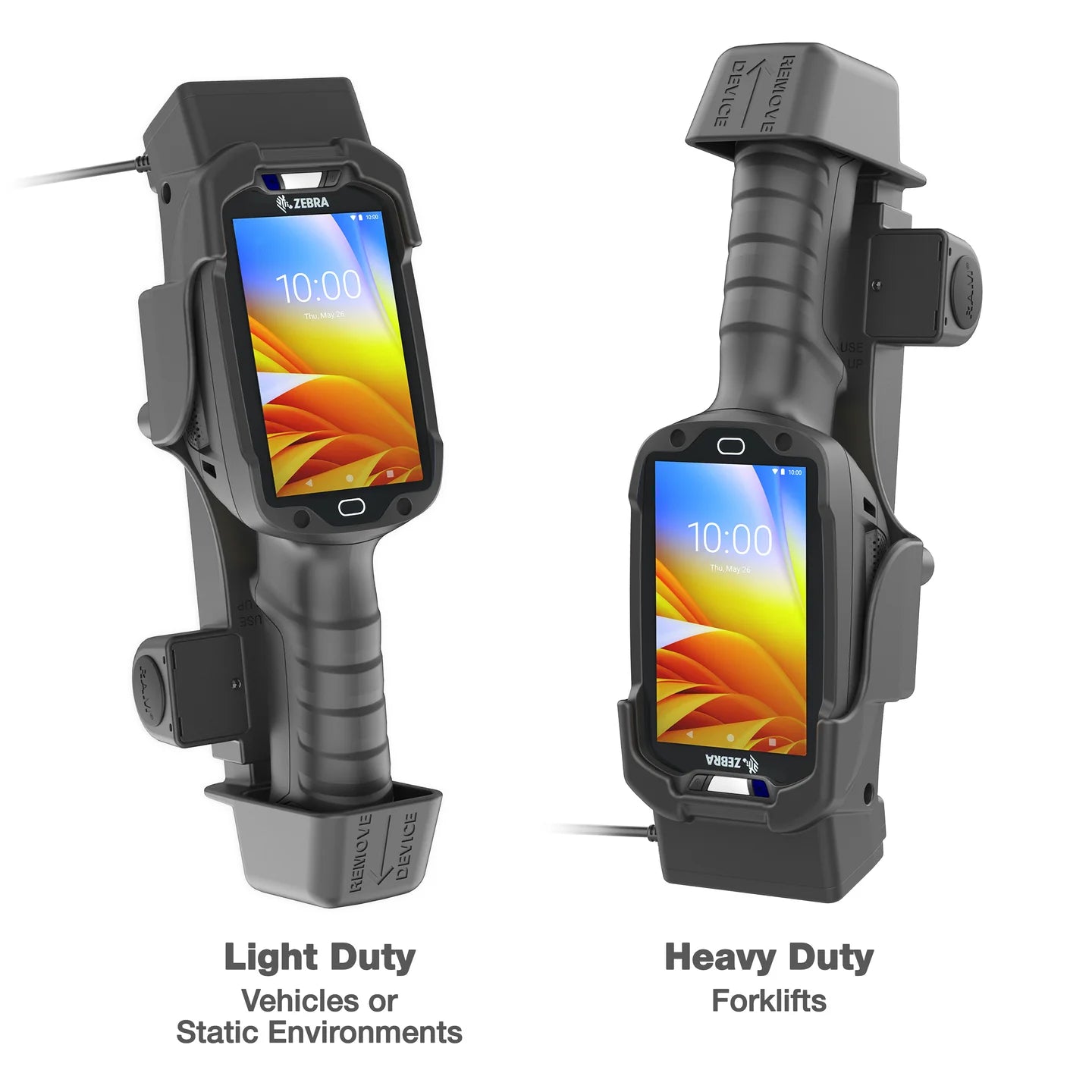

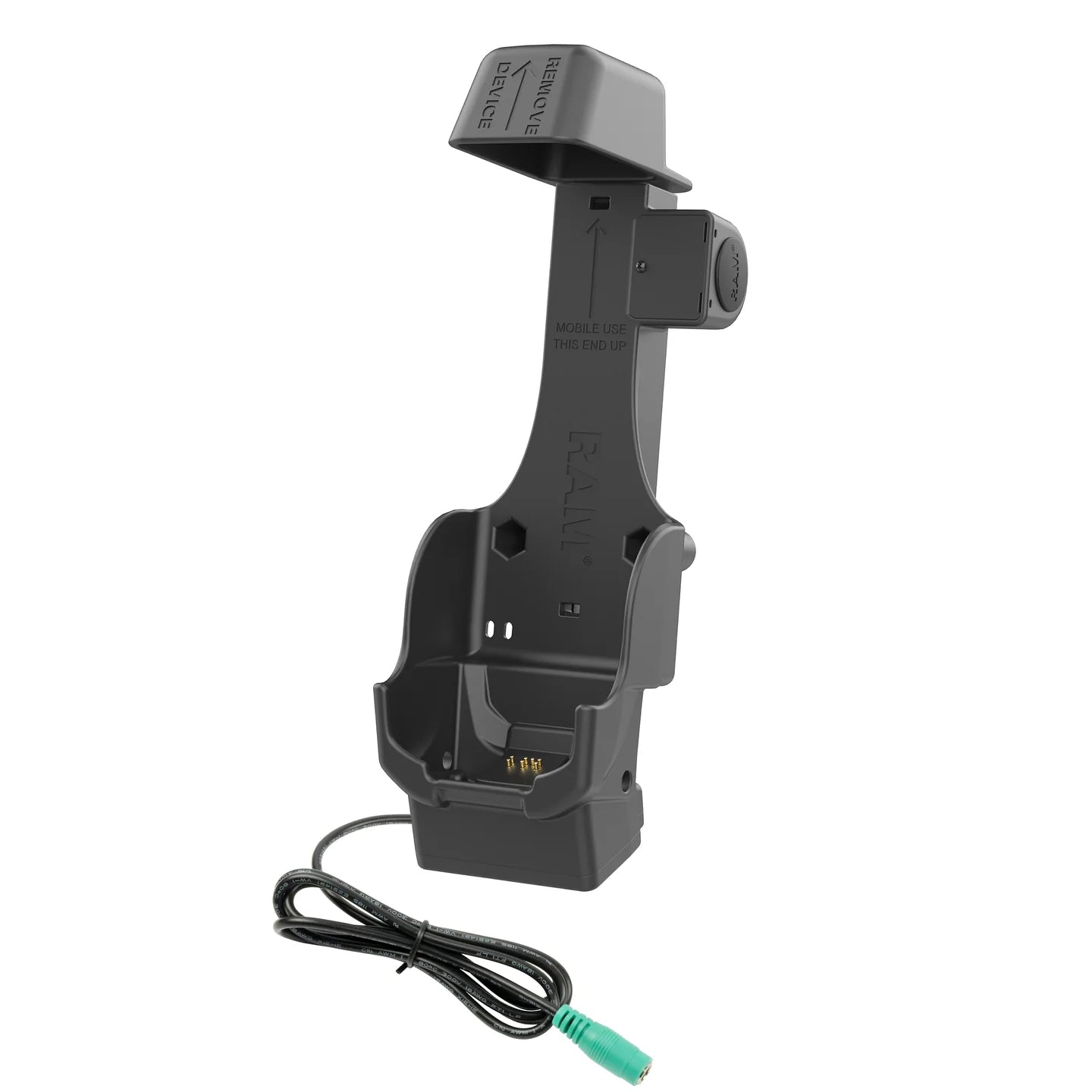

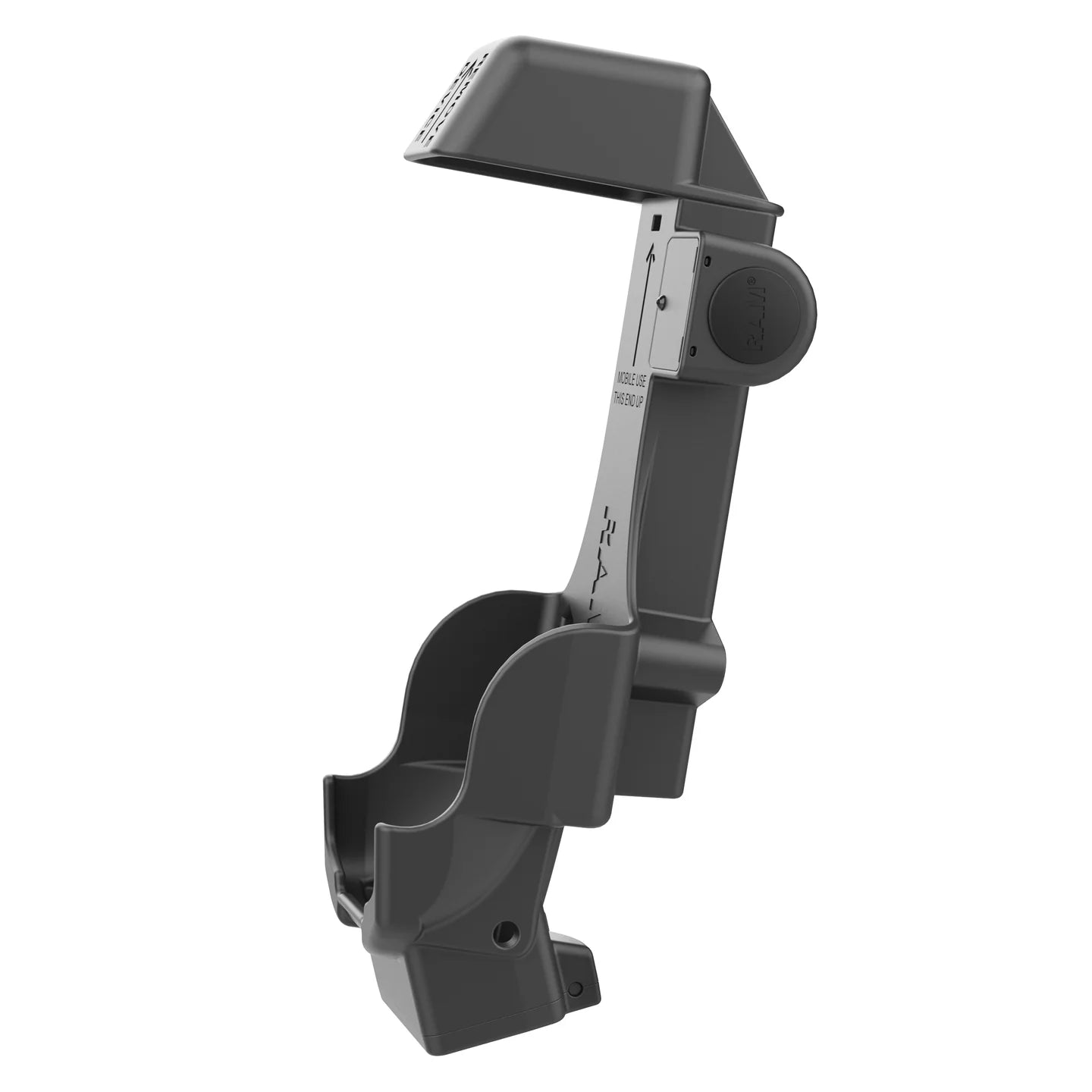

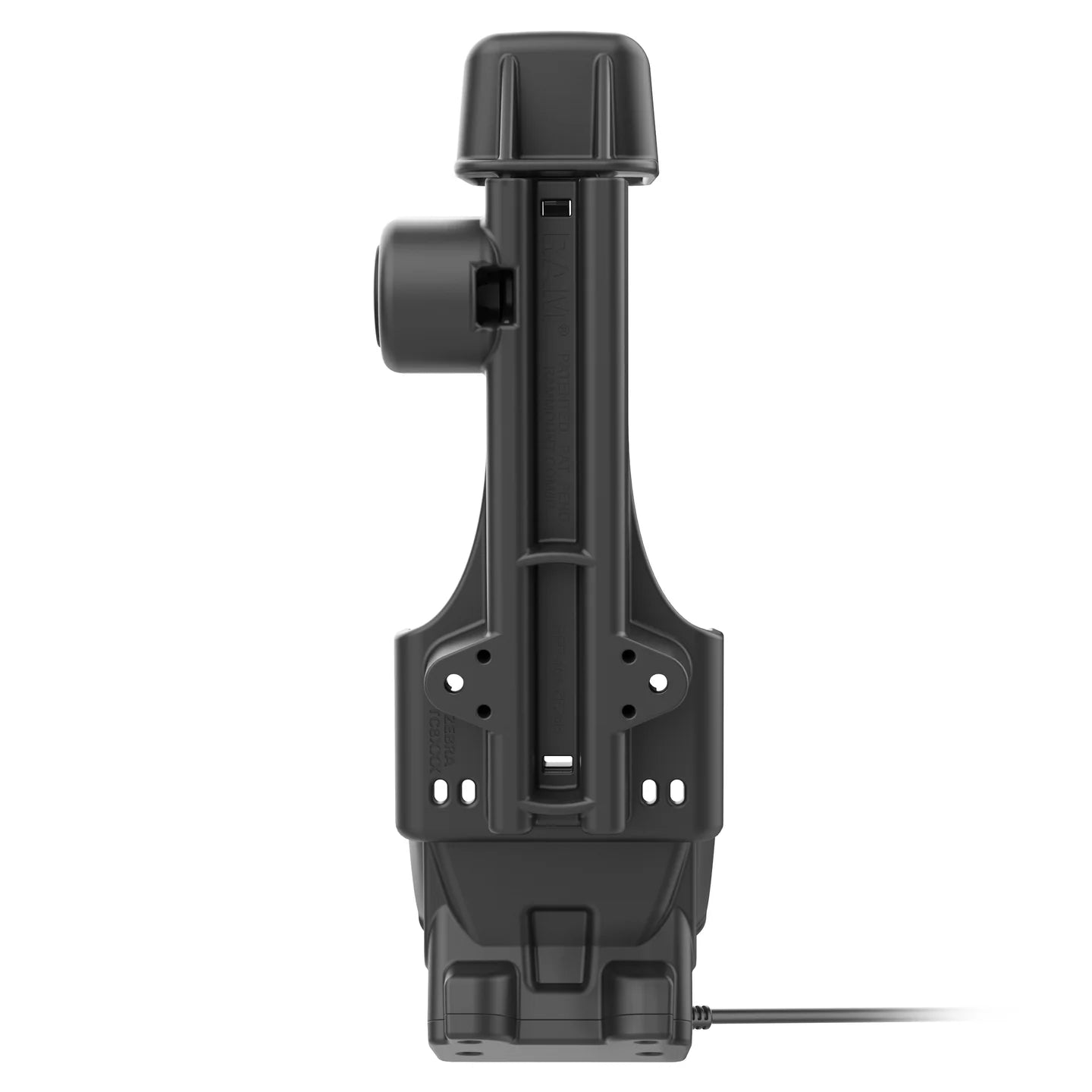

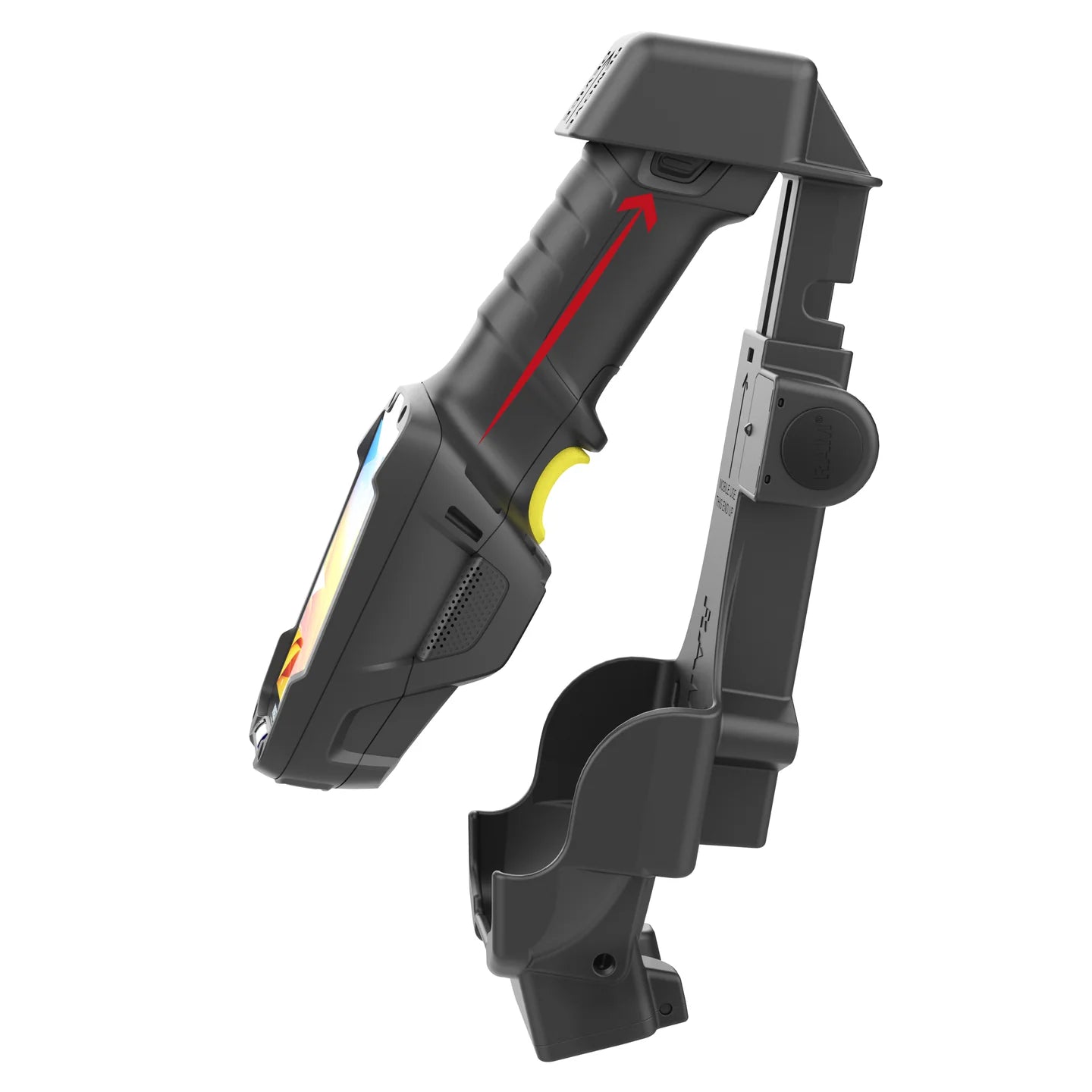

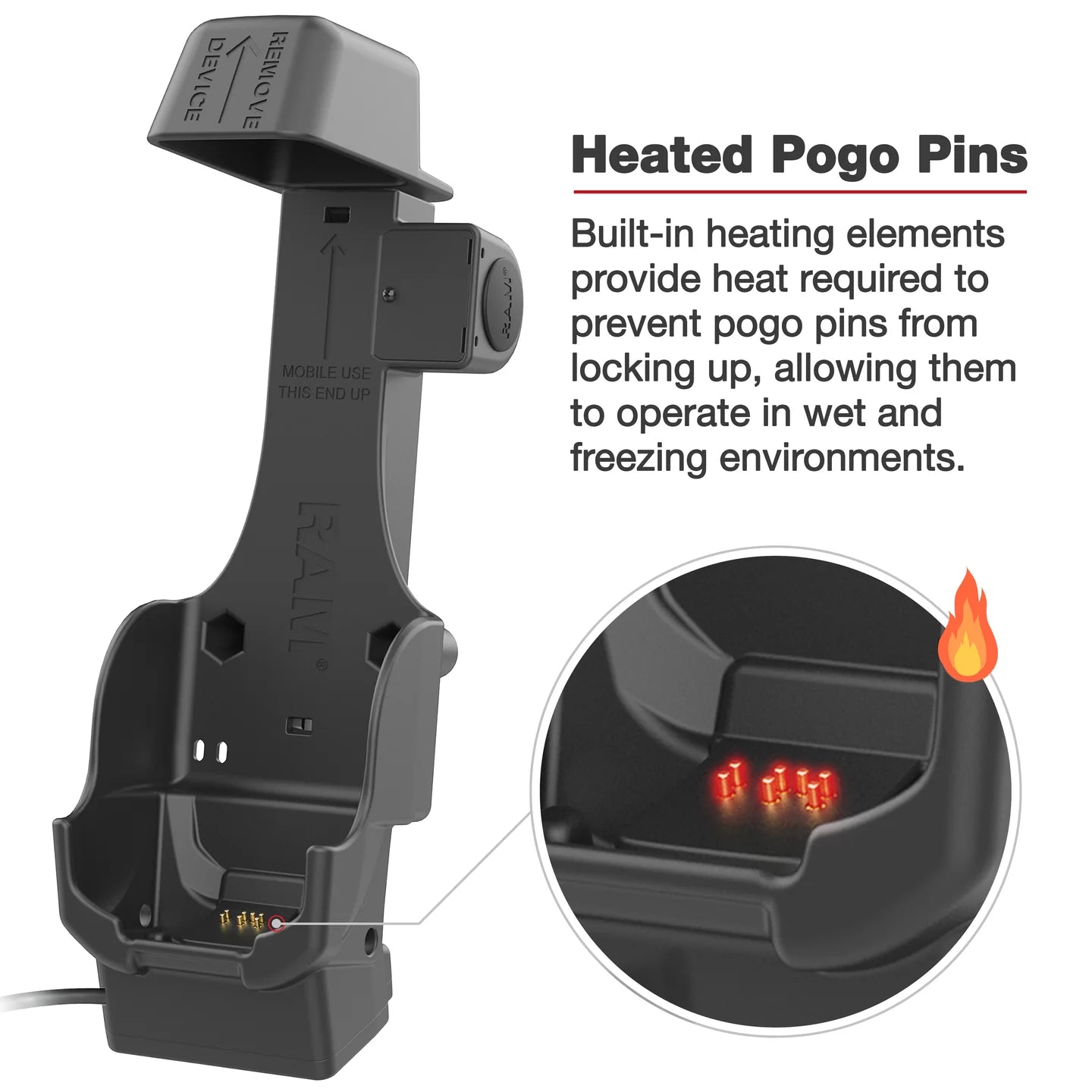

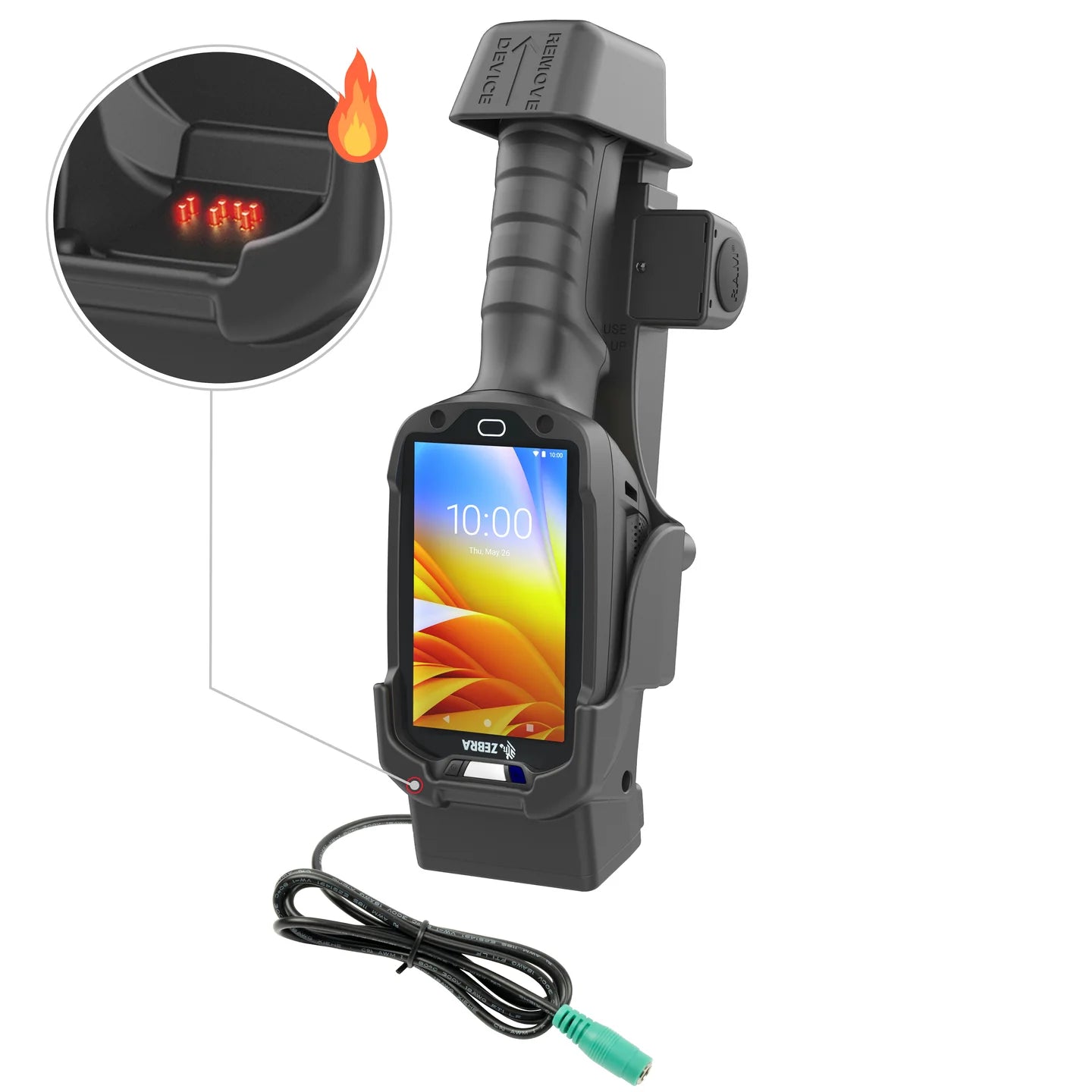

This Powered Spring-Loaded Dock with Heated Pogo Pins (RAM-HOL-ZE26PHU) features a form-fitting design specifically for the Zebra TC8300. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution. FEATURES Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability Backed by a 3-year warranty HARDWARE INCLUDED PRODUCT DIMENSIONS HOLE PATTERN MATERIALS WARRANTY Zebra TC8300 RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-238U RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-B-238U RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-D-238U RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1 RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U GDS® Modular 10-30V Hardwire Charger With 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V7B1U GDS® Modular 30-64V Hardwire Charger With 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V8BU Documents
Description
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
Overall Height: 10.36"
Overall Width: 3.25"
Overall Depth: 4.08"
2-Hole AMPS: 1.912"
High strength composite
3 year warranty Compatibility
