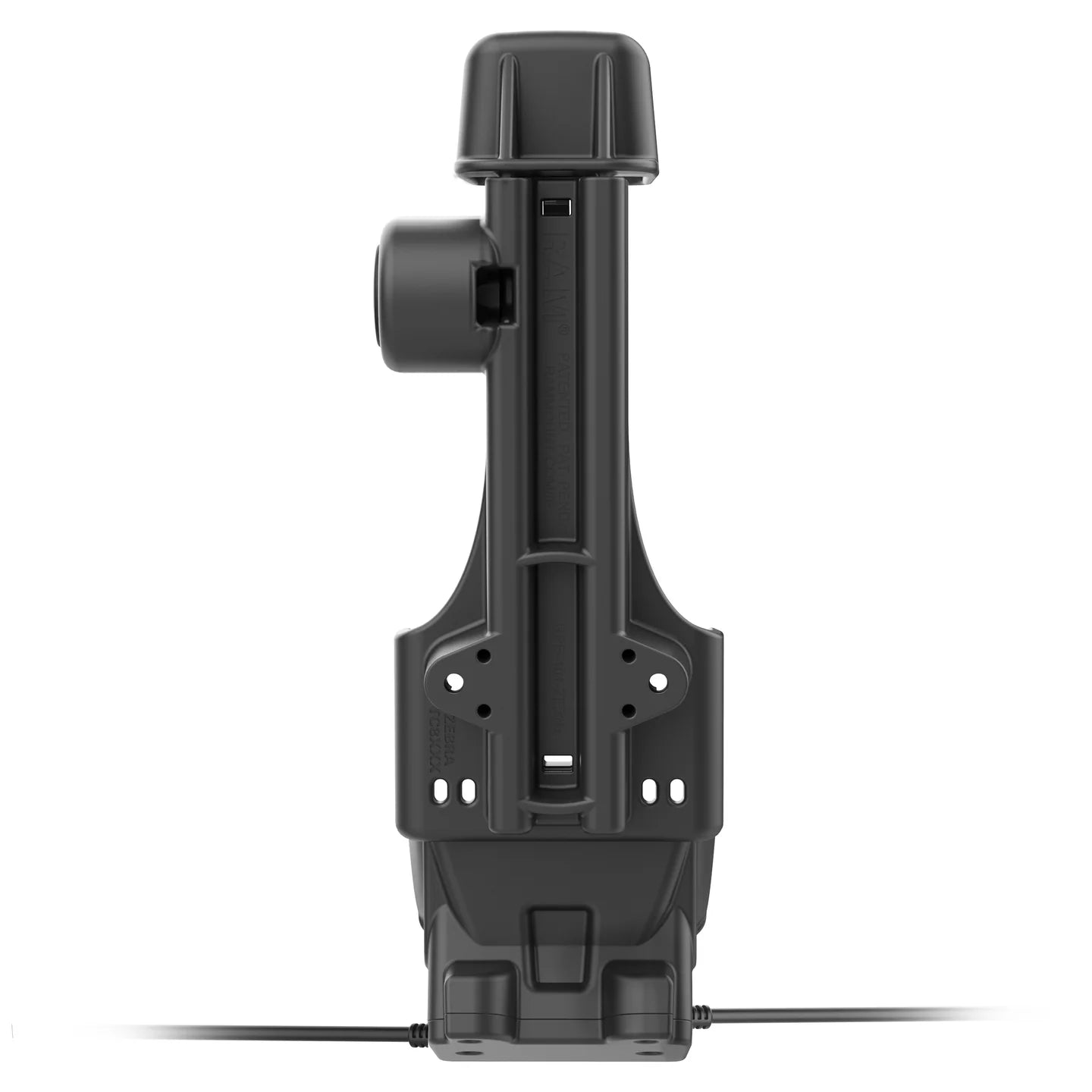

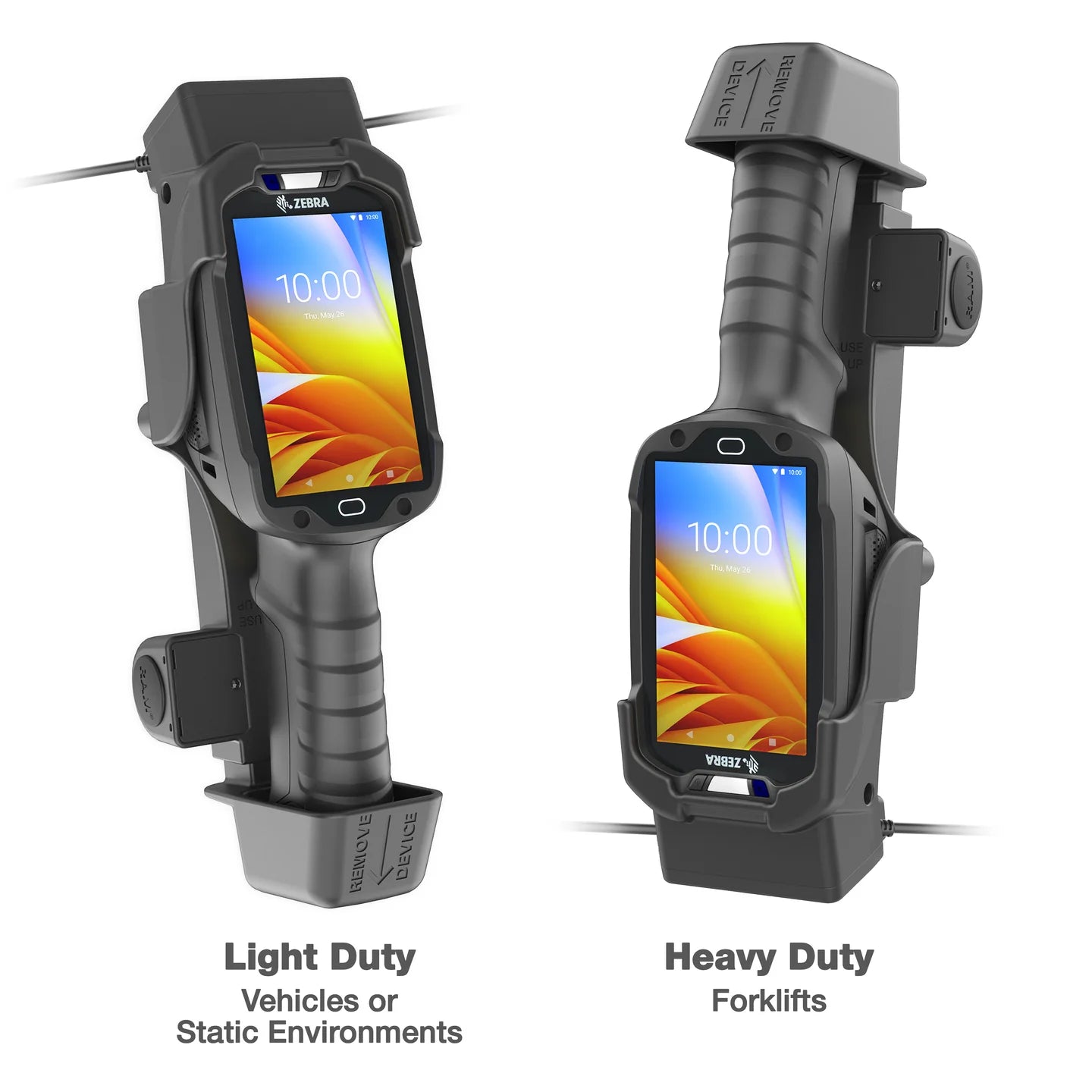

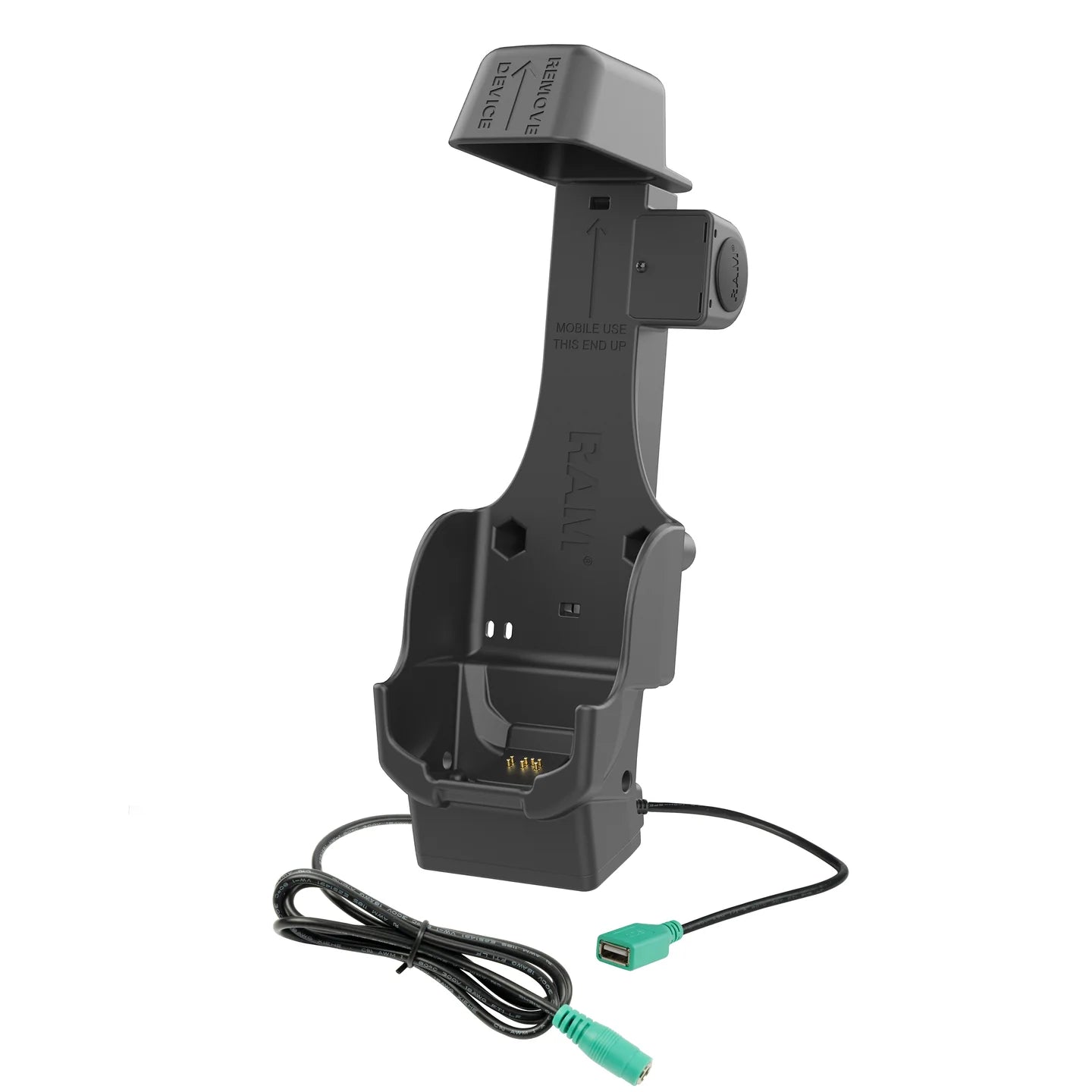

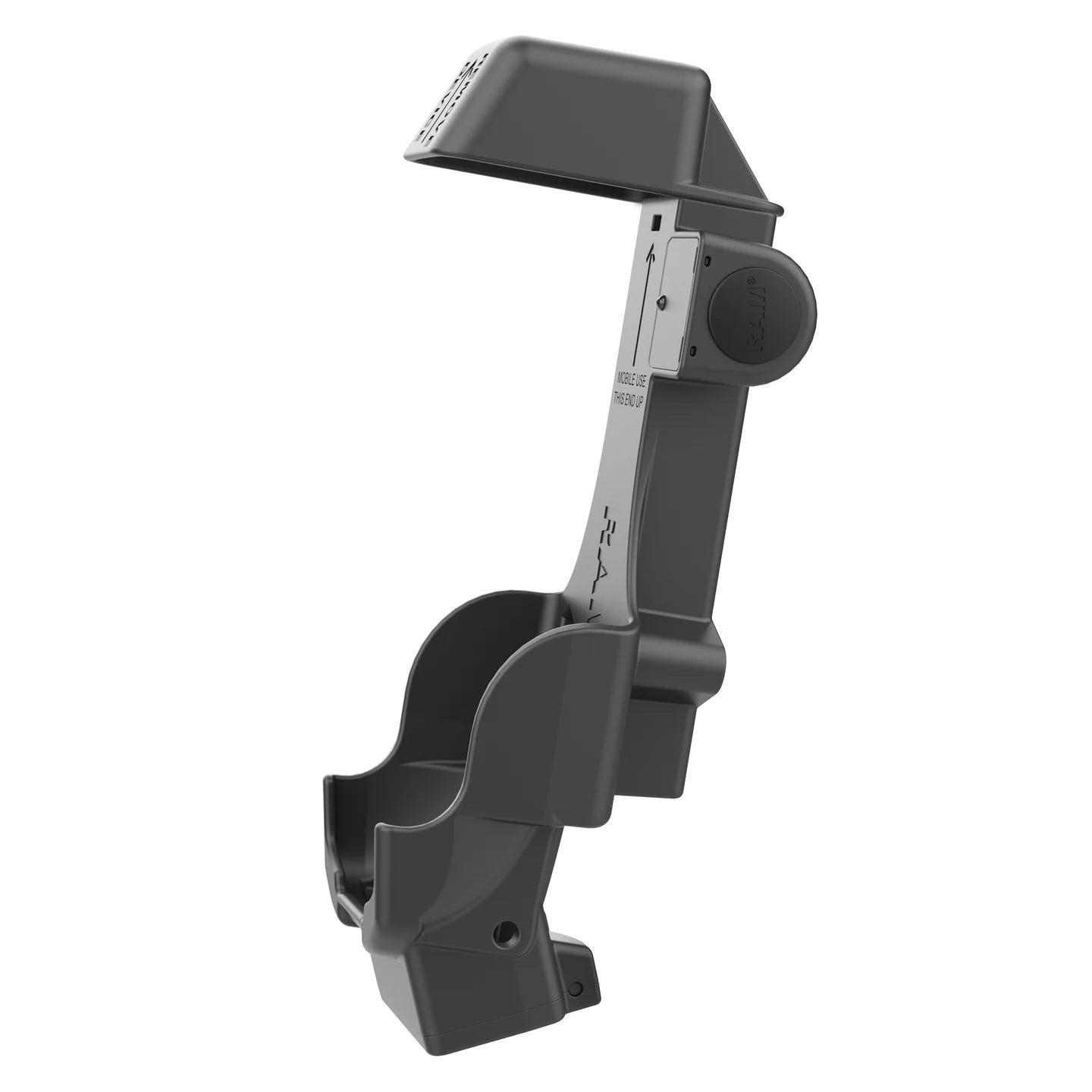

This Power + Data Spring-Loaded Dock with Heated Pogo Pins (RAM-HOL-ZE26PDHU) features a form-fitting design specifically for the Zebra TC8300. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device.

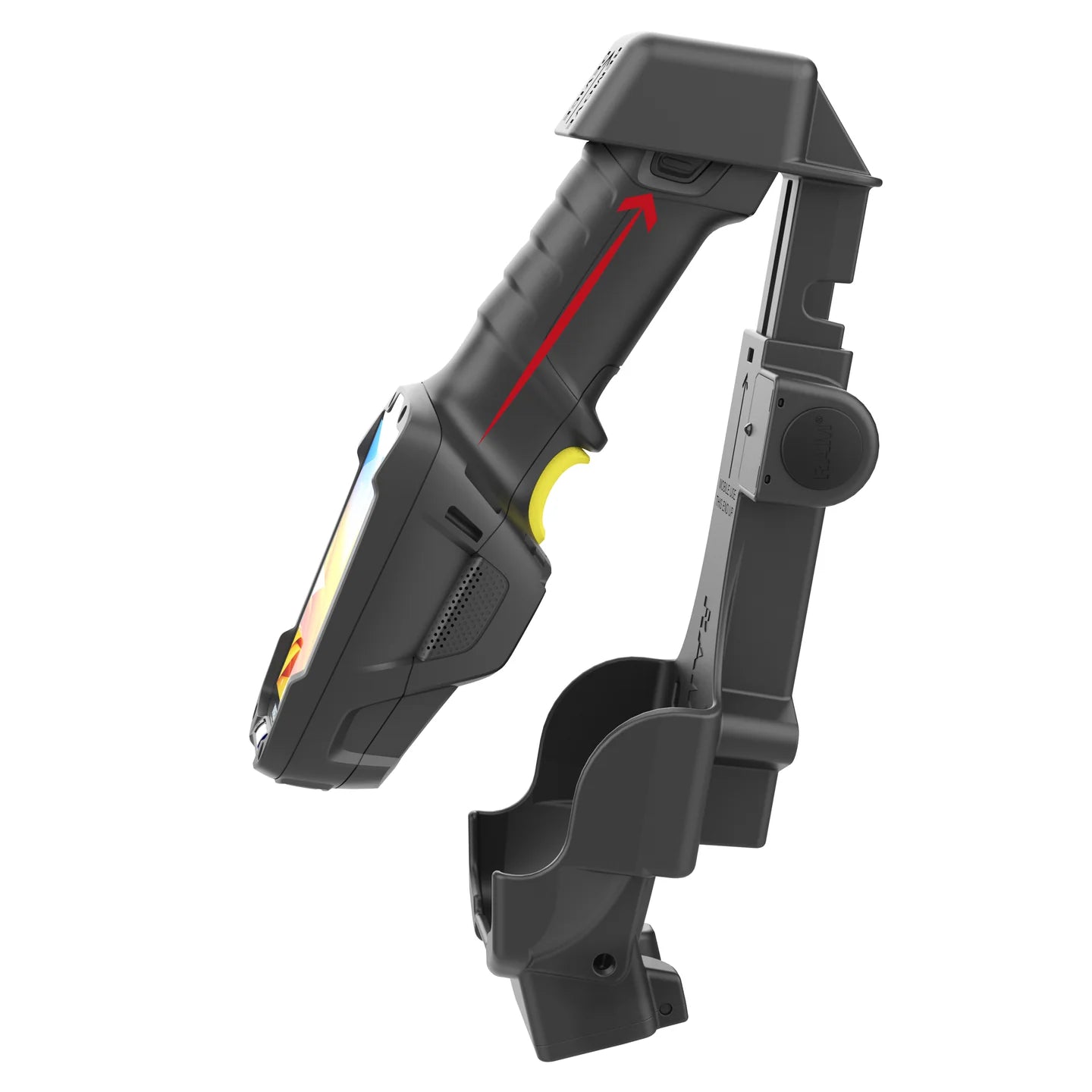

Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution.
Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer; includes a single USB Type-A connector for peripheral support

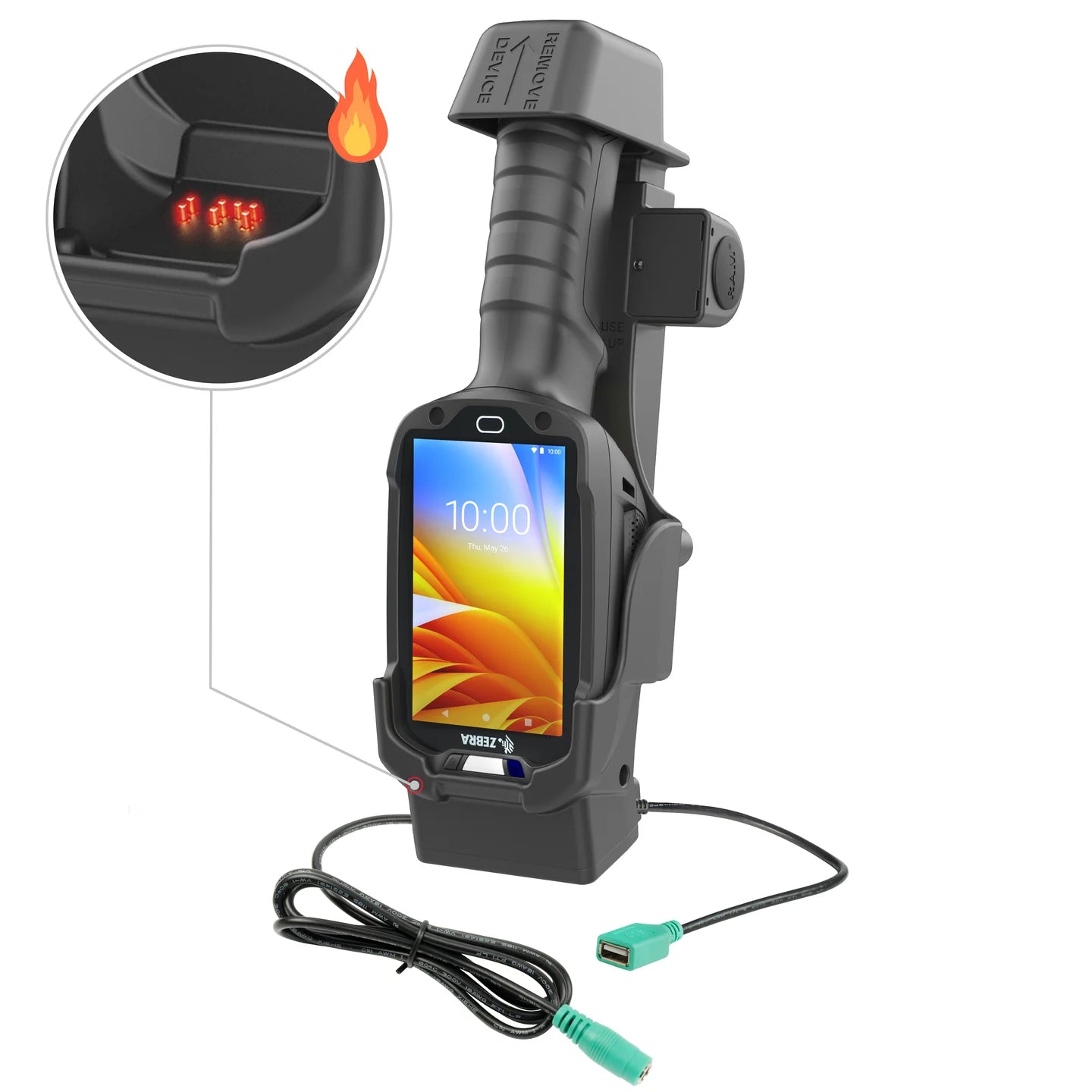

Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device

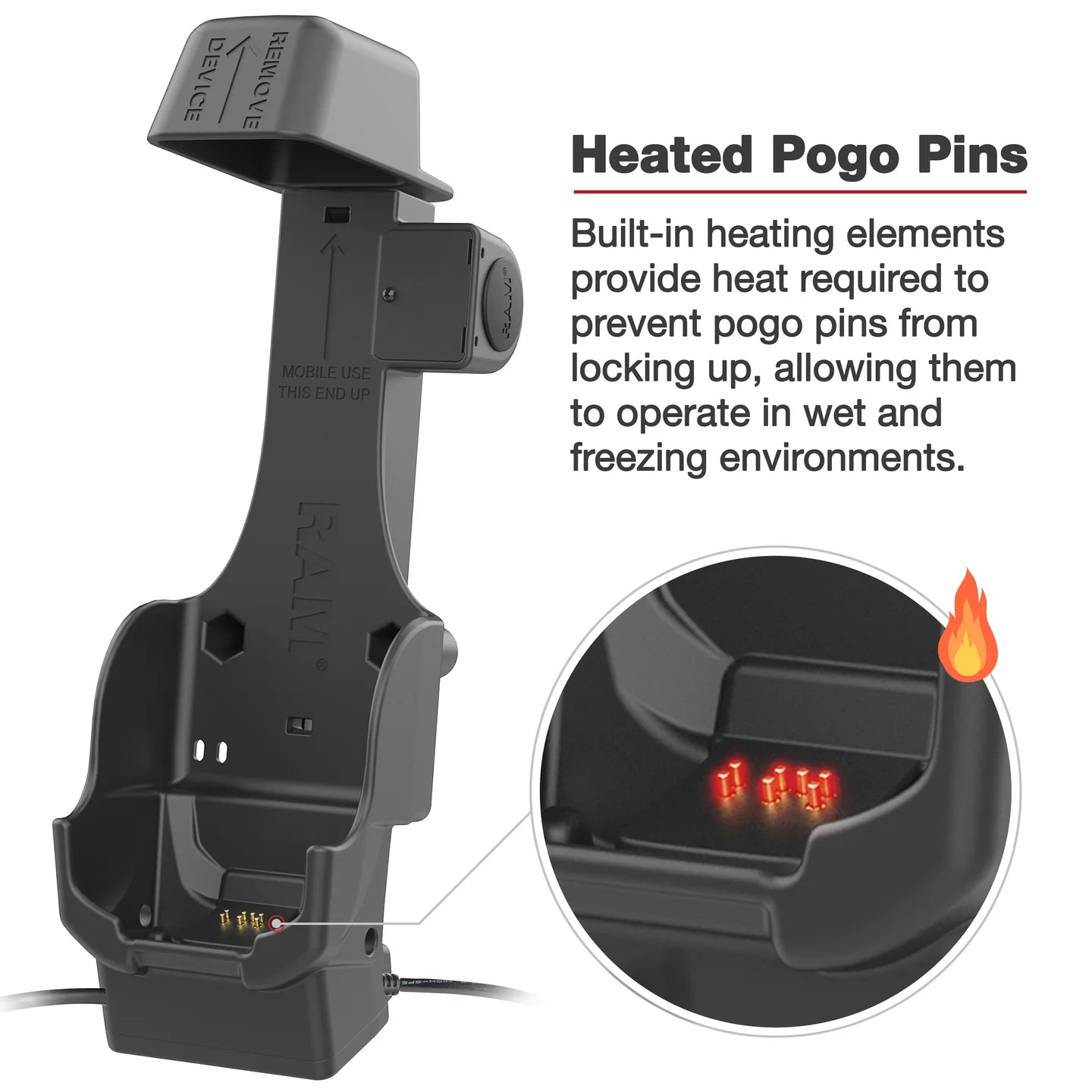

Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.
Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a 3-year warranty
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
Overall Height: 10.36"
Overall Width: 3.25"
Overall Depth: 4.08"
2-Hole AMPS: 1.912"
High strength composite
3 year warranty
