RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm - RAM-B-102U-247

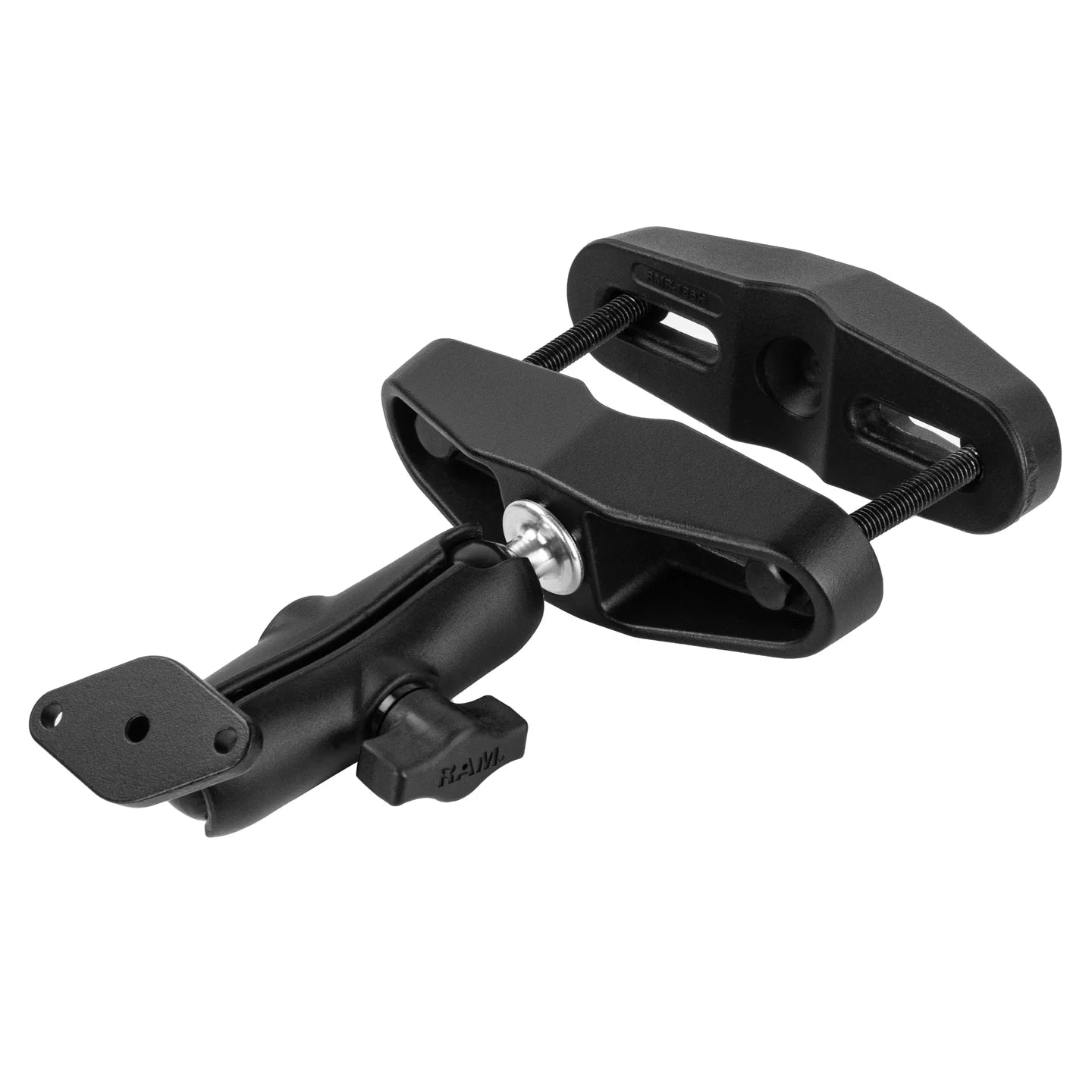

The RAM^® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm (RAM-B-102U-247) is a mounting solution designed to secure small handheld devices to forklifts. This kit consists of one (1) double socket B size medium arm, one (1) diamond plate with B size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM^® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

• 2.43" x 1.31" diamond plate connects to RAM^® device holders containing the universal AMPS hole pattern

• Includes 4" clamping base for posts and a medium length, B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability

• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

HARDWARE INCLUDED
Assembly Hardware

CLAMP RANGE
1.75" - 4" width

SOCKET TO SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL SIZE
B Size (1")

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
Marine-grade aluminum

WEIGHT
1.7 lb

RAM Diamond Plate 2.43" X 1.31" With B Size 1" Ball - RAM-B-238U

RAM Double Socket Arm For B Size 1" Balls - RAM-B-201U

 RAM® Square Post Clamp Base For Posts 1.75" - 4" Wide - B Size - RAM-B-247U

INSTRUCTIONS

Square Post Clamp Base Assembly Guide
