GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount - RAM-VB-196-GDS-ECO1

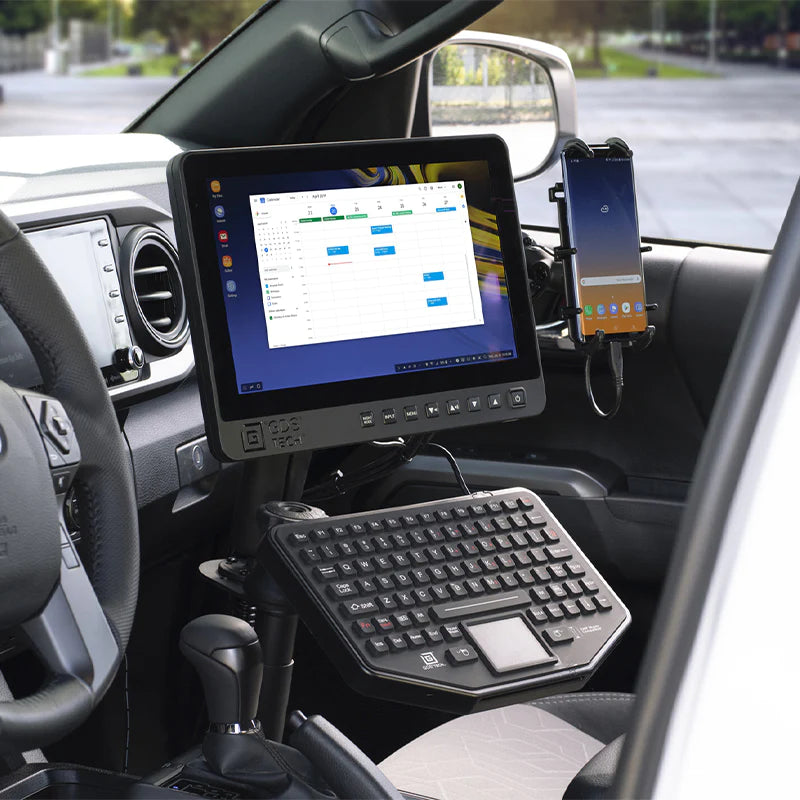

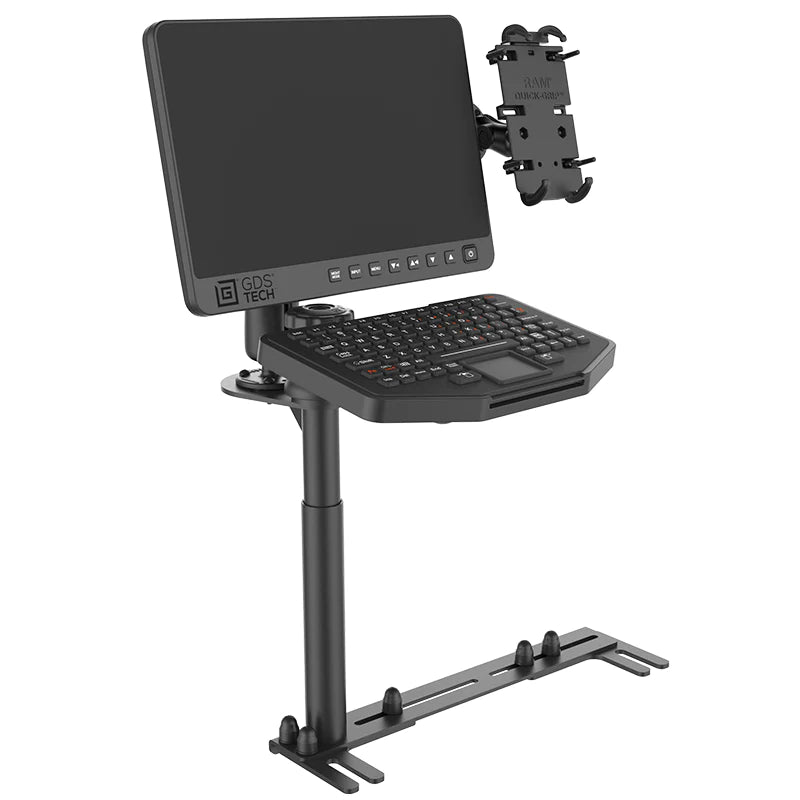

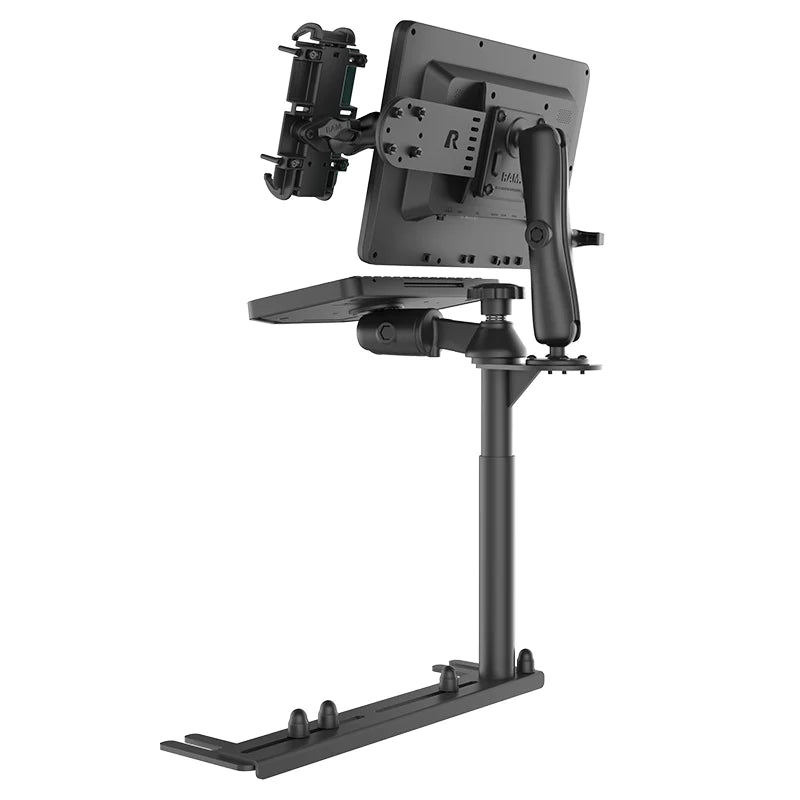

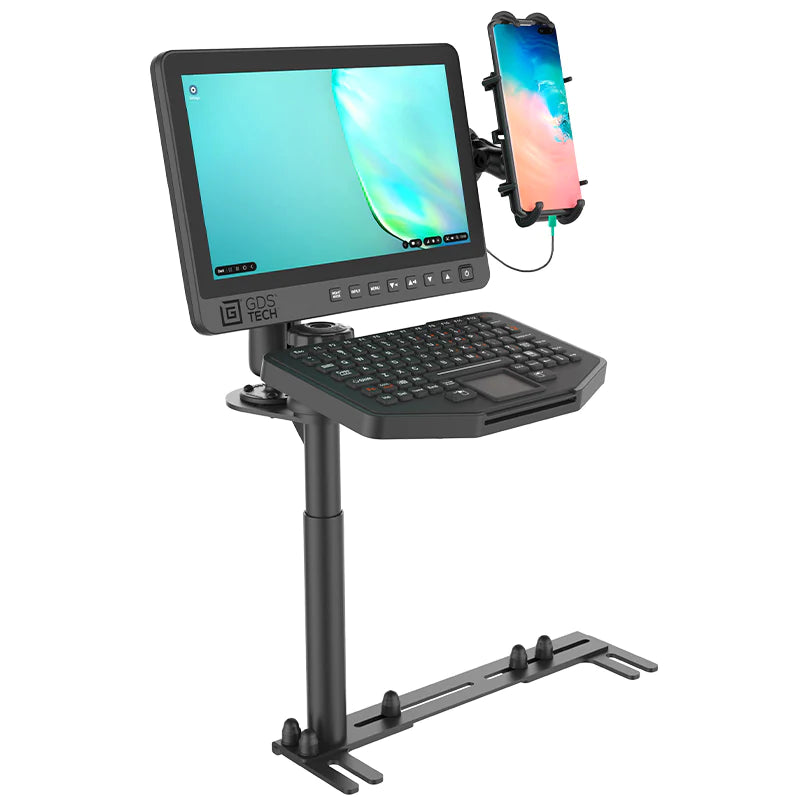

All the benefits of the GDS® Ecosystem™ in one mounting system to create your very own mobile workstation. Centralized around the GDS® View™ 13.3" touch screen monitor, the GDS® Ecosystem™ Vehicle Bundle is mounted on the universal RAM® No-Drill™ vehicle base and tele-pole swing arm system, accompanied by the GDS® Keyboard™ with trackpad, display bracket, RAM® Quick-Grip™ XL phone mount, the GDS® Tough-Hub™, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM® Quick-Grip™ XL and plugging your DeX Cable directly into the GDS® View™ Monitor.

EATURES

• Transforms your vehicle into a mobile workstation with highly adjustable RAM^® components and enabled by GDS^® Tech^™ peripherals
• Includes RAM^® No-Drill^™ Universal Vehicle Base and tele-pole swing arm system, GDS^® View^™ 13.3" touch screen monitor, GDS^® Keyboard^™, RAM^® Quick-Grip^™ Phone Mount, display bracket, GDS^® Tough-Hub^™, CLA charger, and USB Type-C Cables
• Compatible with Samsung DeX

HARDWARE INCLUDED:
Assembly Hardware
(1) HDMI Cable
(1) VGA Cable
(1) USB Type-B to USB Type-A Cable
Hardwire & CLA chargers for monitor
USB Type-C cable & CLA charger for hub & phone

HOLDER DIMENSIONS:
For Phone Holder:
Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

MONITOR SPECIFICATIONS:
Screen Size: 13.3"
Anti-glare and Anti-fingerprint treatment applied on LCD
Max Resolution: 1920 x 1080 high resolution
Aspect ratio: 16:9
Tough Panel: 2-point capacitive touch
Audio: (2) 2W Speakers
Brightness: 800nits
Contrast ratio: 1000:1
Red monochrome night mode to reduce eye strain for night viewing
Control buttons on front of monitor for easy access
Zip tie attachment loops for cable management

MATERIALS:
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE:
Box

INPUT VOLTAGE:
Monitor: 10-30V DC
CLA Charger for Hub: 12-24V DC

POWER OUTPUT:
63W Total (45W for Type-C & 18W for Type-A)

OUTPUT CURRENT:
6A max

OPERATING TEMPERATURE:
-10°C to +50°C

STORAGE TEMPERATURE:
0°C to +45°C

PORTS:
CLA Charger:
(1) Type-C Female (PD)
(1) Type-A Female (QC 3.0)

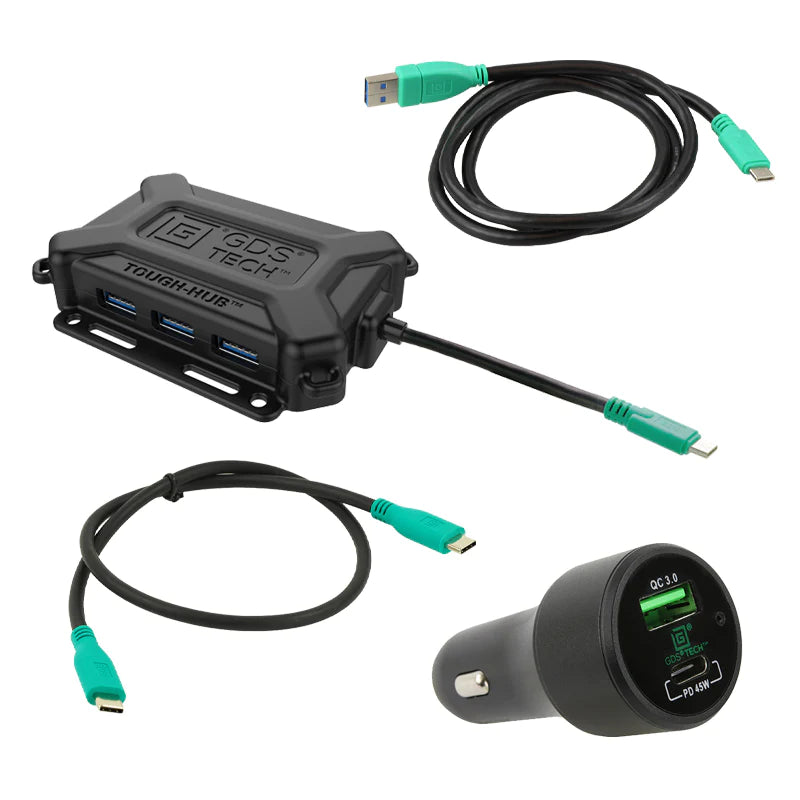

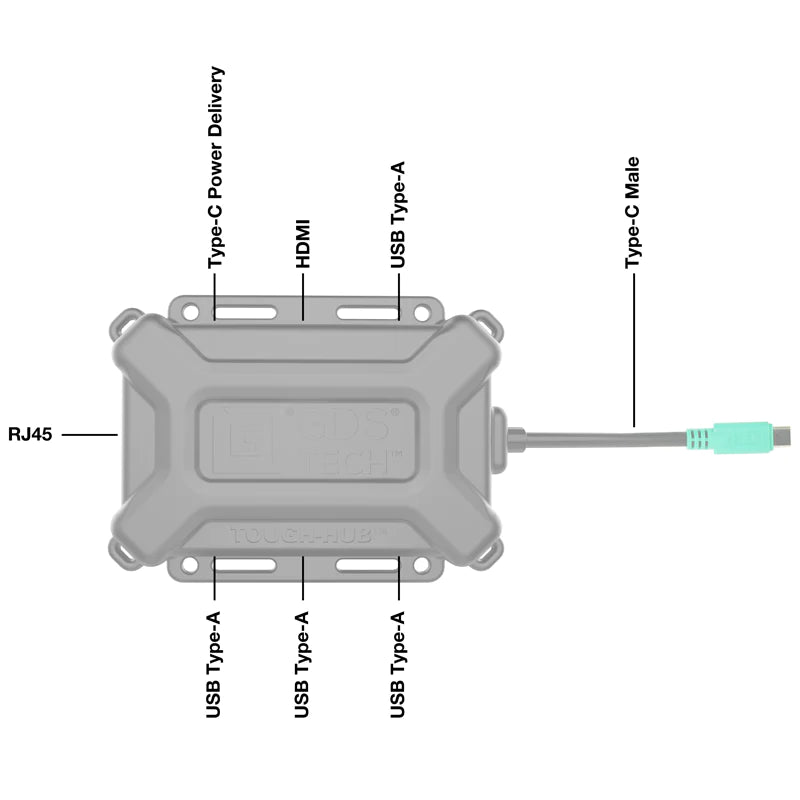

GDS® Tough-Hub™:
(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth
(1) HDMI Port - Resolution up to 4Kx2K@30Hz
(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A))

GDS® View™ Monitor:
(1) Power Input
(1) HDMI
(1) VGA
(1) 3.5mm Audio Output
(1) USB Type-B (Host Input)
(3) USB Type-A (Peripheral Outputs)


COMPLIANCE:
Meets SAE J-1113
Integrated Short Circuit Protection (SCP)

CERTIFICATIONS:
MIL-STD-810G 514.5 Vibration Tested
FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS

WEIGHT:
27.0 lb

• Samsung:

  Phones with Samsung DeX

  GDS® View™ 13.3" Touch Screen Monitor - RAM-GDS-MON-13-1

  GDS® Tough-Hub™ With USB Type-C For Vehicles RAM-GDS-HUB-TYPEC-01-A

  GDS® Keyboard™ with Track Pad RAM-KB2-USB

  RAM® 8” Upper Pole and Double Ball 75x75mm VESA Mount RAM-VP-SW2F-8-2461

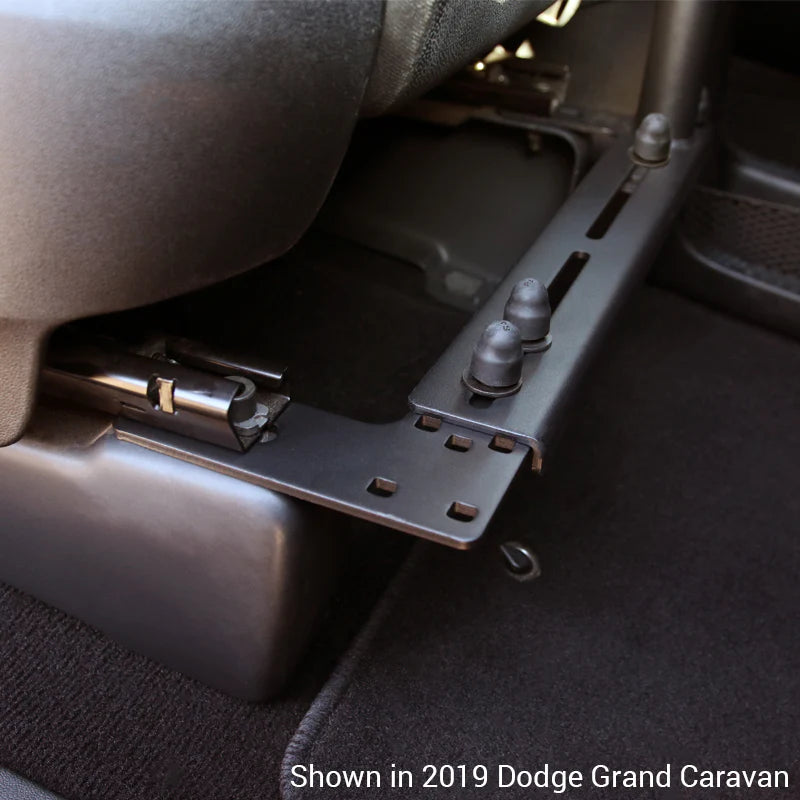

  RAM® No-Drill™ Universal Vehicle Base RAM-VB-196

  RAM® Standard Heavy Duty Accessory/Display Bracket RAM-DIS-103-2AU

  RAM® Double Ball Drill-Down Mount with Diamond Plate - Short RAM-B-138U-A

  RAM® Quick-Grip™ XL Large Phone Holder - RAM-HOL-PD4U

  GDS® Type-C and Type A 2-Port Cigarette Charger - RAM-GDS-CHARGE-CIGC

  GDS® Genuine USB Type-C 3.1 Male to Male .5M Cable - RAM-GDS-CAB-USBC-CMCMU
