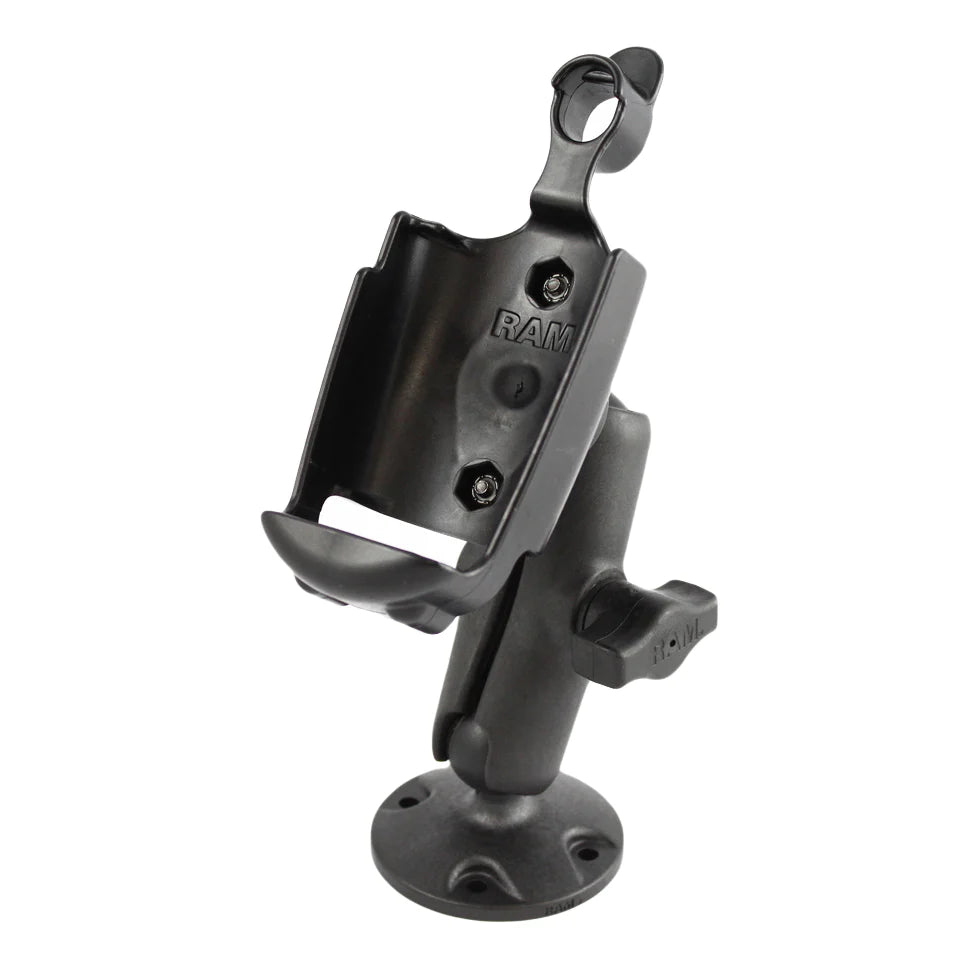

RAM® Drill-Down Mount for Garmin Rino 520 & 530 Series- Composite - RAP-B-138-GA20

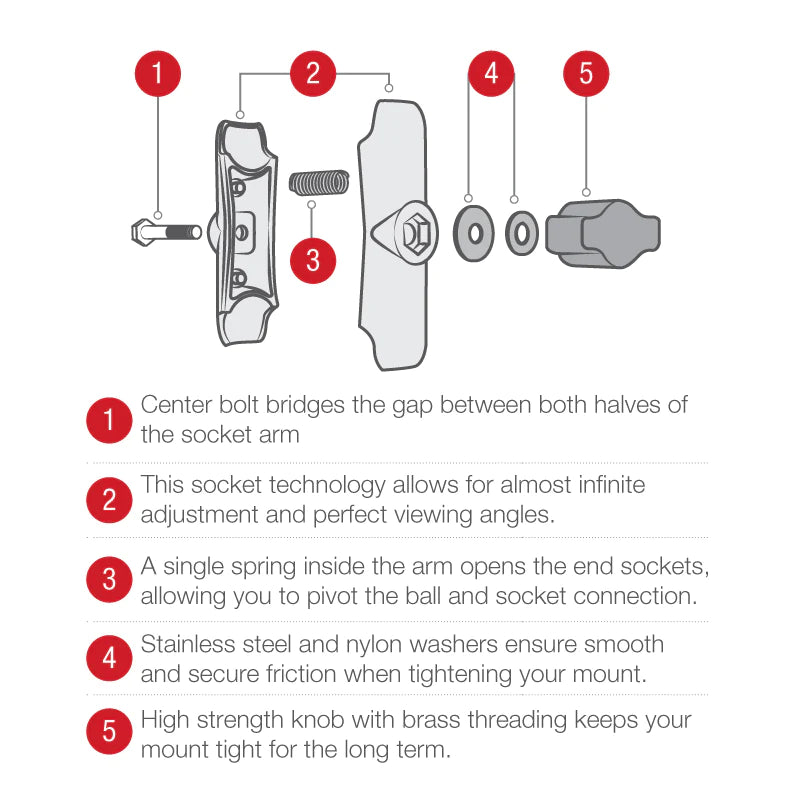

The RAP-B-138-GA20 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, diamond adapter base and high strength composite cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED:
Assembly Hardware

SOCKET TO SOCKET LENGTH:
3"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE:
2.5" Diameter

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

MATERIALS:
High strength composite

PACKAGING TYPE:
Retail Bag

WEIGHT:
0.63 lb

COMPATIBLE DEVICES

• Garmin:

  Rino 520
  Rino 520HCx
  Rino 530
  Rino 530HCx
