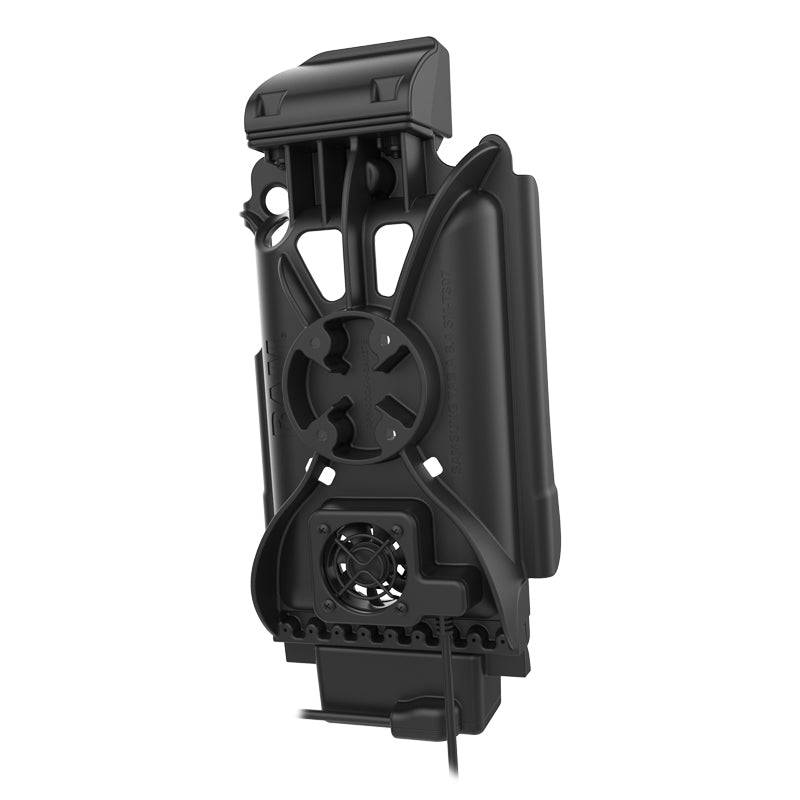

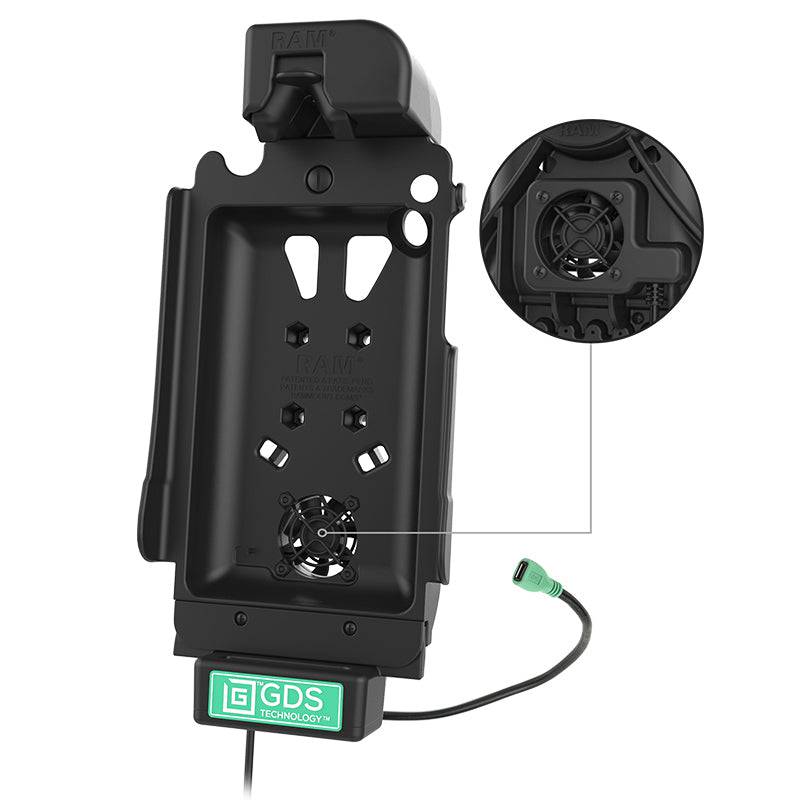

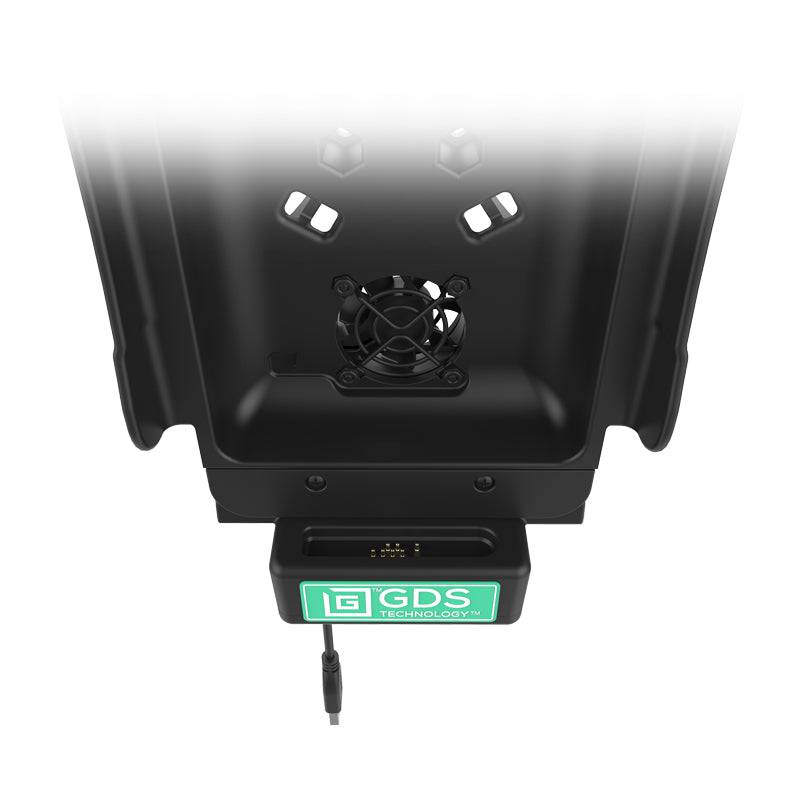

GDS® Cool-Dock™ for Samsung Tab A 8.4 SM-T307

• Spring-loaded vehicle dock featuring GDS® Technology™ for charging capabilities; uses mUSB power cord to enable the GDS® Cool-Dock™

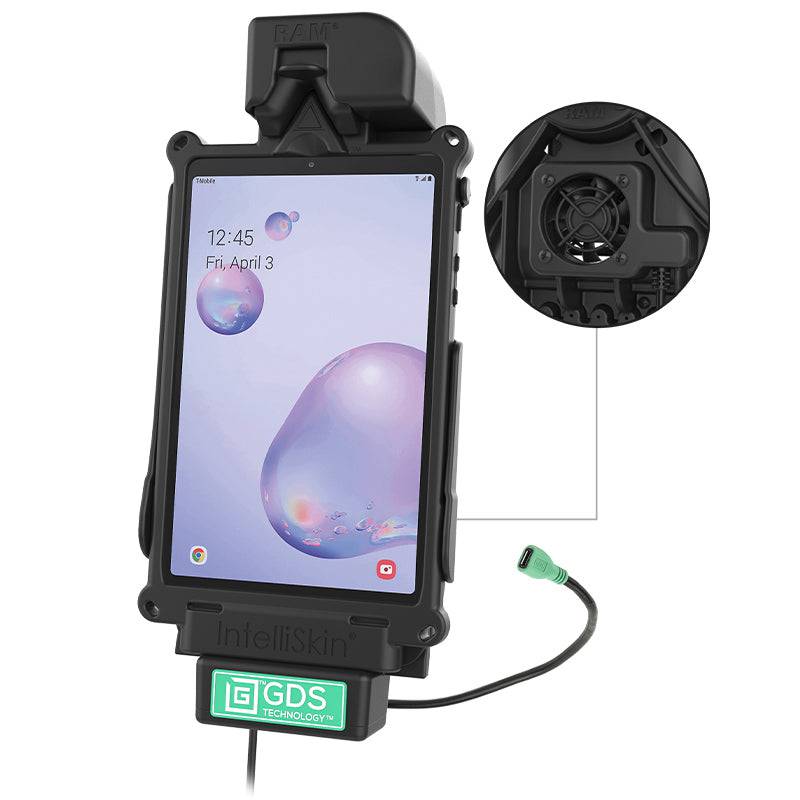

• Designed specifically for the Samsung Galaxy Tab A 8.4 (2020) in an IntelliSkin® Next Gen protective sleeve
• Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

OVERVIEW

The GDS^® Cool-Dock^™ is the upgraded version of the GDS^® Tough-Dock^™ including a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire power cord. The GDS^® Cool-Dock^™ is the turnkey vehicle dock in the GDS^® Tech^™ line of vehicle docks designed to support the Samsung Galaxy Tab A 8.4 (2020) in a Next Gen IntelliSkin^® protective sleeve for your fleet. Using a mUSB power connector, the GDS^® Cool-Dock^™ supports charging capabilities for the Samsung Galaxy Tab A 8.4 (2020). The GDS^® Cool-Dock^™ contains a 4-hole AMPS pattern; compatible with RAM^® ball and socket mounting systems. The GDS^® Cool-Dock^™ is backed by a 3-year warranty. Get the Heat Out!^™ with GDS^® Cool-Dock^™.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) 1.2 Meter mUSB Cable
(1) Cable Clamp

HOLL PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 2A

POWER OUTPUT

15W

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.35 Meter

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A. The 3.5mm audio jack is blocked while in the dock. If access to this port is needed, see RAM-GDS-DOCKL-V9-SAM67U.
