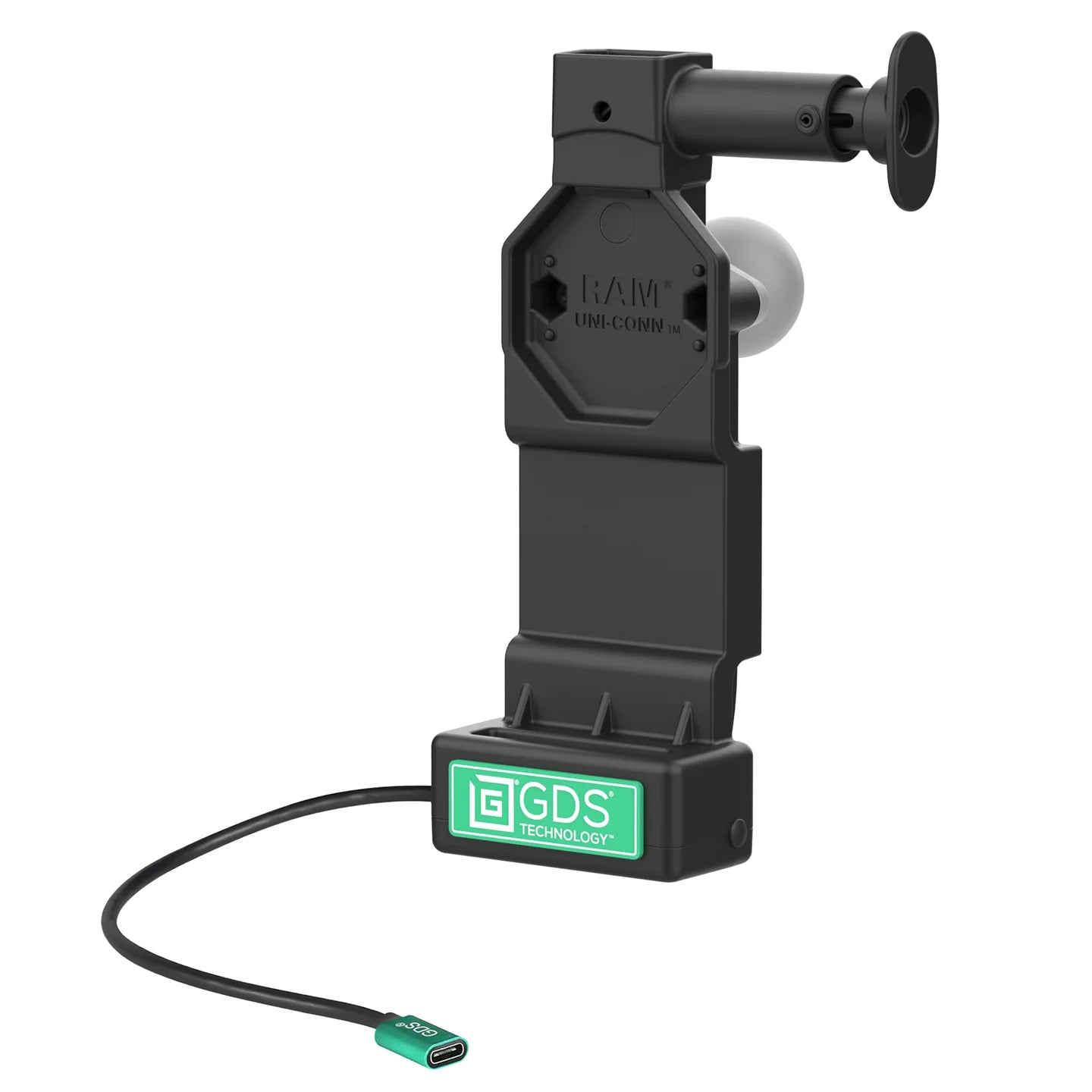

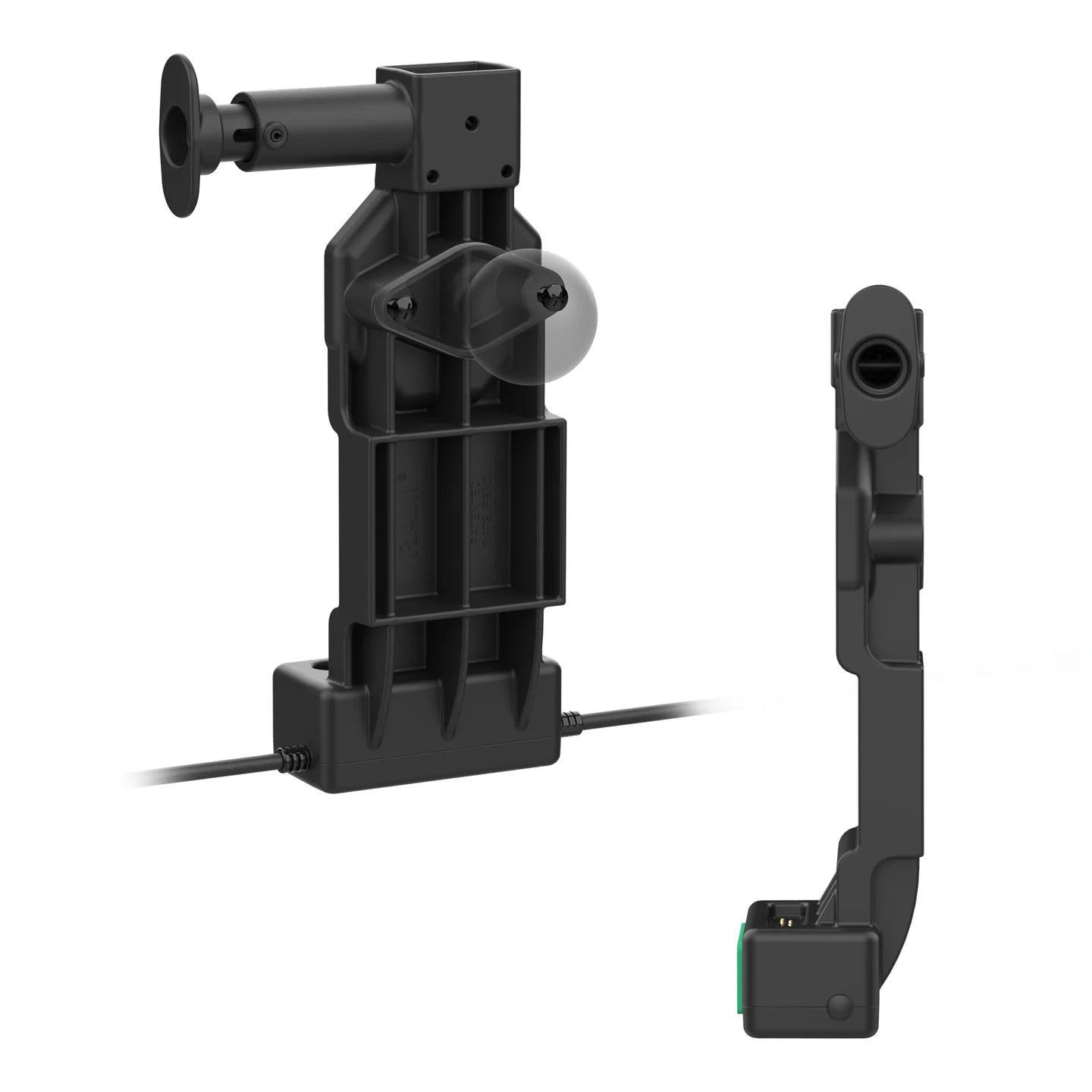

GDS® Uni-Conn™ Dock with Release Button - RAM-GDS-DOCK-U4CPU

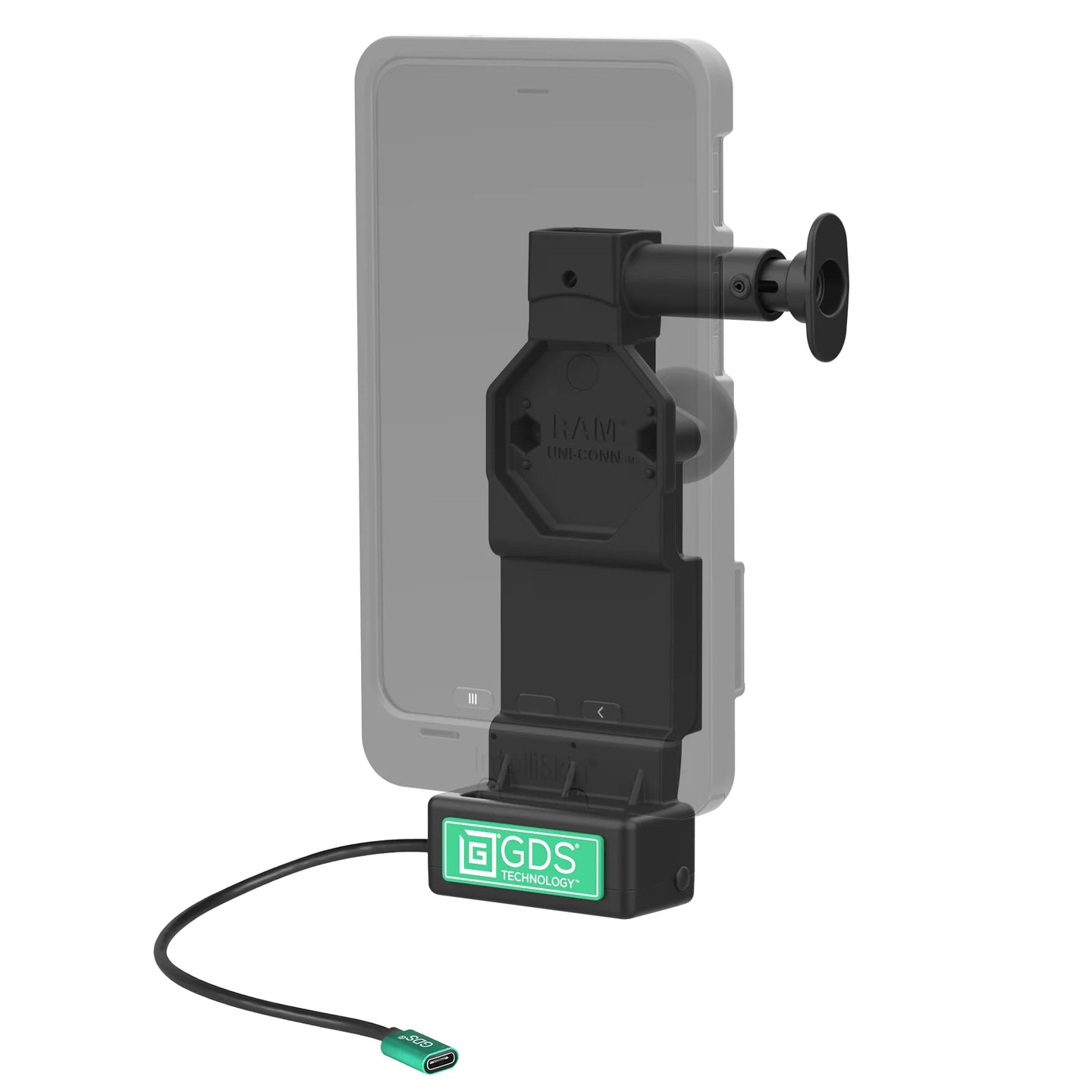

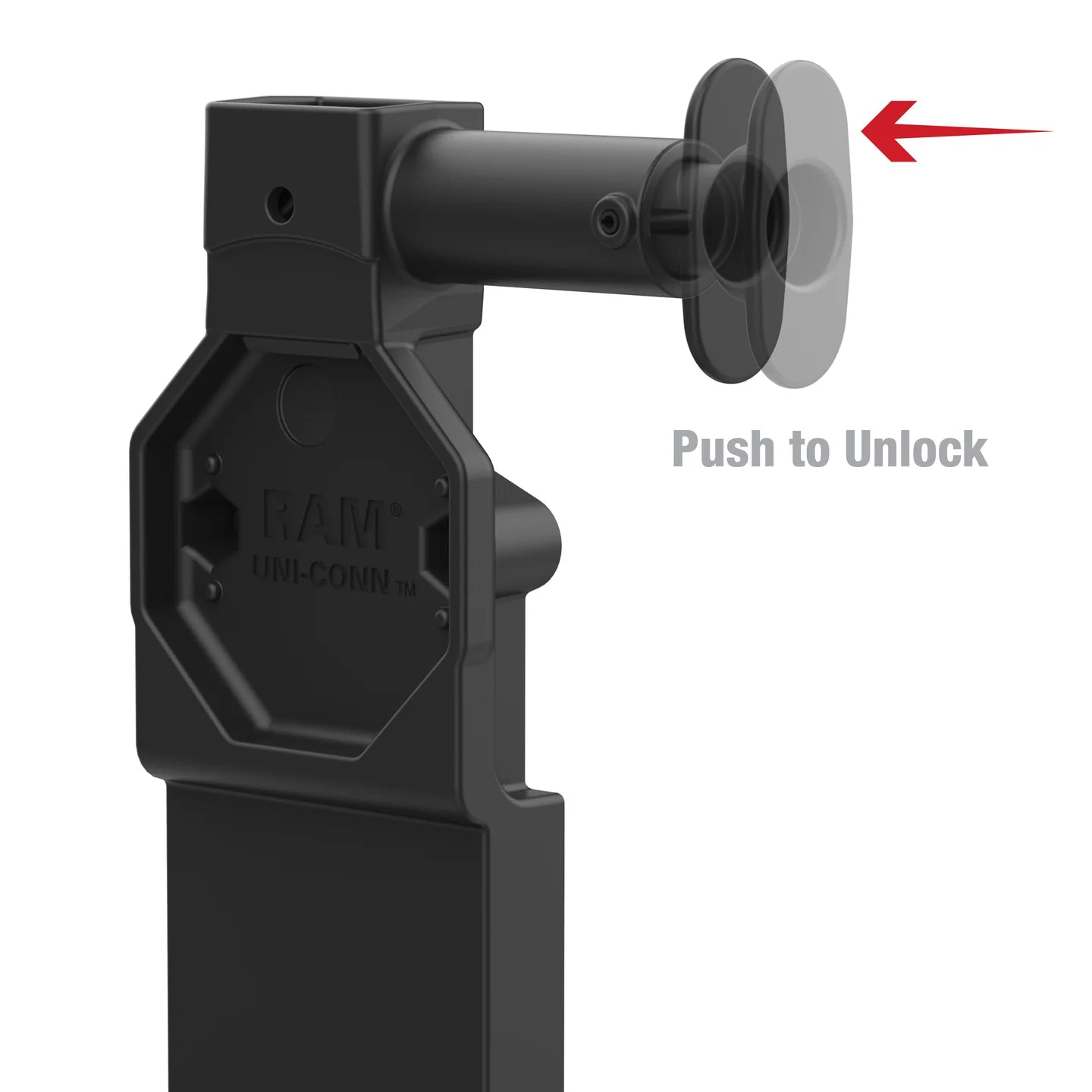

The GDS® Uni-Conn™ Dock with Release Button (RAM-GDS-DOCK-U4CPU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet.

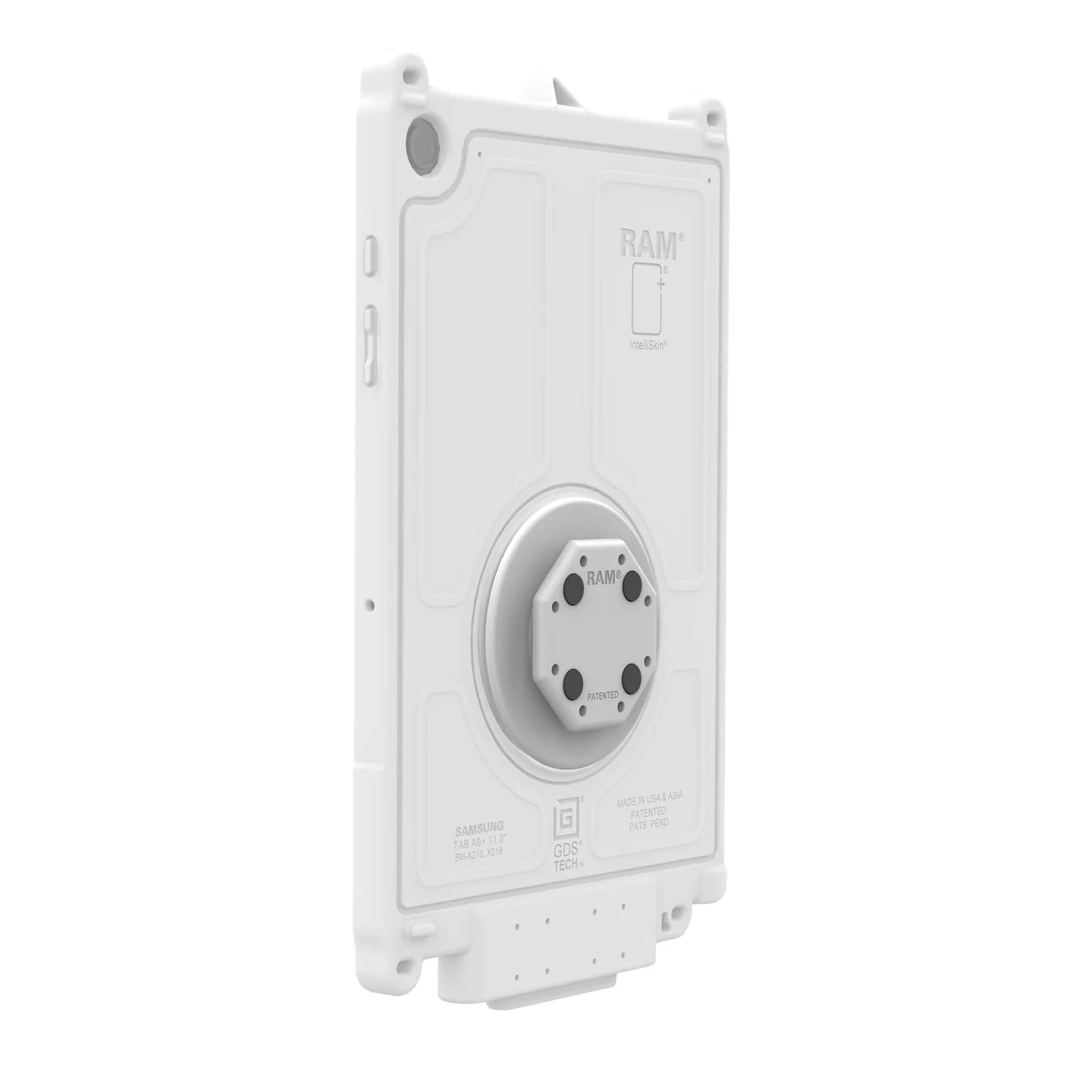

The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.

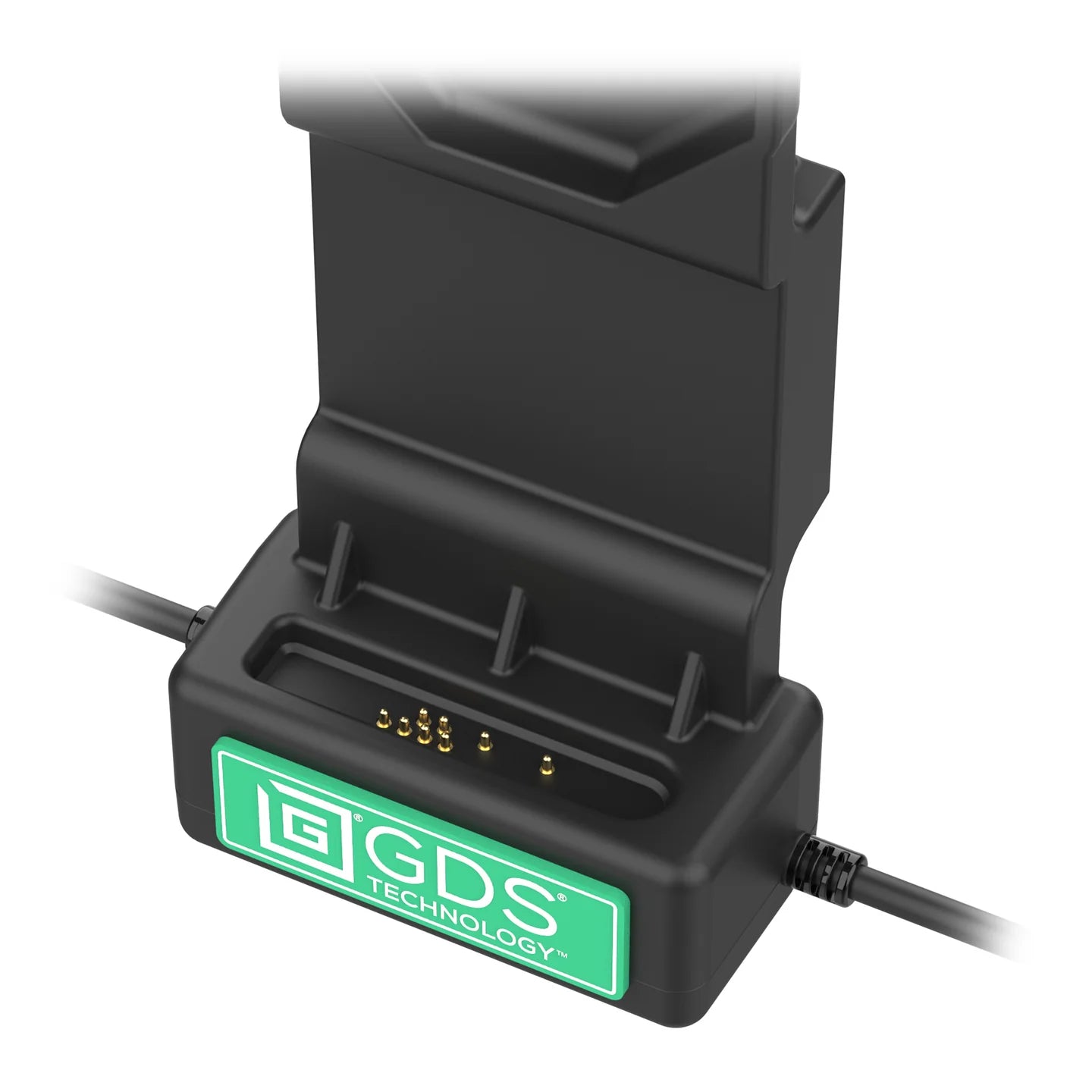

• Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

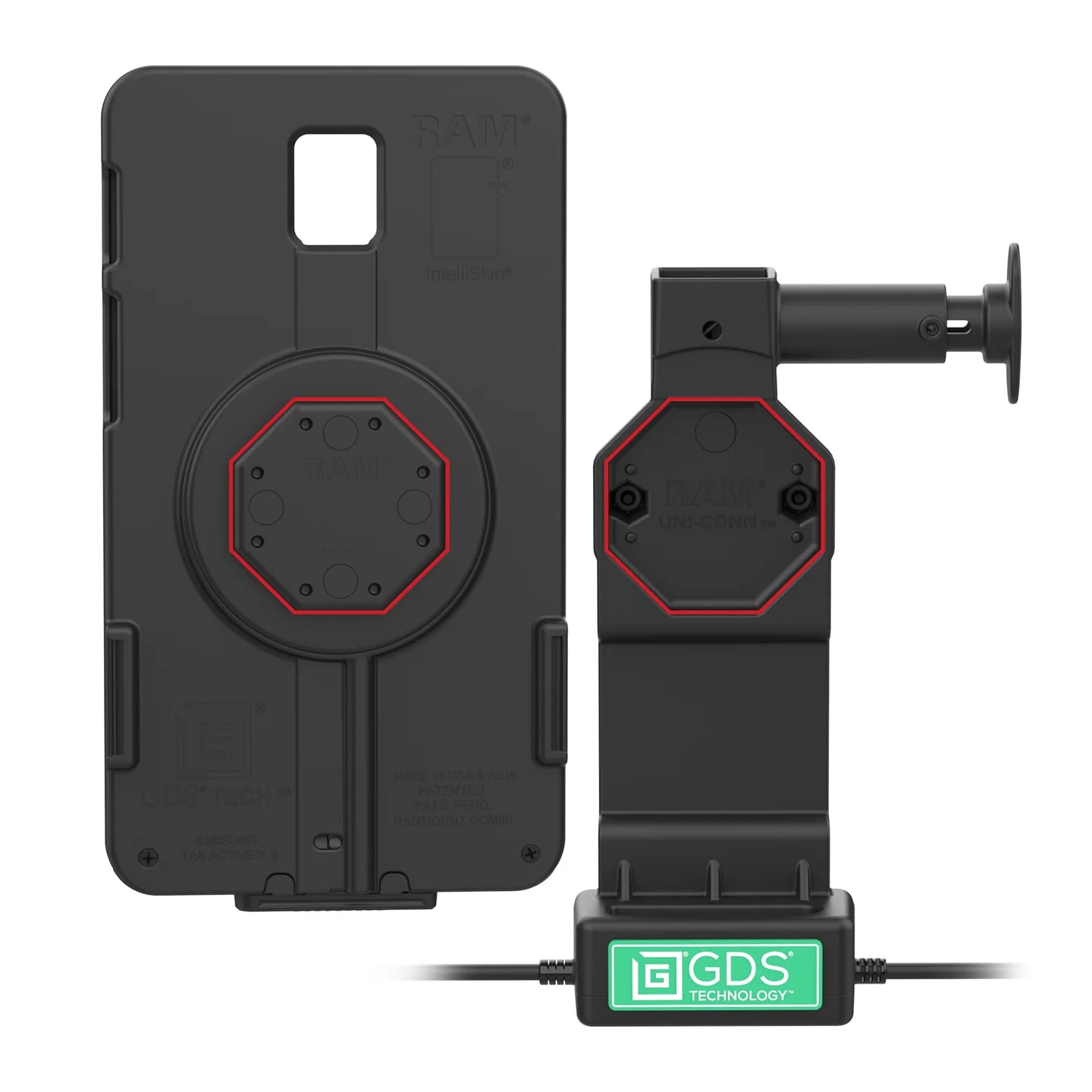

• Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed

• USB Type-C Female connector provides high-speed charging to the dock

• RAM® Mounts Compatible™

• Backed by a 3-year warranty

hardware included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

hole pattern:
2-Hole AMPS: 1.912"

materials:
High strength composite

packaging type:
Poly Bag

output voltage:
5V - 20V @ 3A

power output:
60W

input connector:
USB Type-C

input cable length:
215mm

Warranty:
3 year warranty

Weight:
0.59 lb

Additional Information:
GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
