RAM-HOL-ZE10PD2CLU

GDS® Combo Locking Power + Dual USB Dock for Zebra ET5x 8.3" & 8.4" - RAM-HOL-ZE10PD2CLU

  • Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

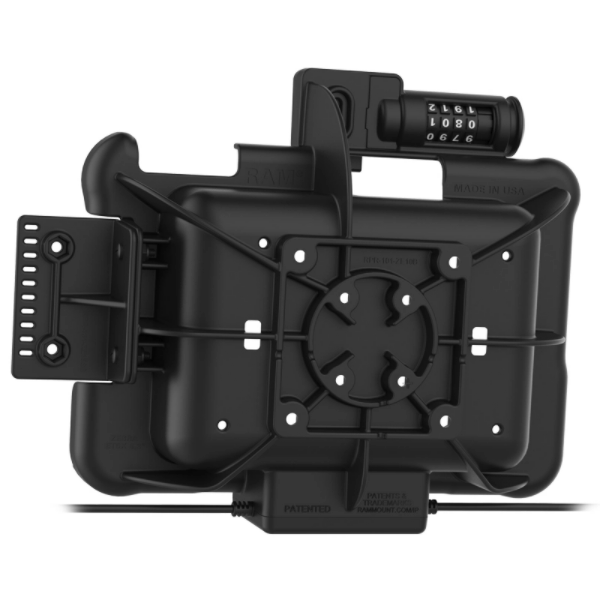

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

OVERVIEW

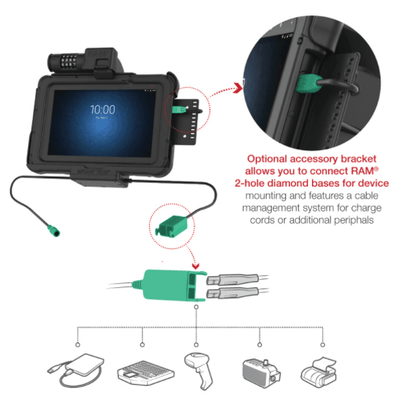

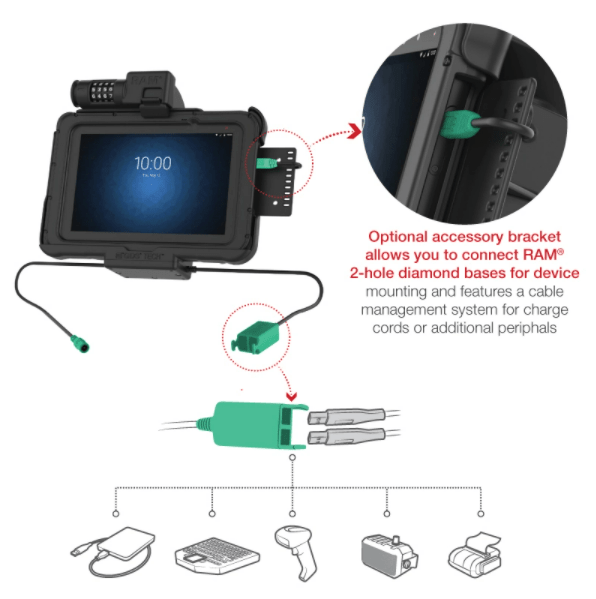

Featuring GDS® Technology for data and charging capabilities and a combination lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

HARDWARE INCLUDED

(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(6) Small Cable Ties
(2) Large Cable Ties


HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"


MATERIALS

High strength composite


PACKAGING TYPE

Poly Bag


INPUT CONNECTOR

5.5mm DC Connector


OUTPUT CONNECTOR

(2) USB 2.0 Type A


TRANSFER SPEED

12Mbps


WEIGHT

1.75 lbs.


WARRANTY STATUS

3 year warranty

Zebra

ET50 8.3" with rugged frame

ET51 8.4" with rugged frame

ET55 8.3" with rugged frame

ET56 8.4" with rugged frame
