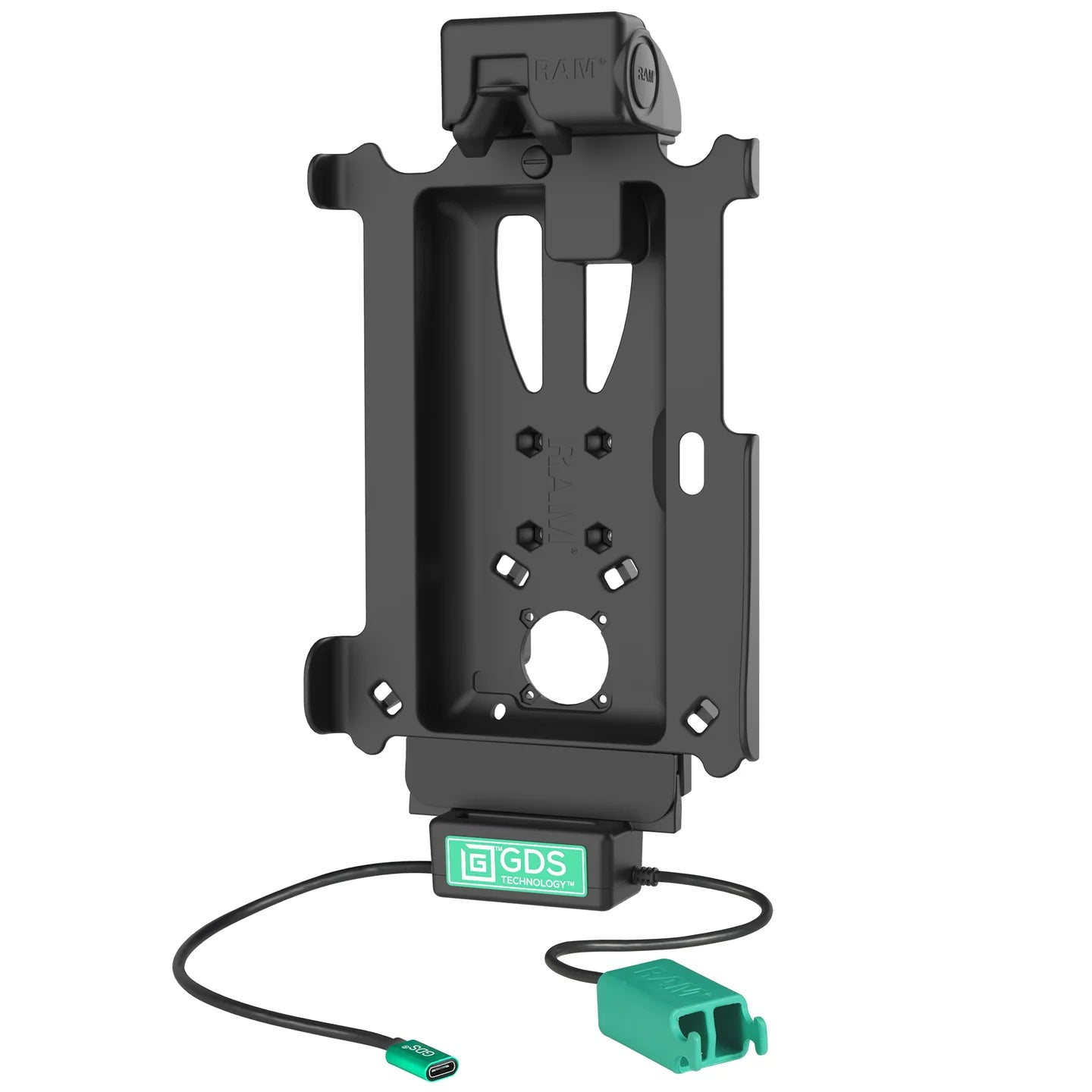

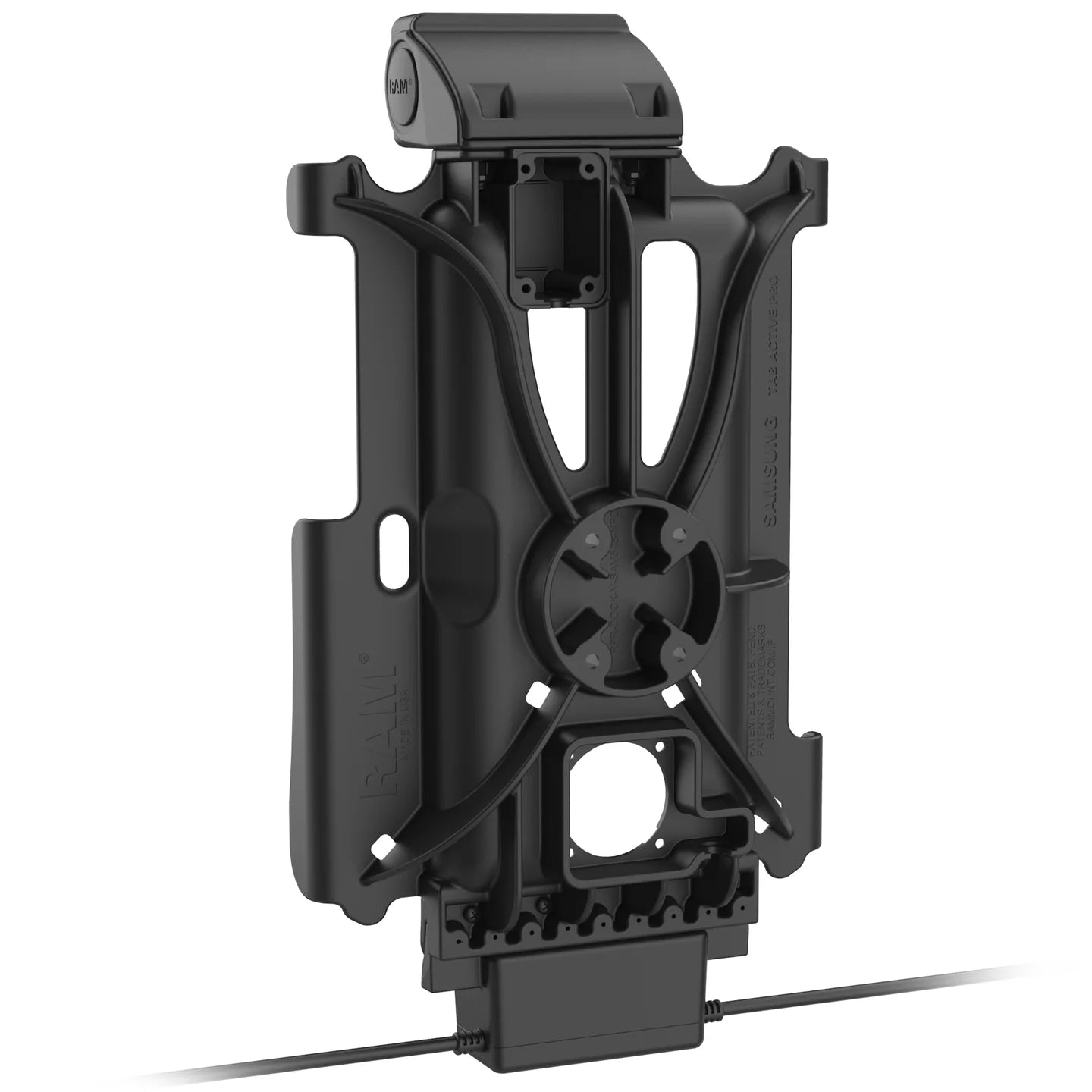

GDS® Tough-Dock™ + Dual USB-A for Tab Active4 Pro & Tab Active Pro - RAM-GDS-DOCK-SAM54NCD2U

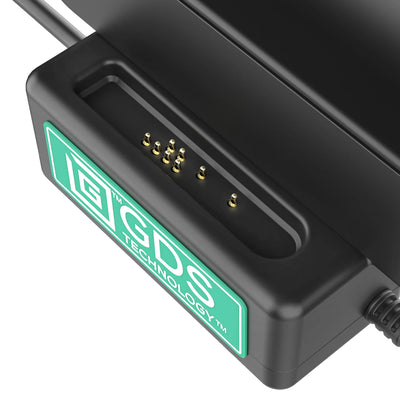

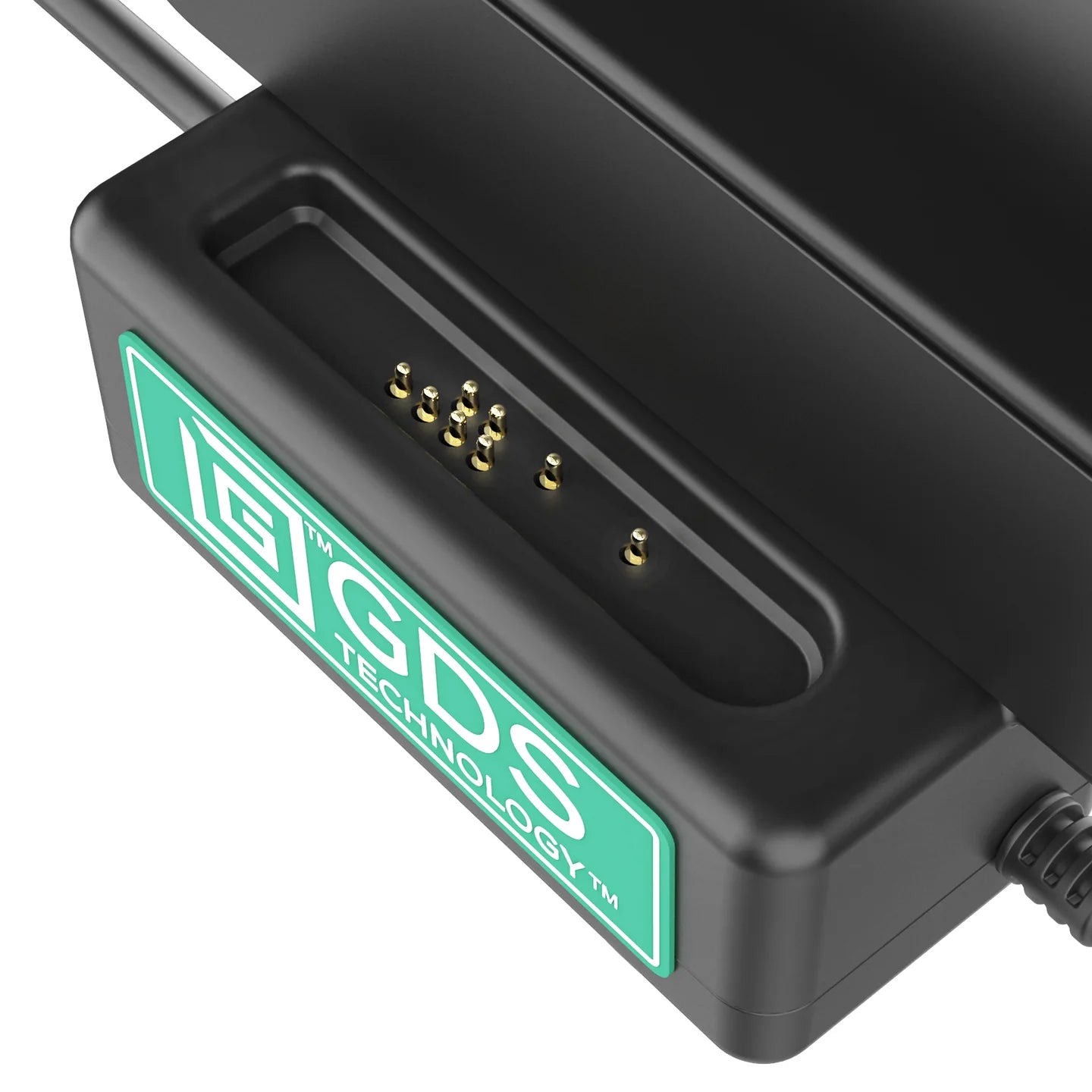

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more.

The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

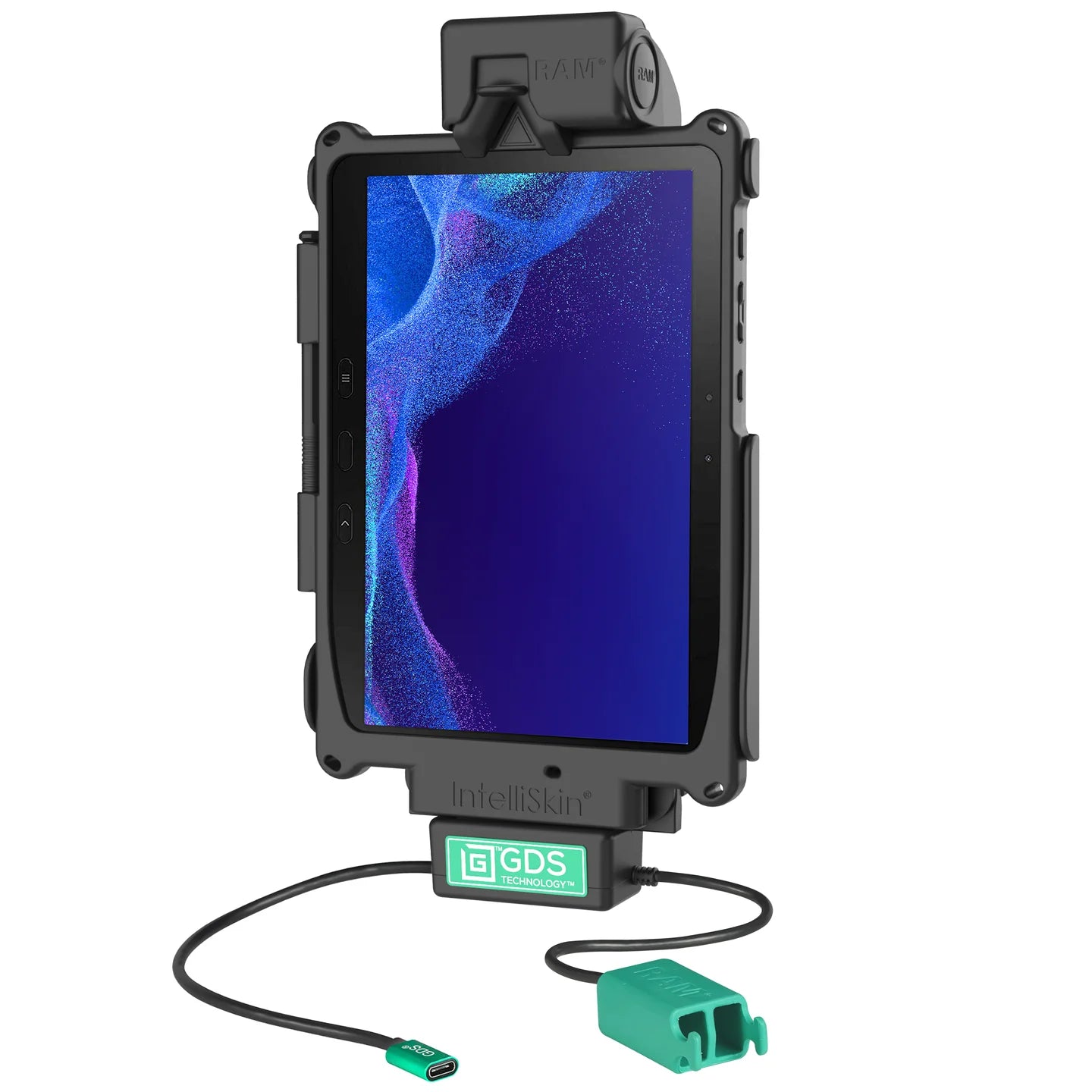

• Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve

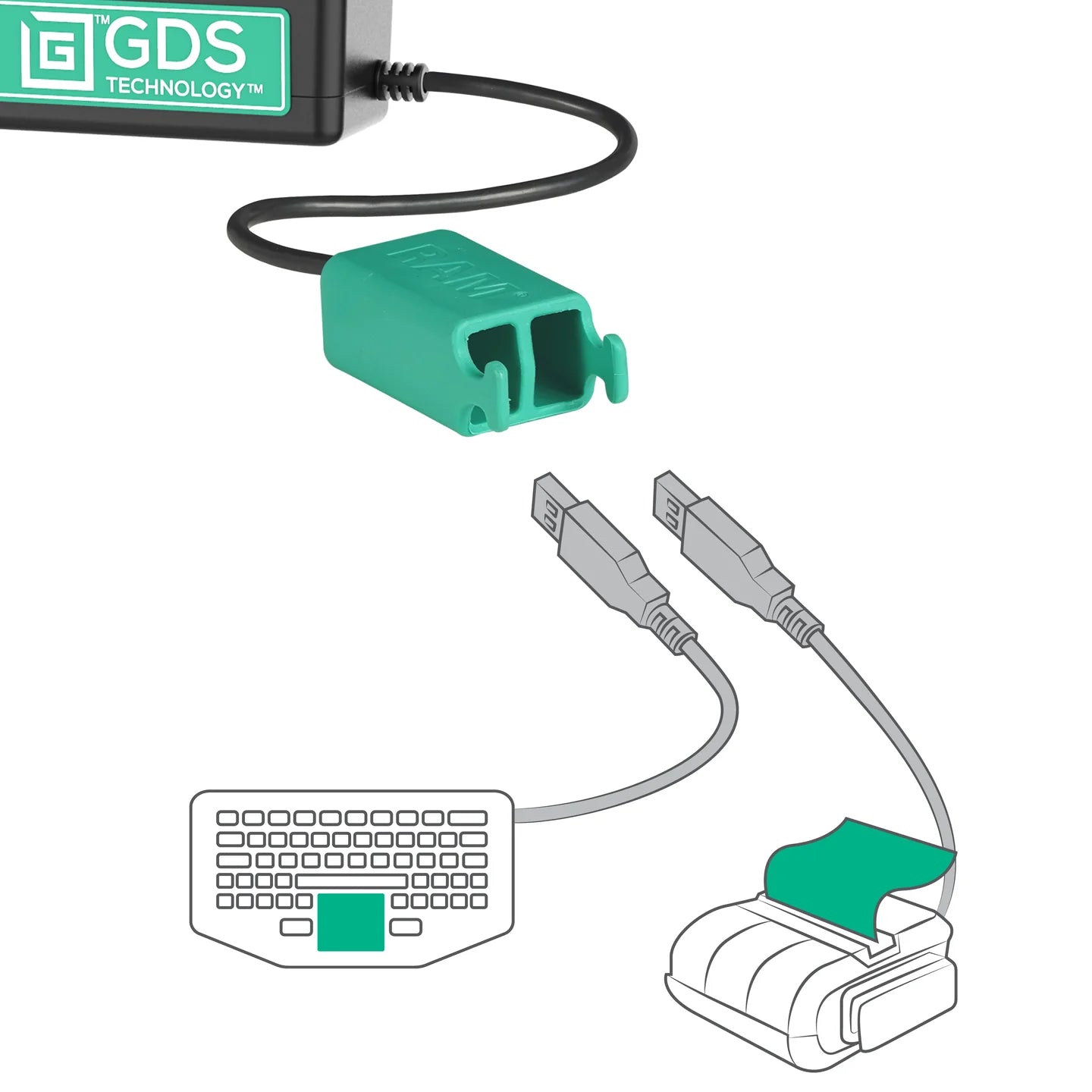

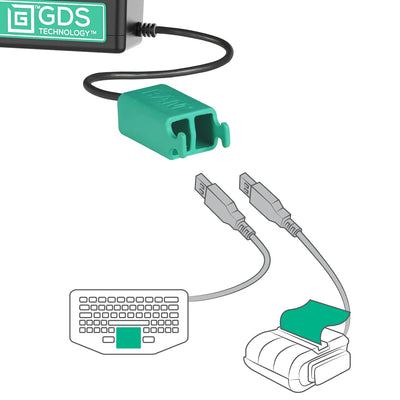

• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection

• RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand

• Backed by a 3-year warranty

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C
Dual USB Type A for 2 Peripherals

OUTPUT CABLE LENGTH
215mm

WARRANTY
3 year warranty

WEIGHT
1.8 lb
