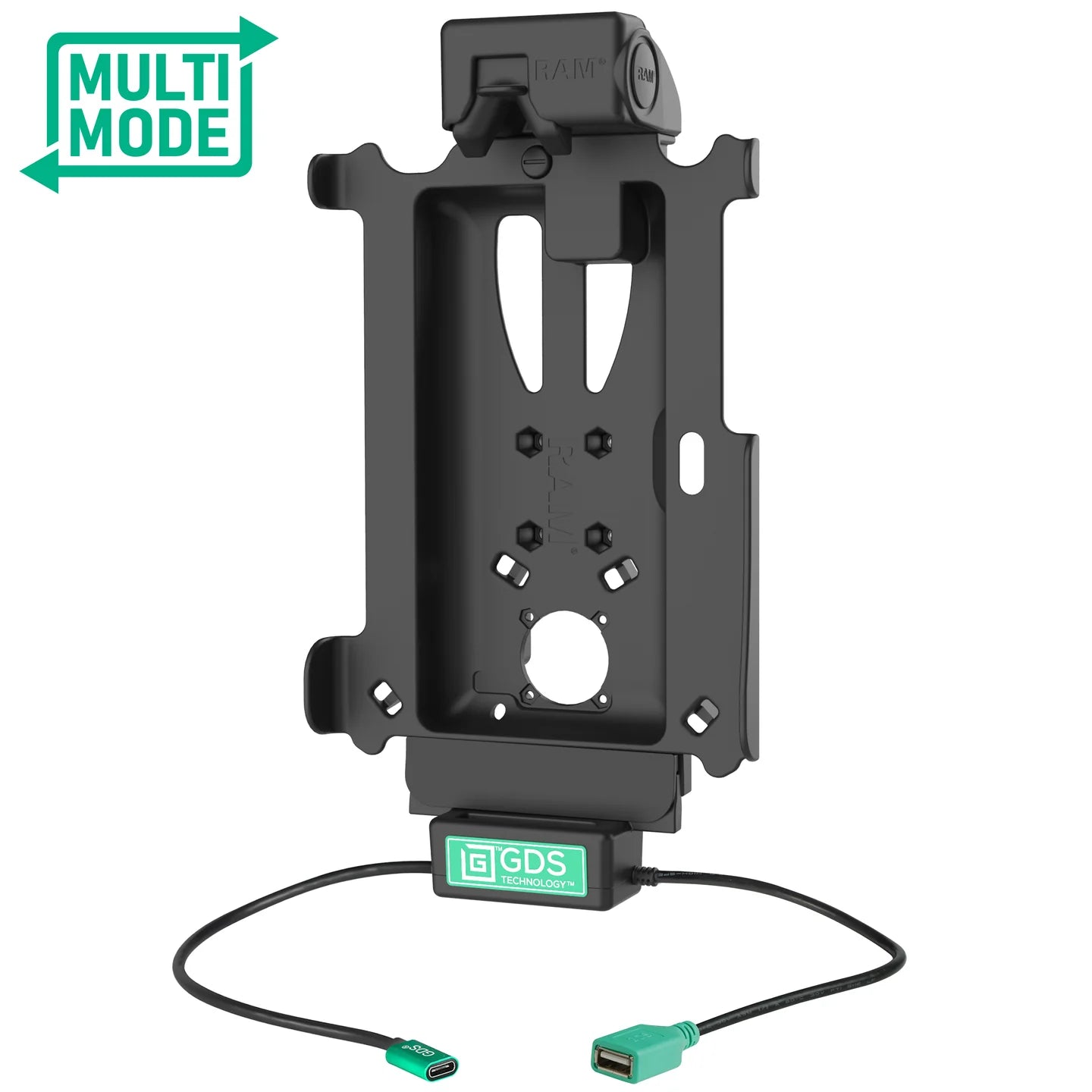

GDS® Tough-Dock™ with Multi-Mode for Tab Active4 Pro & Tab Active Pro - RAM-GDS-DOCK-SAM54N-MMU

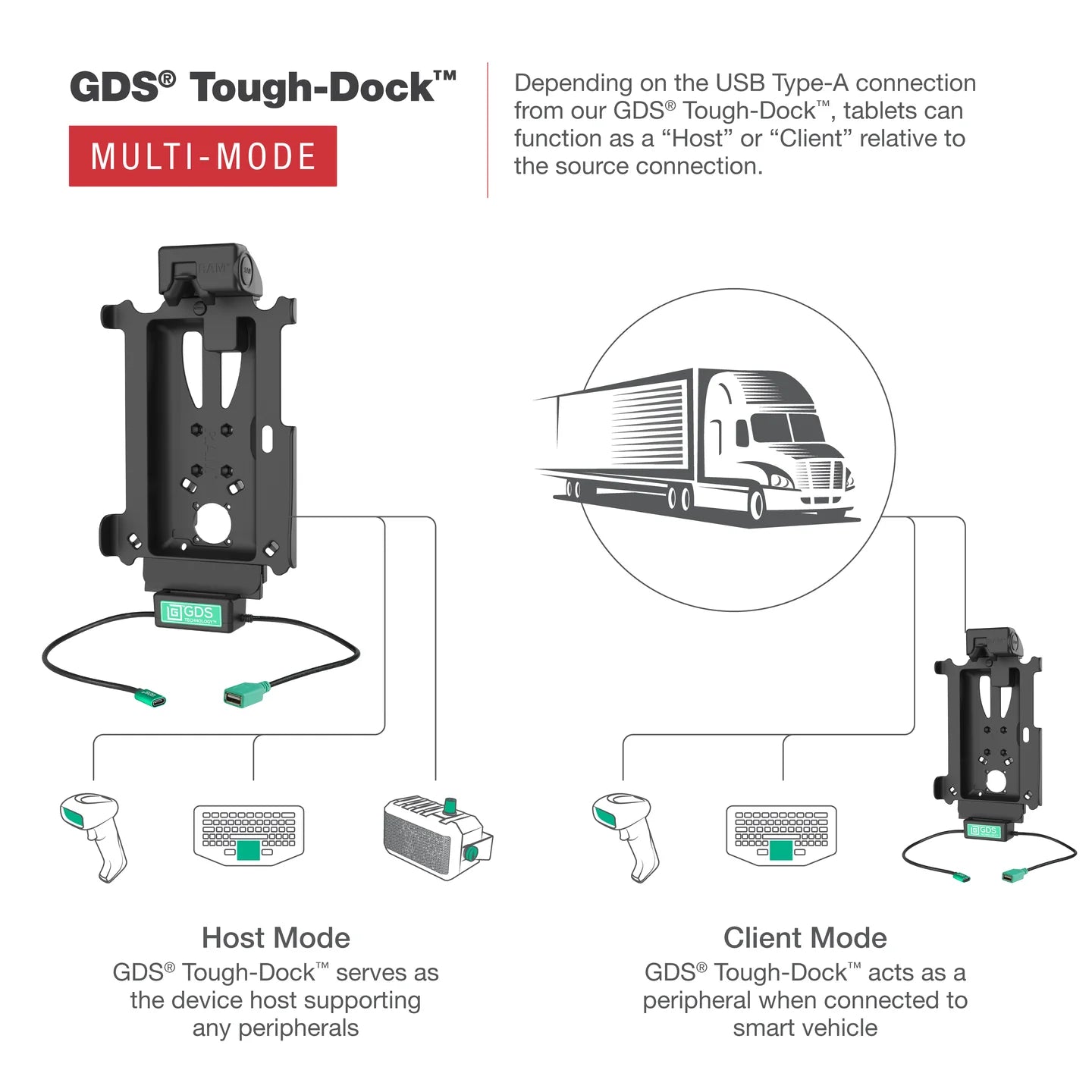

The GDS® Tough-Dock™ for Tab Active4 Pro & Tab Active Pro with Multi-Mode (RAM-GDS-DOCK-SAM54N-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin®-wrapped tablet into a peripheral. There is no button or switch that turns this function on and off — Multi-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Galaxy Tab Active4 Pro and Tab Active Pro.

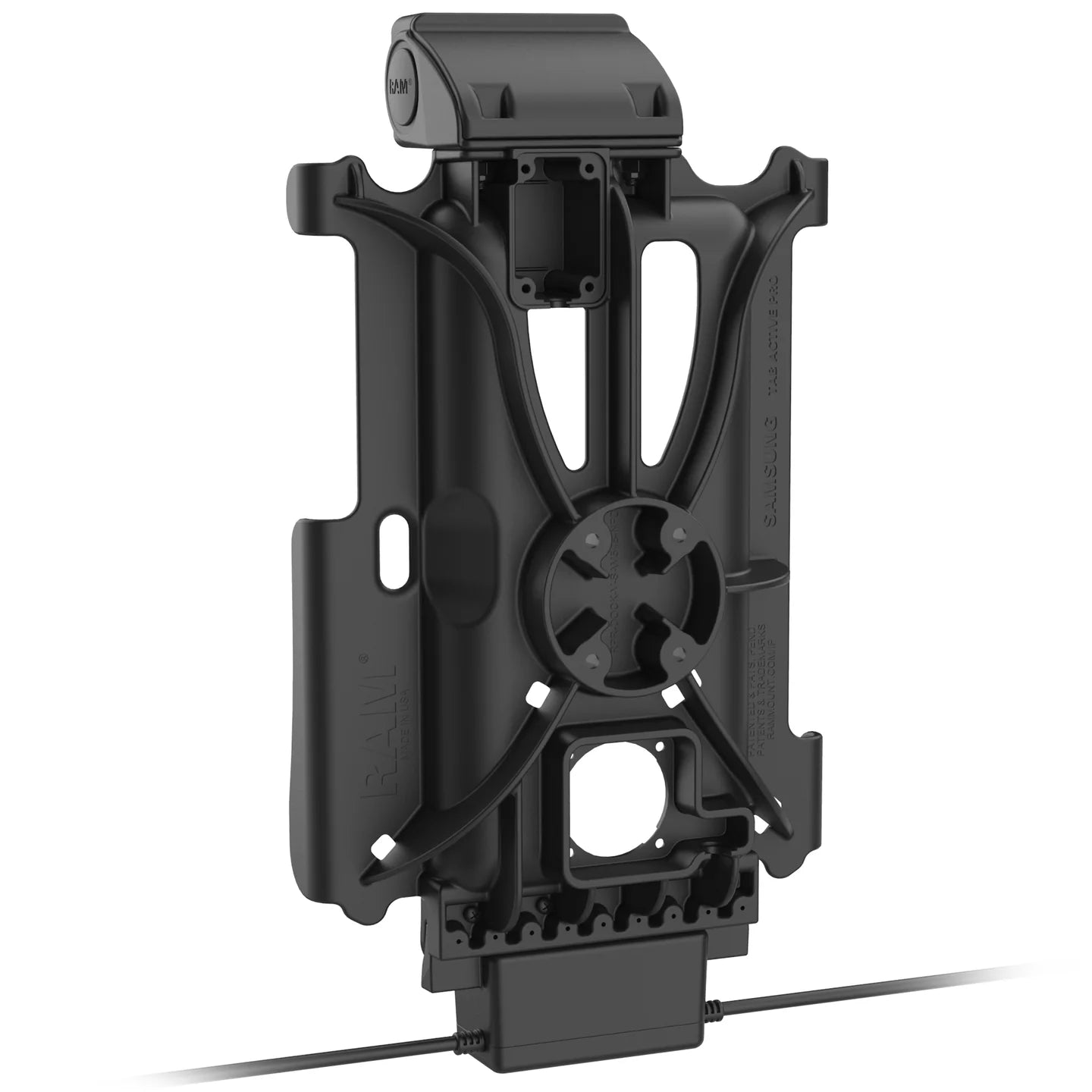

The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

• Multi-mode allows for centralized AI software systems to access tablets when docked

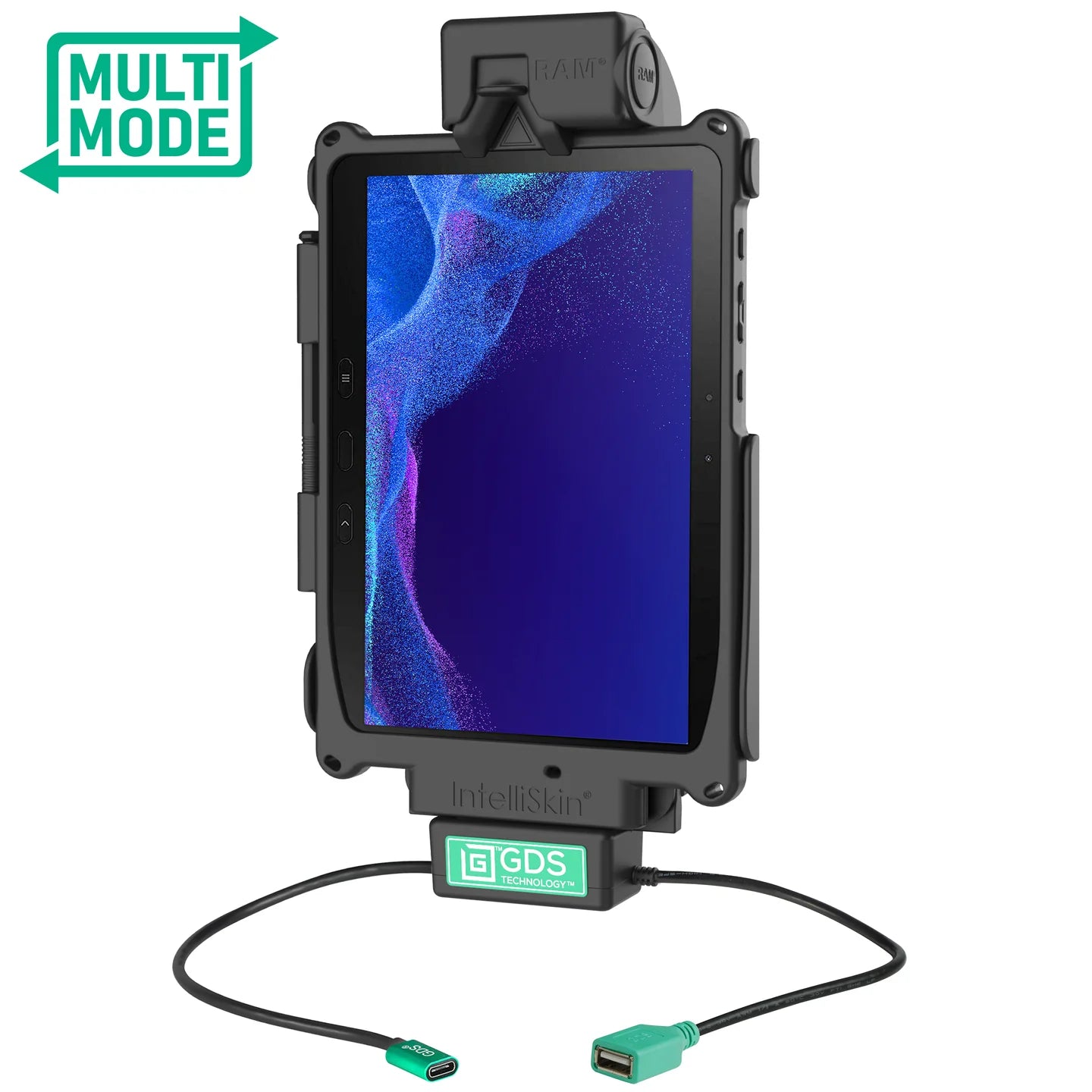

• Designed specifically for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve

• Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector

• RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand

• Backed by a 3-year warranty

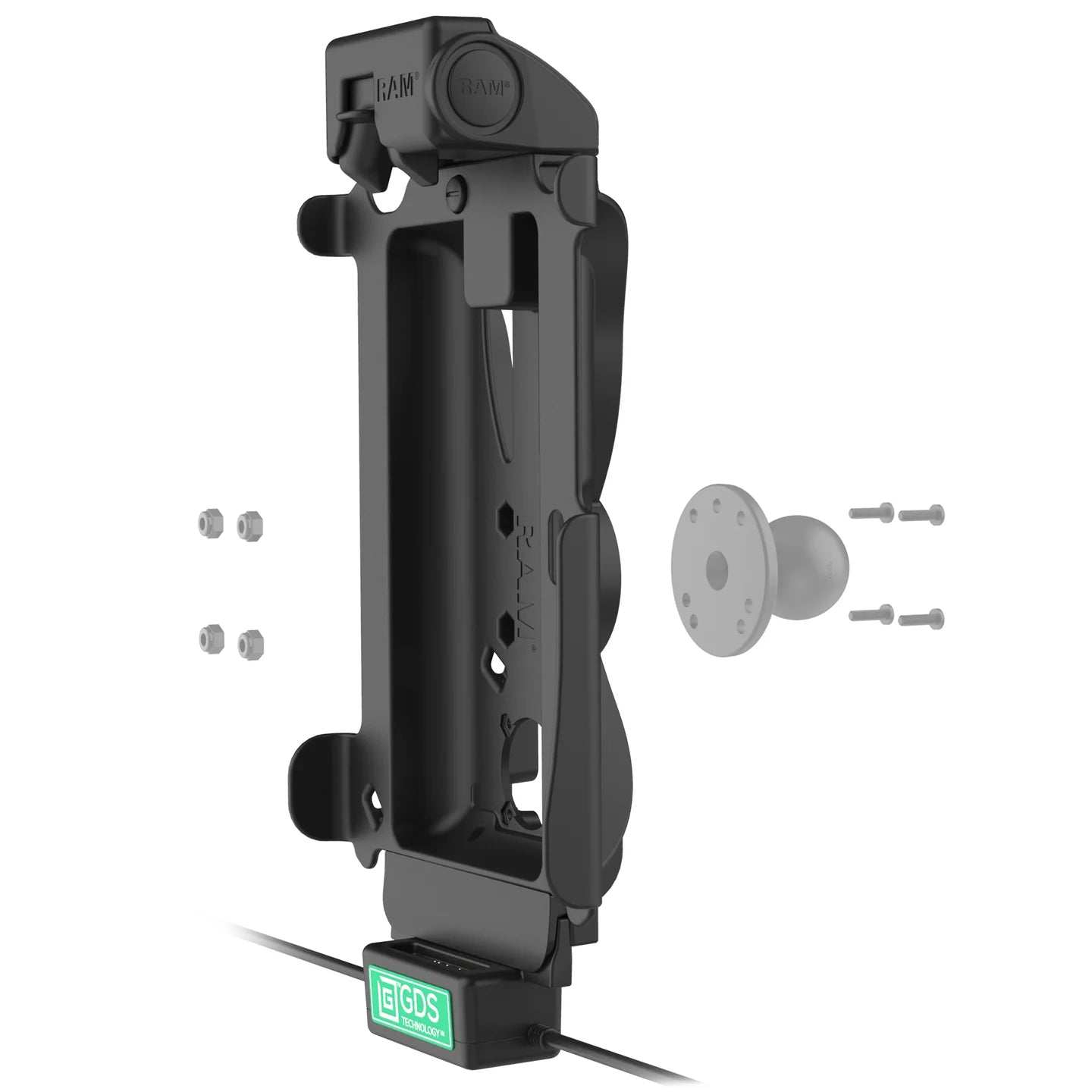

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp with Zip Ties
(1) USB Type-C to Type-A Cable

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 3A max
Peripheral: 5V @ 900mA max

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C
USB Type A for 1 Peripheral

OUTPUT CABLE LENGTH
215mm

WARRANTY
3 year warranty

WEIGHT
1.44 lb

ADDITIONAL INFORMATION
This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
