RAM-HOL-HON9PDCLU

RAM® Combo Locking Power + Data Dock for Honeywell RT10 Tablet - RAM-HOL-HON9PDCLU

In Stock  - Ships for Free!

  • Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Honeywell RT10 rugged tablet via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery pack; tablet scanning works while tablet is docked
  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

OVERVIEW

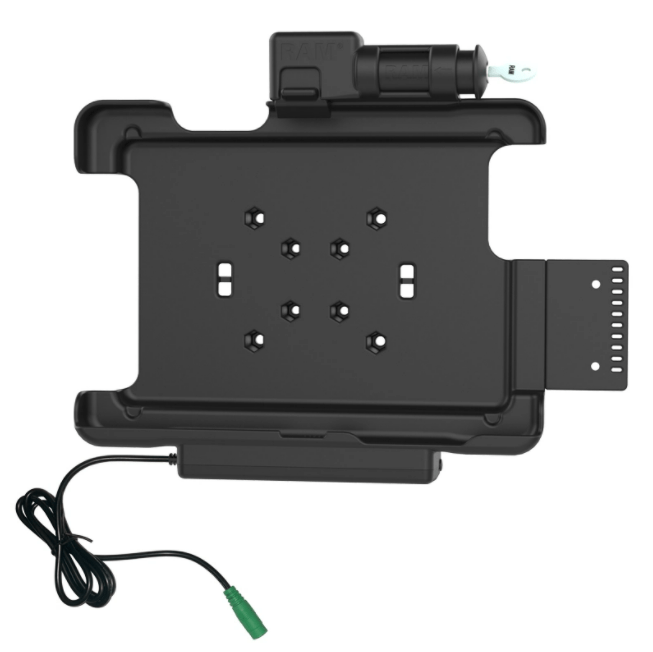

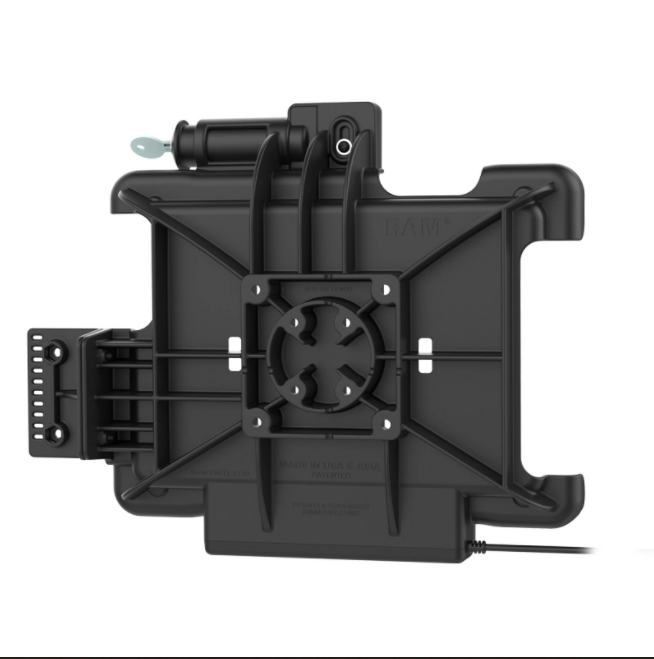

Featuring a combination lock for theft deterrence, the RAM® Vehicle Dock for the Honeywell RT10 rugged tablet allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and extended battery pack. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

HARDWARE INCLUDED

(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(8) Small Cable Ties
(2) Large Cable Ties
(1) USB Type A Cable Clamp Housing


HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"


MATERIALS

High strength composite


PACKAGING TYPE

Poly Bag


INPUT CONNECTOR

Power: 5.5mm DC Connector
Data: USB Type A


OUTPUT CONNECTOR

USB 2.0 Type A


TRANSFER SPEED

12Mbps


WEIGHT

1.8 lbs.


WARRANTY STATUS

3 year warranty

Honeywell

RT10 Rugged Tablet
