RAM-HOL-SAM60CPNU
Out of Stock
( Chat Live to get an ETA )

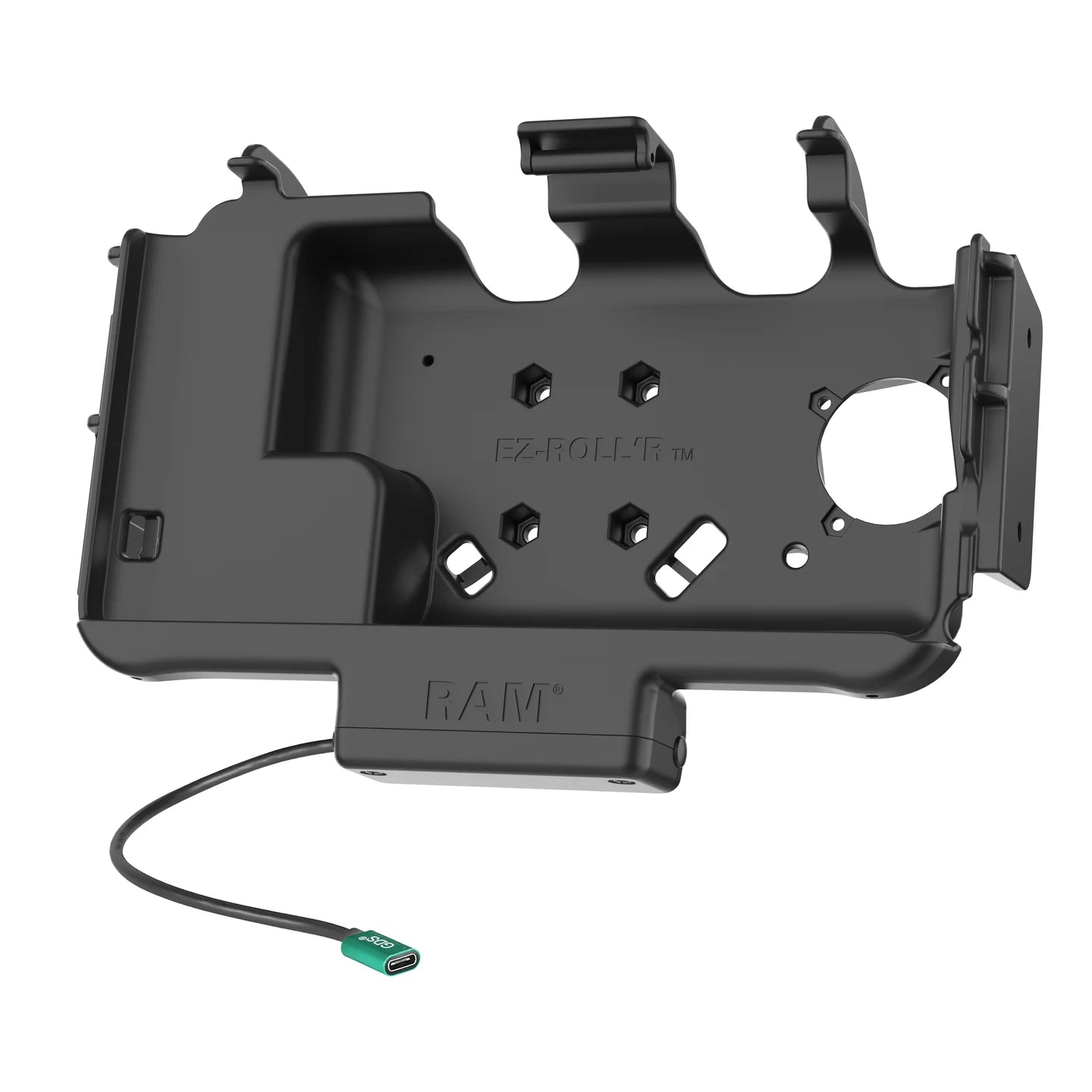

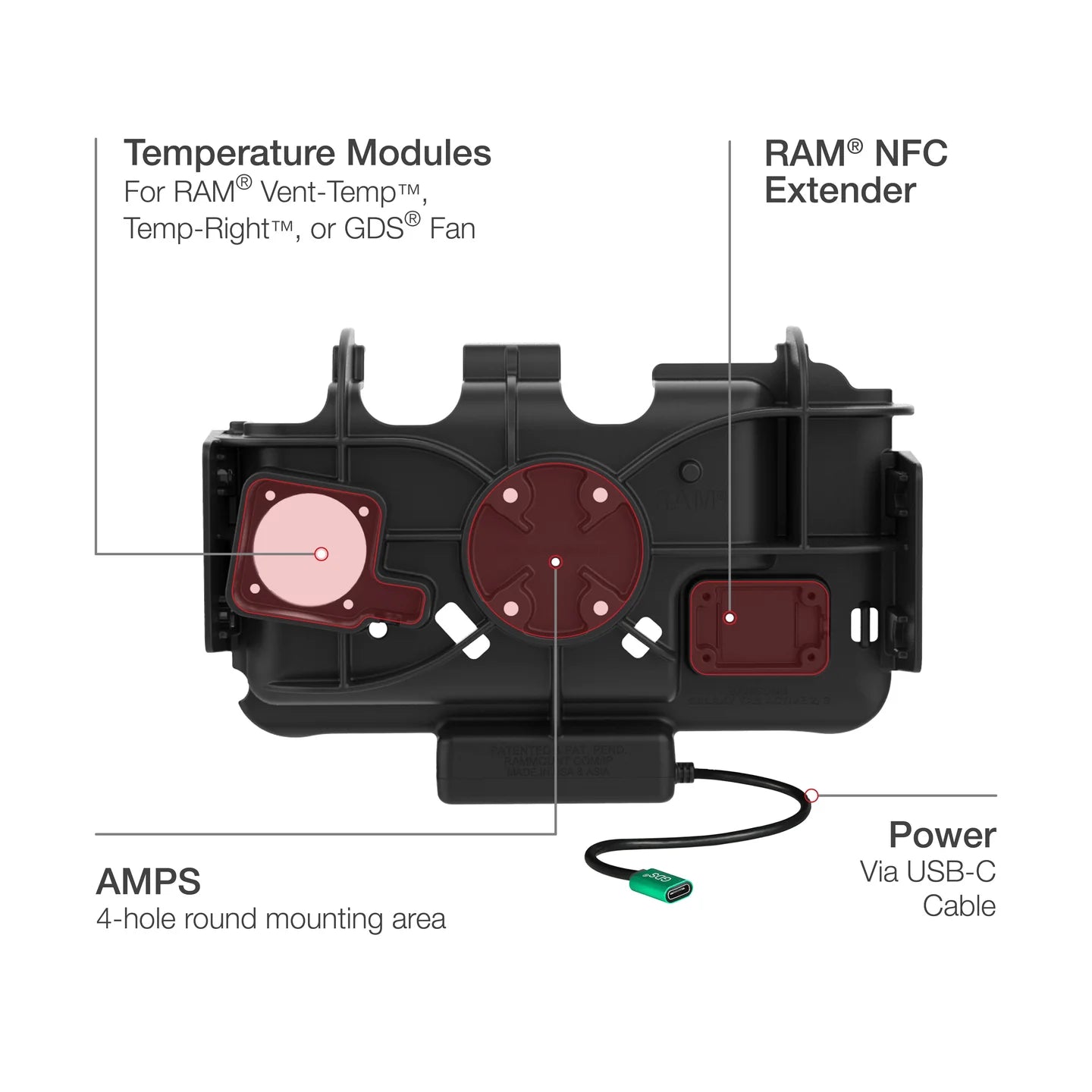

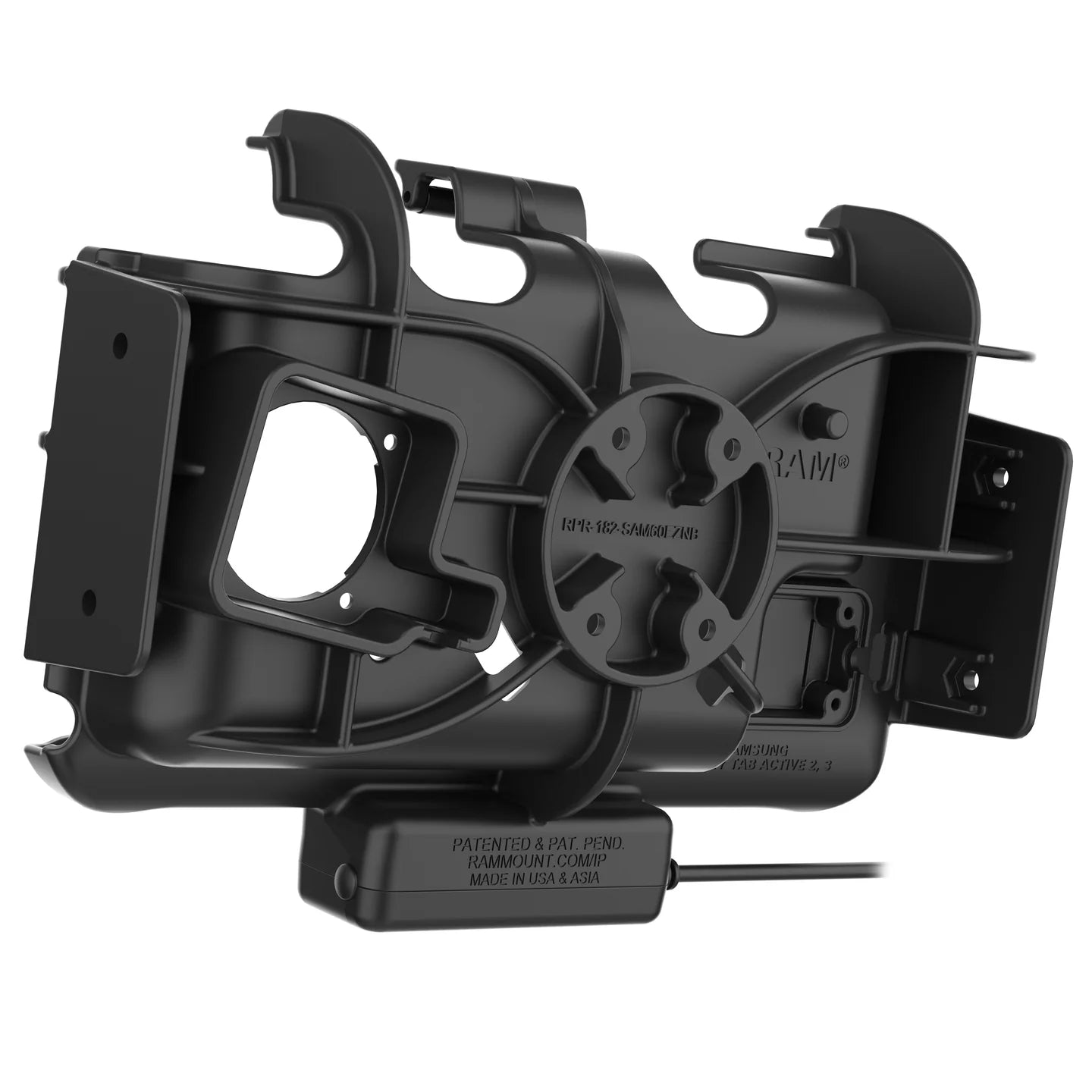

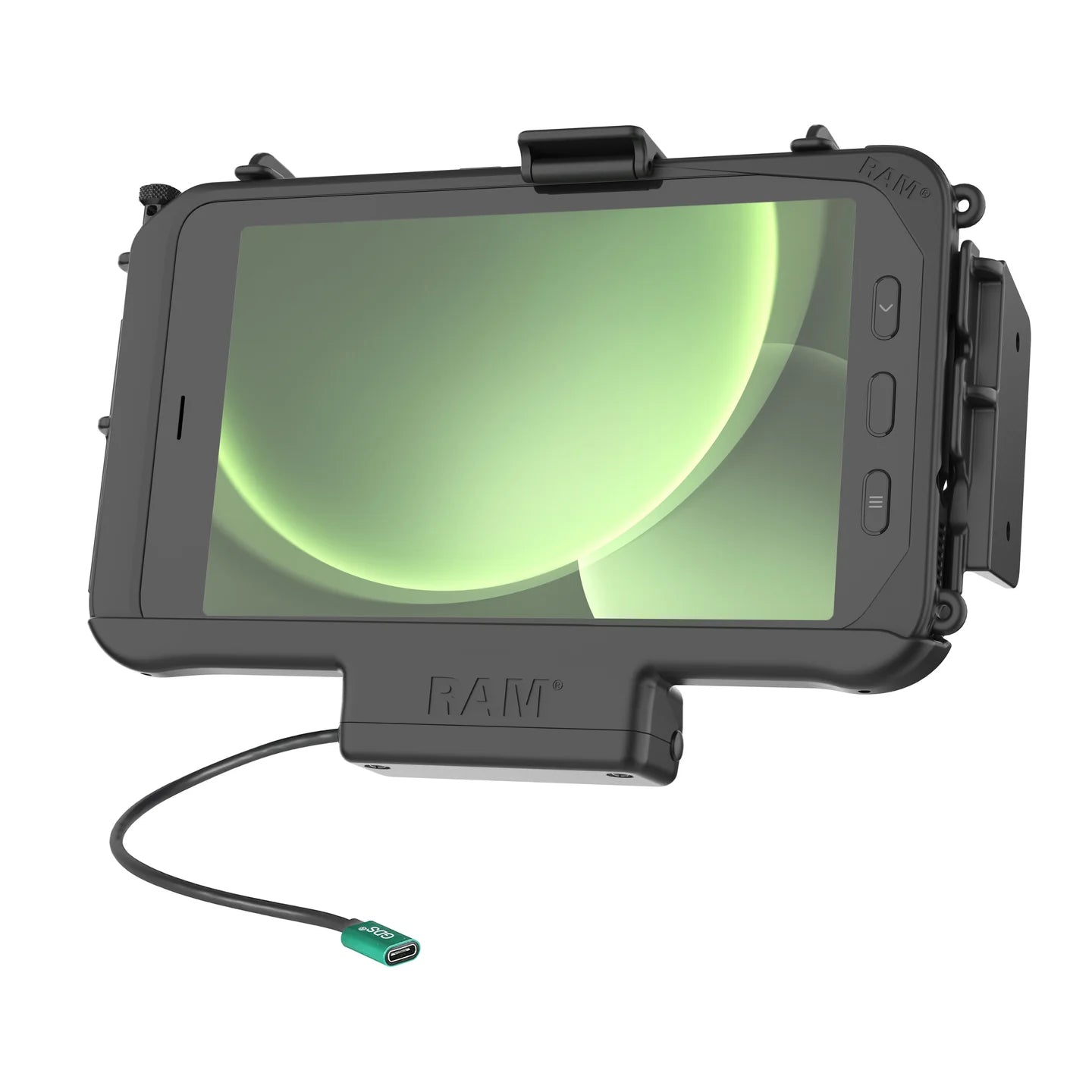

The RAM® EZ-Roll'r™ Modular Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CPNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments Compatible with the Samsung OEM skin as well as the RAM® Skin™ Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS PACKAGING TYPE INPUT VOLTAGE OUTPUT VOLTAGE POWER OUTPUT INPUT CONNECTOR INPUT CABLE LENGTH WARRANTY WEIGHT IMPORTANT INFORMATION RAM® Drill-Down Dashboard Mount With Backing Plate - C Size Short - RAM-101-B-225B2U RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U RAM® No-Drill™ Mount For '17-23 Ford F-Series + More - RAM-VB-195-SW2 RAM® No-Drill™ Mount For '19-23 Chevy Silverado, 2021-2023 Tahoe + More - RAM-VB-203-SW2 RAM® No-Drill™ Mount For '12-23 RAM 2500-5500 + More - RAM-VB-178A-SW2 RAM 1.5" Ball Medium Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U RAM® Double Socket Arm With Round Ball Plate - RAM-103U-D RAM 1.5" Ball Short Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U-B RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1
Description Specs & Features
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
Poly Bag
5.3-5.4VDC
5VDC
500mA
USB Type-C Female
215mm
3 year warranty
0.85 lb
This dock is not compatible with the GDS® Hand-Stand™. Compatibility
Mounting Options
