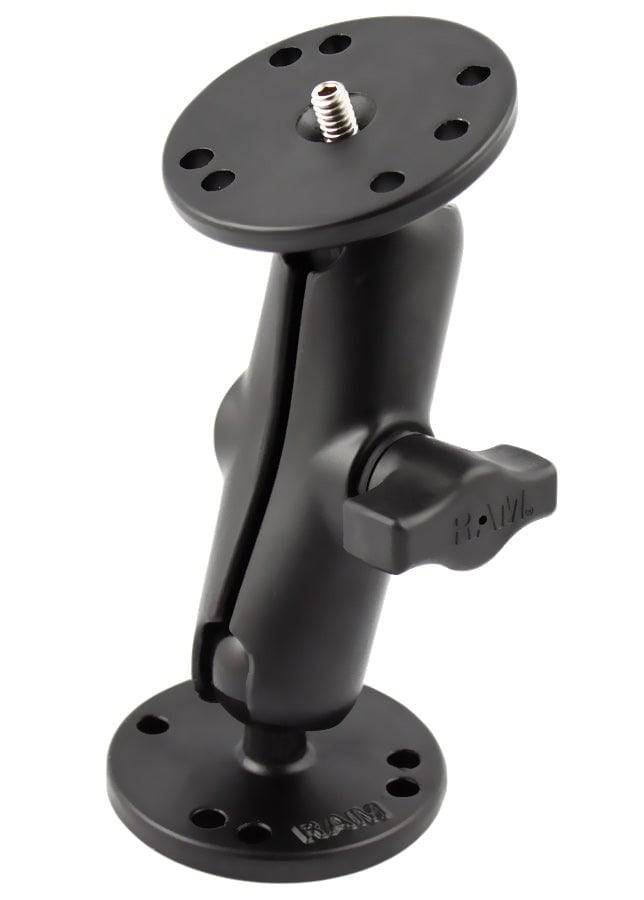

RAM 1" Ball Camera Mount with 2.5" Round Base AMPs Hole Pattern and Round Base (1/4-20 Male Thread) - RAM-B-101AU

The RAM-B-101AU consists of a double socket arm, one 2.5" diameter round base with the universal AMPS hole pattern and universal camera/camcorder base. The universal camera/camcorder base consists of a 1" diameter rubber ball connected to a 2.5" diameter round base with 1/4-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

Overall Height:
5"

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.55 lbs.

RAM 1" Ball Mount with 2.5" Round Base (AMPs Hole Pattern) and Round Base (1/4"-20 Male Thread)

RAM® Mounts Interchangeable Components

Additional Mounting Base Options

RAM V-Shape Base with 1" Ball for Rails and Yokes - RAM-B-108BU

RAM 3.3" Diameter Suction Cup Base with B Size 1" Ball - RAM-B-224-1U

RAM Motorcycle Handlebar Clamp Base with M8 Screws - RAM-B-367U

RAM® Torque™ 1 1/8" - 1 1/2" Diameter Handlebar/Rail Base with 1" Ball - RAM-B-408-112-15U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

RAM 2.5" Round Base with the AMPs Hole Pattern, 1" Ball & Triple Magnetic Base Adapter - RAM-B-202-339U

RAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter - RAM-B-231U

RAM 2.5" Round Base With 1" Ball & 1/4-20 Threaded Male Post For Cameras - RAM-B-202AU

RAM 2.5" Round Plate With The AMPs Hole Pattern With B Size 1" Ball - RAM-B-202U

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

• Cameras that contain 1/4"-20 Female Threaded Hole
