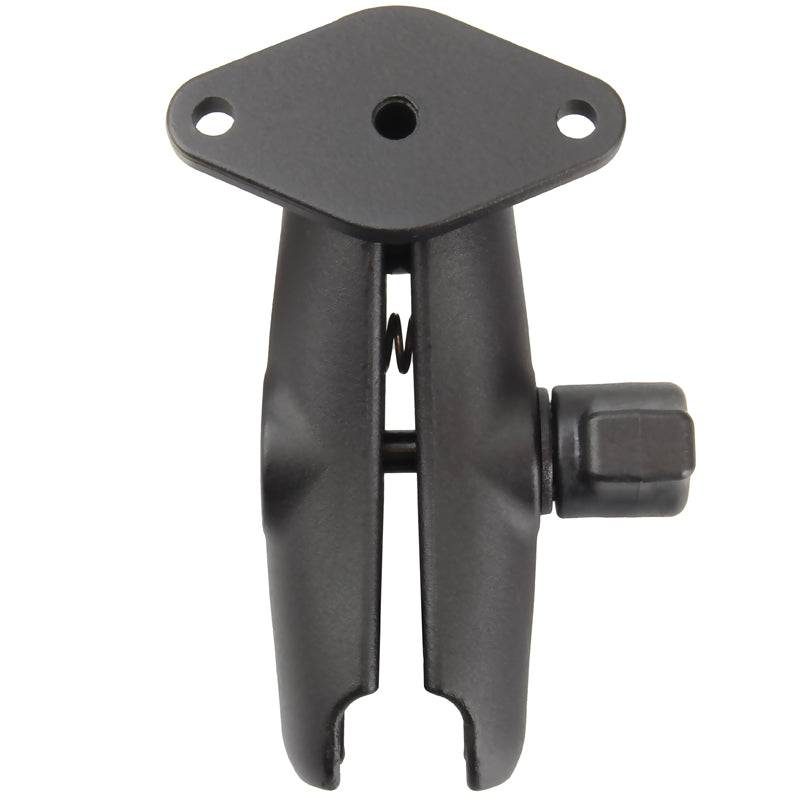

RAM 1" Ball Medium Length Double Socket Arm with Diamond Base - RAM-B-103-238U

The RAM-103-238U consists of a diamond base and standard length double socket arm that will accept 1" ball bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber "B" Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.38 lbs.

RAM 1" Diameter Ball Standard Length Double Socket Arm with Diamond Base

RAM® Mounts: Ball Sizes & Weight Capacities

Compatible Bases

RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 3.3" Diameter Suction Cup Base with B Size 1" Ball - RAM-B-224-1U

RAM Small Tough-Claw™ with B Size 1" Diameter Rubber Ball - RAP-B-400U

RAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZU

RAM Motorcycle Fork Stem Base with 1" Ball - RAM-B-342U

RAM Motorcycle Brake/Clutch Reservoir Base with 1" Ball - RAM-B-309-1U

RAM 2" x 1.7" Base with 1" Ball that Contains the Universal AMPs Hole Pattern for the Garmin zumo, TomTom Rider & Urban Rider - RAM-B-347U

RAM Motorcycle Base with 9mm Hole and 1" Ball - RAM-B-272U

RAM Motorcycle Handlebar Clamp Base with M8 Screws - RAM-B-367U

RAM 1/4-20 Female Threaded Hex Hole with 1" Ball - RAM-B-337U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

RAM V-Shape Base with 1" Ball for Rails and Yokes - RAM-B-108BU

RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

RAM Flex Adhesive Base with 1" Ball - RAP-B-378U

RAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter - RAM-B-231U

RAM Universal Small Tough-Clamp™ with 1" Diameter Rubber Ball - RAP-B-397-1U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM B Size 1" Track Ball™ Quick Release Track Base (Track Dimensional Range: .250" - .562") - RAP-B-383U
