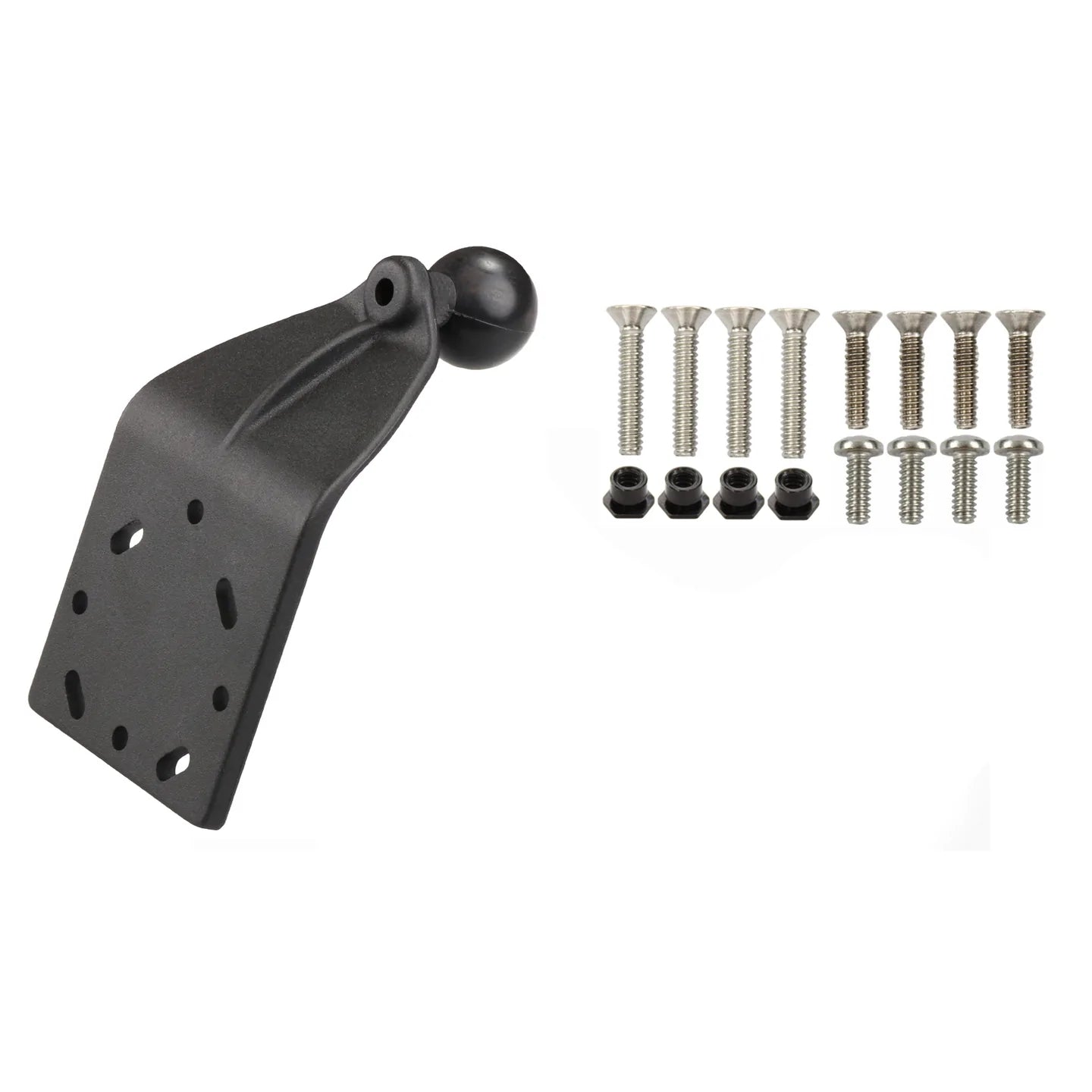

RAM® Curved Extension Base with Ball & Mounting Hardware - RAM-B-125B-G1U

The RAM RAM-B-125B-G1U, extension base includes a 1" rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5'' above the 1" ball (to the bottom of the connection section of the plate).

HARDWARE INCLUDED:
(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts

HOLE PATTERN:
Various AMPS Hole Patterns
See Drawing

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.2 lb

• Garmin:

  StreetPilot III
  GPSMAP 172-250
