GDS® Tough-Dock™ + USB-C Data for Tab Active4 Pro & Tab Active Pro - RAM-GDS-DOCK-SAM54NC-CU

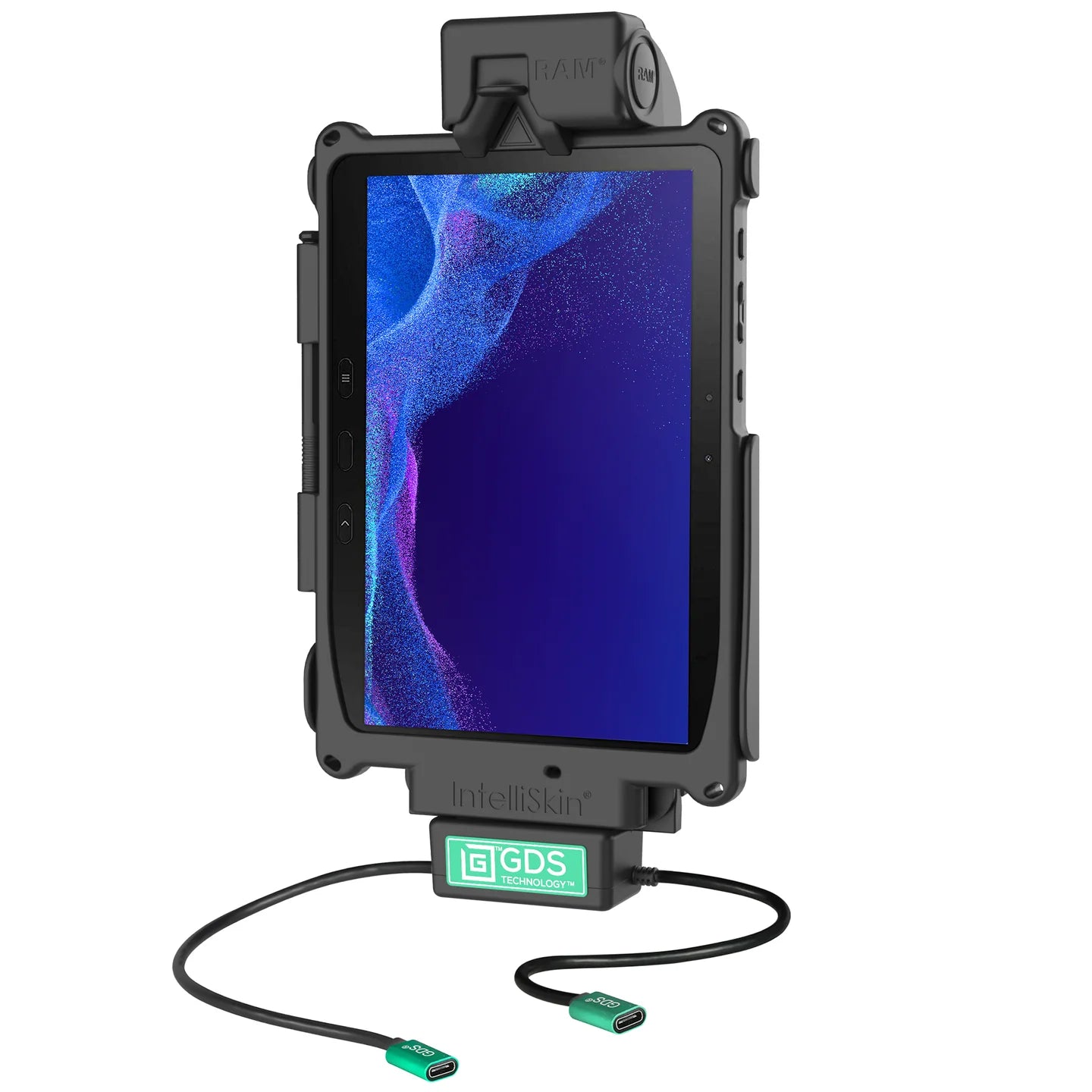

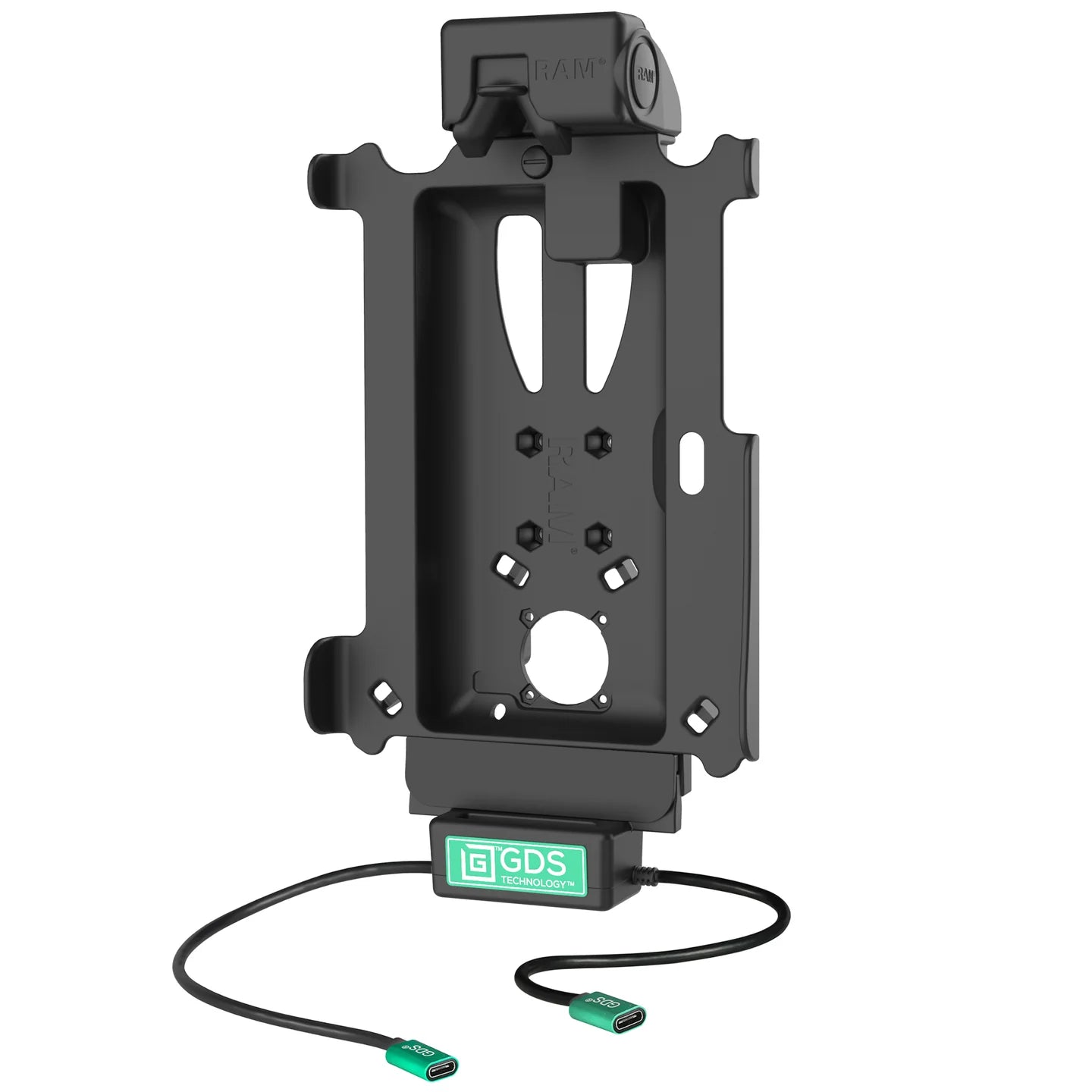

The GDS® Tough-Dock™ + USB-C Data for Tab Active4 Pro & Tab Active Pro (RAM-GDS-DOCK-SAM54NC-CU) is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve.

Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities required by the Samsung devices. It also features an additional USB Type-C connector to support a single peripheral device.

The USB Type-C connection work seamlessly with Klein Electronics technology to enable push-to-talk (PTT) over-cellular capabilities.

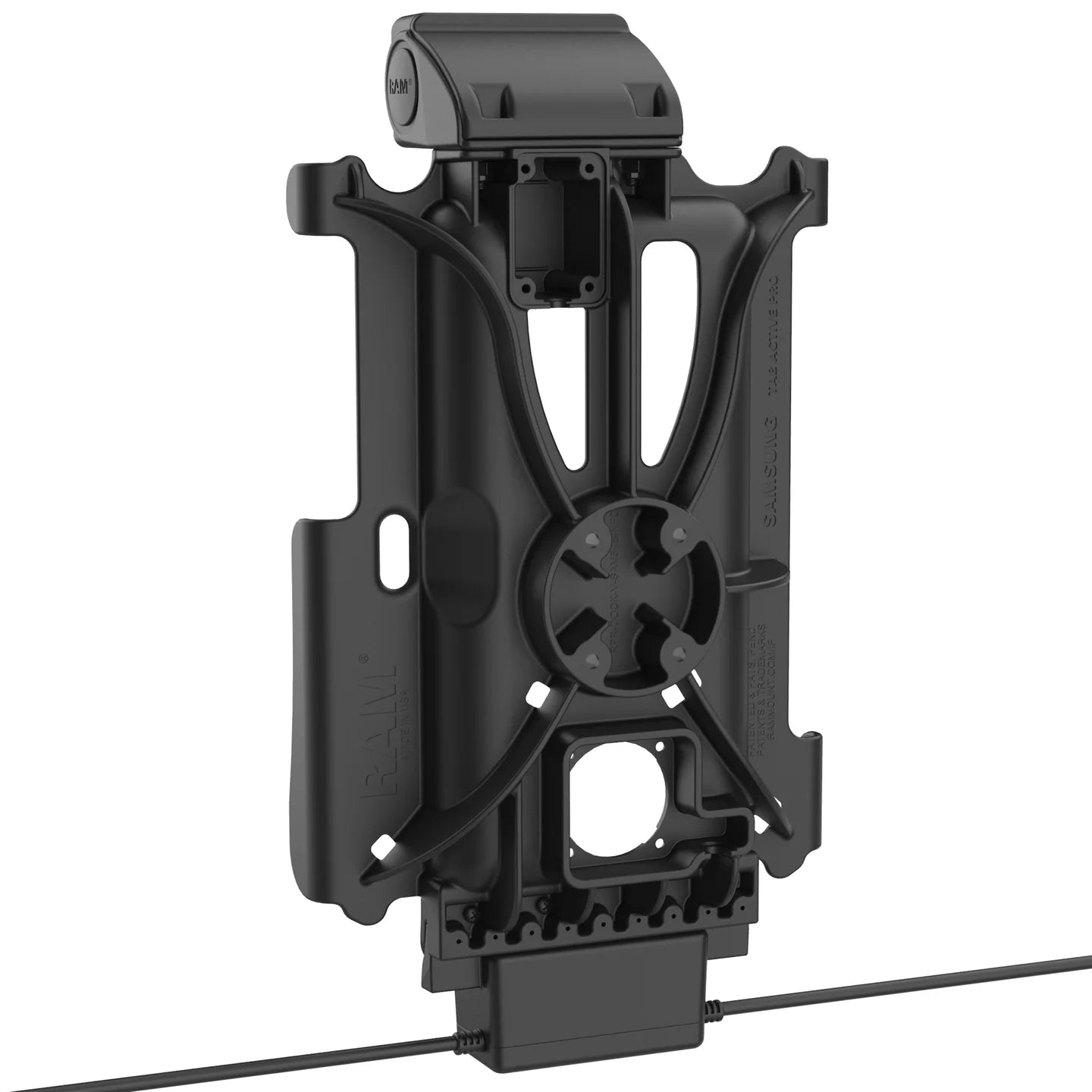

The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

• Form-fit vehicle dock featuring GDS® Technology™ for the Samsung Tab Active4 Pro & Tab Active Pro

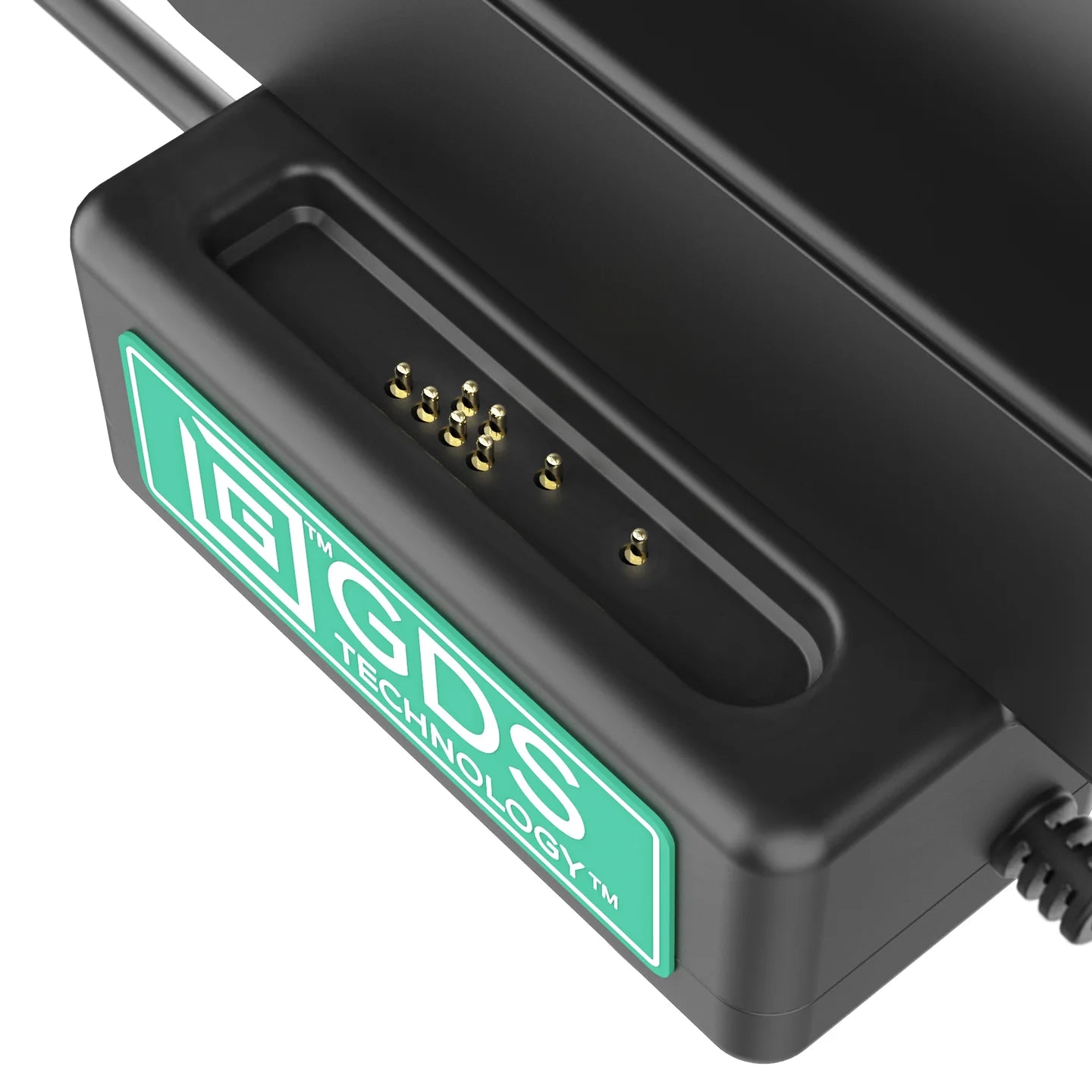

• Enables high speed charging capabilities for IntelliSkin®-wrapped devices via 8-pin connection

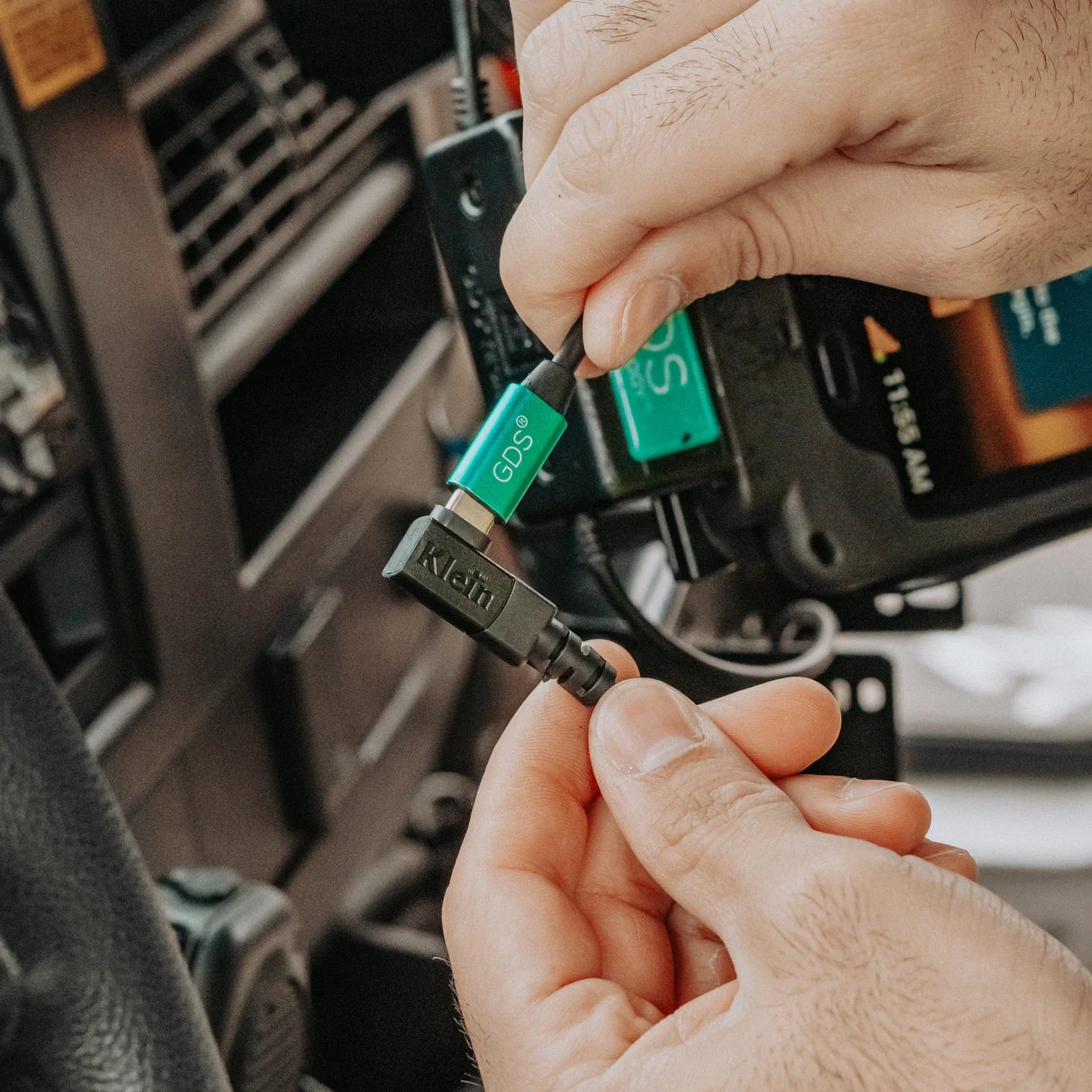

• Supports one peripheral device via integrated USB Type-C female connector; includes push-to-talk capabilities when paired with Klein Electronics microphones

• Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application

• Backed by a 3-year warranty

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 3A

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C (Power In)

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
USB Type-C (Peripheral)

OUTPUT CABLE LENGTH
215mm

WARRANTY
3 year warranty

WEIGHT
1.46 lb

ADDITIONAL INFORMATION
This product will not support the "No Battery Mode" function of the Tab Active4 Pro
