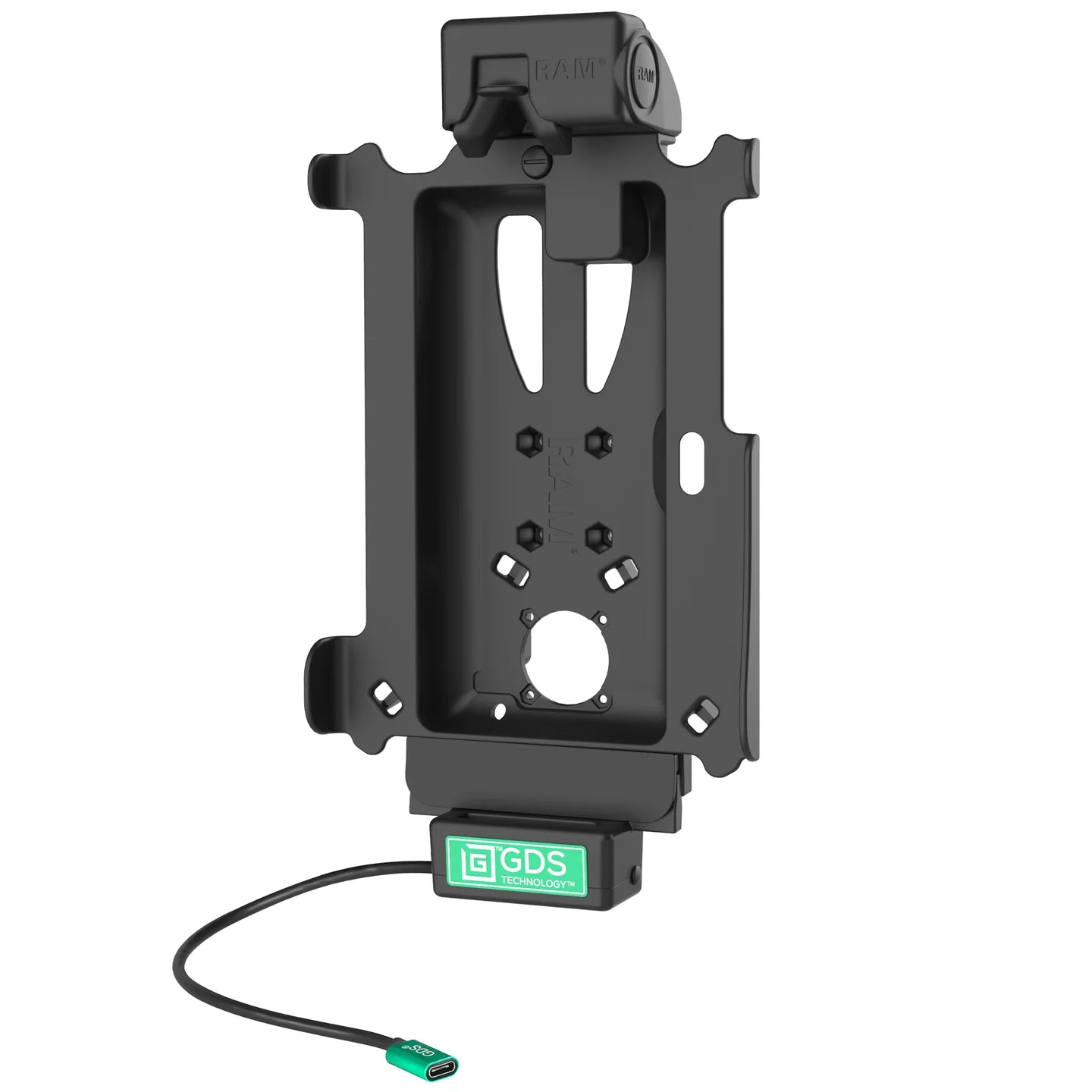

GDS® Tough-Dock™ for Tab Active4 Pro & Tab Active Pro - RAM-GDS-DOCK-SAM54NCPU

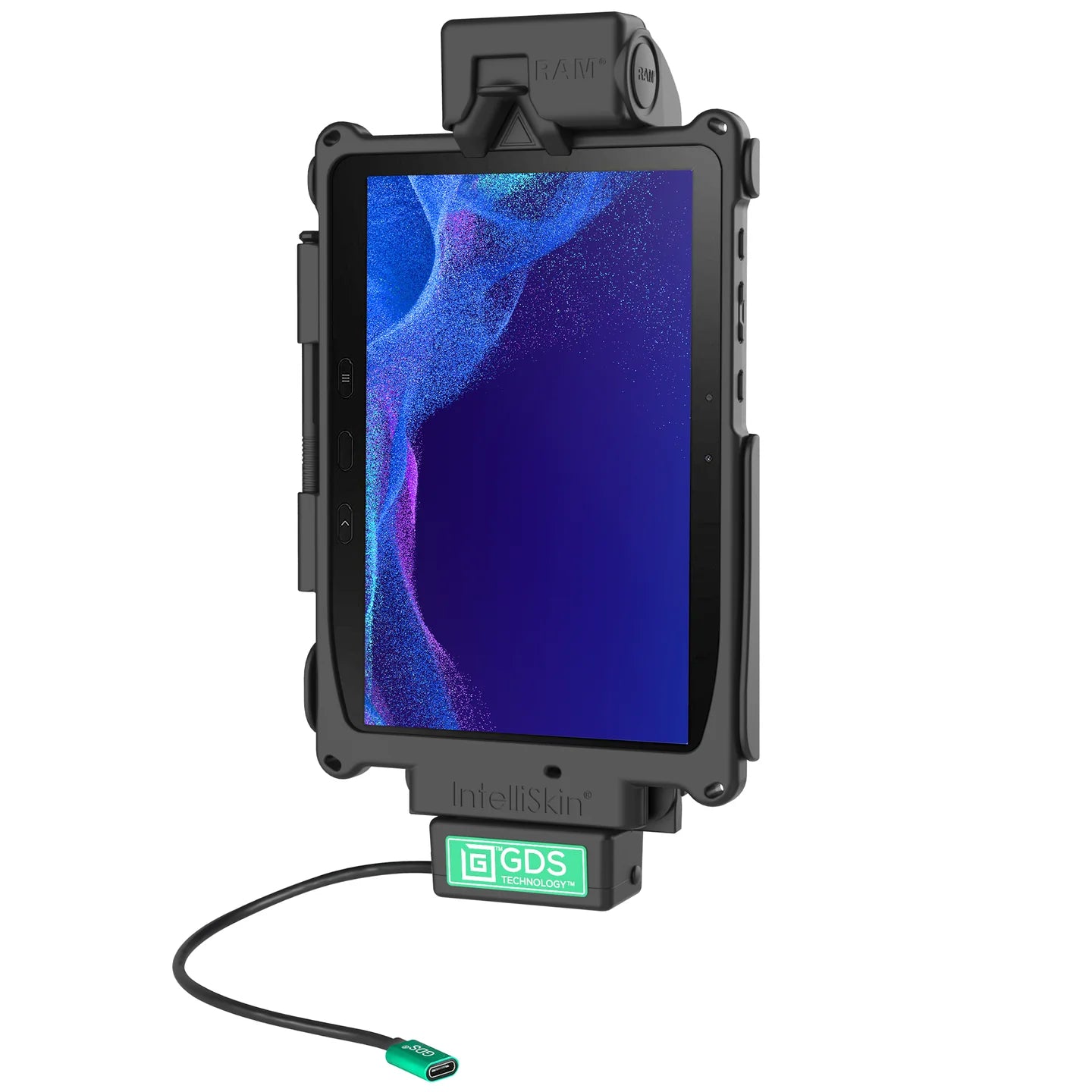

The GDS® Tough-Dock™ is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Galaxy Tab Active4 Pro and Tab Active Pro.

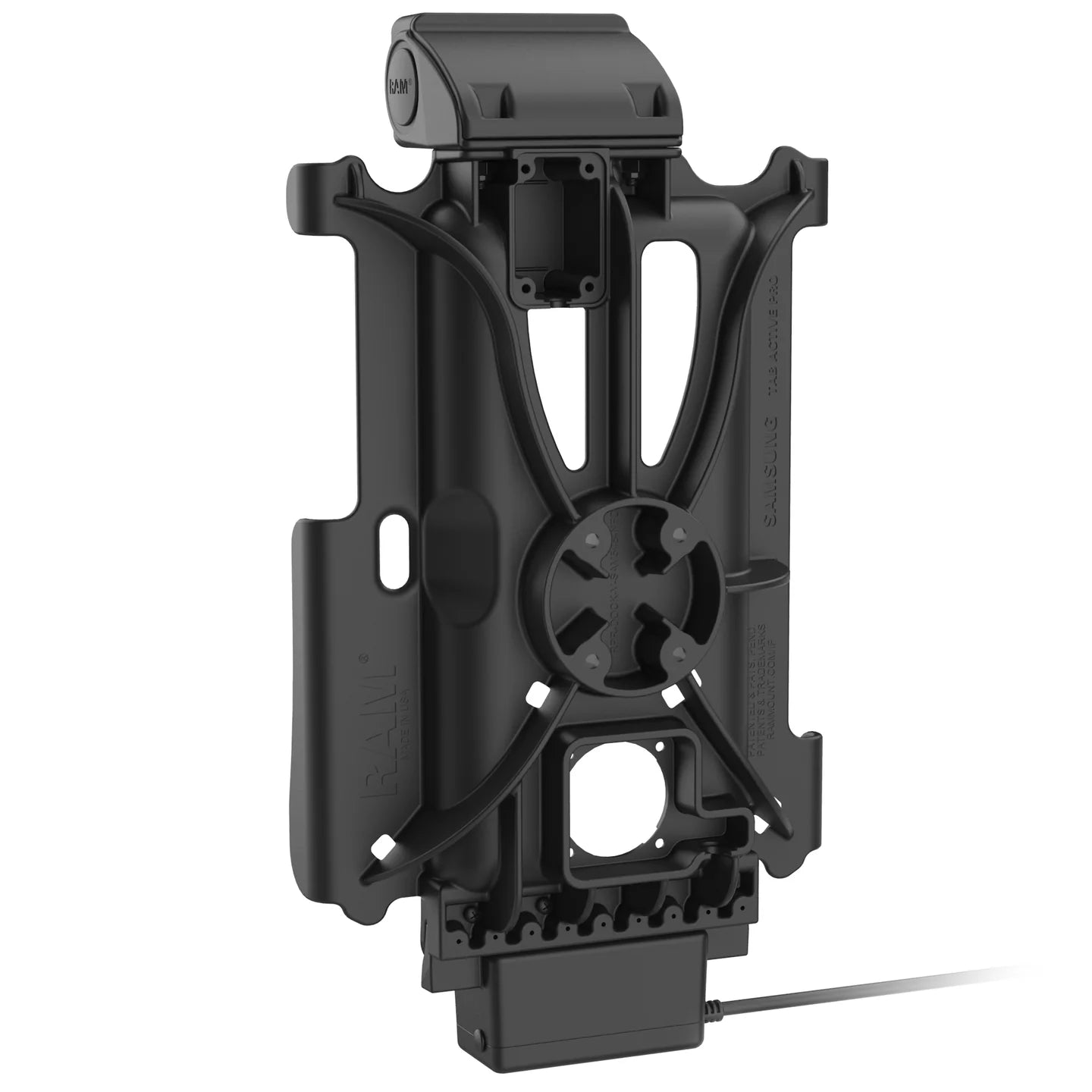

The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

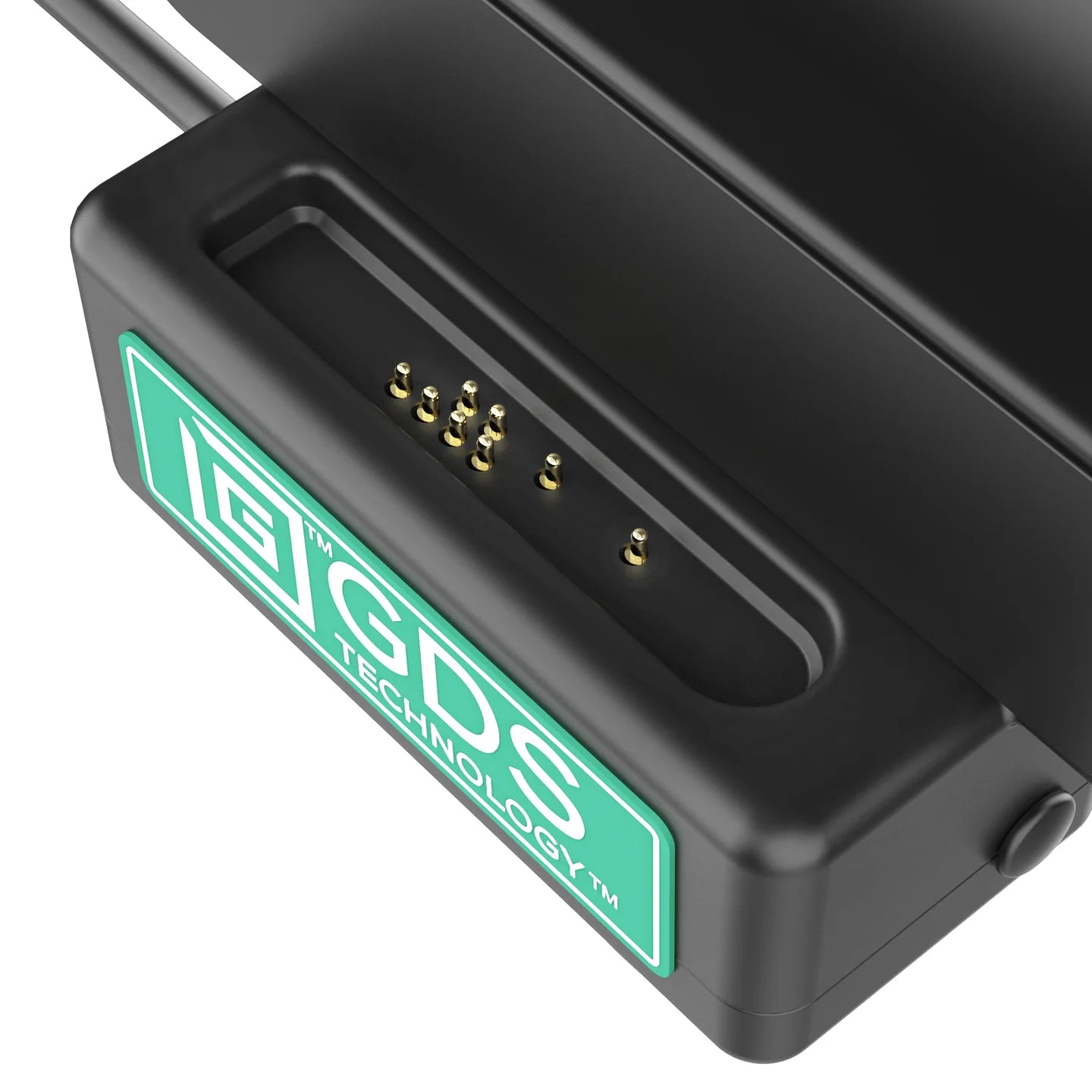

• Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging

• Designed specifically for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve

• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock

• RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand

• Backed by a 3-year warranty

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 3A

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C

WARRANTY
3 year warranty

WEIGHT
1.41 lb

ADDITIONAL INFORMATION
This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
